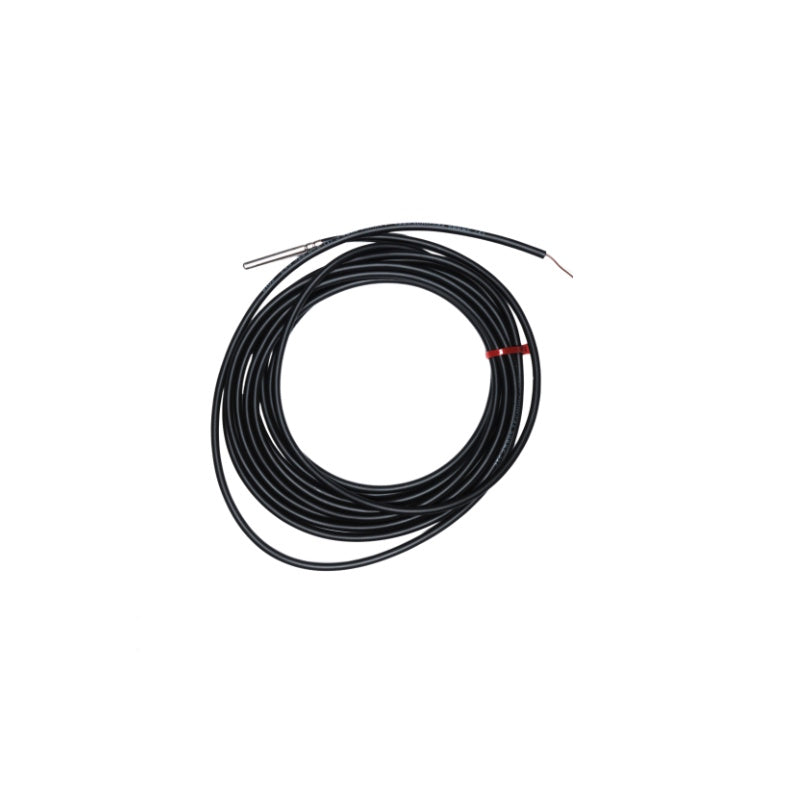

Panasonic Aquarea Tank Sensor with 20m Cable PAW-TS2

Description

The Panasonic PAW-TS2 is the genuine DHW tank temperature sensor for the Aquarea range, fitted with a 20 metre cable to reach longer runs between the cylinder and the indoor hydromodule. It's supplied as standard with every genuine Panasonic hot water cylinder — this standalone listing is for pairing an Aquarea heat pump with a third-party DHW tank, where the sensor needs to be sourced and fitted separately.

20 m

Cable length

Copper

Sensor pocket material

Third-Party Tank

Typical use

1

Required per cylinder

L Generation

Hydro Split range

Genuine

Panasonic part

Factory-fitted on genuine Panasonic tanks

If you're pairing your Aquarea heat pump with a genuine Panasonic stainless steel or enamelled cylinder, a tank sensor is already factory-supplied with the tank — you don't need to order this separately. This listing is for third-party cylinder installations only.

Choose the right cable length for your install

The PAW-TS2's 20 metre cable suits longer routing distances between the cylinder and the indoor hydromodule. For shorter runs, Panasonic also offer the PAW-TS1 with a 6 metre cable — check your installation layout before ordering to avoid unnecessary cable slack or an underlength run.

Key features

20 metre cable reach

Long cable length covers routing distances between the cylinder location and the indoor hydromodule without needing a cable extension or relocation of either component.

Copper sensor pocket

Inserts into a standard cylinder sensor pocket for accurate stem temperature reading — the preferred method for DHW sensing over strap-on alternatives.

Required for third-party tank installs

Wherever an Aquarea heat pump is paired with a non-Panasonic cylinder, this sensor (or the shorter PAW-TS1) is a required accessory — without it, the system has no way to read tank temperature for DHW heat-up cycles.

Direct hydromodule connection

Wires directly into the Aquarea indoor unit's dedicated tank sensor input — no additional interface or configuration hardware needed.

Genuine Panasonic component

Matched to the exact resistance and temperature characteristics expected by the Aquarea control logic — generic substitutes risk inaccurate readings and disrupted DHW or Anti-Legionella cycling.

Compatible across the Aquarea range

Used across Panasonic's monobloc, bi-bloc and hydro split L Generation systems wherever a third-party cylinder is specified.

Technical specification

Model code	PAW-TS2
Function	DHW tank temperature sensor for third-party cylinders
Cable length	20 metres
Sensor type	Copper sensor pocket probe
Quantity required	1 per cylinder
Compatible range	Panasonic Aquarea — monobloc, bi-bloc and Hydro Split L Generation systems
Related accessory	PAW-TS1 — same function, shorter 6 metre cable
Typical use case	Pairing an Aquarea heat pump with a third-party (non-Panasonic) DHW cylinder

What's in the box

• 1 × Panasonic PAW-TS2 tank sensor with 20 metre cable
• Copper sensor pocket probe

Related accessories (sold separately)

• PAW-TS1 tank sensor — same function with a shorter 6 metre cable, for closer cylinder-to-hydromodule runs
• PAW-3WYVLV-HW 3-port diverter valve — required on hot-water-priority systems
• CZ-NV2 internal 3-way valve kit — alternative to PAW-3WYVLV-HW for L Generation hydrokits

Frequently Asked Questions

Do I need this sensor if I'm using a genuine Panasonic cylinder?

No — a tank sensor is factory supplied with every genuine Panasonic DHW cylinder. This standalone PAW-TS2 listing is specifically for pairing the heat pump with a third-party cylinder, where no sensor is included.

Should I choose the PAW-TS2 or the PAW-TS1?

Both do the same job — the only difference is cable length. Choose the PAW-TS2 (20 m) for longer cylinder-to-hydromodule runs, or the PAW-TS1 (6 m) where the cylinder sits close to the indoor unit. Avoid extending or shortening the cable yourself — pick the length that suits your installation layout.

Where does the sensor fit on the cylinder?

Into a standard sensor pocket on the third-party cylinder, at the position specified in Panasonic's hydraulic guide for your system configuration — typically the lower-to-middle section of the tank for accurate heat pump reheat sensing.

Can I use a generic temperature sensor instead?

It isn't recommended. The Aquarea control logic expects the specific resistance and temperature characteristics of the genuine Panasonic sensor. A generic substitute risks inaccurate tank temperature readings and disrupted DHW or Anti-Legionella cycling.

Is this sensor compatible with the Hydro Split L Generation range?

Yes — the PAW-TS2 is used across Panasonic's monobloc, bi-bloc and Hydro Split L Generation systems wherever a third-party cylinder is part of the system design.

How many sensors do I need?

One PAW-TS2 (or PAW-TS1) per third-party cylinder. If your system design includes a separate buffer tank, that typically uses a different sensor accessory — check your hydraulic schematic for the full accessory list.
