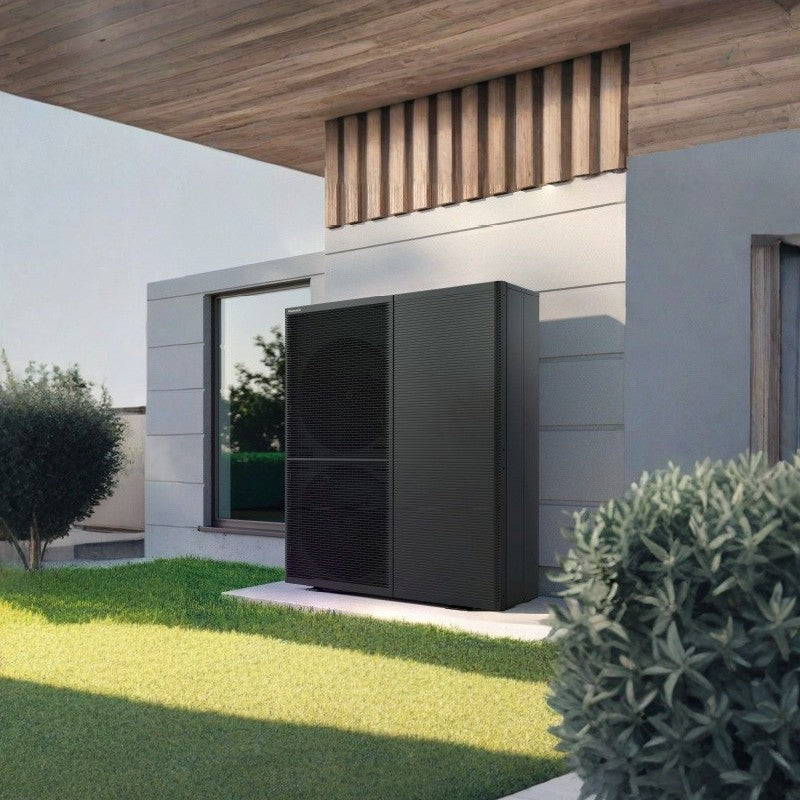

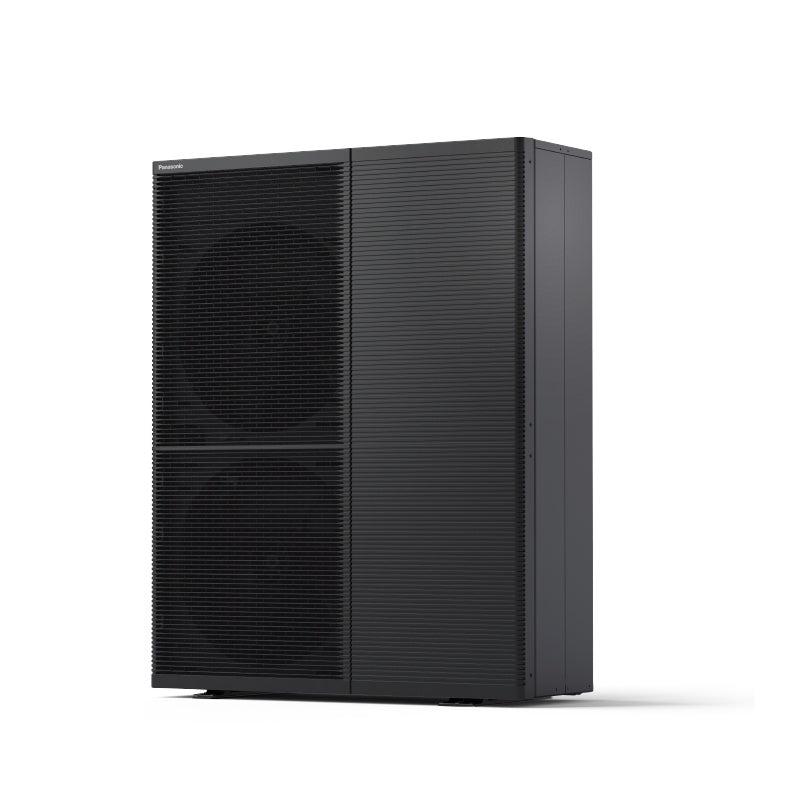

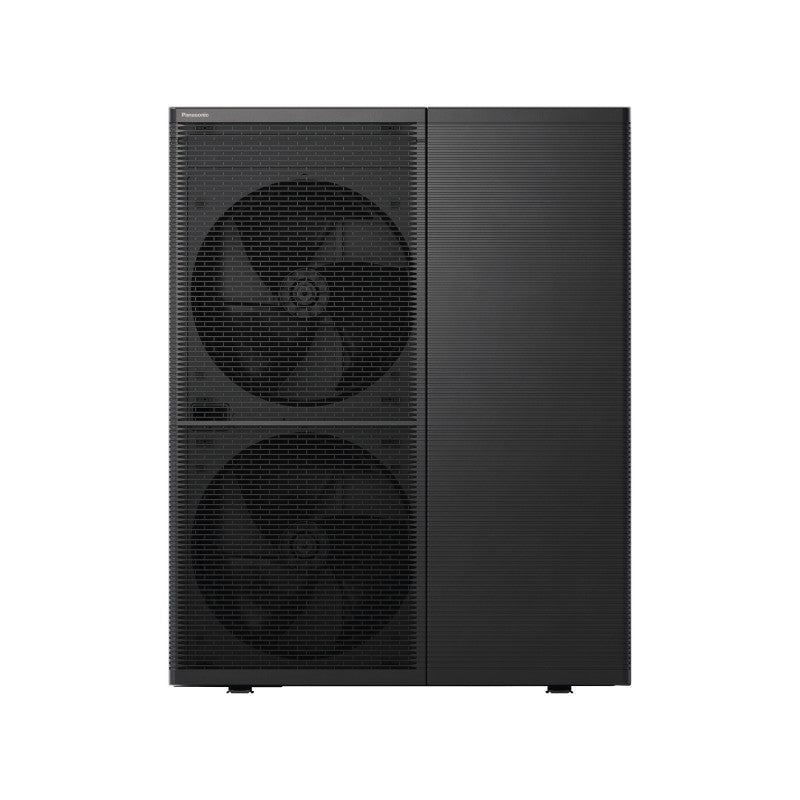

The Panasonic Aquarea M Series T-CAP R290 is Panasonic's next-generation natural refrigerant monobloc, combining propane (R290, GWP 3) with T-CAP cold-climate technology that holds full rated output down to an exceptional -20°C ambient. Available in 9 kW and 12 kW single-phase, and 16 kW three-phase. This listing covers the standalone outdoor unit; the M Series platform is modular, so pair it with the indoor configuration — Standalone Remote Controller, Control Module, Hydro Box, or All-in-One — that matches your system design (see our separate M Series control listings).
Full Output at -20°C
T-CAP guarantee
1 or 3-Phase
Electrical supply
BUS grant eligible
Panasonic Aquarea monobloc heat pumps are eligible for the UK Boiler Upgrade Scheme grant when installed by an MCS-certified installer in an eligible property.
MCS-certified installer required
To claim the BUS grant and validate full Panasonic manufacturer warranty, this heat pump must be installed and commissioned by an MCS-certified heat pump installer.
Choose your capacity
| Nameplate output |
Electrical supply |
Delivered capacity (A-20°C / W45°C) |
Model code |
Typical property fit |
| 9 kW |
1-phase |
9 kW |
WH-WXG09ME5 |
3 to 4 bedroom homes needing reliable cold-weather output |
| 12 kW |
1-phase |
12 kW |
WH-WXG12ME5 |
Larger 4 to 5 bedroom homes |
| 16 kW |
3-phase |
16 kW |
WH-WXG16ME8 |
Very large detached / light commercial, 3-phase supply properties |
Modular by design
The M Series outdoor unit connects hydraulically only — refrigerant stays inside the outdoor unit, eliminating the need for F-Gas certification on the indoor connection. Choose your indoor configuration independently: a basic Standalone Remote Controller, an enhanced Control Module for two-zone/buffer/bivalent setups, a Hydro Box for your own choice of DHW cylinder, or an All-in-One with integrated 185L cylinder. See our matching M Series control and indoor unit listings.
Key features
T-CAP — full capacity to -20°C
Delivers rated nameplate output at -20°C ambient — among the strongest cold-climate guarantees in the Aquarea range, and continues operating down to -28°C.
R290 refrigerant — GWP 3
Propane refrigerant with a GWP of just 3 — close to one-thousand times lower than legacy split heat pump refrigerants, and the most future-proof choice ahead of tightening UK F-Gas regulation.
Flow temperatures up to 75°C
Reaches 75°C at -15°C outdoor — exceptional for radiator-only retrofits where existing emitters need to stay in place.
Built-in flow meter and magnetic filter
Integrated flow meter and magnetic water filter reduce on-site component sourcing and simplify commissioning.
Modular indoor architecture
Four indoor configurations from the same outdoor unit — pick the hydraulic and DHW approach that fits the property, not the other way round.
Wi-Fi built in
Includes a built-in Wi-Fi adapter for Aquarea Smart Cloud and Aquarea Service Cloud — no separate network adaptor accessory required.
Platform specification (all variants)
| Range |
Panasonic Aquarea M Series T-CAP |
| Type |
R290 monobloc air source heat pump with T-CAP cold-climate technology |
| Available nameplate capacities |
9 kW / 12 kW / 16 kW |
| Model codes |
WH-WXG09ME5 (1-phase) / WH-WXG12ME5 (1-phase) / WH-WXG16ME8 (3-phase) |
| Refrigerant |
R290 (propane, GWP 3, sealed factory charge) |
| T-CAP rated condition |
Full nameplate capacity delivered at A-20°C / W45°C |
| Continued operation |
Down to -28°C ambient |
| Maximum flow temperature |
75°C at -15°C outdoor |
| Electrical supply |
1-phase (9/12 kW) or 3-phase (16 kW) |
| Architecture |
Hydraulic connection only — refrigerant contained in outdoor unit |
| Compatible indoor configurations |
Standalone Remote Controller / Control Module / Hydro Box / All-in-One (185L) |
| Connectivity |
Wi-Fi built in — Aquarea Smart Cloud and Service Cloud |
| Certifications |
MCS certified, BUS grant eligible |
What's in the box
- Panasonic Aquarea M Series T-CAP R290 outdoor unit (capacity per selected variant)
- Manufacturer installation and commissioning documentation
- Panasonic UK warranty registration documentation
What you'll also need (sold separately)
- Indoor configuration — Standalone Remote Controller / Control Module / Hydro Box / All-in-One (see our M Series indoor unit and control listings)
- Control Module matched to phase and capacity, if enhanced functions are needed (WH-CME5 for single-phase 9/12kW, WH-CME8 for three-phase 9–16kW)
- DHW cylinder if using the Hydro Box configuration
- Outdoor wall bracket or floor stand
- Magnetic system filter on the primary return (in addition to the outdoor unit's built-in filter)
Frequently Asked Questions
Which kW should I choose?
Choose the variant that matches your calculated heat loss at your local winter design temperature. As a rough guide: 9 kW for 3–4 bed homes; 12 kW for larger 4–5 bed homes; 16 kW for very large or light-commercial properties, or where a 3-phase supply exists. Because T-CAP holds full capacity to -20°C, you don't need to oversize for cold-weather margin.
What's the difference between this and the T-CAP Mono J Generation (R32)?
Both use T-CAP technology, but this M Series range uses R290 (GWP 3, full output to -20°C, up to 75°C flow) versus the J Generation's R32 (full output to -15°C, up to 60°C flow). M Series is the more future-proof and higher-flow-temperature choice; J Generation T-CAP remains a well-proven, widely-supported R32 option.
Does this include an indoor unit or cylinder?
No — this listing is the outdoor unit only. The M Series platform is modular: choose your indoor configuration (Standalone Remote Controller, Control Module, Hydro Box, or All-in-One with 185L cylinder) separately based on your system design.
Can I choose 1-phase or 3-phase?
The 9 kW and 12 kW variants are 1-phase only. The 16 kW variant is 3-phase only — check your property's electrical supply before ordering.
Is R290 safe for a domestic installation?
Yes. R290 is widely used across Europe in domestic heat pumps and refrigeration. The refrigerant is sealed inside the outdoor unit; indoor configurations connect hydraulically only. UK installation rules govern minimum outdoor siting clearances; a competent designer will ensure these are met.
Do I need to be MCS-registered to install this?
The system can be installed by any competent engineer, but the Boiler Upgrade Scheme grant requires an MCS-certified installer. Quality Heating can introduce you to trade partners if needed.
