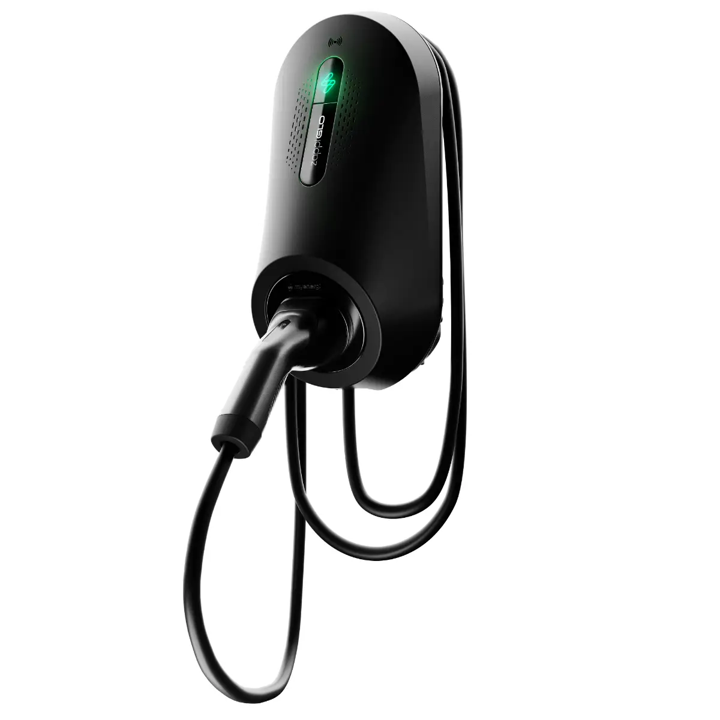

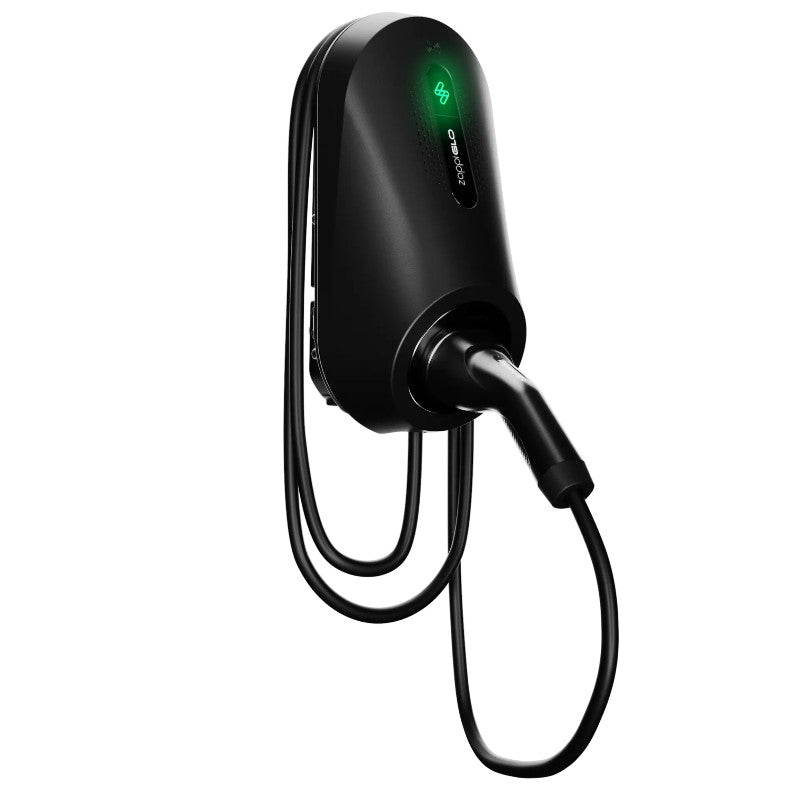

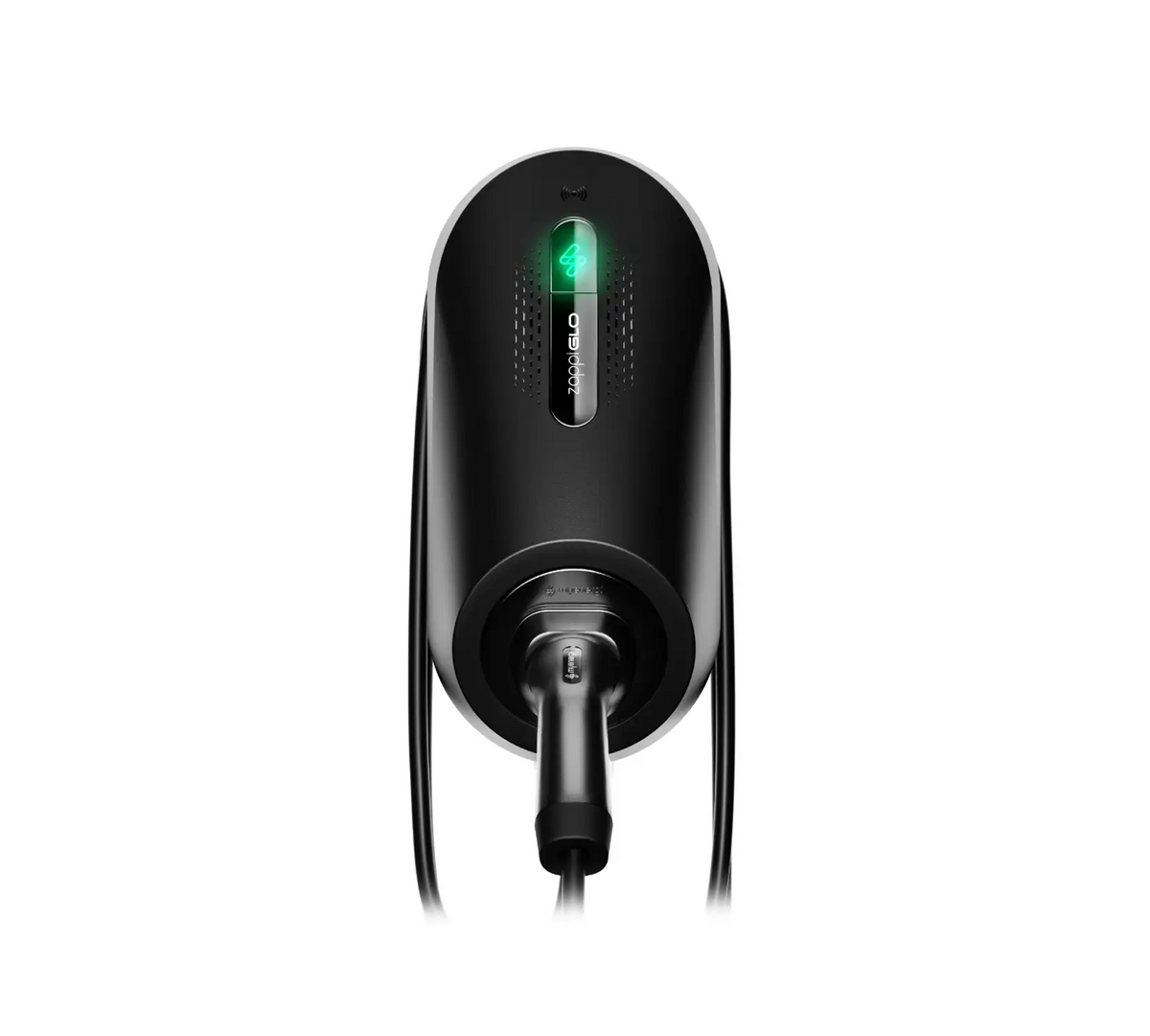

The myenergi Zappi GLO (ZAPPI-3AS07T-G) is a British-engineered 7kW single-phase EV charger with a fully screenless, app-controlled design. Supplied with a 6.5m tethered Type 2 cable, it delivers variable charging current from 6A to 32A and is built to integrate directly with solar panels and home battery storage for genuine solar-led charging.
Every setting — from charging schedules to solar-diversion modes — is managed through the myenergi app, while installers benefit from the Installer Assistant app for guided, step-by-step commissioning. Housed in a rugged IP65-rated, IK10 impact-resistant polycarbonate enclosure, the Zappi GLO is rated for permanent indoor or outdoor mounting.
Qualified Installation Required: This EV charger must be installed by a qualified electrician in accordance with BS 7671 wiring regulations. The Zappi GLO's PEN fault protection is integrated on -G model variants only, which is a mandatory safety requirement for TT and TN-C-S (PME) earthing arrangements common in UK domestic installations.
OCPP Note: OCPP 1.6J support is provided via the myenergi backend only and is not available for offline or local-network use. If your project requires standalone OCPP connectivity independent of the myenergi cloud, please confirm compatibility with your fleet or CPMS provider before ordering.
Solar & Battery Integration
Communicates directly with
solar PV systems and battery storage to prioritise self-generated energy for charging, cutting reliance on grid electricity.
Screenless App Control
All configuration is handled through the
myenergi app, giving a clean, minimalist charger face with full functionality moved to your phone.
RFID Tap-to-Charge
Built-in
13.56MHz RFID card reader supports up to
126 unique users, ideal for shared driveways, fleets, or multi-occupancy sites.
Rapid Commissioning
The
Installer Assistant app walks installers through setup, configuring grid parameters and customer settings in minutes.
Built-In DC Fault Protection
Integrated
6mA DC residual current protection (RDC-DD, to EN 62955) removes the need for a Type B RCD in many installations.
Weatherproof & Impact-Resistant
IP65 and IK10-rated polycarbonate enclosure withstands outdoor exposure and physical knocks, rated from
-25°C to +40°C.
Technical Specifications
Model Numbers
ZAPPI-3AS07T-G (tethered), ZAPPI-3AS07U-G (untethered variant)
Rated Supply Voltage
230V AC ±10%, 50Hz, single phase
Charging Current
6A to 32A, variable (32A max rated current)
Charging Mode
Mode 3 (IEC 61851-1 compliant communication protocol)
Connector Type
Type 2 (EN 62196-1/-2) tethered cable, 6.5m
Dynamic Load Balancing
Optional; regulates current drawn from the grid/supply to prevent overload
Metering Accuracy
Class B (1%) to EN 50470 — Load: 0.25A–5(32)A; External CTs: 0.25A–5(100)A
Grid Current Sensor
100A max. primary current, 16mm max. cable diameter; supports up to 2x external CTs
Standby Power Consumption
3W
Integral Protection
6mA DC residual current protection (RDC-DD to EN 62955)
PEN Fault Protection
Integrated on -G models (compliant with BS 7671)
WiFi Connectivity
2.4GHz 802.11 b/g/n, up to 150 Mbps
Bluetooth Connectivity
Bluetooth Low Energy (BLE) v4.2
Wireless Interface (Radio)
868MHz proprietary protocol
RFID / NFC
13.56MHz ISO/IEC 14443 (Mifare Classic) card reader; supports up to 126 users; card supplied
OCPP Support
OCPP 1.6J via myenergi backend (not available offline/local)
Supply Cable Size
Up to 6mm² flexible, up to 10mm² solid
Supply Termination
Screw terminal
Cable Entry
Supports up to 25mm diameter entries

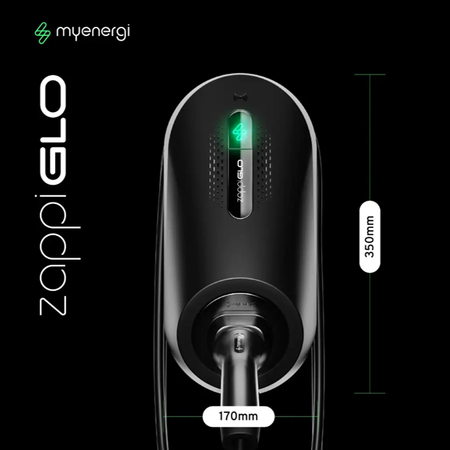

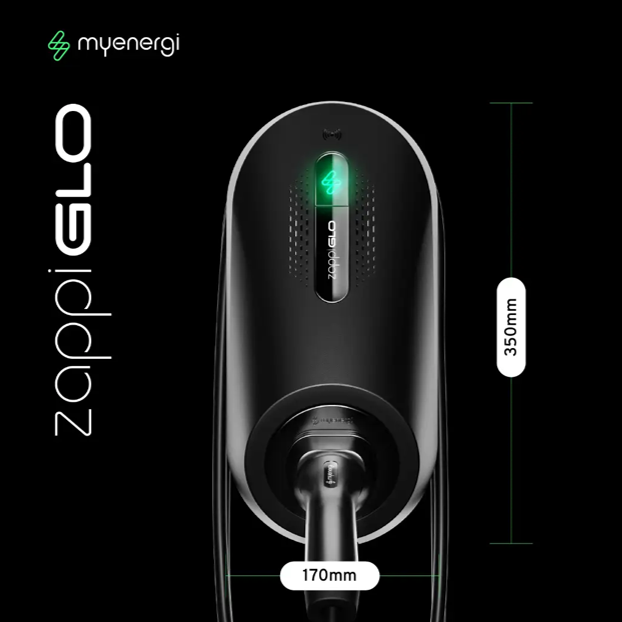

Enclosure Dimensions (H x W x D)
350mm x 170mm x 160mm
Weight
4.1kg (tethered model)
Enclosure Material
Polycarbonate
Operating Temperature
-25°C to +40°C (current derates above 50°C ambient)
Tamper Detection
Microswitch
Mounting Location
Indoor or outdoor, permanent mounting
Compliance
EN IEC 61851-1, IEC 62196-2, EN IEC 61851-21, EN 300 220-2, EN 300 328, EN 301 489-1/-3/-17, BS EN 62311, EN IEC 63000
A separate untethered variant (ZAPPI-3AS07U-G) is available at 3.1kg, allowing the customer to fit their own compatible Type 2 charging cable.
Frequently Asked Questions
Does the Zappi GLO have a screen or display?
No. The Zappi GLO uses a fully screenless design, with all charging settings, schedules, and diagnostics managed through the myenergi app on your smartphone.
Can this charger work with my solar panels?
Yes. The Zappi GLO is built for solar and battery integration, allowing it to prioritise self-generated renewable energy for vehicle charging ahead of grid electricity, when paired with the appropriate CT clamps and myenergi ecosystem devices (e.g. Harvi or eddi).
Is this charger suitable for outdoor installation?
Yes. The unit carries an IP65 weatherproof rating and IK10 impact resistance, and is rated for permanent indoor or outdoor mounting across an operating range of -25°C to +40°C.
Does it include RFID access control?
Yes. A 13.56MHz RFID card reader is built in, supporting up to 126 unique users via tap-to-charge cards or fobs — useful for shared driveways or multi-user sites.
Do I need an additional RCD for installation?
The Zappi GLO includes integral 6mA DC residual current protection (RDC-DD to EN 62955). Whether an additional upstream RCD is required still depends on your specific installation and earthing arrangement — always confirm final protective device selection with a qualified electrician in line with BS 7671.
What's the difference between the tethered and untethered GLO models?
The ZAPPI-3AS07T-G (this listing) includes a built-in 6.5m Type 2 tethered cable and weighs 4.1kg. The ZAPPI-3AS07U-G untethered variant has a Type 2 socket with locking system instead, weighing 3.1kg, letting you use your own compatible charging cable.
