MyEnergi Zappi 2.1 Multiphase Tethered EV Charger - 7kW/22kW White

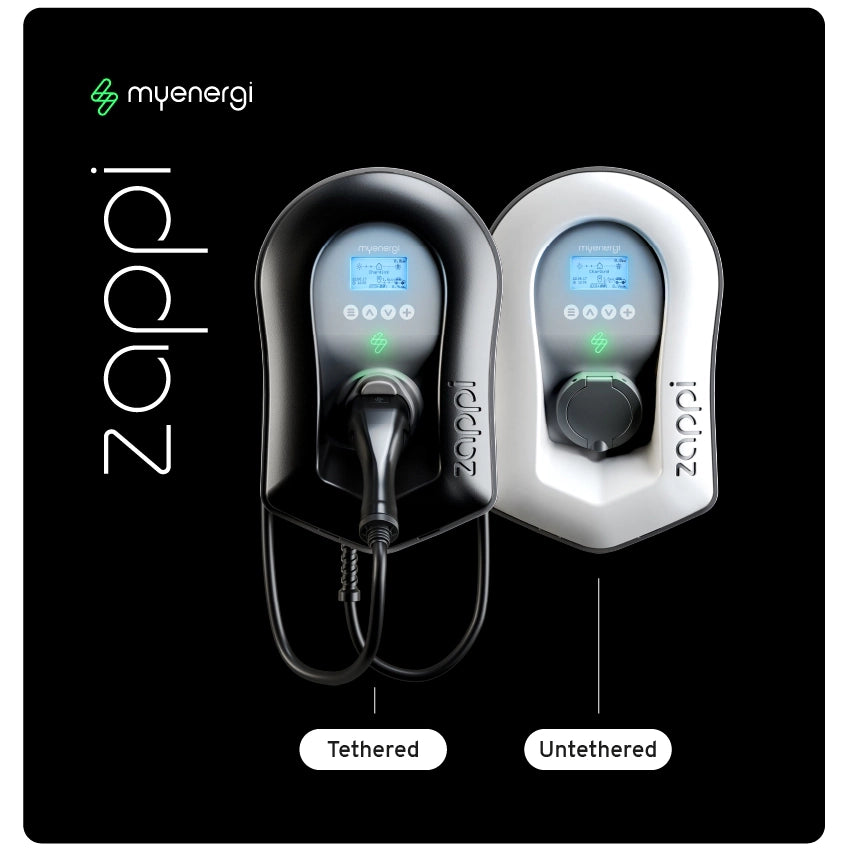

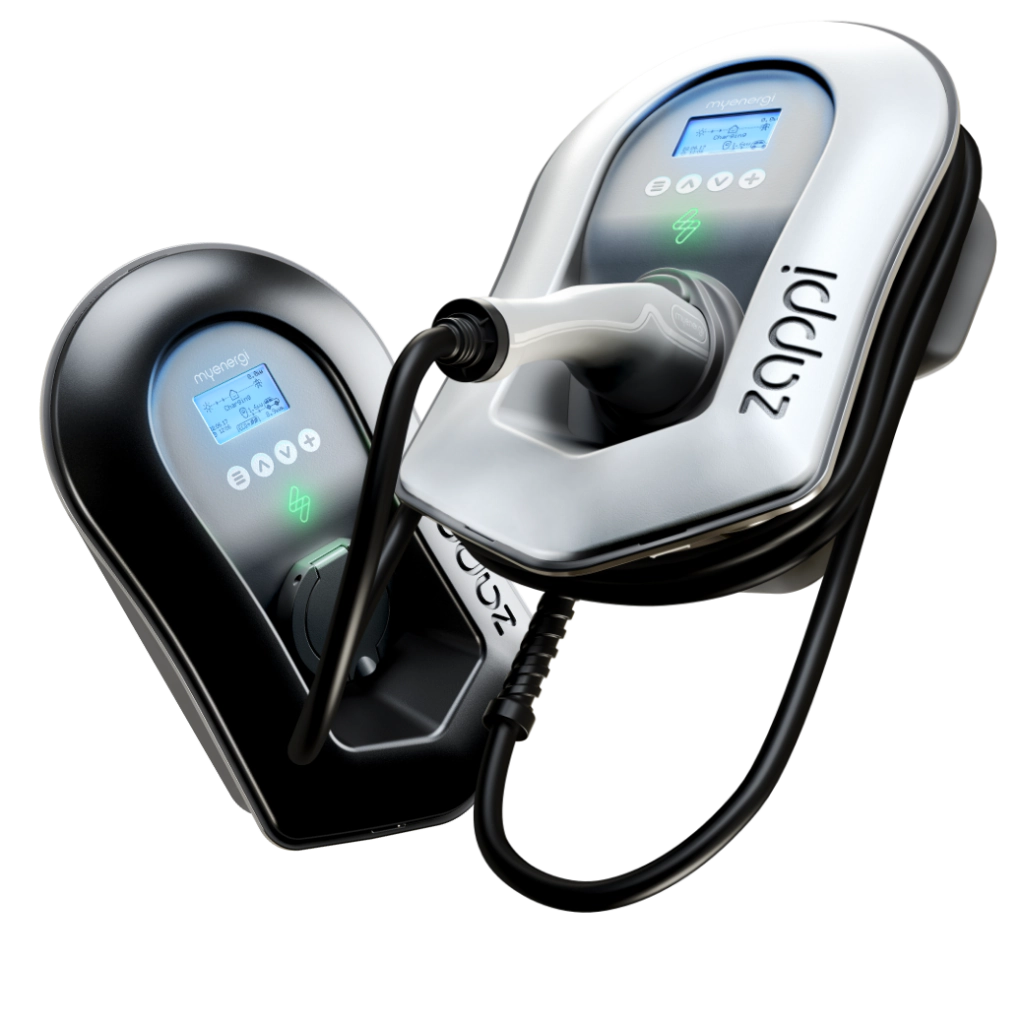

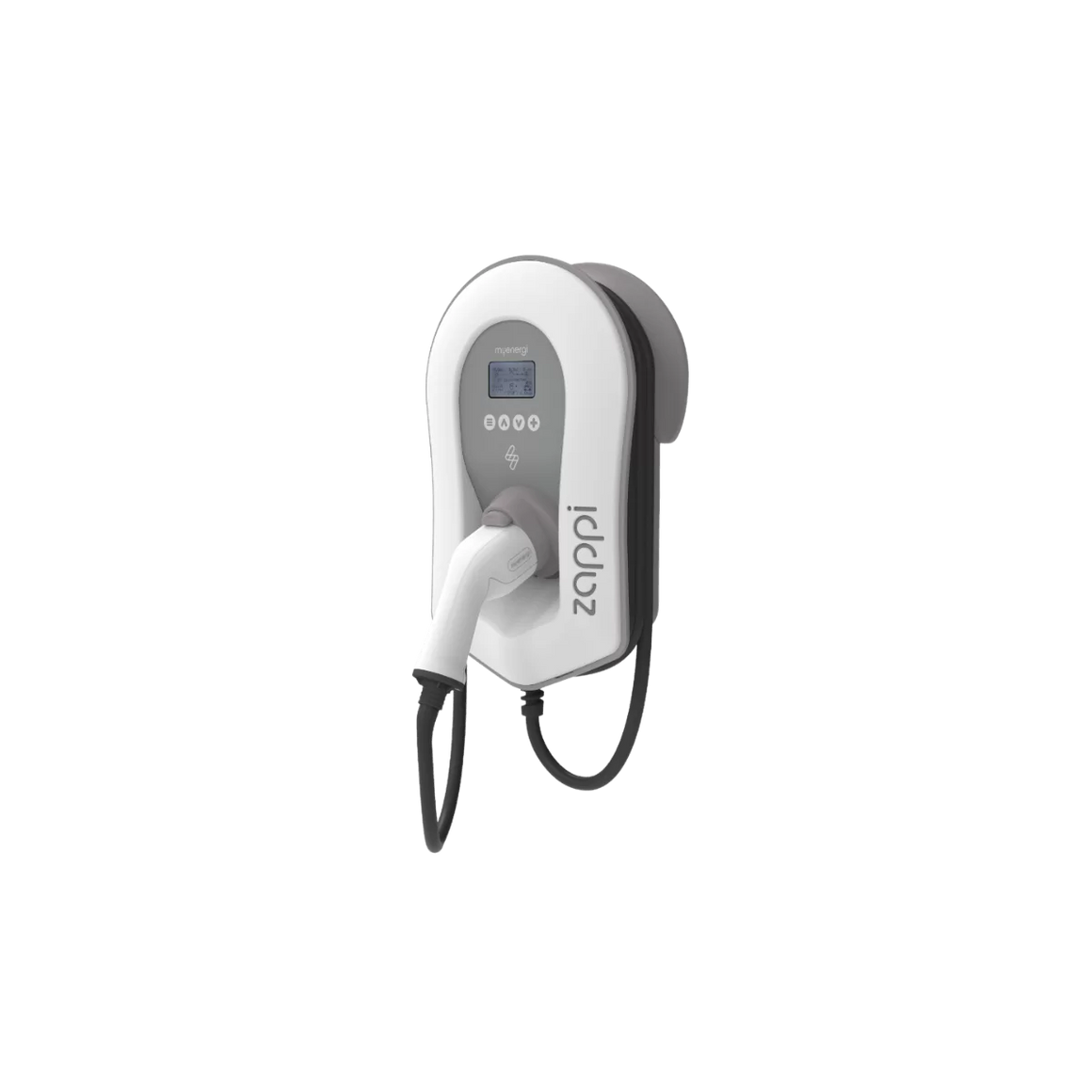

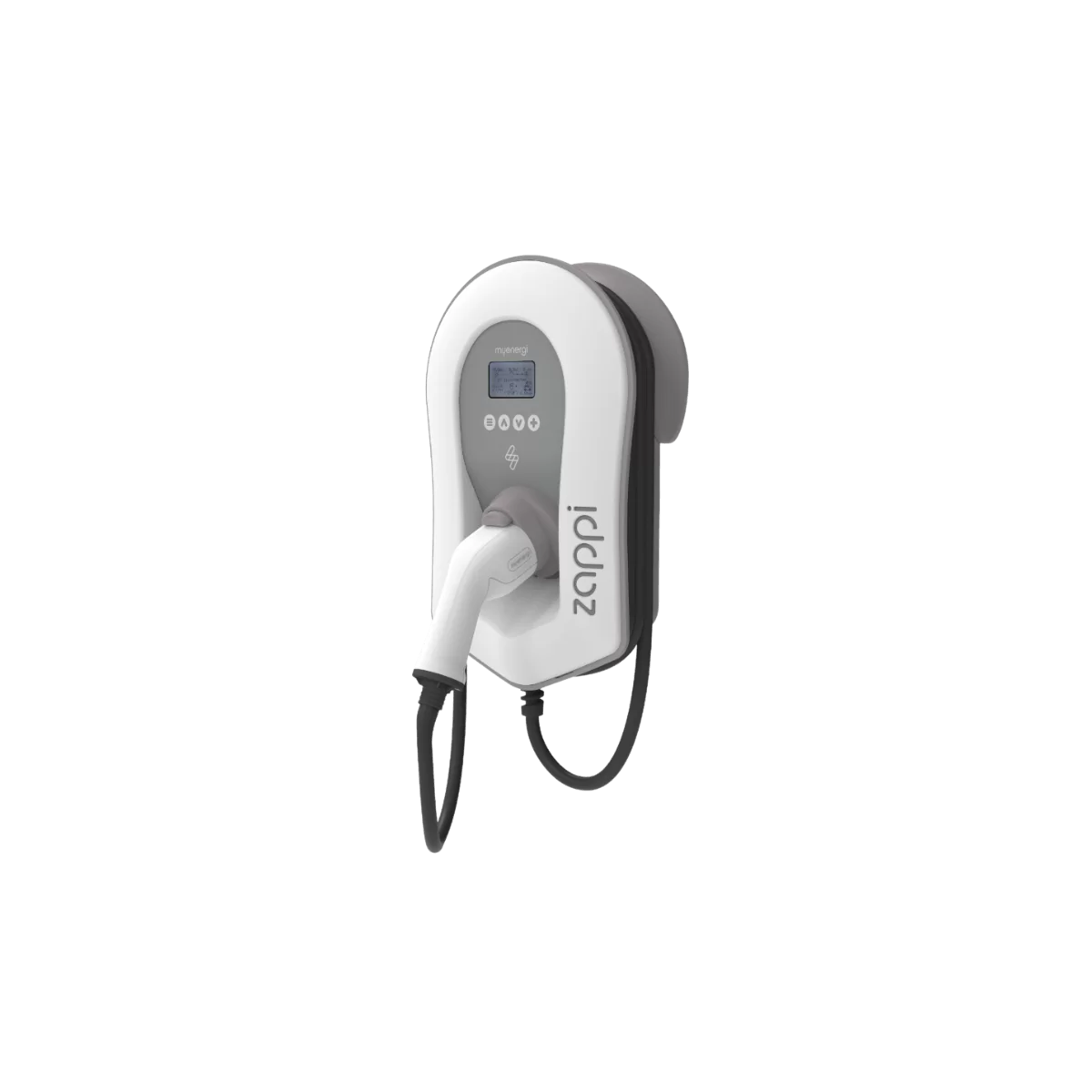

myenergi ZAPPI-2H22TW-G 7kW / 22kW Multiphase EV Charger – Type 2 Tethered, White is an eco-smart EV charge point designed to work like a standard Mode 3 charger or as part of a solar / wind system, automatically using surplus self-generated energy where available. This model is the white, Type 2 tethered variant with a 6.5m cable, suitable for single-phase (up to 7kW) and three-phase (up to 22kW) installations.

ZAPPI-2H22TW-G Key Features

• Multiphase 7kW / 22kW output – up to 7kW on 230V single phase or 22kW on 400V three phase, 32A max, supporting a wide range of domestic and light-commercial supplies.
• Type 2 tethered cable – integrated 6.5m Type 2 tethered lead for convenient plug‑in charging without needing a separate cable.
• Three eco-smart charging modes – FAST, ECO and ECO+ modes allow you to choose between normal charging, mixed grid + solar and surplus‑only charging from microgeneration.
• Solar and wind compatible – designed to work with PV, wind or other microgeneration systems, maximising self-consumption and reducing grid imports.
• Dynamic load balancing – optional setting to limit current drawn from the property supply or grid, helping prevent main fuse overloads.
• Built-in PEN fault protection – no earth rod required in most UK installations, simplifying design and reducing install cost.
• Integrated 6mA DC residual current detection – RDC-DD in accordance with EN 62955, allowing use with Type A RCDs upstream.

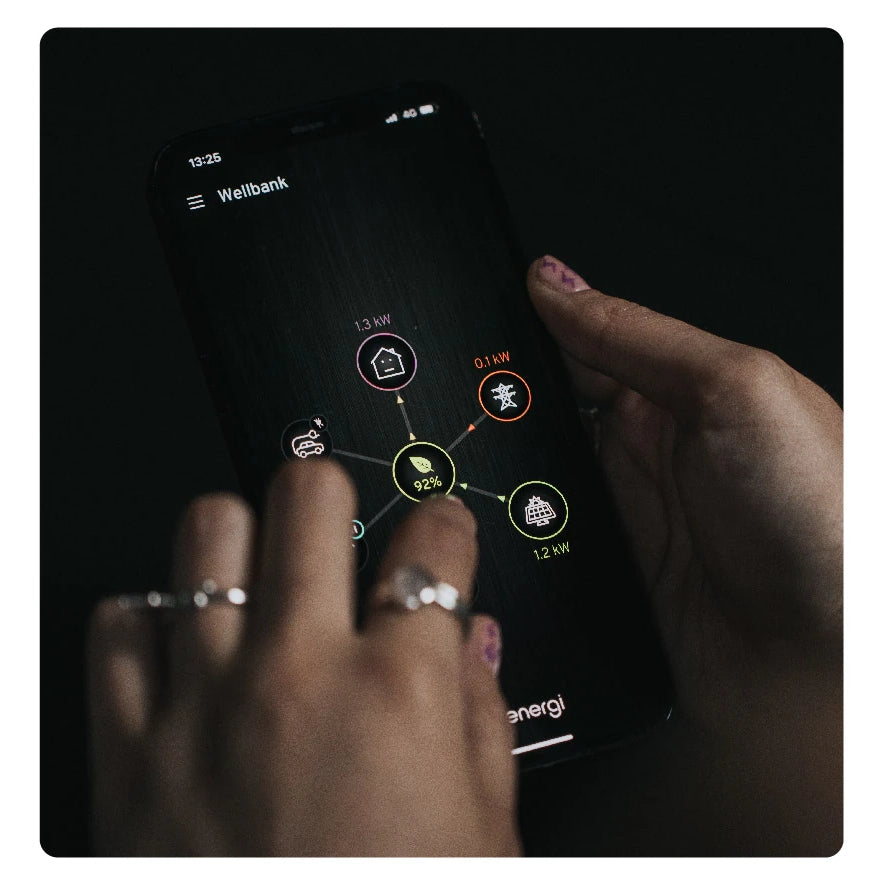

• Smart connectivity – Wi‑Fi and Ethernet built in, with myenergi app support for remote monitoring, scheduling and event logging.
• Rugged IP65 / IK10 enclosure – impact‑resistant case suitable for indoor or outdoor permanent mounting on a wall or pedestal.
• Backlit LCD and LED logo – graphical display plus multicolour LED bolt logo indicating charge status and current flow.

Why Choose myenergi ZAPPI-2H22TW-G?

• Optimised for self-consumption – ECO and ECO+ modes automatically track surplus solar or wind generation, diverting it into the EV instead of exporting to the grid.
• Flexible single or three-phase use – can be installed on a single-phase supply today and later upgraded to three-phase (where available) without changing the charger.
• Installer-friendly and UK-focused – built‑in PEN protection, integrated DC protection and dynamic load management simplify compliance with UK wiring regulations.
• Smart tariff ready – timer functions, economy-tariff sense input and app scheduling help align charging with cheap-rate EV tariffs.
• Attractive, compact design – modern white enclosure with small footprint that suits most driveways and workplace parking areas.

Technical Highlights

• Model: ZAPPI-2H22TW-G (zappi V2.1, white, tethered Type 2, multiphase).
• Rated power: 7kW (single phase) or 22kW (three phase).
• Rated supply voltage: 230V AC single phase or 400V AC three phase (±10%), 50Hz.
• Rated current: 6–32A adjustable, 32A max.
• Charging mode / type: Mode 3, Type 2 tethered cable (6.5m).
• Protection: integrated 6mA DC RDC-DD, PEN fault protection, overload and fault current protection when correctly installed.
• Ingress / impact rating: IP65 enclosure, IK10 mechanical impact resistance.

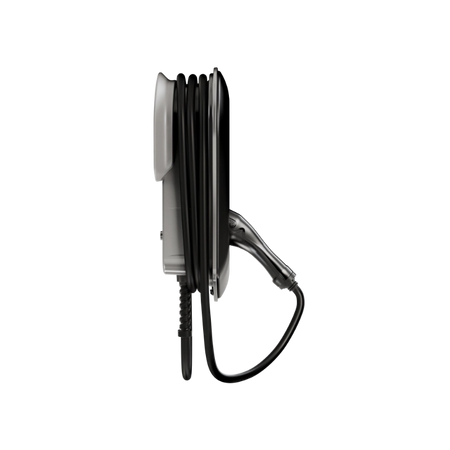

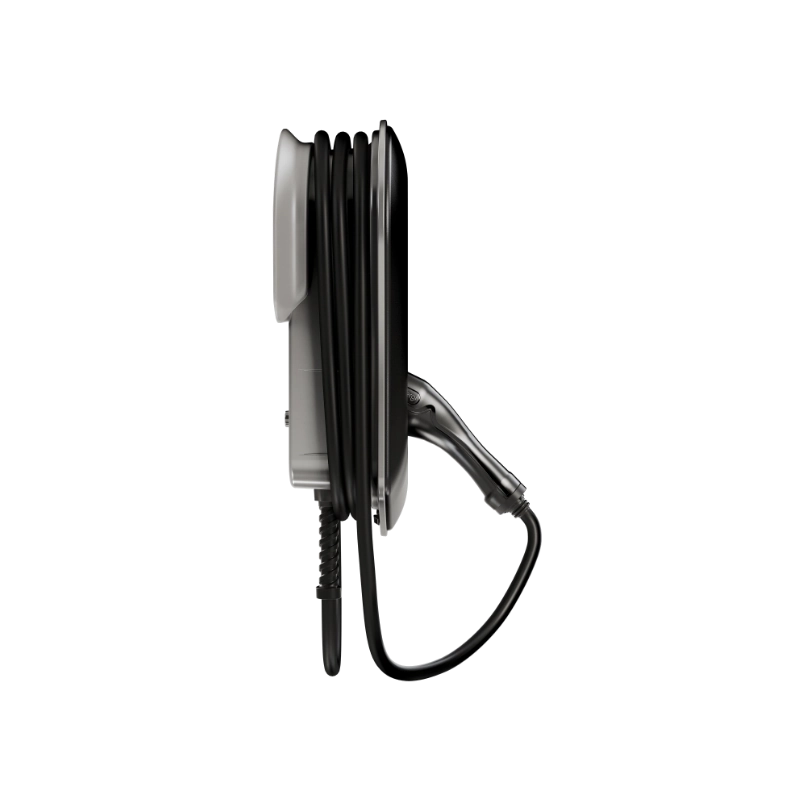

• Mounting: wall or pedestal (pedestal available separately); indoor or outdoor permanent mounting.
• Dimensions (approx.): 439 mm (H) x 282 mm (W) x 122 mm (D); weight around 7.2 kg.

Important Installation Information

• Installation and commissioning must be carried out by a qualified electrician in accordance with myenergi installation manual, BS 7671 and relevant UK regulations.
• Current limits, dynamic load management and CT sensors must be configured correctly to protect the property’s main supply.
• For solar / wind integration, ensure CT clamps and any required myenergi accessories (e.g. additional CTs or harvi) are installed as per the datasheet and wiring diagrams.
