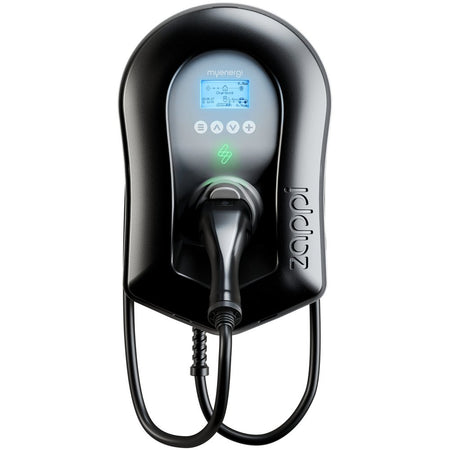

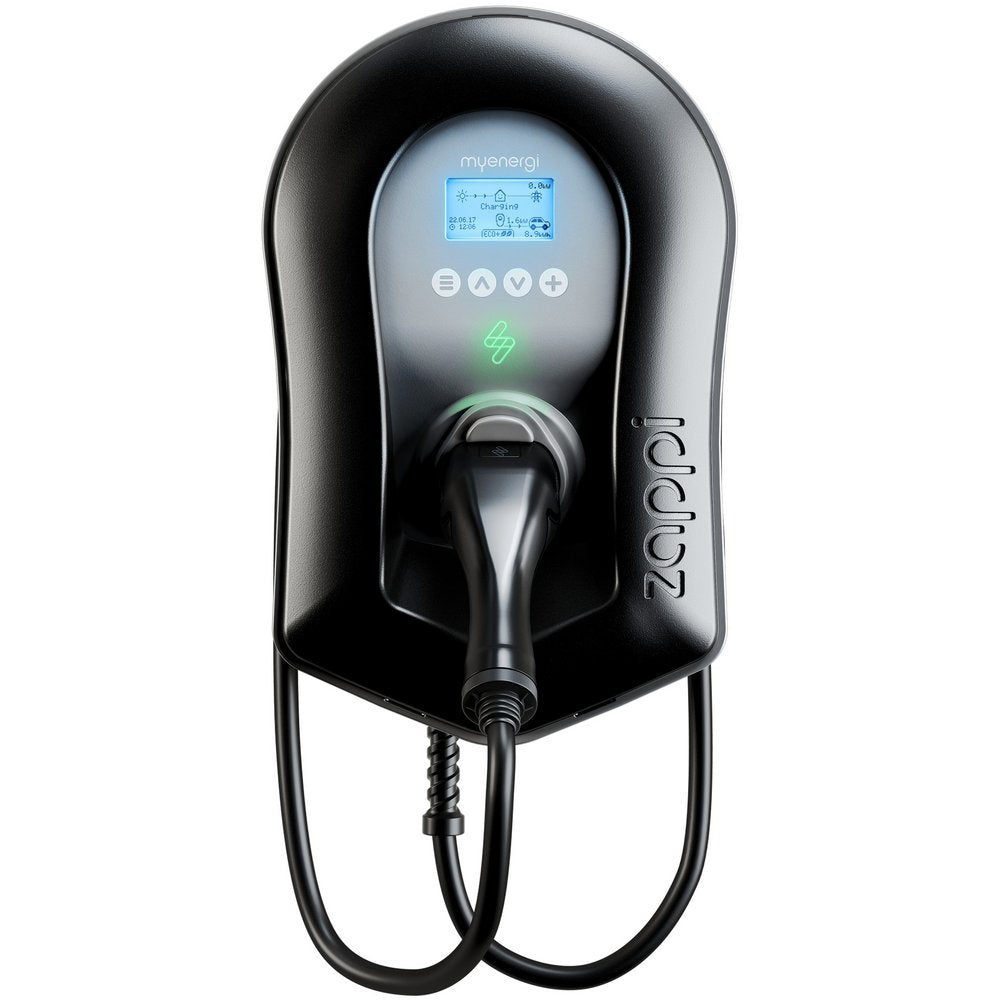

MyEnergi Zappi 2.1 Multiphase Tethered EV Charger - 7kW/22kW Black

myenergi ZAPPI-2H22TB-G 7kW / 22kW Multiphase EV Charger – Type 2 Tethered, Black is an eco-smart EV charge point that can operate as a standard fast charger or intelligently use surplus solar and wind energy. This V2.1 model is the black, Type 2 tethered variant with a 6.5m cable, suitable for both single-phase (up to 7kW) and three-phase (up to 22kW) installations.

ZAPPI-2H22TB-G Key Features

• 7kW / 22kW multiphase output – up to 7kW on 230V single phase or 22kW on 400V three phase, 32A max, ideal for domestic and light-commercial supplies.
• Type 2 tethered cable – integrated 6.5m Type 2 tethered lead with holster for quick, tidy plug‑in charging.
• Eco‑smart charging modes – FAST, ECO and ECO+ modes let you choose between normal charging, grid + solar mix or surplus‑only charging from PV/wind.
• Solar and wind ready – works with CT clamps and myenergi accessories to prioritise self‑consumption of renewable generation.
• Dynamic load balancing – monitors and manages current draw to protect the property’s main fuse and avoid overloads.
• Built‑in PEN fault protection – PME protection removes the need for an earth rod in most UK installations.
• Integrated 6mA DC protection – DC leakage detection (RDC‑DD) compliant with EN 62955, so an upstream Type A RCD can be used.
• Smart connectivity – built‑in Wi‑Fi and Ethernet for app control, monitoring, scheduling and firmware updates.
• OCPP 1.6J capable – selected versions support OCPP for integration with back‑office and fleet/CPMS platforms (check batch/version).
• Rugged IP65 / IK10 enclosure – impact‑resistant black housing for indoor or outdoor wall or pedestal mounting.

Why Choose myenergi ZAPPI-2H22TB-G?

• Solar‑optimised home charging – ECO and ECO+ modes automatically divert surplus PV or wind generation into the EV instead of exporting to the grid.
• Flexible single or three‑phase – suitable for today’s 7kW domestic supplies and for 22kW three‑phase commercial or future‑upgrade sites.
• Installer‑friendly UK design – integrated PEN protection, DC protection and dynamic load management simplify compliance with BS 7671.
• Smart‑tariff ready – app scheduling, timers and off‑peak charging support cheap‑rate EV tariffs and time‑of‑use optimisation.
• Discreet premium finish – compact, modern black enclosure that suits contemporary driveways and workplace parking.

Technical Highlights

• Model: ZAPPI-2H22TB-G (zappi V2.1, black, Type 2 tethered, multiphase).
• EAN‑13: 9502244843227.
• Rated power: 7kW single phase / 22kW three phase.
• Supply voltage: 230V AC (1P) or 400V AC (3P), 50Hz; max current 32A.
• Charging mode / type: Mode 3, Type 2 tethered cable (6.5m).
• Protection: integrated 6mA DC leakage detection, PEN fault protection, overload and fault current protection when correctly installed.
• Enclosure rating: IP65; mechanical impact rating IK10.
• Mounting: wall or pedestal (pedestal optional); indoor or outdoor permanent mounting.
• Dimensions / weight: approximately 439 mm (H) x 282 mm (W) x 122 mm (D); weight around 7–10 kg depending on configuration.

Important Installation Information

• Must be installed and commissioned by a suitably qualified electrician in accordance with the myenergi installation manual, BS 7671 and UK EV charging regulations.
• Current limits, CT clamps and dynamic load settings must be configured correctly to protect the supply and enable solar tracking where used.
• Ensure suitable positioning for Wi‑Fi/Ethernet signal and safe cable routing, and always follow the manufacturer’s wiring diagrams and earthing requirements.
