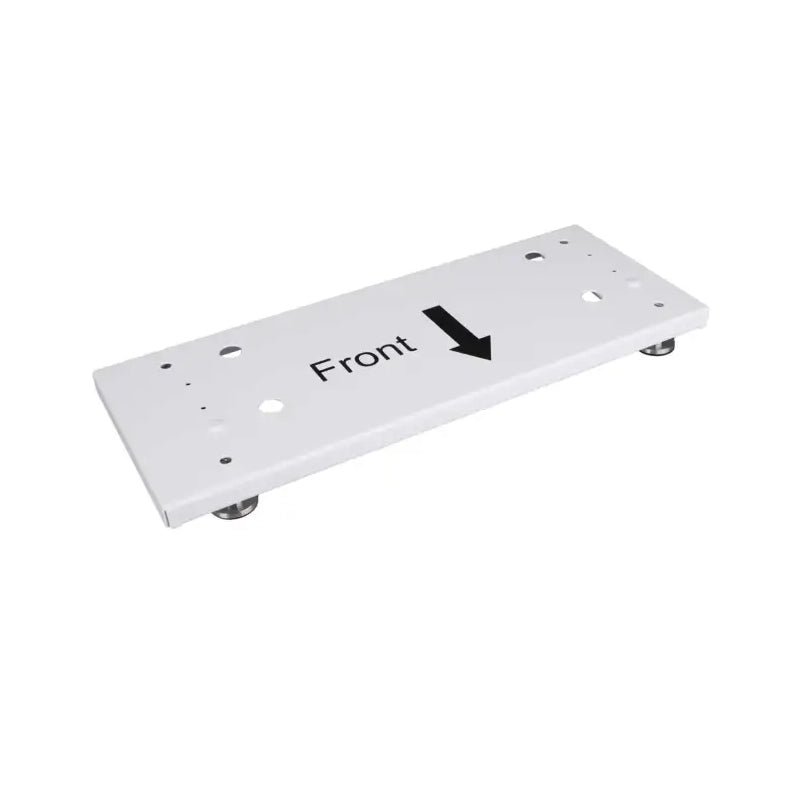

The myenergi libbi Feet Mount (MYEN-LIBBI-FS01) is an optional floor stand support designed to ensure a perfectly level base for a libbi battery stack. Made from high-grade steel with a corrosion-resistant coating and adjustable feet, it accommodates minor variations in floor levelness — critical for safe and compliant libbi installation. One unit supports one battery stack.
Adjustable Levelling Feet
High-Grade Steel
Corrosion-Resistant Coating
3-Year Warranty
ℹ️ Optional but Strongly Recommended
The libbi installation manual requires the battery stack to be installed on a perfectly level surface. If the floor is not verified as level, the LIBBI-FS01 floor stand — with its adjustable feet — provides a reliable solution without the need for shimming or rework. For 15kWh and 20kWh systems with two side-by-side stacks, two floor stand units are required.
Floor Stand Quantity Guide
| System Size |
Battery Stacks |
Floor Stands Required |
| 5kWh (1 battery) |
1 stack |
1 × MYEN-LIBBI-FS01 (optional) |
| 10kWh (2 batteries) |
1 stack |
1 × MYEN-LIBBI-FS01 (optional) |
| 15kWh (3 batteries) |
2 stacks |
2 × MYEN-LIBBI-FS01 recommended |
| 20kWh (4 batteries) |
2 stacks |
2 × MYEN-LIBBI-FS01 recommended |
Technical Specifications
| Specification |
Details |
| Part Number |
MYEN-LIBBI-FS01 |
| Manufacturer Part Code |
LIBBI-FS01 |
| Function |
Floor stand support to ensure level surface for libbi battery stack |
| Material |
High-grade steel |
| Finish |
Corrosion-resistant coating |
| Feet Type |
Adjustable — for levelling on uneven surfaces |
| Compatible Systems |
All libbi battery configurations (5–20kWh) |
| Units per Pack |
1 floor stand (order 2 for 15kWh and 20kWh systems) |
| Warranty |
3 years |
Frequently Asked Questions
Is the floor stand required for a libbi installation?
The floor stand is optional, but the libbi installation manual specifies that the battery must be installed on a level surface. If the installation floor is not perfectly level, the LIBBI-FS01 floor stand — with its adjustable feet — is the easiest solution. Without it, installers would need to use shim quick-align hinges or other levelling methods, which are more complex and time-consuming.
How many floor stands do I need for a 15kWh or 20kWh system?
Two floor stand units are required for 15kWh and 20kWh systems. These configurations use two side-by-side battery stacks, and each stack needs its own floor stand to ensure both are level and stable. Note that this product is sold as a single unit — order two for larger systems.
Is the floor stand suitable for outdoor libbi installations?
Yes — the libbi battery and inverter are rated to IP65 and can be installed outdoors. The LIBBI-FS01 floor stand is manufactured from high-grade steel with a corrosion-resistant coating, making it suitable for both indoor and outdoor installations. The adjustable feet are particularly useful on outdoor surfaces such as concrete bases that may not be perfectly level.
Does the floor stand affect the installation height of the libbi system?
Yes — the floor stand adds a small amount of height to the battery stack base. Installers should account for this when checking the clearance requirement that the top of the libbi inverter must be no more than 2.2 metres from ground level. In practice, the floor stand height is minimal and this limit is rarely an issue in standard residential installations.
Can I add the floor stand after the libbi system has been installed?
While it is technically possible to fit a floor stand after initial installation, it is significantly easier to place the floor stand in position first and then install the battery stack on top of it. Retrofitting a floor stand under an already-installed battery stack requires moving the entire stack and may require two people given the weight of the battery modules (approximately 44kg each).
