The myenergi libbi Cable Expansion Kit 10kWh (MYEN-LIBBI-EK101) is the pre-cut, pre-terminated interconnect cable set required to connect a 10kWh libbi battery system (2 × 5kWh battery modules) to the libbi hybrid inverter. Every libbi installation requires the cable kit matched to the battery capacity — this kit is sized precisely for a two-module, 10kWh system.
Required for 10kWh libbi Installation
Pre-Cut & Pre-Terminated
3-Year Warranty
For 2 × Battery Modules
⚠️ Essential Component — Choose the Correct Kit for Your Battery Size
Each libbi cable kit is engineered for a specific battery configuration. This kit (LIBBI-EK101) is for a 10kWh system using 2 battery modules. If you are installing 1, 3, or 4 modules you will need the appropriate kit for that configuration. See the table below.
Cable Kit Selection Guide
| System Size |
Cable Kit Required |
Part Number |

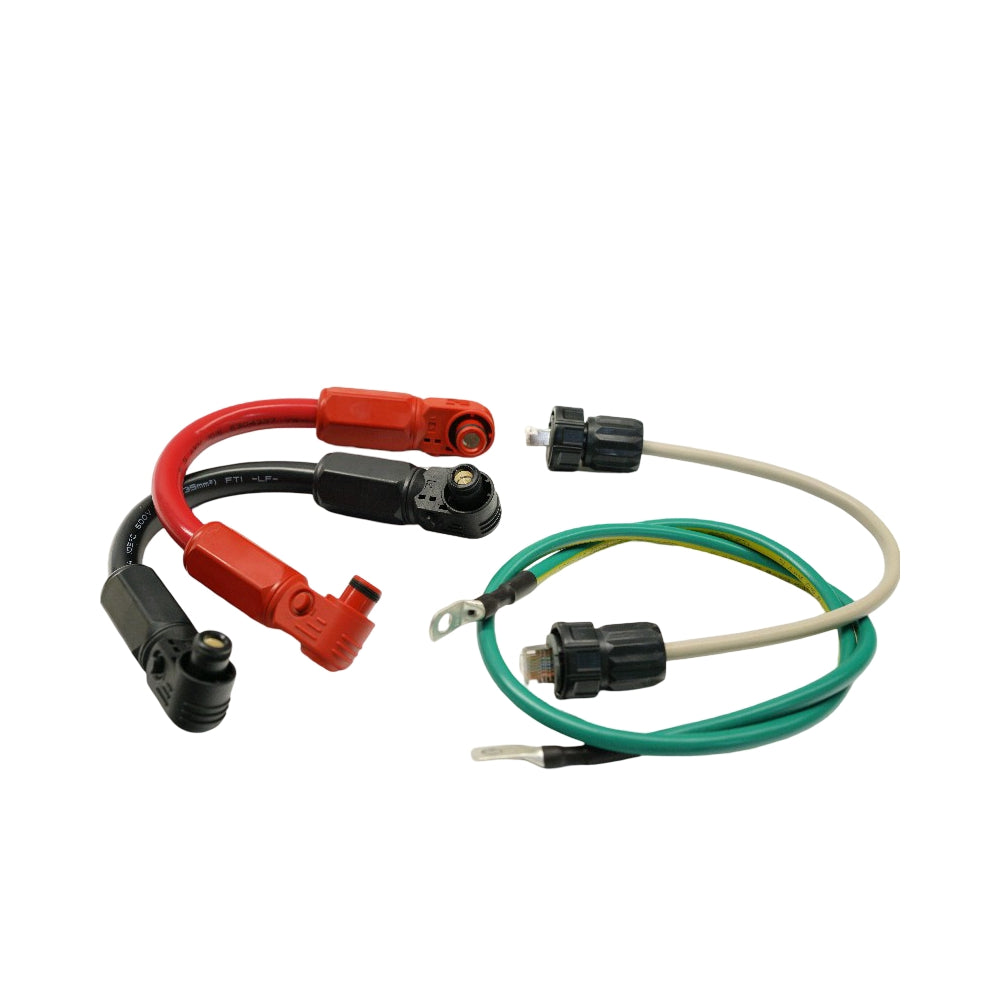

| 5kWh (1 battery) |
libbi Cable Kit 5kWh |
MYEN-LIBBI-EK51 |
| 10kWh (2 batteries) |
libbi Cable Kit 10kWh [this product]
|
MYEN-LIBBI-EK101 |
| 15kWh (3 batteries) |
libbi Cable Kit 15kWh |
MYEN-LIBBI-EK151 |
| 20kWh (4 batteries) |
libbi Cable Kit 20kWh |
MYEN-LIBBI-EK201 |

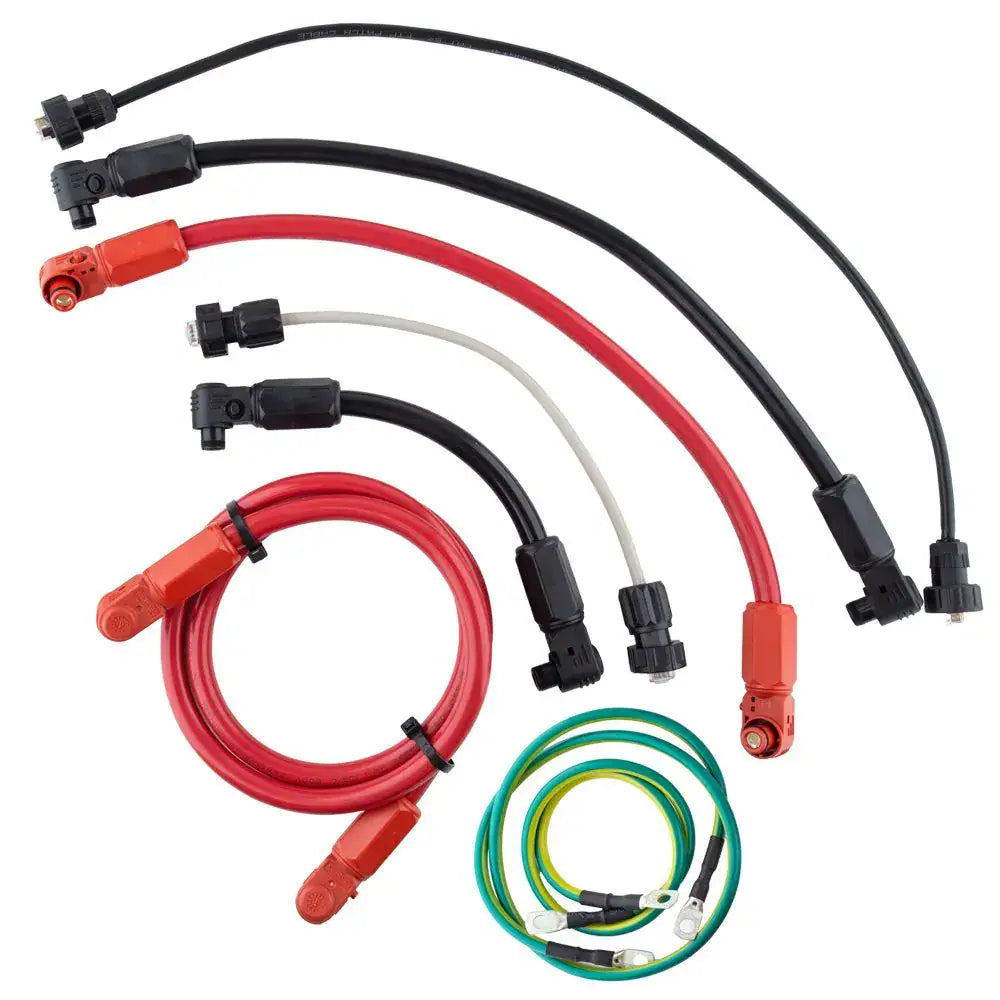

What's in the Box
- Communication cable — 300mm
- Communication cable — 570mm
- Power cable, negative (black) — 250mm
- Power cable, negative (black) — 485mm
- Power cable, positive (red) — 485mm
- Power cable, positive (red) — 1200mm
- PE (earth) cable — 520mm
- PE (earth) cable — 700mm
- All cables pre-terminated with correct connectors
Technical Specifications
| Specification |
Details |
| Part Number |
MYEN-LIBBI-EK101 |
| Manufacturer Part Code |
LIBBI-EK101 |
| Compatible System |
myenergi libbi — 10kWh (2 × LIBBI-B05H battery modules) |
| Compatible Inverters |
LIBBI-HS3680 (3.68kW), LIBBI-HS5000 (5kW) |
| Cables Included |
Communication, positive power, negative power, earth (PE) — 8 cables total |
| Floor Stand Required |
Optional (1 × LIBBI-FS01 recommended for level surface) |
| Top Cover |
Not applicable for 10kWh systems |
| Warranty |
3 years |
Frequently Asked Questions
Is the cable kit included when buying a complete 10kWh libbi bundle?
Yes — complete libbi bundles (e.g. MYEN-LIBBI-310SH: 3.68kW inverter + 2 × 5kWh batteries) include the LIBBI-EK101 cable kit as part of the package. This product is listed separately for installers purchasing components individually or replacing a cable kit.
Can I use the 5kWh cable kit (EK51) and then buy the 10kWh kit later when I expand?
When you expand from a 5kWh to a 10kWh system, you replace the entire EK51 cable kit with the EK101 kit — the EK101 includes all the cables needed for the complete two-battery system, not just the additional cables. The EK51 kit is retired when you expand.
Are the cables pre-cut and pre-terminated?
Yes — all cables in the kit are factory pre-cut to the exact lengths specified in the libbi installation manual for a 10kWh two-module system, and pre-terminated with the correct connectors. No cutting or crimping is required on site, resulting in a clean and reliable installation.
Do I need a floor stand with a 10kWh (2-battery) system?
A floor stand (LIBBI-FS01) is optional for a 10kWh system. It is recommended if the installation surface is uneven, as libbi must be installed on a level surface. One floor stand unit is sufficient for a two-battery stack. For 15kWh and 20kWh systems (two stacks side by side), two floor stand units are required.
What other accessories might I need with a 10kWh libbi system?
A complete 10kWh libbi system comprises: a libbi hybrid inverter (3.68kW or 5kW), two 5kWh battery modules, the LIBBI-C110W controller, and this cable kit. Optionally, a LIBBI-FS01 floor stand can be added for levelling. The LIBBI-TP1 top cover is not applicable for 10kWh systems.
