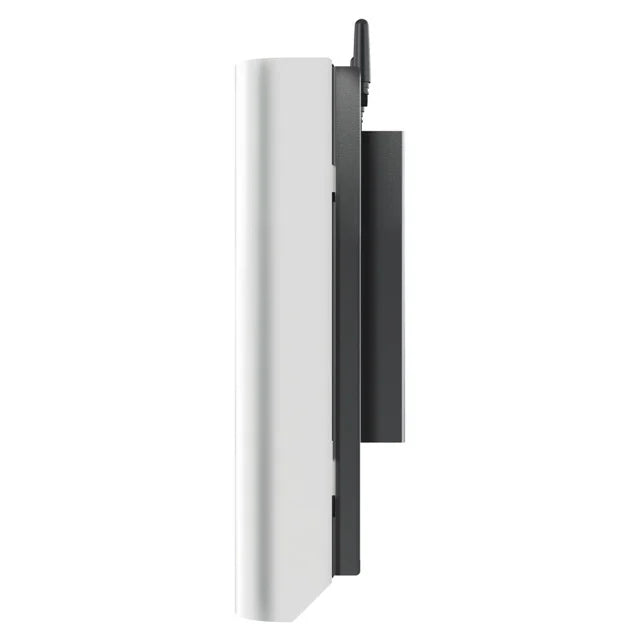

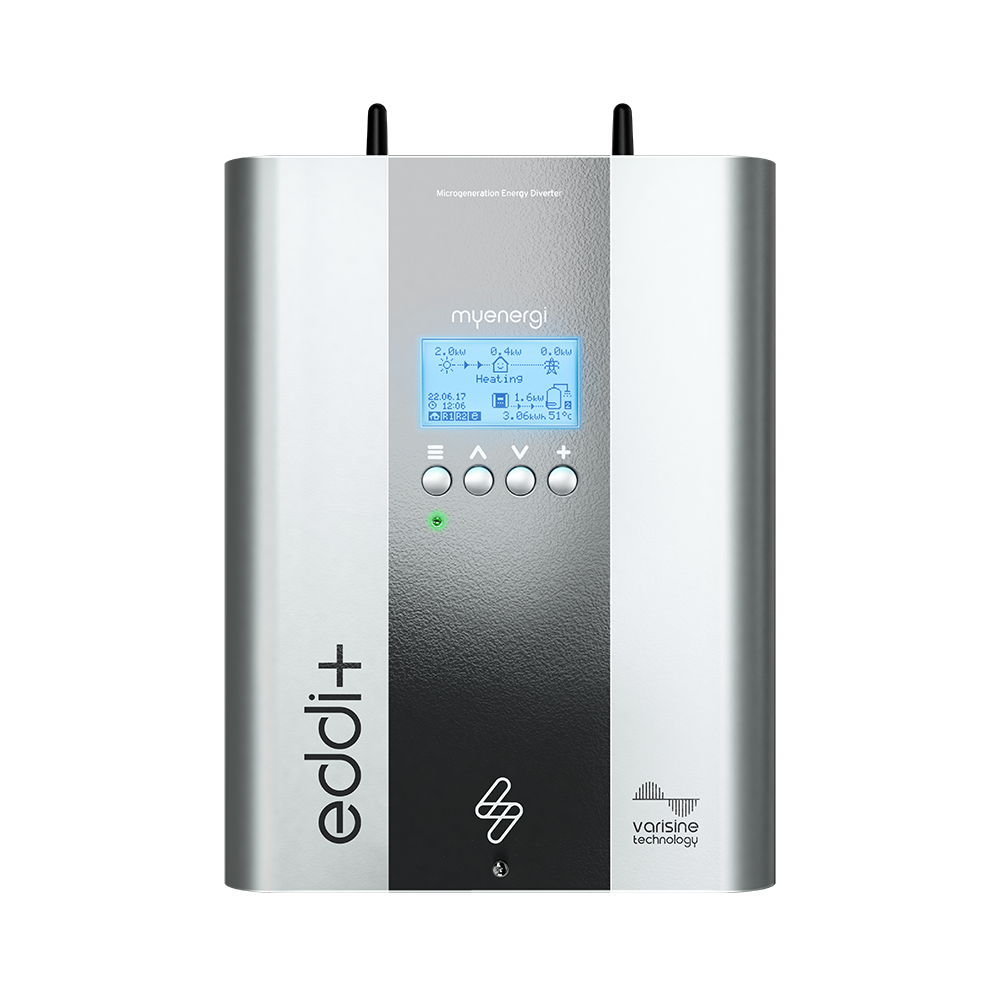

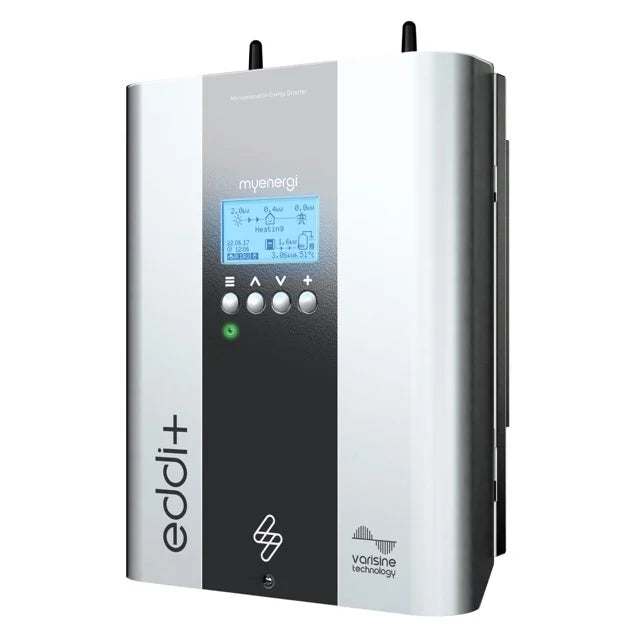

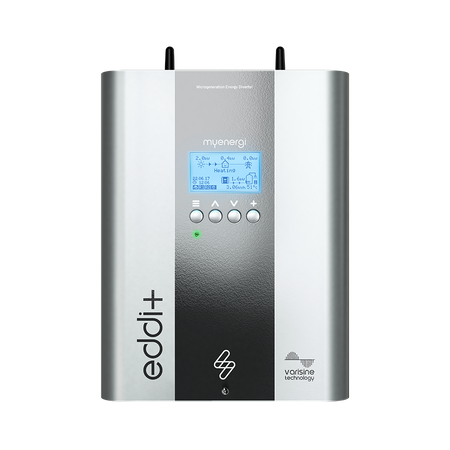

myenergi eddi+ 3-Phase Energy Diverter (WiFi Enabled)
Product Description
The myenergi eddi+ 3-Phase Energy Diverter (Part No: MYEN-EDDI-16A3P02H) is an advanced microgeneration device tailored for commercial and large residential UK properties with 3-phase power supplies. It intelligently diverts surplus solar PV or wind energy across three phases to immersion heaters, storage heaters, or other resistive loads, maximising self-consumption and preventing grid export. With a robust 9kW output per phase, WiFi connectivity for app-based control, and seamless integration with systems like Sunamp heat batteries, this UK-made unit optimises renewable energy use for hot water or space heating. Ideal for businesses or homes pursuing net-zero, it reduces energy bills while providing real-time monitoring and customisable settings for efficient, sustainable operation.
Features and Benefits
- 3-Phase Surplus Diversion: Monitors and diverts excess renewable energy across three phases multiple times per second, supporting up to 9kW per phase for balanced, efficient utilisation.
- WiFi and App Integration: Remote control via the myenergi app for scheduling, boost modes, and performance tracking; firmware updates ensure ongoing improvements.
- Versatile Load Support: Handles 3-phase heating elements up to 9kW, with sequential control for up to two heaters; includes temperature monitoring with up to two PT1000 sensors (one supplied).
- Energy Monitoring Built-In: Graphical LCD display and app provide real-time insights into generation, consumption, and diversion, helping maximise savings.
- Easy and Safe Installation: Wall-mounted with integral bypass switch, overload protection, and fan-less design; quick setup for electricians in commercial environments.
- Sustainable Savings: Prevents energy export, reducing bills and emissions; compatible with harvi sensors for wireless expansions and Sunamp for hybrid hot water solutions.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number (Part No) | MYEN-EDDI-16A3P02H |
| Heater Load | 0-9kW linearly controlled (supports 3-phase elements up to 9kW; 16A max per phase) |
| Minimum Load | 100W |
| Standby Power | 3W |
| Connectivity | WiFi for app control and updates |
| Installation | Wall-mounted; includes CT clamp (5m cable), mounting bracket, antennae |
| Power Supply | 3-phase 230V AC, 50Hz |
| Bypass Switch | Integral for safety |
| Protection | Overload, short-circuit, automatic Daylight Saving Time adjustment |
| Temperature Sensors | Up to 2 PT1000 (1 supplied) |
| Dimensions (H x W x D) | 220mm x 205mm x 87mm |
| Weight | 4.3kg |
| Warranty | 3 years |
| Compliance | Fully EMC and safety compliant (CE) |
Why Choose myenergi eddi+ 3-Phase Energy Diverter?
Opt for the myenergi eddi+ 3-Phase for its high-capacity diversion in multi-phase setups, transforming surplus renewables into free heating or hot water—seamlessly integrating with Sunamp batteries and solar PV to deliver substantial savings, advanced app control, and a scalable path to energy independence in commercial or large UK properties.
- Type Immersion Controllers
- Vendor Myenergi
- SKU MYEN-EDDI-16A3P02H
