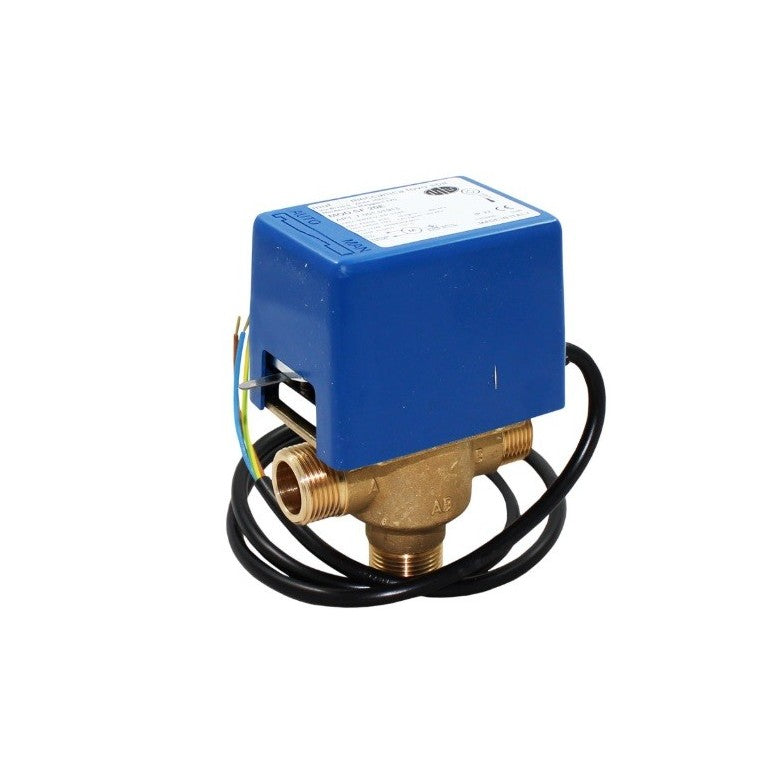

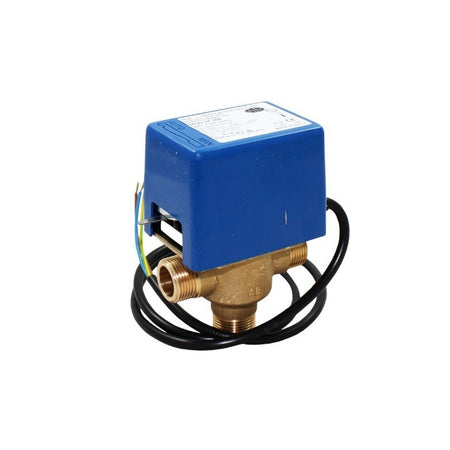

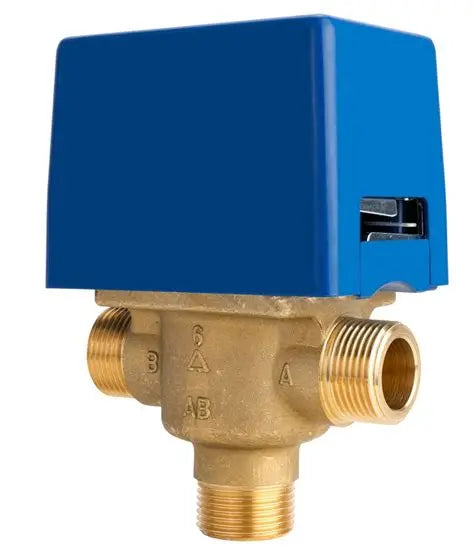

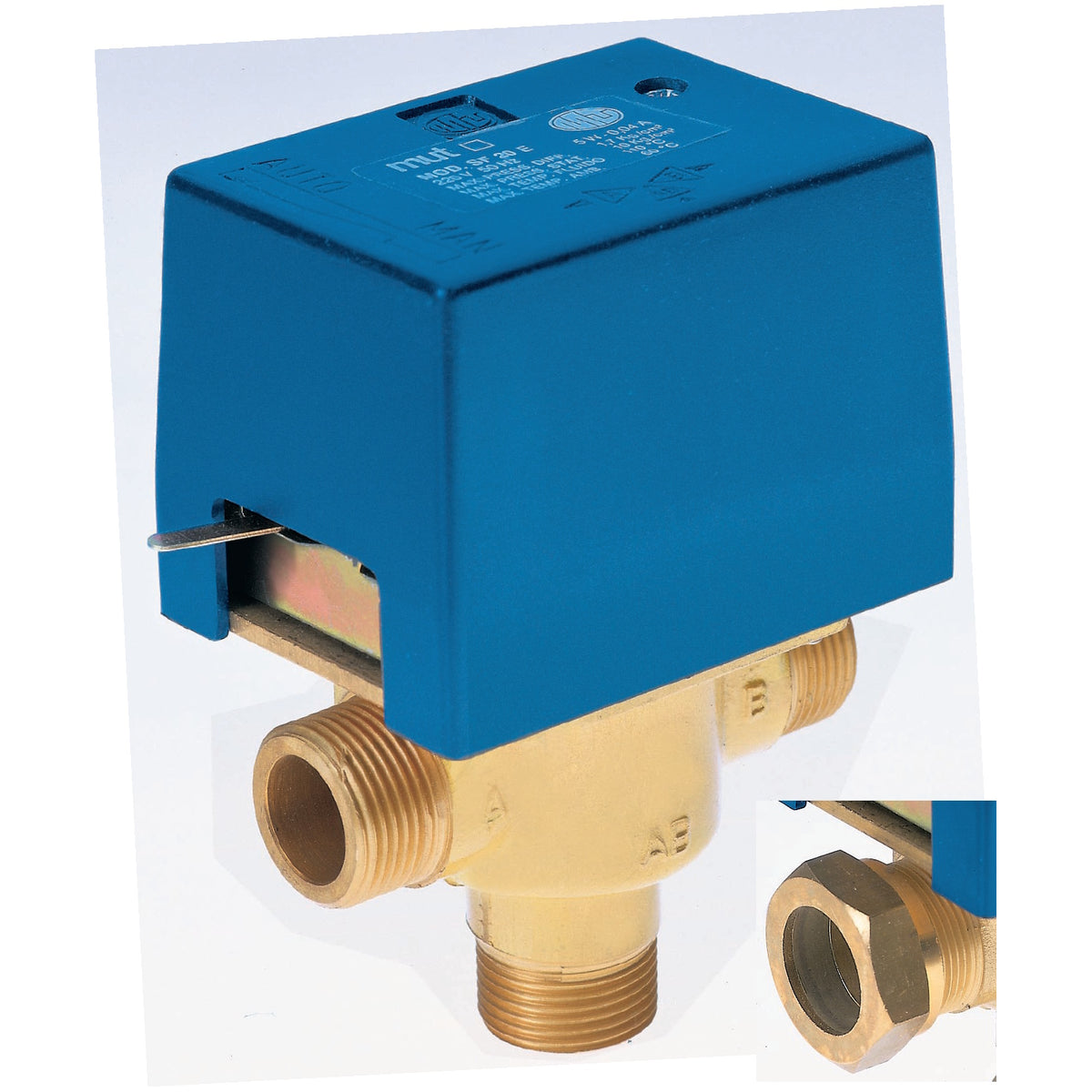

Mut Meccanica Tovo SV 28mm 3 Port Diverter Valve with Microswitch

Description

The Mut Meccanica Tovo SV is a high performance 28mm compression 3 port diverter valve designed for heat pump and renewable heating systems. This spring return motorised valve delivers exceptionally low pressure drop (Kvs 12.6 m³/h), making it ideal for high flow applications where efficiency and reliability are critical.

Supplied with an integrated microswitch, the Tovo SV enables seamless control of auxiliary loads such as secondary circulation pumps, ensuring precise system management for both domestic and commercial installations.

Key Features

Ultra Low Pressure Drop
Kvs value of 12.6 m³/h ensures minimal flow resistance, optimising heat pump performance and energy efficiency.

Integrated Microswitch
Built-in auxiliary switch (3 A, 250 V AC) for controlling secondary pumps or other loads without additional components.

Spring Return Mechanism
Failsafe operation returns valve to default position on power loss, protecting system integrity during outages.

Robust Construction
Brass valve body with stainless steel springs and self extinguishing ABS motor housing for long term durability.

Wide Temperature Range
Operates reliably with flow temperatures from +5 °C to +110 °C, suitable for diverse heating applications.

Easy Manual Override
External lever allows manual positioning for system filling, draining, or maintenance without power.

Technical Specifications

Specification	Details
Valve Type	3 port motorised diverter valve with spring return
Connection Size	28mm compression
Flow Coefficient (Kvs)	12.6 m³/h
Rated Voltage	230 V AC, 50 Hz
Power Consumption	5 - 6 W
Microswitch Rating	3 A, 250 V AC (single pole)
Operating Temperature	+5 °C to +110 °C (flow), max ambient 60 °C
Max Differential Pressure	PN 10 (10 kg/cm²)
Protection Rating	IP22 (IEC 529)
Cable Length	1000 mm (standard)
Materials	Brass body, stainless steel springs, ABS motor cover
Warranty	12 months from date of manufacture
Country of Origin	Italy

Typical Applications

• Heat Pump Systems: Diverts flow between heating circuit and hot water cylinder with minimal pressure loss.
• Hybrid Installations: Integrates with high limit thermostats for safe, efficient operation alongside boilers.
• Commercial Heating: Reliable zone control in larger properties thanks to robust brass construction and high Kvs rating.
• Renewable Energy Schemes: Ideal for MCS compliant installations requiring precise, low loss flow management.
