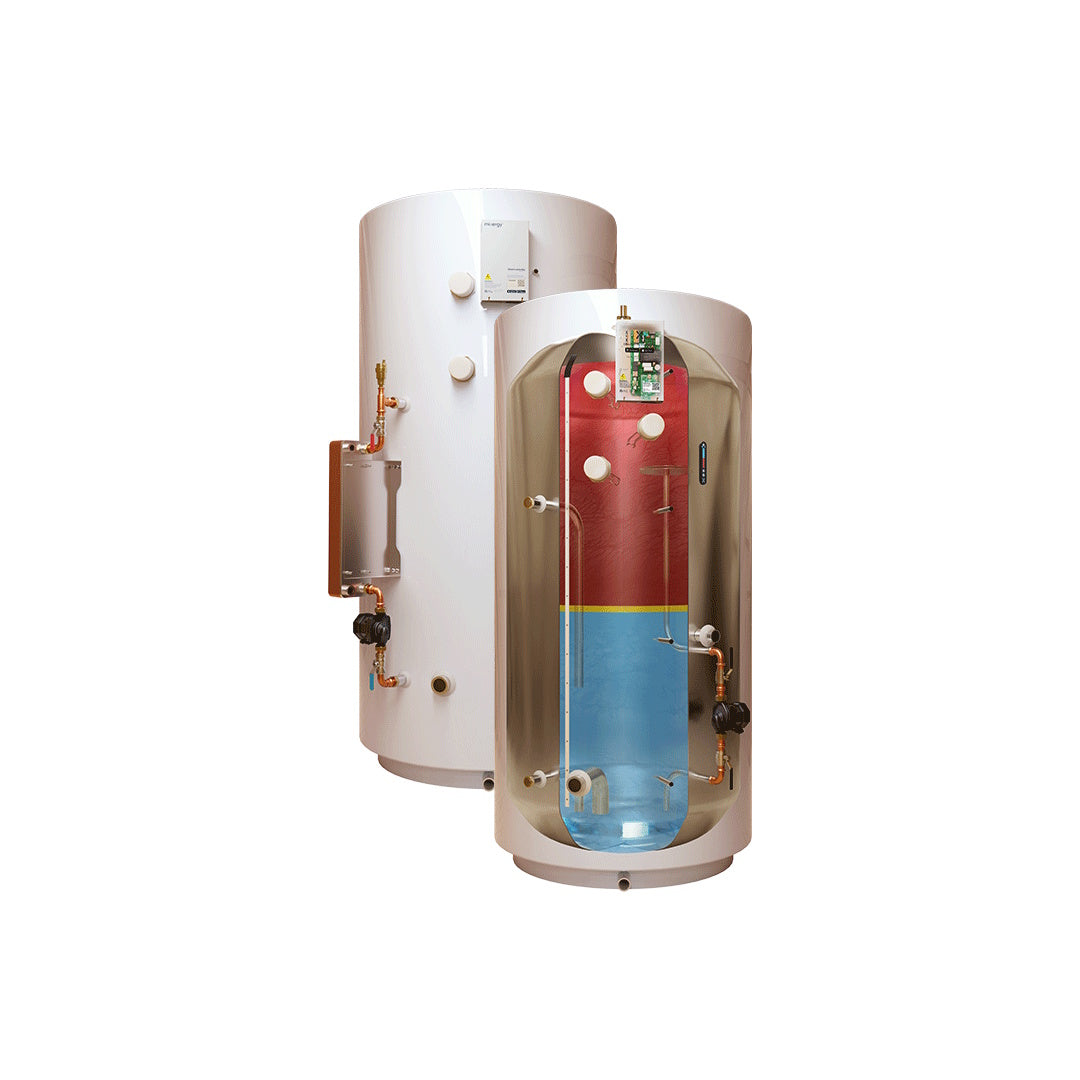

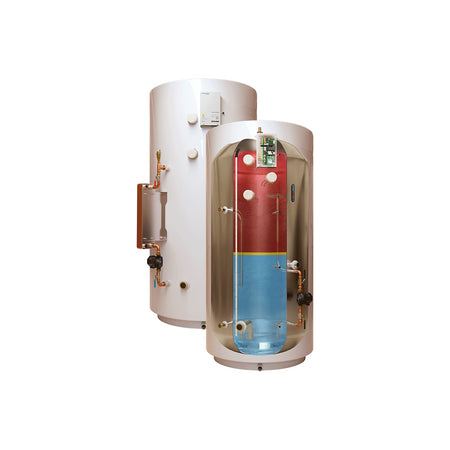

The Mixergy Commercial (COM) range is purpose-built for demanding commercial buildings such as offices, hotels, schools, healthcare sites, leisure centres and stadia, where hot water demand is rarely constant. Available from 300 litres up to 2,000 litres, every size in the range uses Mixergy's patented top-down heating and precision-level sensor strip to store and heat only the water actually needed, rather than keeping a full tank hot around the clock, while remaining compatible with electric immersion, heat pumps, VRF heat recovery, and boiler-fed plate heat exchangers.
Commercial Product — Lead Time & Pricing
All sizes in this large-format commercial cylinder range are not held as standard stock. Current manufacturer lead time is approximately 6 weeks from order confirmation across the range. Pricing is available on request — please contact us with your required capacity, immersion configuration, and heat source setup for a project-specific quote.
Up to 54kW
Immersion Power
6 bar
Max Pressure (all sizes)
35 min
Usable Hot Water From
Qualified Installation Required
These are large commercial pressurised hot water systems and must be installed and commissioned by a suitably qualified commercial installer in accordance with the manufacturer's installation and servicing manual and relevant building and water regulations. Incorrect installation can be dangerous and will invalidate the warranty.
Heat Source & Connection Note
The Commercial (COM) series is immersion-heated as standard, with an optional external plate heat exchanger available across the range to connect the cylinder to a heat pump, VRF heat-recovery system, or boiler circuit. Connection sizes and immersion power scale with cylinder size — check the variant table below and confirm your intended heat source before ordering, as this affects the connection kit supplied.
Patented Sensor Strip
A precision-level sensor strip tracks exactly how much hot water is stored and at what temperature, removing the guesswork that leads most commercial cylinders to be oversized "just in case" — reducing standing losses without risking a shortfall at peak times, at any capacity in the range.
Top-Down Volumetric Heating
Rather than reheating the full stored volume on every demand cycle, each cylinder heats only what's required, which is particularly valuable in buildings like offices and schools where occupancy and hot water demand swing sharply through the day.
Flexible Heat Source Compatibility
Works with direct electric immersion, air-source or ground-source heat pumps, VRF heat recovery, or boiler circuits via an optional plate heat exchanger — giving specifiers a single cylinder platform that can support a phased move away from gas across a whole site.
BMS Integration & DSR Revenue
Connects to building management systems via Modbus TCP and supports Demand Side Response (DSR), allowing larger sites to shift heating load around tariff and grid signals — turning stored hot water into a source of recurring revenue rather than just a cost centre.
Automated Pasteurisation
Built-in auto-cleansing cycles periodically heat the full cylinder volume and log the results, giving facilities teams verifiable, time-stamped evidence of pasteurisation for water hygiene compliance — without manual intervention, regardless of cylinder size.
Duplex Stainless Steel Construction
Every cylinder in the range is manufactured from duplex stainless steel for resistance to pitting and chloride-related corrosion, supporting a 25-year warranty even under continuous high-demand commercial duty cycles.
Variant Selector — Choose Your Capacity
| Spec |
300L |
400L |
500L |
800L |
1125L |
2000L |
| Product code |
MX-300-COM-750 |
MX-400-COM-750 |
MX-500-COM-750 |
MX-800-COM-990 |
MX-1125-COM-990 |
MX-2000-COM-1290 |
| Height |
1380 mm |
1430 mm |
1720 mm |
1604 mm |
2100 mm |
2117 mm |
| Diameter |
750 mm |
750 mm |
750 mm |
990 mm |
990 mm |
1290 mm |
| Immersion options |
1 No., 3/6/9 kW |
2 No., 3/6/9/12 kW |
3 No., 6/9/12 kW |
3 No., 6/9/12 kW |
3 No., 9/12/15 kW |
3 No., 9/12/15/18 kW |
| Max. pressure |
6 bar (all sizes) |
| CWS / DHW connection |
1" BSP |
1" BSP |
1" BSP |
1½" BSP |
1½" BSP |
2" BSP |
| Secondary return |
1" BSP (all sizes) |
| Unladen weight |
55 kg |
85 kg |
95 kg |
155 kg |
190 kg |
295 kg |
| Packaged weight |
65 kg |
95 kg |
105 kg |
105 kg |
200 kg |
315 kg |
| Approx. full weight |
355 kg |
485 kg |
595 kg |
955 kg |
1315 kg |
2295 kg |
| ErP rating |
B |
C |
C |
C |
C |
C |
| Heat loss @ 65°C |
1.77 kWh/24hr |
2.35 kWh/24hr |
2.74 kWh/24hr |
3.29 kWh/24hr |
3.6 kWh/24hr |
4.2 kWh/24hr |
| Cylinder material |
Duplex stainless steel (all sizes) |
Reheat Times by Size & Immersion Configuration
Reheat times are based on ΔT = 50°C (10°C to 60°C) and vary depending on which immersion configuration is specified for the site.
| Size |
25% reheat |
50% reheat |
75% reheat |
100% reheat |
| 300L |
3kW = 114 min
6kW = 54 min
9kW = 36 min |
3kW = 210 min
6kW = 102 min
9kW = 66 min |
3kW = 294 min
6kW = 144 min
9kW = 96 min |
3kW = 370 min
6kW = 180 min
9kW = 120 min |
| 400L |
6kW = 72 min
12kW = 36 min
18kW = 24 min
24kW = 18 min |
6kW = 132 min
12kW = 66 min
18kW = 44 min
24kW = 33 min |
6kW = 192 min
12kW = 96 min
18kW = 63 min
24kW = 48 min |
6kW = 240 min
12kW = 120 min
18kW = 78 min
24kW = 60 min |
| 500L |
6kW = 54 min
9kW = 36 min
12kW = 27 min |
6kW = 102 min
9kW = 66 min
12kW = 50 min |
6kW = 144 min
9kW = 96 min
12kW = 72 min |
6kW = 180 min
9kW = 120 min
12kW = 90 min |
| 800L |
18kW = 48 min
27kW = 31 min
36kW = 24 min |
18kW = 90 min
27kW = 59 min
36kW = 44 min |
18kW = 126 min
27kW = 84 min
36kW = 63 min |
18kW = 156 min
27kW = 105 min
36kW = 78 min |
| 1125L |
27kW = 45 min
36kW = 33 min
45kW = 26 min |
27kW = 83 min
36kW = 63 min
45kW = 49 min |
27kW = 120 min
36kW = 90 min
45kW = 72 min |
27kW = 147 min
36kW = 108 min
45kW = 84 min |
| 2000L |
27kW = 79 min
36kW = 57 min
45kW = 47 min
54kW = 40 min |
27kW = 147 min
36kW = 111 min
45kW = 87 min
54kW = 73 min |
27kW = 210 min
36kW = 156 min
45kW = 120 min
54kW = 104 min |
27kW = 251 min
36kW = 196 min
45kW = 156 min
54kW = 130 min |
Data Note
The manufacturer's brochure lists some reheat figures with footnote markers where two nearby columns show similarly-worded values (for example, the 9kW/50% figures for the 400L and 500L sizes). We have aligned each figure to its correct column as printed. If exact reheat timing is critical to your specification, please confirm the figure for your chosen size and immersion power directly with Mixergy or contact us before ordering.
Included Technology (All Sizes)
| Feature |
| Patented sensor strip for precision-level and temperature sensing |
| Top-down volumetric heating control |
| Intelligent smart controls (cost, demand and carbon optimisation) |
| BMS connectivity via Modbus TCP |
| Automated pasteurisation (auto-cleansing) cycles with performance logging |
| Demand Side Response (DSR) capability |
Optional across the range: external plate heat exchanger for connection to air-source or ground-source heat pumps, or VRF heat-recovery systems.
Frequently Asked Questions
What is the lead time on this product range?
All sizes in this range are not stocked as standard due to their size and commercial specification. Typical lead time is around 6 weeks from order. Contact us for an up-to-date estimate before placing an order if your project has a fixed installation date.
How much does this range cost?
Pricing for the Commercial range is available on request, as cost varies by capacity, immersion configuration, connection kit, and any optional plate heat exchanger required for your heat source. Contact us with your project details for a tailored quote.
How is this range different from the Mixergy X Indirect cylinders?
The Commercial (COM) series is a separate product range designed for large non-domestic buildings. It is immersion-heated as standard (with up to three selectable immersion elements, scaling up to 54kW total power on the largest size), uses 750mm–1290mm diameter shells depending on capacity, and adds BMS integration, DSR capability and automated pasteurisation not found on the domestic Mixergy X Indirect range.
Which size should I choose for my building?
Sizing depends on peak simultaneous demand, occupancy patterns, and available plant room space — the precision-level sensor strip is designed to reduce the need for oversizing "just in case," but connection sizes and immersion power step up significantly from 800L upward (1½" to 2" BSP), so larger sizes need corresponding pipework. Contact us with your building type and expected usage for a sizing recommendation.
Can this cylinder connect to a heat pump or VRF system instead of using electric immersion only?
Yes, across the whole range. An optional external plate heat exchanger allows any size to connect to air-source or ground-source heat pumps, or VRF heat-recovery systems such as those recovering waste heat from a building's cooling operation. Confirm your intended heat source at the point of order, as this determines the connection kit supplied.
Does this range support Demand Side Response (DSR)?
Yes. The full Commercial range is built with best-in-class DSR capability, allowing larger sites to shift heating load in response to grid signals and tariff data — potentially generating recurring revenue while still meeting hot water demand.
Who should install this cylinder?
As large commercial pressurised systems, every size in this range must be installed and commissioned by a suitably qualified commercial installer in line with Mixergy's installation and servicing documentation and applicable building and water regulations.
