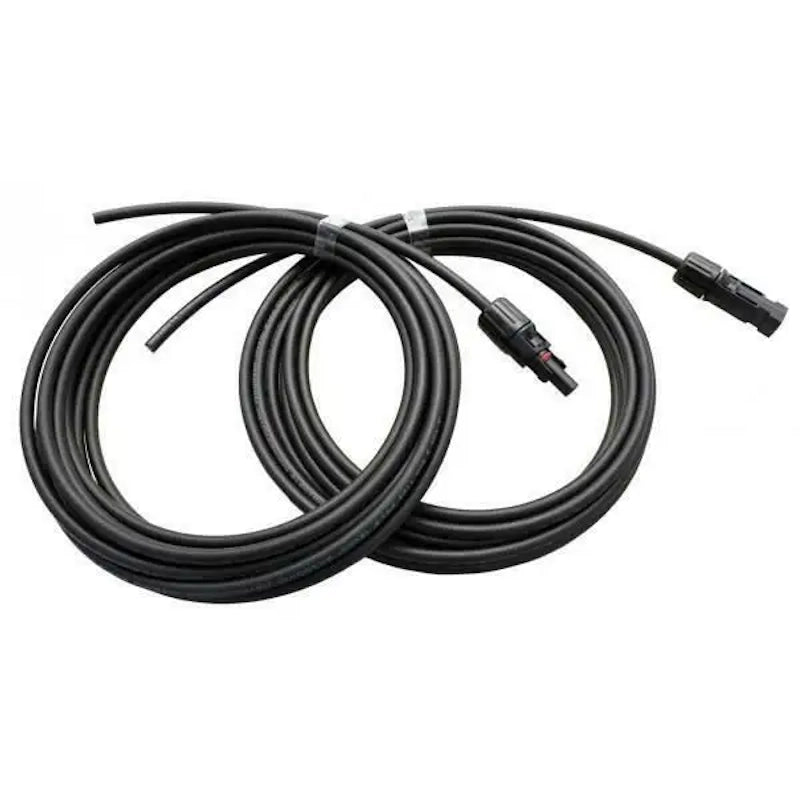

4mm² Solar Cable MC4 Connectors — M+F UV & Weather Resistant IP67 Part No: MC4-2M-1

A ready-to-use 2-metre solar PV extension lead supplied as a single cable terminated with a male MC4 connector at one end and a female MC4 connector at the other. Suitable for extending the output leads of solar panels, linking strings, or making neat connections between PV components. The 4mm² cross-section tinned copper conductor and UV-resistant XLPE insulation are rated for permanent outdoor installation.

  • Single cable, 2m length — male MC4 one end, female MC4 the other
  • 4mm² tinned annealed copper conductor — low resistance, corrosion resistant
  • XLPE insulation rated to 120°C — suitable for roof, ground-mount and enclosed trunking
  • UV-resistant black jacket — compliant with TÜV 2PFG solar cable standard
  • MC4 connectors rated IP67 — fully weatherproof, dust-tight, moisture-resistant
  • Rated voltage: 600/1000V DC — suitable for standard residential and commercial PV strings
  • Compatible with all MC4-type connectors from major PV panel manufacturers

Specifications

Part number MC4-2M-1
Cable length 2 metres
Pack contents 1 × cable (male MC4 + female MC4)
Cable cross-section 4mm²
Conductor Tinned annealed copper
Insulation / jacket 120°C XLPE — UV resistant, black
Rated voltage 600/1000V DC
Max current 30A
Connector rating IP67 — dust-tight, waterproof to 1m
Operating temperature −40°C to +105°C
Connector type MC4 (male + female)
Standard TÜV 2PFG / IEC 62852
⚠️ MC4 connectors from different manufacturers may appear compatible but should not be mixed on the same installation. Use connectors of the same brand throughout to comply with IEC 62852 and avoid warranty or fire risk issues.
