Staubli MC4-Evo 2 In-Line Fuse 20A 1500V DC | 32.0330
Regular price
£33.00
Inc. VAT
£27.50
Exc. VAT
Free Shipping
Free shipping on solar panels for orders above £2,500!
FREE Express Delivery (1-3 days) in UK Mainland on most orders*
Excluding: Solar Panels (£170 delivery / free above £2,500), Batteries (£39 delivery), Small Items (£4.95/5.95 delivery / free above £500)
Contact Us to check for Next Working Day Delivery or Same-day Delivery options
Contact Us for Click & Collect options
Custom quote available on request
*See checkout or shipping policy for full details
Payment options
Tools & Kits
Build your kit
Need a full system?
Design your complete solution in minutes with our kit builders.
Do you have a question
about this product?
One of our expert advisors will be happy to help you!
Contact Us

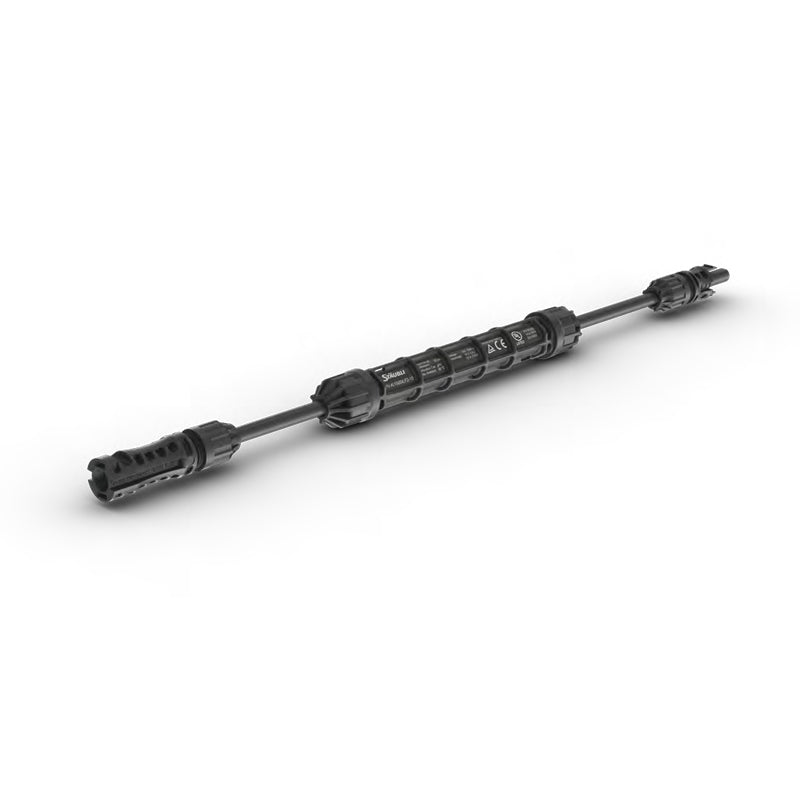

The Stäubli MC4-Evo 2 In-Line Fuse 20A (32.0330, type PV-K/1500ILF3-20/6E-0059) is a factory-assembled string fuse for solar PV circuits rated at 1500 V DC. It contains a 20 A gPV fuse link and is fitted with original MC4-Evo 2 connectors on 6 mm² cable with a 59 cm overall lead length, so it plugs straight into a string and protects the modules and cabling from overcurrent without any fuse-holder wiring on site.
Instead of conventional omega-style clips, the fuse link is joined with a crimped connection, which Stäubli designs for a long-lasting, stable connection with minimal energy loss and low heat generation. The housing is a vulcanised IP68-rated enclosure (1 m, 1 h when mated) made from PA, EVA and XLPE insulation, with tin-plated copper contacts and a maximum contact resistance below 0.25 mΩ.
The unit is TÜV Rheinland certified to 2PfG 2380, the fuse link is gPV certified to IEC 60269-6, and the product is rated for 8 kV test voltage, safety class II and overvoltage category CAT III. It is intended for string protection in residential, commercial and ground-mount PV arrays wherever the design calls for overcurrent protection on each string.
1500 V DC
Rated voltage
20 A gPV
Fuse link rating
IP68
Mated, 1 m / 1 h
8 kV
Test voltage
59 cm
Overall lead length
TÜV
Certified to 2PfG 2380
Safety - isolate before you touch anything
Solar strings stay live whenever light falls on the modules. Never disconnect the in-line fuse under load and de-energise the PV system before mating or unmating any connector. Installation must be carried out by a competent person in line with BS 7671 (including Section 712) and the manufacturer's installation manual. Never reconnect a string without its in-line fuse if the fuse has been disconnected, never bypass it with a parallel line or another fuse, and never use a unit that is visibly damaged.
Compatibility - genuine Stäubli connectors only
Mate only with original Stäubli MC4 or MC4-Evo 2 cable couplers and panel receptacles. Never connect Stäubli connectors to those of other manufacturers, because the rated current and voltage of the combination depend on the mating connectors used. Choose the fuse rating in line with the applicable standards and the maximum series fuse rating on your solar module datasheet.
Temperature - 50°C ambient limit
The wider MC4-Evo 2 connector range is rated to +85°C, but this fuse has an ambient temperature range of -40°C to +50°C (upper limiting temperature 115°C). Allow for this on hot roofs and in enclosed or bundled cable runs, and check the manufacturer's installation manual for its note on bundled installations.
Accessories to note
Unmated connector ends should be protected with sealing caps: manufacturer order numbers 32.0716 (socket) and 32.0717 (plug). For MC4-Evo 2 connectors, the manufacturer's assembly and unlocking tool is the PV-MS-PLS (32.6058).
Key Features
1500 V DC Rated
Built for modern high-voltage strings with 1500 V DC rated voltage, an 8 kV test voltage, safety class II and overvoltage category CAT III / pollution degree 3.
20 A gPV Fuse Link
A gPV fuse link certified to IEC 60269-6:2010+Amd1 gives dedicated PV overcurrent protection on the string, helping guard modules and cabling against reverse and fault currents.
Crimped, Low-Resistance Connection
A crimped fuse connection replaces omega-style clips for a stable joint with minimal energy loss and low heat generation, backed by tin-plated copper contacts and contact resistance below 0.25 mΩ.
IP68 Vulcanised Housing
Rated IP65 / IP68 (1 m, 1 h) when mated and IP2X unmated, with PA, EVA and XLPE insulation designed for lasting protection against moisture and dust ingress.
Factory-Assembled, Plug and Play
Delivered with MC4-Evo 2 connectors already fitted on 6 mm² cable, cutting installation time and removing the risk of incorrect on-site assembly.
Independently Certified
TÜV Rheinland certified to 2PfG 2380 (R 60163375) with a gPV fuse link certified to IEC 60269-6, giving verified safety and performance.
Suitable For
Per-String Protection
Arrays where the design requires overcurrent protection on each string, for example where several strings are paralleled at a combiner or inverter input.
1500 V DC Commercial and Ground-Mount Systems
Higher-voltage arrays built with MC4-Evo 2 connectors and 6 mm² string cable.
Existing Stäubli MC4 Strings
The fuse mates with original MC4 and MC4-Evo 2 connectors, so protection can be added to an existing Stäubli connector system.
