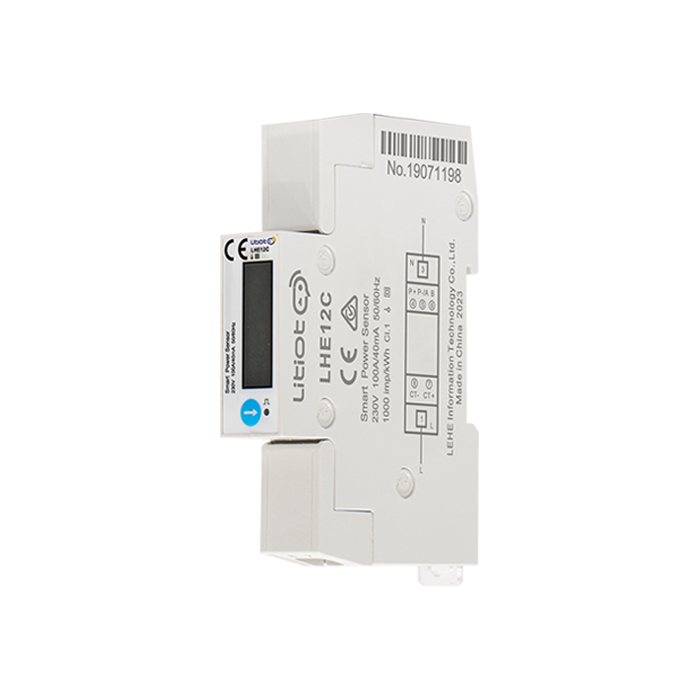

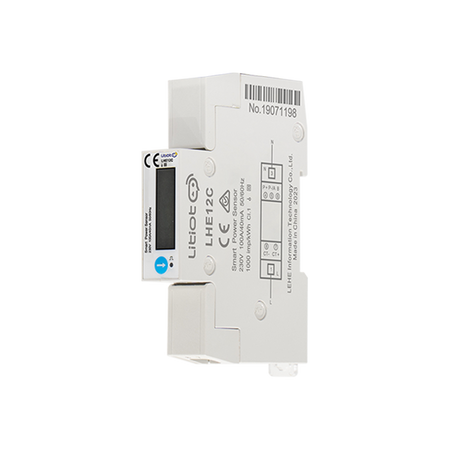

Livoltek Single Phase Smart Meter - LHE12C
Regular price
£43.00
Inc. VAT
£35.83
Exc. VAT
Free Shipping
Free shipping on solar panels for orders above £2,500!
FREE Express Delivery (1-3 days) in UK Mainland on most orders*
Excluding: Solar Panels (£170 delivery / free above £2,500), Batteries (£39 delivery), Small Items (£4.95/5.95 delivery / free above £500)
Contact Us to check for Next Working Day Delivery or Same-day Delivery options
Contact Us for Click & Collect options
Custom quote available on request
*See checkout or shipping policy for full details
Documentation
Downloads
Payment options
Tools & Kits
Build your kit
Need a full system?
Design your complete solution in minutes with our kit builders.
Do you have a question
about this product?
One of our expert advisors will be happy to help you!
Contact Us
The Livoltek Single Phase Smart Meter LHE12C is designed for accurate monitoring, measurement, and control of single-phase AC coupled or hybrid inverter systems. This compact, two-wire smart energy meter supports nominal voltages of 220V, 230V, and 240V, and is widely compatible across a range of solar, battery, and grid applications. It delivers Class 1 accuracy for active energy and integrates easily with Livoltek solutions for intelligent energy management.
Key Features
- Single Phase Monitoring: Built for 1P2W (single-phase two-wire) applications, supporting AC coupled and hybrid inverter systems.
- Wide Voltage Range: Operates at 220V/230V/240V, with an operating voltage window from 70% to 130% Un.
- High Accuracy: Class 1 active energy measurement; Class 2 reactive energy measurement.
- Current Measurement: Supports up to 80A direct measurement or up to 250A via open-type CT connection options.
- Compact Design: Dimensions 100mm x 18mm x 69mm for easy DIN-rail mounting and integration.
- Versatile Frequency: Compatible with 50Hz/60Hz electrical networks.
- Smart System Integration: Can be paired with Livoltek solar and battery hardware for intelligent management and detailed monitoring.
Technical Specifications

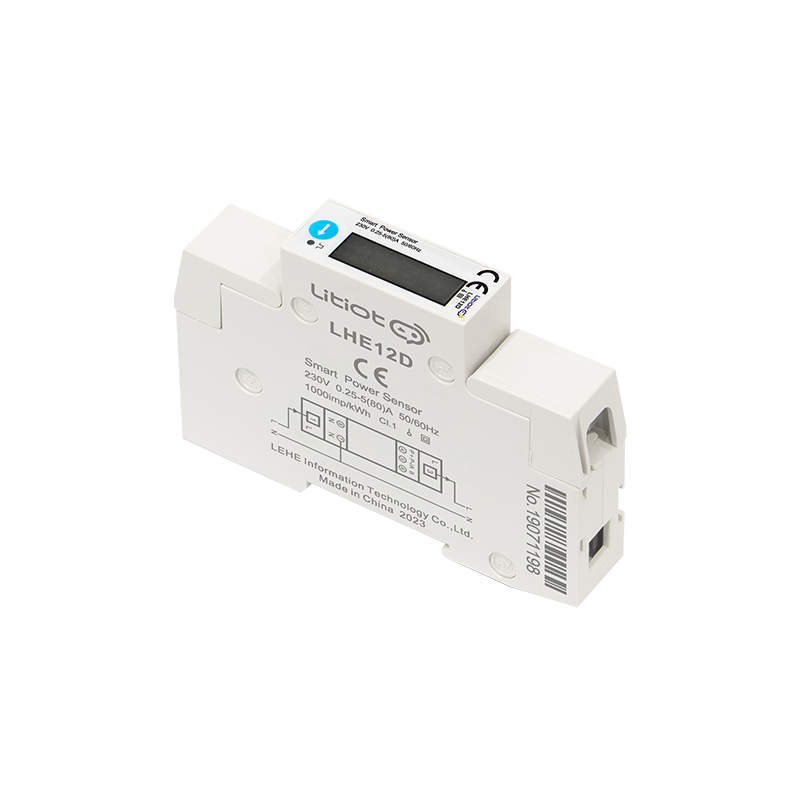

| Model | LHE12C / LHE12D |
|---|---|
| Connection | Single-phase two-wire (1P2W) |
| Nominal Voltage | 220V / 230V / 240V |
| Operating Voltage Range | 70%Un – 130%Un |
| Current Rating | 80A (direct); up to 250A (via CT) |
| Measurement Accuracy | Active Energy: Class 1, Reactive Energy: Class 2 |
| Frequency | 50Hz / 60Hz |
| Operating Temperature | -25°C to 70°C |
| Dimensions (HxWxD) | 100mm x 18mm x 69mm |
| Mounting | DIN-rail (standard) |
| Part Code | LHE12DRR11001 |
| Weight | 0.50 kg |
Applications
- AC-coupled and hybrid inverter systems for grid-tie, off-grid, and battery storage setups.
- Single-phase residential and commercial power metering.
- Intelligent energy management with Livoltek solar and battery systems.
Why Choose the Livoltek LHE12C Smart Meter?
- Precise measurement ensures effective energy monitoring and control.
- Easy integration with Livoltek products for smart solar and battery solutions.
- Compact and reliable DIN-rail mounting makes installation straightforward.
