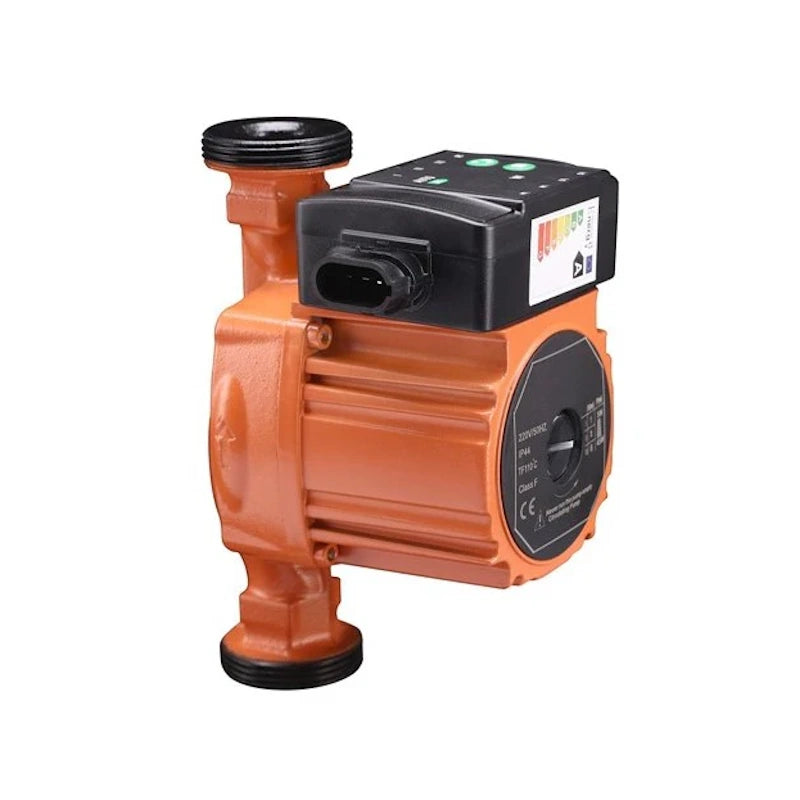

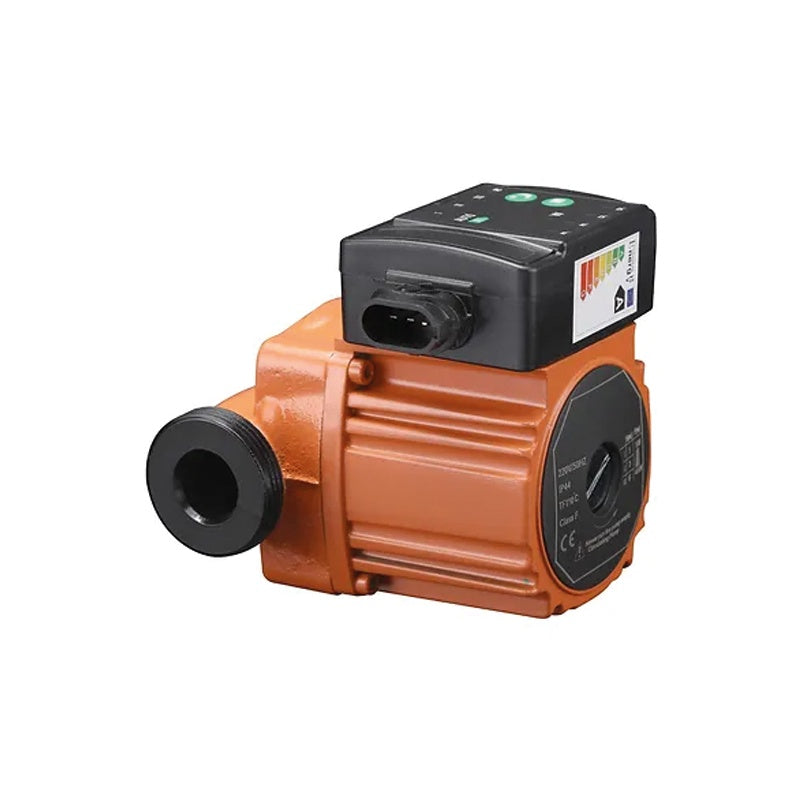

KeyPlumb 6m 130mm Variable Speed Circulating Pump

Description

The KeyPlumb K11692 A-Rated Circulating Pump is a high-efficiency 25/6-130 circulator for domestic central heating and hot water systems. It pairs a permanent magnet motor with a differential pressure controller that automatically and continuously adjusts pump performance to what the system actually needs — so it only works as hard as your heating demands.

With a 6 m head, 130 mm installation length and 1½" BSP connections, it drops straight into the standard UK domestic pump position. Variable and fixed speed operation means one pump covers almost every job, and the Plug and Pump connector means there is no need to open the terminal box. Backed by a 5-year manufacturer warranty.

6 m

Maximum head

130 mm

Installation length

1½" BSP

Connections

<45 dB(A)

Sound pressure

IP44

Protection rating

5 years

Manufacturer warranty

Good to Know

Variable or fixed speed — your choice. Leave the pump in its self-adjusting mode and the differential pressure controller tracks system demand automatically, or select a fixed speed from the front control panel where a system needs a constant flow.

Compatibility

Check that your existing pump is 130 mm port-to-port with 1½" BSP unions. The pump needs a minimum inlet pressure of 0.028 MPa (0.28 bar) at liquid temperatures up to 90°C — sealed systems meet this easily, but low-head open-vented systems should be checked. Liquid temperature range is +2°C to +95°C.

Safety & Regulations

Electrical work must comply with BS 7671 and be carried out by a competent person. Isolate the supply before working on the pump. The pump surface can reach up to +105°C in operation — avoid contact and keep cables away from the casing. Clean and inhibit the system to BS 7593 before fitting.

Key Features

Permanent magnet motor

A high-efficiency permanent magnet motor uses far less electricity than older induction-motor pumps. Meets EuP legislative demands.

Automatic demand matching

The differential pressure controller continuously adjusts motor performance to the real needs of the system as TRVs open and close.

Variable & fixed speed

Variable and fixed speed operation in one unit — one pump for all jobs, from small radiator systems to UFH circuits.

Plug and Pump

Plug connection for the power lead — no need to open the terminal box, making replacements quicker and tidier.

Front control panel

Settings are made from the control panel on the front of the pump, so it can be adjusted in place without removal.

Quiet & protected

Sound pressure below 45 dB(A), IP44 enclosure and Class F insulation for quiet, dependable running in cupboards and plant spaces.

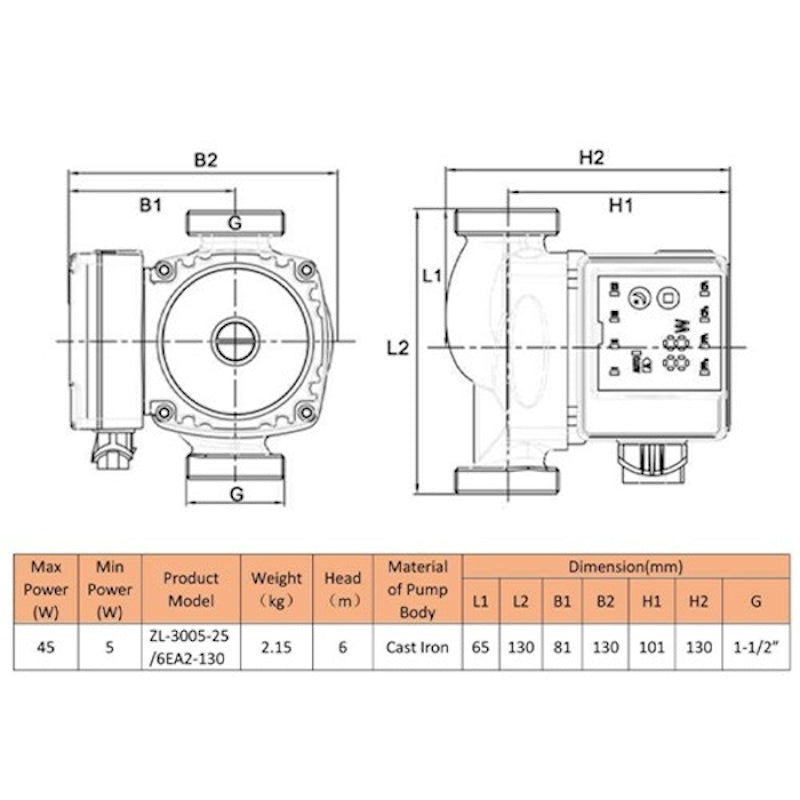

Technical Specifications

Identification

Brand

KeyPlumb

Product code

K11692

Model designation

25/6-130

Pump type

High-efficiency domestic heating circulator

Hydraulic

Maximum head

6 m

Installation length

130 mm

Connections

1½" BSP

System pressure rating

1.0 MPa (10 bar)

Minimum inlet pressure

0.028 MPa (0.28 bar) at ≤+90°C liquid temperature

Liquid temperature

+2°C to +95°C

Temperature grade

TF95

Electrical

Power supply

230 V 50 Hz

Degree of protection

IP44

Insulation class

F

EMC standards

EN 61000-6-1 and EN 61000-6-3

Electrical connection

Plug and Pump plug connector

Operating Environment

Relative humidity

Max. 95%

Sound pressure

<45 dB(A)

Maximum surface temperature

≤+105°C

Warranty

Manufacturer warranty

5 years

Frequently Asked Questions

What does 25/6-130 mean?

It describes a 25-size pump with a 6 m maximum head and a 130 mm installation length — the most common domestic central heating pump format in the UK.

Will it replace my existing pump?

In most cases, yes, provided the old pump is 130 mm port-to-port with 1½" BSP unions. Fit new fibre washers to the pump valves when making the swap.

Should I use variable or fixed speed?

For most radiator systems with TRVs, variable speed gives the best energy savings because the pump responds automatically to changing demand. Fixed speed is useful where a circuit needs a constant flow rate.

Is it suitable for underfloor heating?

Yes — it is designed for domestic heating and hot water systems and its 6 m head suits typical domestic UFH manifolds. Check the design flow for larger installations.

What pressure does the system need?

At liquid temperatures up to 90°C the pump needs at least 0.28 bar at the inlet, and the system must not exceed 10 bar.

What warranty is included?

KeyPlumb provides a 5-year manufacturer warranty. Keep your proof of purchase and ensure the pump is installed correctly to keep the warranty valid.
