Samsung Mono 6.37kW Heat Pump & Joule Kodiak 200L Slimline Cylinder | HXSM-G6-K207

Description

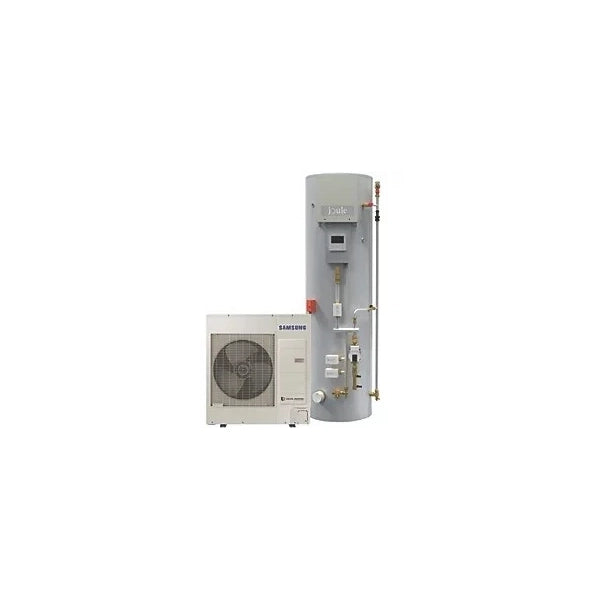

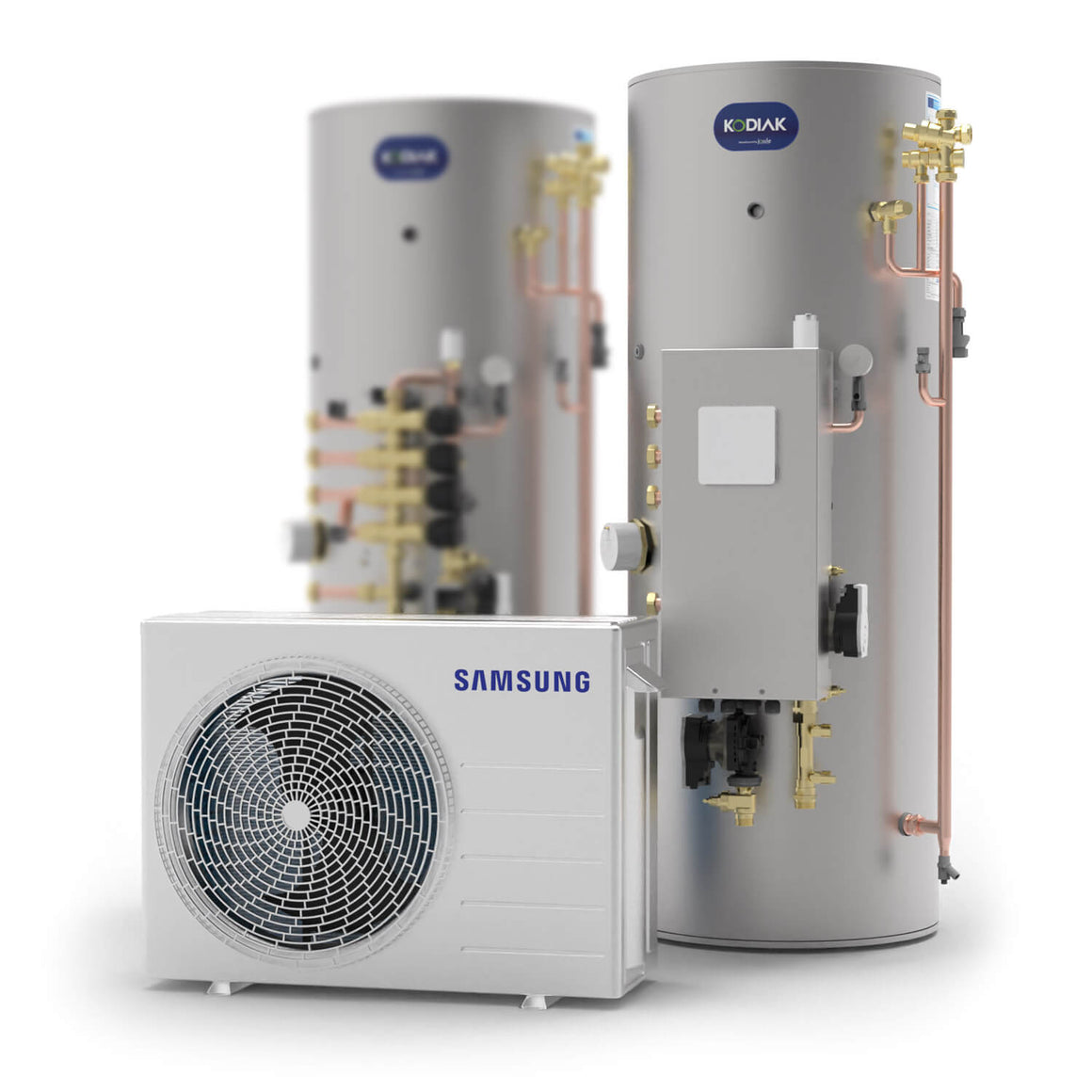

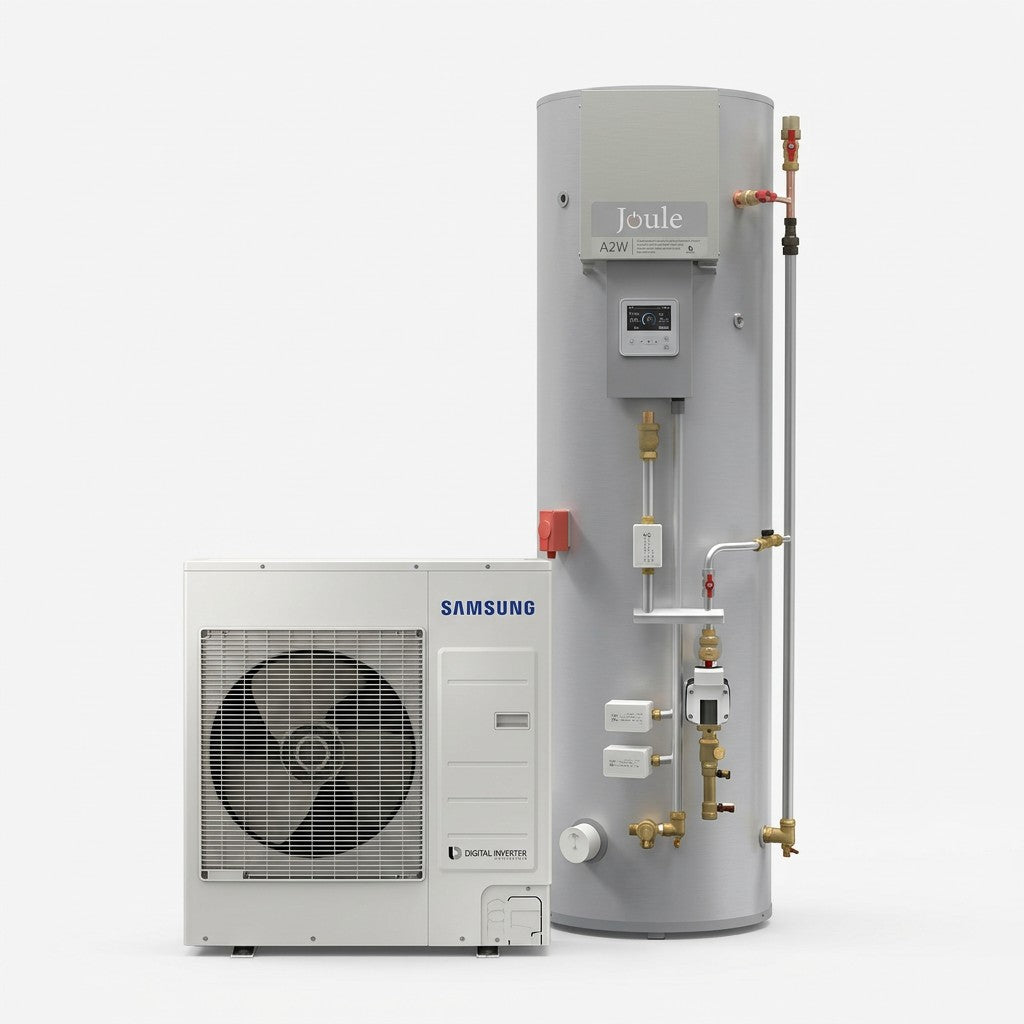

This system pairs the Samsung Mono 8kW air source heat pump (6.37kW nominal winter output) with the Joule Kodiak 200L Slimline Pre-Plumbed Cylinder, giving a complete heating and hot water solution for medium-sized UK homes where floor space is at a premium. The Kodiak Slimline cylinder arrives factory pre-plumbed with its zonal control manifold already fitted, cutting installation time compared with plumbing a heat pump to a standard cylinder on site.

The patented modular zonal control manifold manages 3 zones - 1 hot water and 2 heating circuits - from a single compact unit, so radiators, underfloor heating, and domestic hot water can all run to their own independent temperature settings. Built around Samsung's proven Gen 6 R32 monobloc platform, the heat pump operates down to -25°C outdoor air temperature, and the slimline cylinder profile suits installations where a narrower footprint is needed.

6.37kW

Winter Heating Output

200L

Cylinder Capacity

3 Zone

Pre-Plumbed Manifold

-25°C

Min. Operating Temp

65°C

Max Hot Water Temp

R32

Refrigerant (GWP 675)

Additional Components Are Not Included

This listing covers the Samsung 8kW heat pump and Joule Kodiak 200L Slimline cylinder only. Items such as the potable expansion vessel, Y strainer with isolation valve, braided hoses, anti-vibration feet, and heat pump fluid are not included and should be ordered separately to complete the installation.

MCS-Certified Installation Required

Installation must be carried out by an MCS-certified installer to ensure compliance with UK regulations, to qualify for available government funding schemes such as the Boiler Upgrade Scheme, and to validate the full manufacturer warranty on both heat pump and cylinder.

Long-Term Warranty Cover

The heat pump carries a 7-year warranty when commissioned by Joule or a trained installer, while the Kodiak cylinder body is covered for up to 25 years with registration, and its components for 2 years - giving strong long-term protection across the whole system.

Slimline Cylinder Footprint

The Kodiak Slimline 200L case is narrower than the standard-profile 200L cylinder, suiting installations where floor space or cupboard width is limited.

Factory Pre-Plumbed Manifold

The cylinder arrives with its hydraulic and zonal control manifold pre-fitted, cutting on-site plumbing time compared with a bare cylinder and separate control kit.

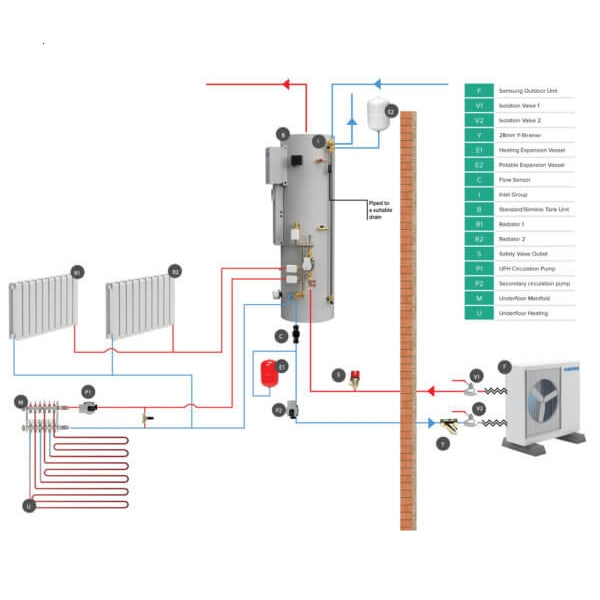

3-Zone Independent Control

The patented modular manifold manages 1 hot water zone and 2 heating zones independently, so radiators and underfloor heating can each run at their own optimum temperature.

True Monobloc Heat Pump

Samsung's Gen 6 outdoor unit has the entire refrigeration circuit factory-sealed, removing the need for on-site F-Gas handling.

Cold-Climate Reliability

Rated to operate continuously down to -25°C outdoor air temperature, maintaining heating output through UK winters.

Compatible Control Kits & Wi-Fi

Supports Samsung SmartThings app connectivity via an optional Wi-Fi kit for remote monitoring and control of heating and hot water.

Heat Pump Performance

Nominal Output (Summer Rating)

8 kW

Heating Output (A7/W35, Winter)

6.37 kW

Refrigerant Type

R32 (GWP 675)

Operating Range (Heating)

-25°C to +35°C outdoor

Max Hot Water Temperature

65°C

Power Supply

Single phase, 220-240V, 50Hz

Sound Level

Approx. 45 dB(A)

Dimensions (H x W x D)

998 x 940 x 330 mm

Kodiak 200L Slimline Cylinder

Zones

3 (1 hot water, 2 heating)

Maximum Inlet Pressure

10 bar

Maximum Operating Pressure

7 bar

Mounting

Floor-standing

Warranty

Heat Pump

7 years when commissioned by Joule or a trained installer

Cylinder Body

25 years

Cylinder Parts

2 years

Why is the heat pump rated at both 8kW and 6.37kW?

8kW is the unit's nominal summer-rated capacity. In UK winter design conditions (A7/W35), the same unit delivers 6.37kW of usable heating output, which is the figure most relevant for sizing against a property's actual winter heat loss.

What comes in the box with this system?

This listing includes the Samsung 8kW heat pump and the 200L Kodiak Slimline cylinder only. Additional components - expansion vessel, Y strainer, braided hoses, anti-vibration feet, and heat pump fluid - are not included and should be ordered separately.

What is different about the Slimline cylinder compared to the standard version?

The Slimline profile has a narrower diameter than the standard 200L Kodiak cylinder, making it a better fit where installation space is limited, such as a narrow airing cupboard.

Is this cylinder suitable for a home with underfloor heating and radiators?

Yes. The 3-zone manifold is designed to run 1 hot water zone and 2 independent heating zones, making it well suited to properties combining underfloor heating in some areas with radiators elsewhere.

Is MCS certification required?

Yes. Installation should be carried out by an MCS-certified installer to comply with UK regulations, access funding schemes such as the Boiler Upgrade Scheme, and validate the manufacturer warranty.
