Samsung Anti-Vibration Fix-It Foot 600mm Kit | HZK-0K-0000000 | For Heat Pumps

Description

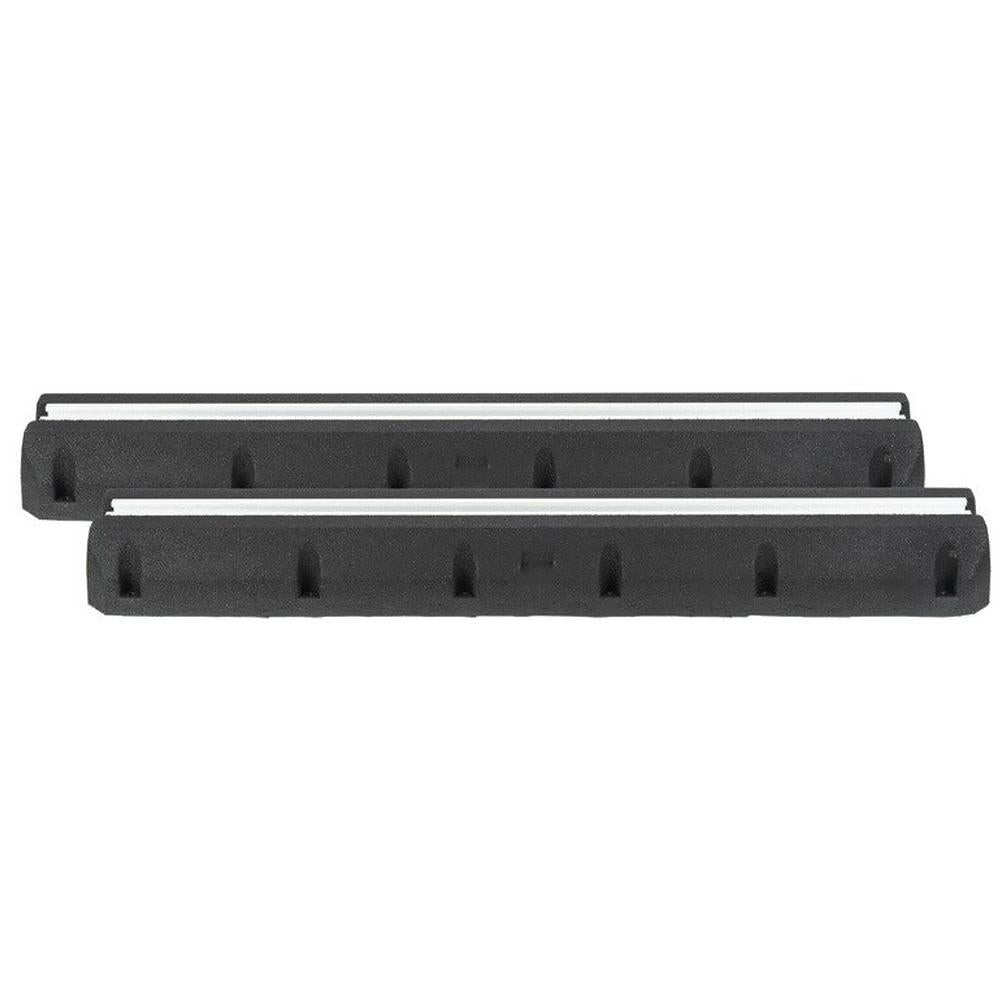

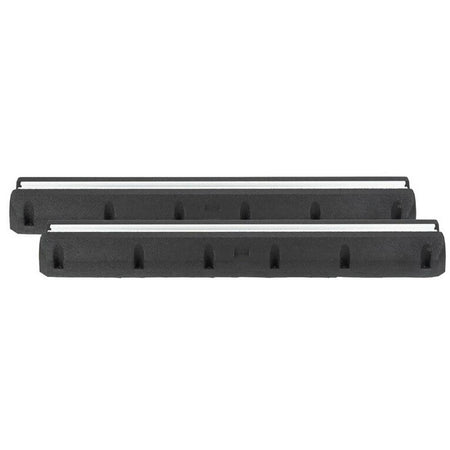

The Anti-Vibration Fix-It Foot 600mm Kit is a practical mounting solution for outdoor air source heat pump units, designed to isolate the unit from the mounting surface and cut down vibration transfer into the building structure. Supplied as a matched pair of rubber feet, the kit gives a stable, weather-resistant base for large heat pump outdoor units such as the Samsung monobloc range.

Each foot has a bonded 41 x 21mm channel recessed into the top face, allowing the heat pump to be secured using standard channel fixings rather than drilling directly into the rubber. Rated to support up to 645kg across the pair, this kit suits the full range of domestic and light commercial monobloc heat pump outdoor units.

600mm

Foot Length

180mm

Foot Depth

645kg

Max. Load (Pair)

2

Feet per Kit

41x21mm

Bonded Channel

2 Year

Warranty

Suits Samsung and Compatible Monobloc Units

This kit is designed for mounting large outdoor air source heat pump units, including the Samsung Gen 6 monobloc range, and is suitable wherever a stable, vibration-isolated base is needed for an outdoor condensing unit.

Standard Channel Fixings Required

The recessed 41 x 21mm bonded channel is designed for use with standard channel fixings, which are not included in this kit. Confirm your fixing hardware is compatible with a 41 x 21mm strut channel before installation.

Effective Vibration Isolation

The durable rubber construction absorbs vibration from the heat pump's compressor and fan, reducing noise transmission into the building structure.

High Load Capacity

Rated to support up to 645kg as a pair, suiting the weight of larger monobloc outdoor units without compromising stability.

Recessed Fixing Channel

A bonded 41 x 21mm channel is recessed into the top face of each foot, allowing secure mounting with standard channel fixings rather than direct drilling.

Weather-Resistant Rubber

Built from weather-resistant rubber suited to permanent outdoor installation, maintaining performance across the UK's seasonal temperature range.

Simple, Fast Installation

The straightforward foot-and-channel design speeds up outdoor unit installation compared with building a bespoke mounting frame on site.

Supplied as a Matched Pair

Sold as 2 feet per kit, giving a complete, matched mounting solution for a single outdoor heat pump unit.

Product Details

Product Type

Anti-vibration mounting foot (pair)

Length

600 mm

Depth

180 mm

Material

Rubber

Colour

Black

Fixing Channel

41 x 21mm bonded channel, recessed into top face

Performance

Max Load Capacity

645 kg (pair)

Application

Outdoor air source heat pump units

Environment

Suitable for permanent outdoor installation

Warranty

Product Warranty

2 years

What heat pumps is this kit compatible with?

This kit is designed for large outdoor air source heat pump units, including Samsung's Gen 6 monobloc range. Its 645kg load rating suits most domestic and light commercial monobloc units.

Are fixings included with the kit?

The kit includes the two rubber feet with their recessed 41 x 21mm bonded channel. Standard channel fixings to secure the heat pump into that channel are not included and should be sourced separately.

Can these feet be used outdoors year-round?

Yes. The feet are made from weather-resistant rubber designed for permanent outdoor installation, maintaining their vibration-isolating properties across the UK's seasonal temperature range.

How much weight can this kit support?

The pair is rated to a combined maximum load of 645kg, which covers the weight of the great majority of domestic and light commercial monobloc heat pump outdoor units.
