Braided Hose 28mm 0.75m Insulated Elbow Pair | HZK-0H28-0.075 | Heat Pump

Description

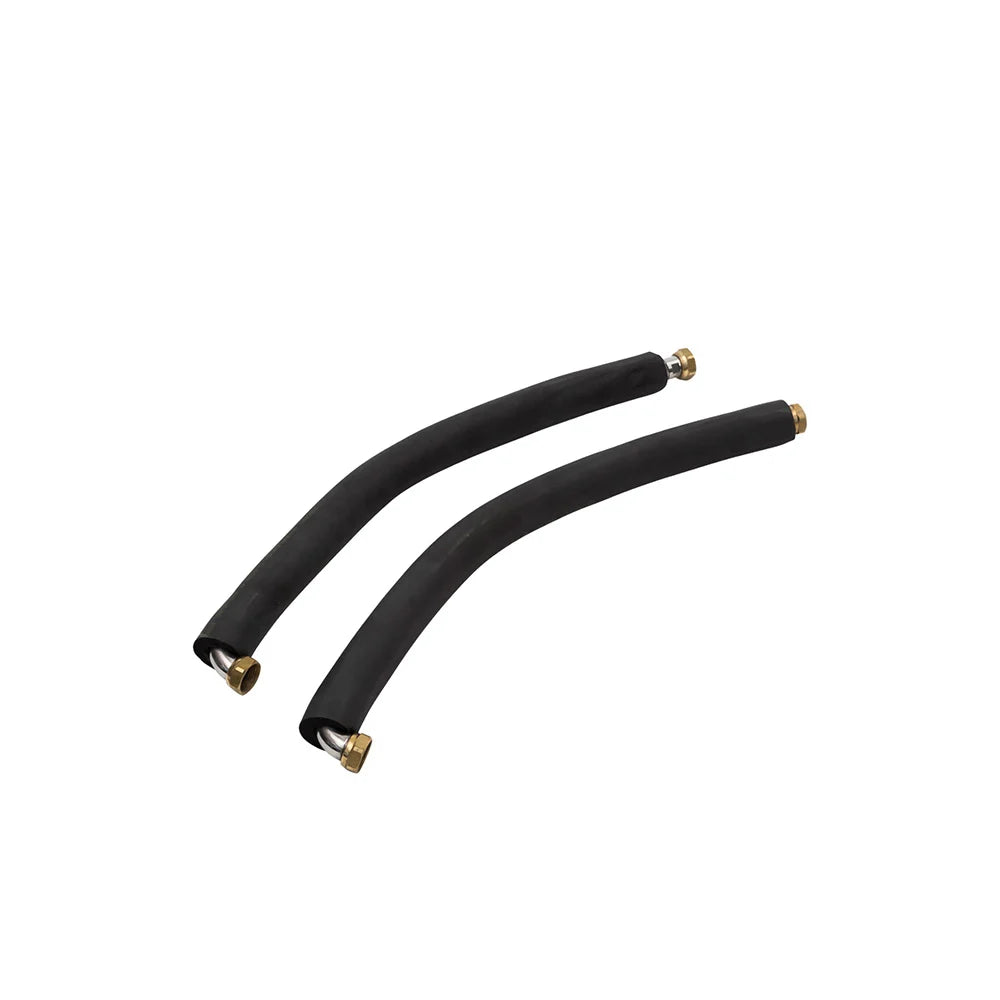

This 28mm 0.75m Insulated Braided Hose Elbow Pair provides a flexible, pre-insulated connection between an air source heat pump outdoor unit and the fixed flow and return pipework. The elbow shape allows a smooth 90° bend directly at the unit's connections, simplifying installation in tight plant spaces without forcing rigid pipe into an awkward angle.

Each hose is sleeved in stainless steel braid for durability and vibration resistance, and arrives pre-insulated to reduce heat loss along the connection and minimise the need for additional on-site lagging. Supplied as a pair, this hose set is compatible with Joule Samsung Monobloc heat pump systems and other similar 28mm installations.

28mm

Nominal Diameter

0.75m

Hose Length (Each)

2

Hoses per Pair

90°

Elbow Bend

Stainless Steel

Braid Construction

Pre-Insulated

Thermal Efficiency

Compatible with Joule Samsung Monobloc Systems

These hoses are designed for use with Joule Samsung Monobloc heat pump systems and other similar installations requiring insulated, flexible 28mm connections between the outdoor unit and fixed pipework.

Reduces Vibration Transfer to Pipework

As a flexible connection, this hose pair also helps reduce the transmission of vibration from the heat pump's compressor into the surrounding pipework, complementing anti-vibration feet under the unit itself.

Stainless Steel Braided Construction

The stainless steel braid sleeve adds strength and vibration resistance, and protects the hose from external damage during and after installation.

Pre-Insulated for Thermal Efficiency

Supplied with high-quality insulation already fitted, reducing heat loss along the connection and cutting down on additional on-site lagging work.

Elbow Design for Tight Spaces

The 90° elbow shape at each hose end allows a smooth bend directly at the unit connection, easing installation where space around the heat pump is limited.

Flexible Vibration-Reducing Connection

The flexible hose construction helps absorb vibration from the heat pump's compressor and fan, reducing transmission into the fixed pipework.

28mm Standard Connection Size

Sized to 28mm nominal diameter to match the flow and return connections on Samsung monobloc and similar heat pump outdoor units.

Supplied as a Matched Pair

Sold as 2 hoses (flow and return), giving a complete connection set for a single outdoor unit installation.

Product Details

Nominal Diameter

28 mm

Hose Length

0.75 m (approx. 750mm) each

Pack Quantity

Pair (2 hoses)

Construction

Stainless steel braided flexible hose

Insulation

Pre-fitted, high-quality thermal insulation

End Design

Elbow ends for smooth 90° bends

Compatibility

Designed For

Joule Samsung Monobloc heat pump systems

Also Suitable For

Other installations requiring insulated 28mm flexible connections

Typical Use

Flow and return connection between outdoor unit and fixed pipework

What is this hose pair used for?

These hoses connect the flow and return pipework to an air source heat pump outdoor unit, providing a flexible, insulated, and vibration-absorbing link in place of rigid pipe run directly to the unit.

Do I need additional insulation once these are installed?

No additional insulation should be needed for the hose length itself, as each hose is supplied pre-insulated. Any exposed pipework beyond the hose ends should still be insulated separately as normal.

Are these hoses compatible with heat pumps other than Samsung?

Yes. While designed for Joule Samsung Monobloc systems, these 28mm insulated braided hoses are suitable for other installations requiring a similar flexible, insulated connection.

Why use a flexible hose instead of rigid pipe at the heat pump connection?

A flexible hose absorbs vibration from the heat pump's compressor and fan before it reaches the fixed pipework, and the elbow design makes it easier to connect at an angle in tight installation spaces.
