Joisted Floors Underfloor Heating System 96m²

96.0m² ThermRite Heatboard ULTRA Grooved Plated Chipboard System

Description

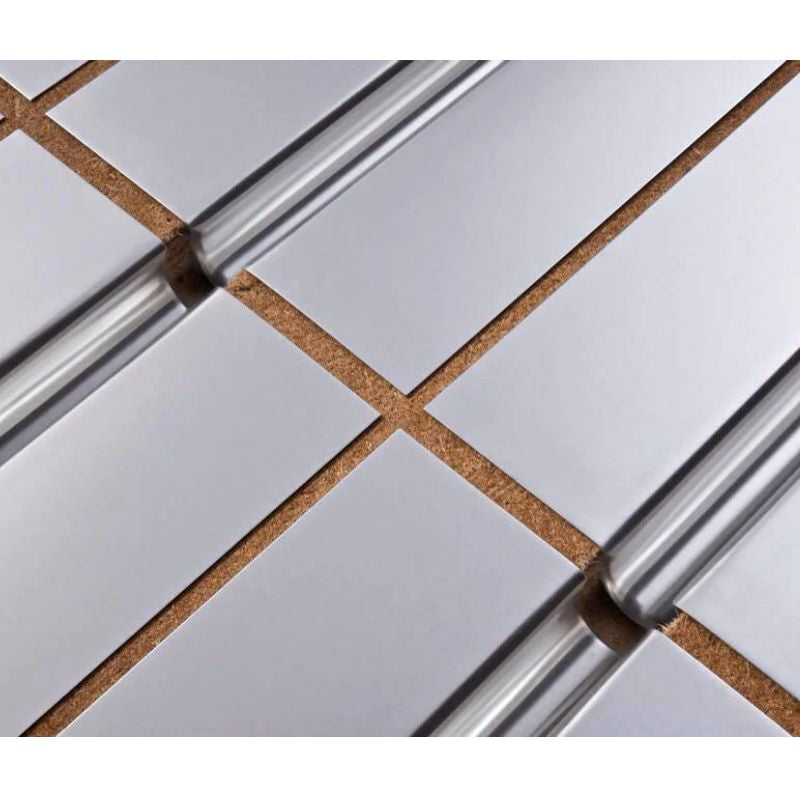

Offering a robust and efficient underfloor heating solution, the ThermRite Heatboard ULTRA system uses grooved 22mm chipboard panels combined with aluminium heat diffusion plates, providing consistent heat spread in joisted flooring applications.

Panels support 12mm multilayer pipes at 150mm centres and incorporate 9 aluminium plates for superior heat transfer per board.

Panel Dimensions: 2400mm x 600mm x 22mm
Coverage per board: 1.44 m²

What’s Included

• 67 x Heatboard ULTRA Panels (approx. 95.0 m² coverage)
• 603 x aluminium heat diffusion plates
• A rated Grundfos pump and mixing valve for flow management
• 8 Port Dualmix manifold and installation fittings
• 12mm High-spec 5-layer multilayer pipe (~640 metres)
• Digital programmable room thermostat
• Pipe cutter and reaming tool
• Installation and layout instructions

Key Features

• Integrated aluminium heat diffusion plates for rapid heat transfer
• Factory machined grooves and channels for precise pipe location
• Conforms with fire protection and environmental emission standards
• Complete with professional control and flow regulation components
• Reliable and durable chipboard flooring grade panels

Benefits

• Consistent thermal comfort with optimised heat spread
• Simple installation with pre-grooved pipe runs and fitted plates
• Suitable for residential and commercial joisted floor applications
• Long-term performance and low maintenance needs

Delivering high-output heating with minimal fuss, this system offers an efficient, easy to install underfloor heating solution for medium-large floor areas.
