Jinko Tiger Neo 440W NType 54 Cell All Black Mono

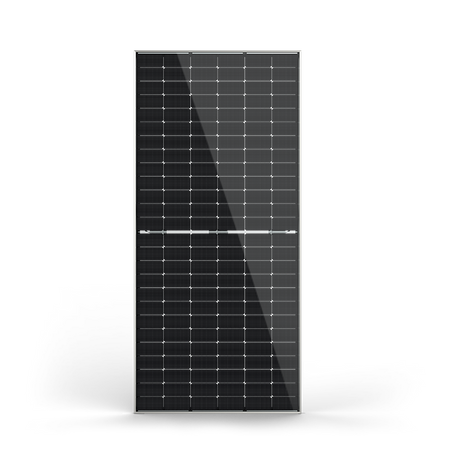

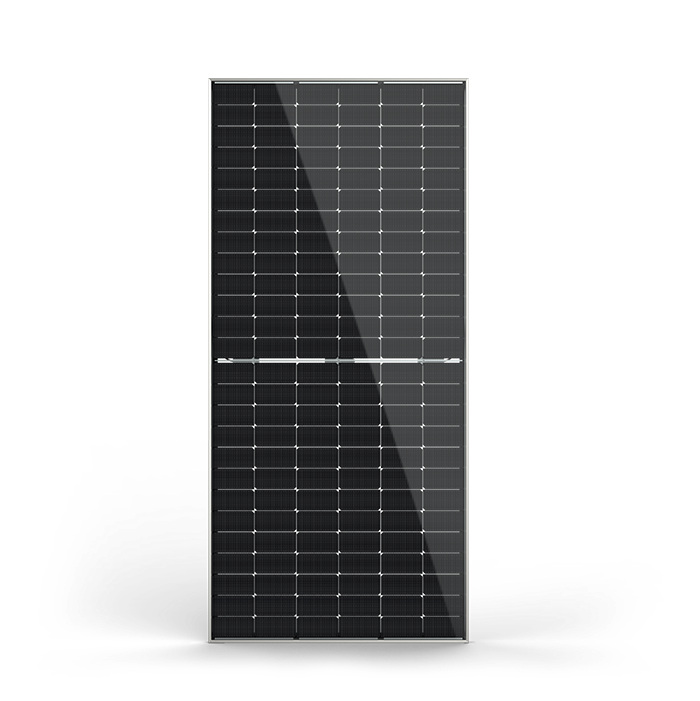

Jinko Tiger Neo 440W TOPCon N-Type 54 Rectangular Cell Monocrystalline – All Black

The Jinko Tiger Neo 440W TOPCon N-Type 54 Rectangular Cell Monocrystalline – All Black solar panel delivers exceptional efficiency, durability, and aesthetics for both residential and commercial installations. Utilising advanced N-Type TOPCon technology, this panel achieves up to 22% efficiency, offering superior performance even in low-light conditions.

The all-black design provides a sleek, modern appearance, while robust construction ensures reliable operation in harsh environments. The panel is engineered to withstand wind loads up to 2400 Pa and snow loads up to 5400 Pa, with high resistance to salt mist and ammonia. Backed by a 25-year product warranty and a 30-year linear performance warranty, this is a long-term investment in sustainable energy.

Key Features

• Rated Power (Pmax): 440W
• Module Efficiency: 22%
• Cell Type: N-Type TOPCon, 54 rectangular cells
• All-Black Design: Sleek aesthetic for any roof
• Wind Load: 2400 Pa
• Snow Load: 5400 Pa
• Product Warranty: 25 years
• Performance Warranty: 30 years (87.4% output after 30 years)
• Connector Type: JK03M / MC4-compatible
• MCS Reference: BABT8801-117-445W
• Part Number: JKM440N-54HL4R-B

Electrical Data (STC)

• Open Circuit Voltage (Voc): 39.57 V
• Short Circuit Current (Isc): 13.8 A
• Voltage at Maximum Power (Vmpp): 32.99 V
• Current at Maximum Power (Impp): 13.34 A
• Maximum System Voltage: 1500 V DC
• Temperature Coefficient (Pmax): -0.29%/°C

Dimensions & Weight

• Length: 1762 mm
• Width: 1134 mm
• Depth: 30 mm
• Weight: 21–22 kg

Certifications

• CE, MCS, ISO 9001, ISO 14001, ISO 45001

EAN Code

• JKM440N-54HL4R-B: 6970070475572

Note: Professional installation is recommended. This panel is compatible with leading inverter brands and mounting systems.
