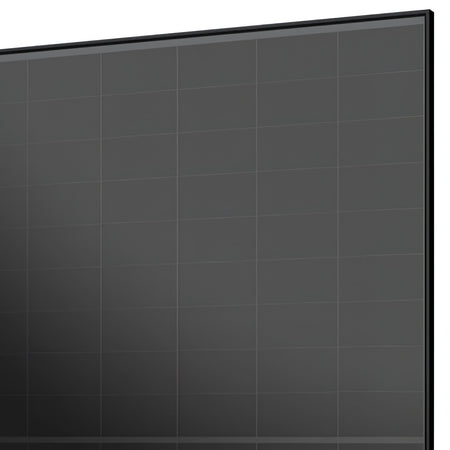

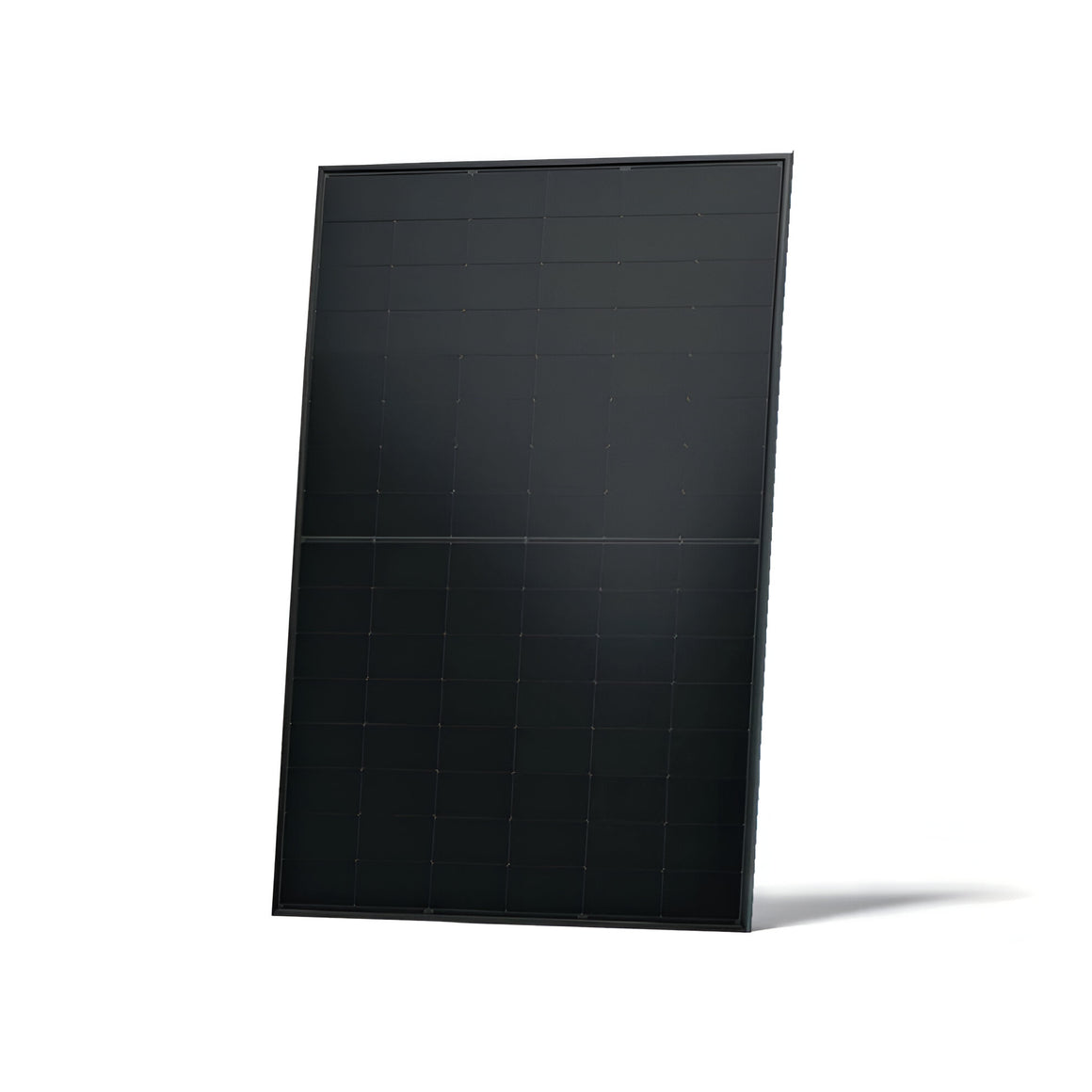

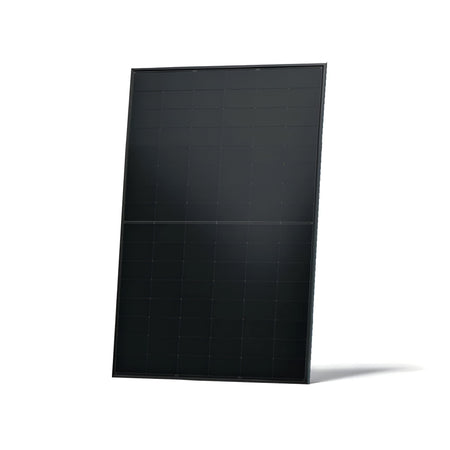

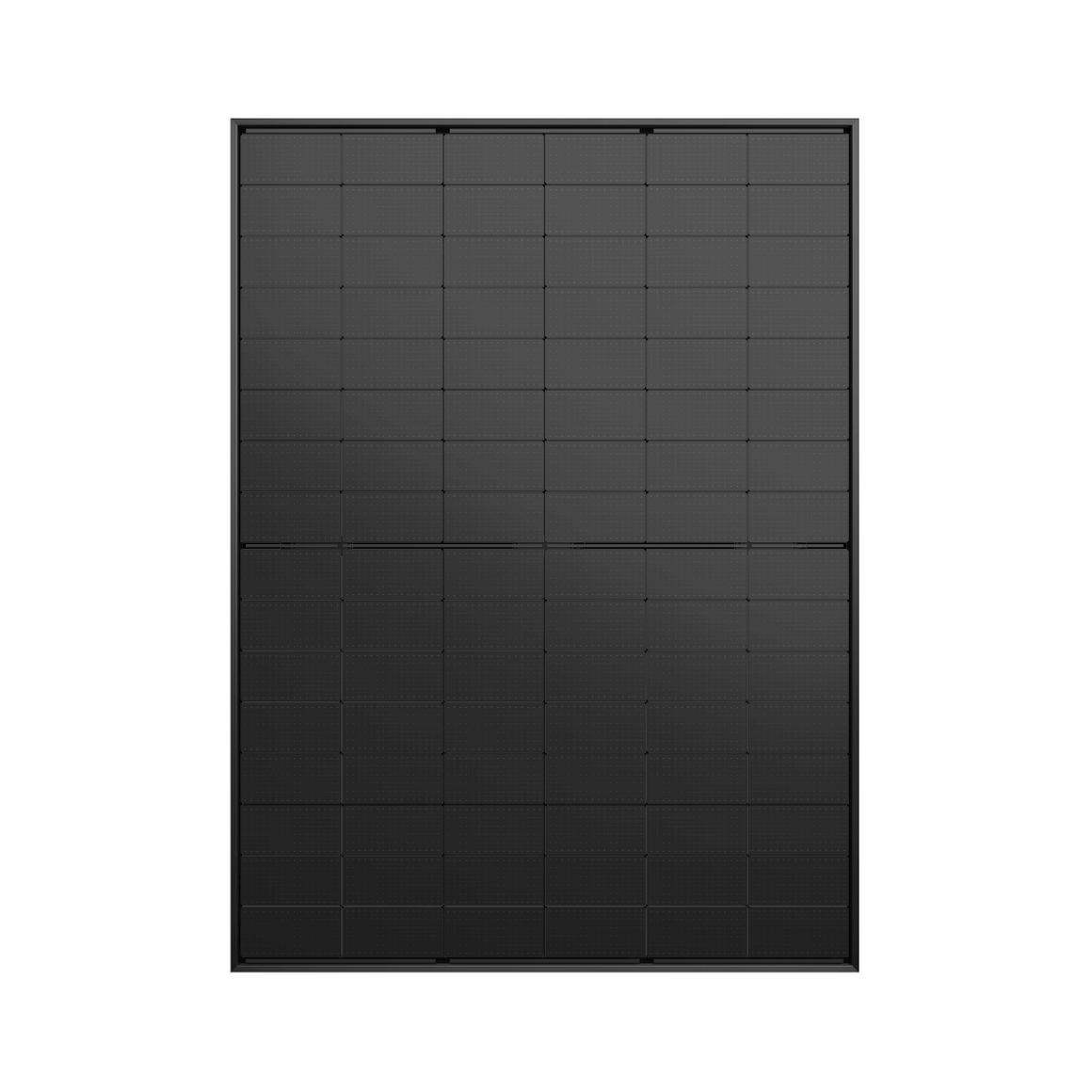

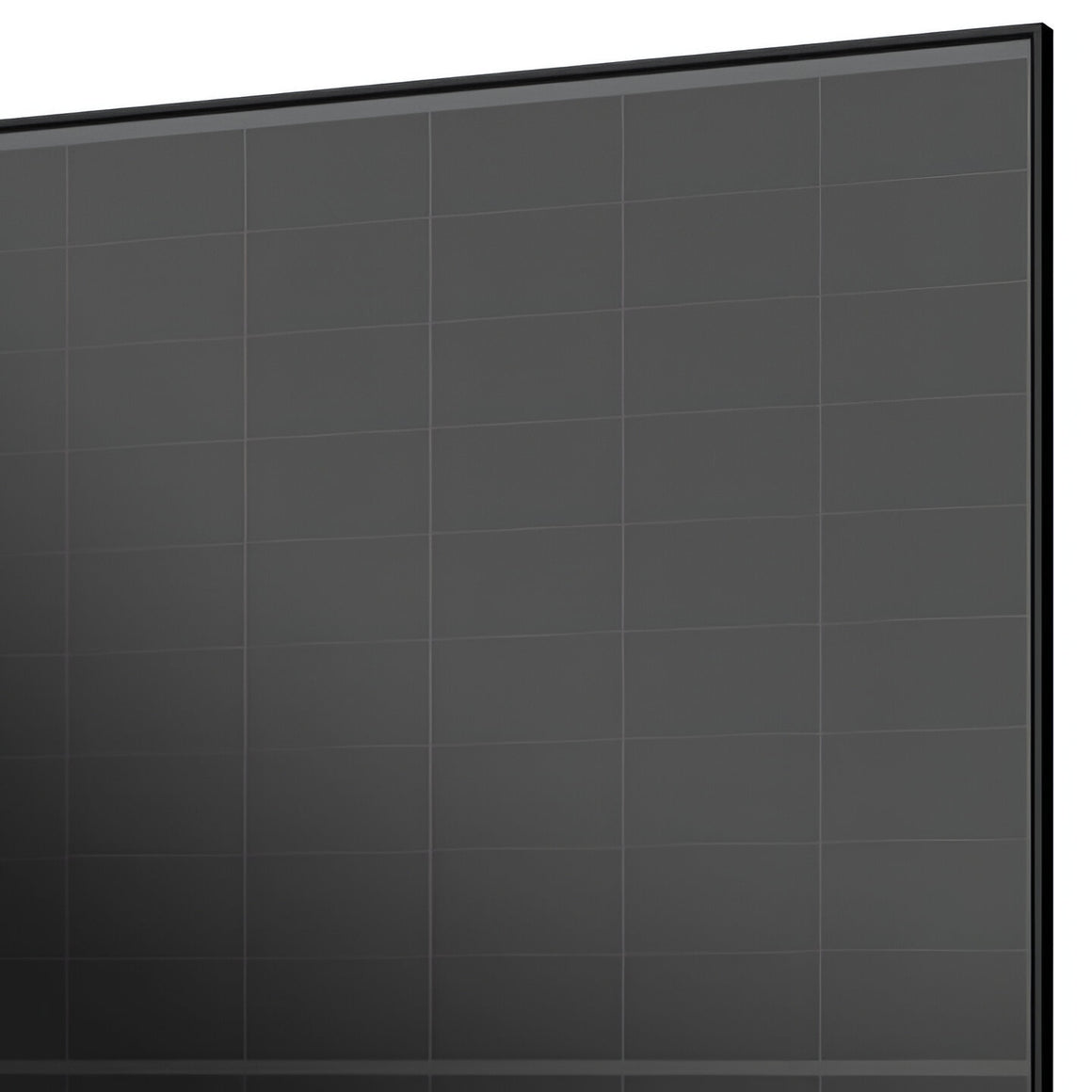

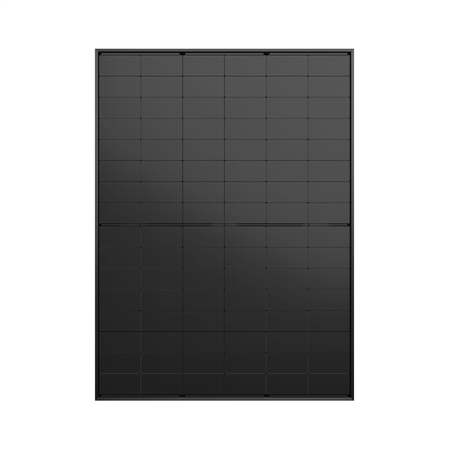

Jinko Tiger Neo 2.0 455W All black Dual Glass TOPcon with HOT 3.0

The Jinko Tiger Neo 2.0 455W All Black Dual Glass TOPCon with HOT 3.0 (JKM455N-48HL4M-DB) is an N-type monocrystalline solar panel featuring advanced TOPCon technology for superior efficiency and durability in residential and commercial installations.

Product Description

This all-black dual-glass module utilises 48 half-cells with Jinko's HOT 3.0 technology, SMBB contacts, and SMA cell interconnect for enhanced low-light performance and PID resistance. Offering 22.77% efficiency, it provides high power density with robust mechanical and environmental resistance.

Key Features

• N-type TOPCon cells: Lower LID/LeTID degradation for long-term reliability.
• HOT 3.0 technology: Improved efficiency and bifaciality.
• Dual glass design: Enhanced durability against PID, salt mist, and ammonia.
• Mechanical load: 6000 Pa snow, 4000 Pa wind.
• All-black aesthetics: Premium visual appeal for rooftops.
• Certifications: IEC, MCS, Class C fire rating.

Electrical Specifications

• Nominal power (STC): 455 Wp.
• Efficiency: 22.77%.
• Open circuit voltage (Voc): 36.21 V.
• Short circuit current (Isc): 15.81 A.
• Max power voltage (Vmpp): 30.48 V.
• Max power current (Impp): 14.93 A.
• Temp coefficient Pmax: -0.29%/°C.
• System voltage: 1500 V DC.

Physical Specifications

• Dimensions (L × W × H): 1762 × 1134 × 30 mm.
• Weight: 24 kg.
• Cells: 96 (48 half-cells), N-type monocrystalline.
• Glass: 2.0 mm heat strengthened front/back.
• Frame: Black anodised aluminium.
• Connectors: JK03M / MC4 EVO2, 1200 mm cables.

Warranties & Applications

• Product warranty: 25 years.
• Linear power warranty: 30 years (87.4% at year 30).
• Applications: Residential rooftops, commercial arrays, bifacial potential.
