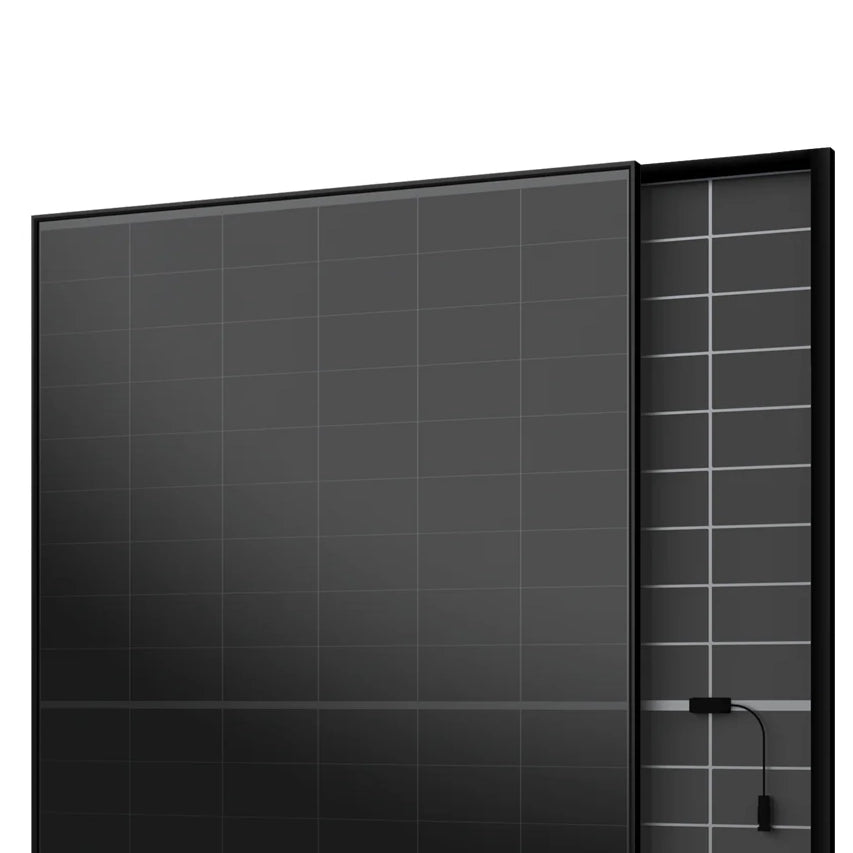

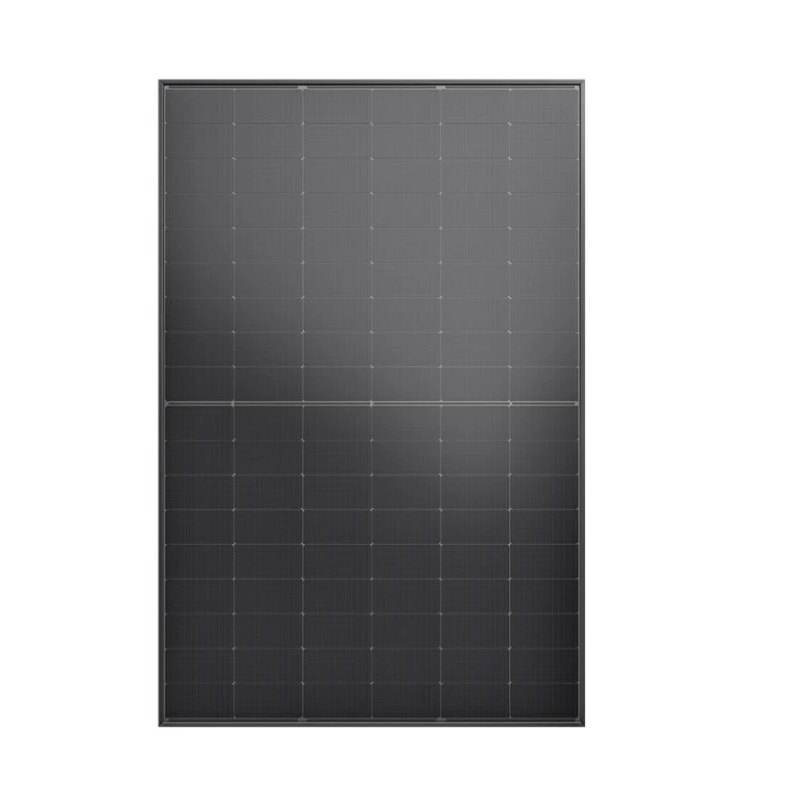

Jinko 510W Tiger Neo 2.0 TOPcon Bifacial Dual Glass with HOT 3.0
Regular price
£153.00
Inc. VAT
£127.50
Exc. VAT
Free Shipping
Free shipping on solar panels for orders above £2,500!
FREE Express Delivery (1-3 days) in UK Mainland on most orders*
Excluding: Solar Panels (£170 delivery / free above £2,500), Batteries (£39 delivery), Small Items (£4.95/5.95 delivery / free above £500)
Contact Us to check for Next Working Day Delivery or Same-day Delivery options
Contact Us for Click & Collect options
Custom quote available on request
*See checkout or shipping policy for full details
Documentation
Downloads
Payment options
Tools & Kits
Build your kit
Need a full system?
Design your complete solution in minutes with our kit builders.
Do you have a question
about this product?
One of our expert advisors will be happy to help you!
Contact Us
JKM510N-54HL4M-BDV | High-efficiency N-Type TOPCon bifacial module with Jinko HOT 3.0 technology for maximum energy yield from both sides.
Key Features
- 510W front-side power with 22.9% module efficiency (+30% bifacial gain potential)
- N-Type TOPCon 54 half-cells with SMBB for superior bifaciality and low-light performance
- HOT 3.0 technology - minimised LID/LETID for unmatched long-term reliability
- Bifacial dual-glass construction captures rear-side albedo for extra yield
- 12-year product warranty + 30-year linear performance warranty
- Excellent temperature coefficient: -0.29%/°C
- DC1500V system voltage with MC4-Evo2 connectors
- Extreme mechanical loads: 2400 Pa wind / 5400 Pa snow
Electrical Characteristics (STC - Front Side)
| Nominal Power Pmax | 510 W |
| Module Efficiency | 22.9% |
| Voltage at Pmax (Vmpp) | 34.39 V |
| Current at Pmax (Impp) | 14.84 A |
| Open Circuit Voltage (Voc) | 41.55 V |
| Short Circuit Current (Isc) | 15.54 A |
| System Voltage | 1500 V DC |
| Pmax Temp. Coefficient | -0.29%/°C |
Mechanical Specifications
| Dimensions (L×W×T) | 1961 × 1134 × 30 mm |
| Weight | 27.0 kg |
| Cell Configuration | 108 N-Type TOPCon half-cells (54) |
| Front Glass | 2.0 mm tempered anti-reflection glass |
| Back Glass | 2.0 mm tempered bifacial glass |
| Frame | Black anodised aluminium |
| Cable Length | 1200 mm MC4-Evo2 (+400/-200 mm) |
Warranty & Performance
- First year degradation: ≤1%
- Annual degradation: ≤0.40%/year (years 2-30)
- Year 30 performance guarantee: ≥87.4%
- Bifaciality: ≥70% (front-side reference)
- MCS certified for UK commercial & ground-mount installations
- IP68 junction box, high PID/salt mist/ammonia resistance
MPN: JKM510N-54HL4M-BDV
Model: Tiger Neo 2.0 54HL4M-BDV
EAN: Not specified
Bifacial N-Type TOPCon module optimised for elevated mounting and reflective surfaces. HOT 3.0 technology delivers industry-leading degradation resistance.
