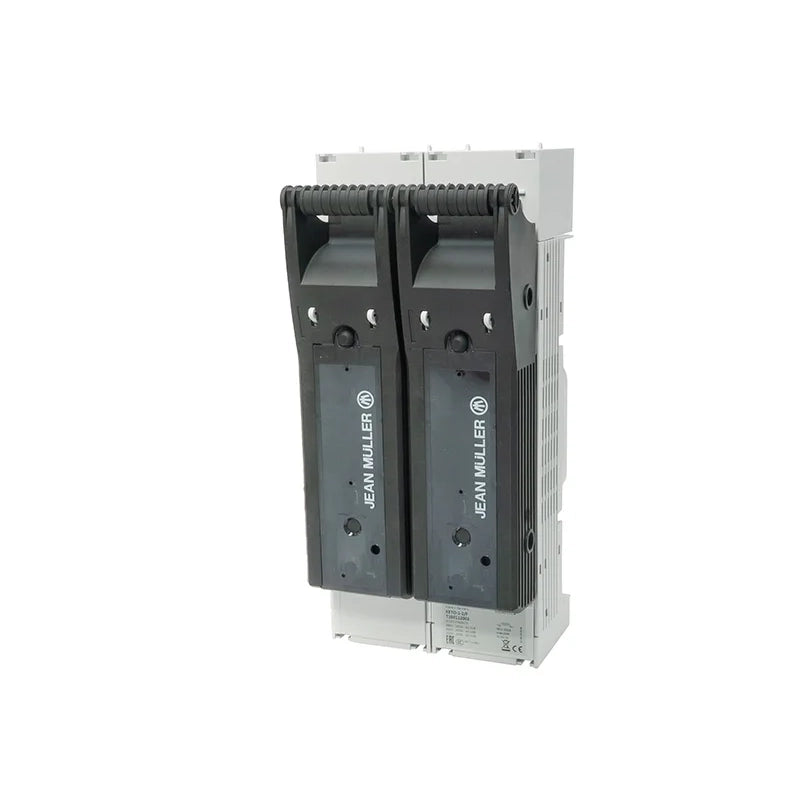

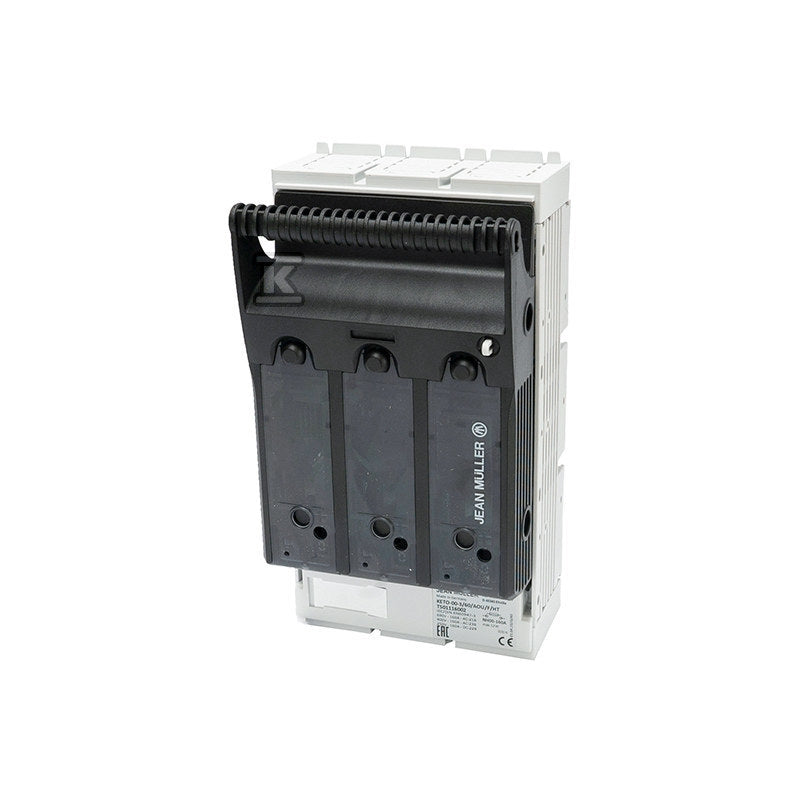

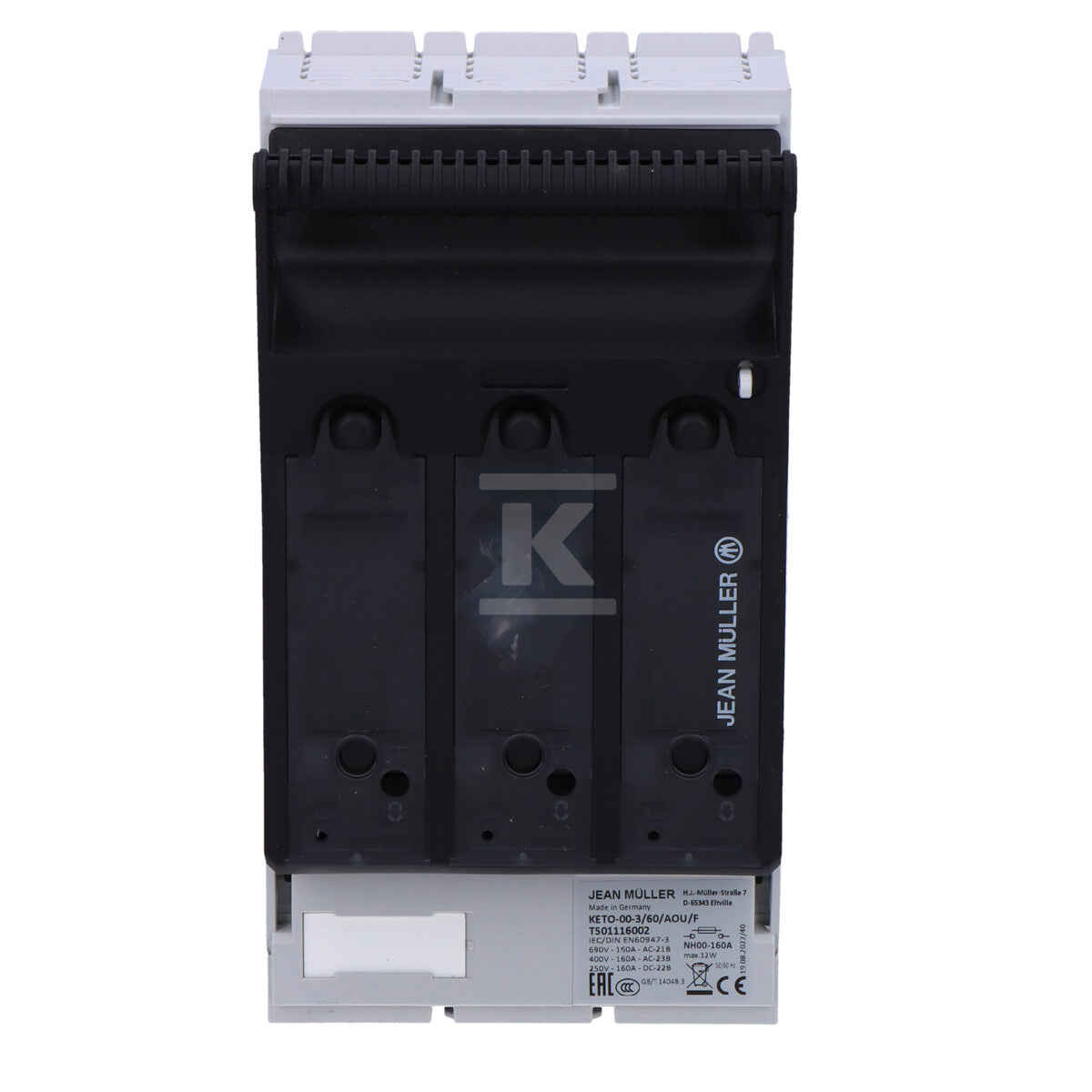

Jean Muller KETO-1 Battery Disconnector with 200A Fuses
The Jean Muller KETO-1-200A fuse-switch-disconnector is a high-capacity battery isolator designed for safe and reliable DC circuit protection in solar energy and battery storage applications. It features a KETO size 1 body equipped with 200A NH fuse-links, ensuring robust disconnection and protection for large battery banks.
Technical Specifications
| Type | Poles | Rated Current | DC Voltage Rating | Fuse-links Included | Terminals | Cable Area | Dimensions (W x H x D) | Mounting | MPN |
|---|---|---|---|---|---|---|---|---|---|
| KETO-1-200A | 3 | 250A | 440V DC | 2 × NH00 200A Fuse-links | M10 lugs | 25-150mm² | 184 x 300 mm | DIN rail or panel mount | KETO-1-200A |
Key Features
- Includes high-quality 200A NH fuse-links for effective circuit protection.
- Size 1 body offers robust construction for high-current battery isolation.
- Three-pole switch design for secure disconnection of battery circuits.
- M10 terminal lugs supporting a cable area from 25mm² to 150mm².
- Flexible installation via DIN rail or panel mounting.
- Rated for 440V DC applications, suitable for demanding renewable energy systems.
Why Buy Jean Muller KETO-1-200A?
This battery disconnector provides professional-grade safety and reliability for renewable energy and battery storage systems, complete with fuse-links included for installation convenience. The Jean Muller brand ensures quality and performance trusted across the industry.
- Complete fused disconnection solution with included 200A fuses.
- Durable and versatile for various installation environments.
- Easy maintenance and proven reliability for critical DC circuits.
- Type Battery Isolators
- Vendor Jean Muller
- SKU KETO-1-200A
