Inta Full Bore Ball Valve - 1 1/4" BSP Swivel x 1" BSP Parallel Male with Flat Face and Extended Lever
Couldn't load pickup availability
Payment options

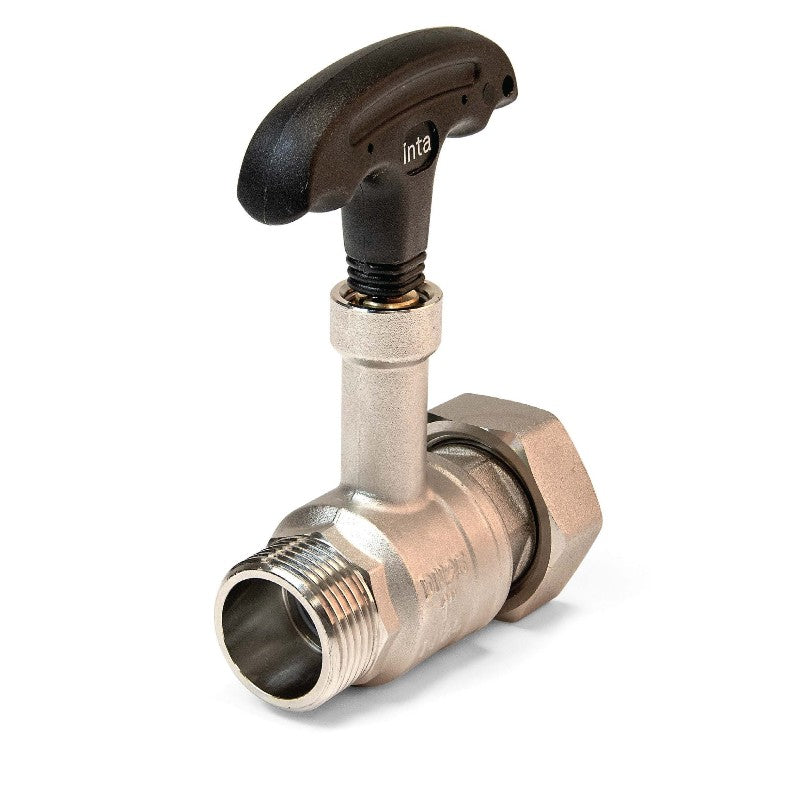

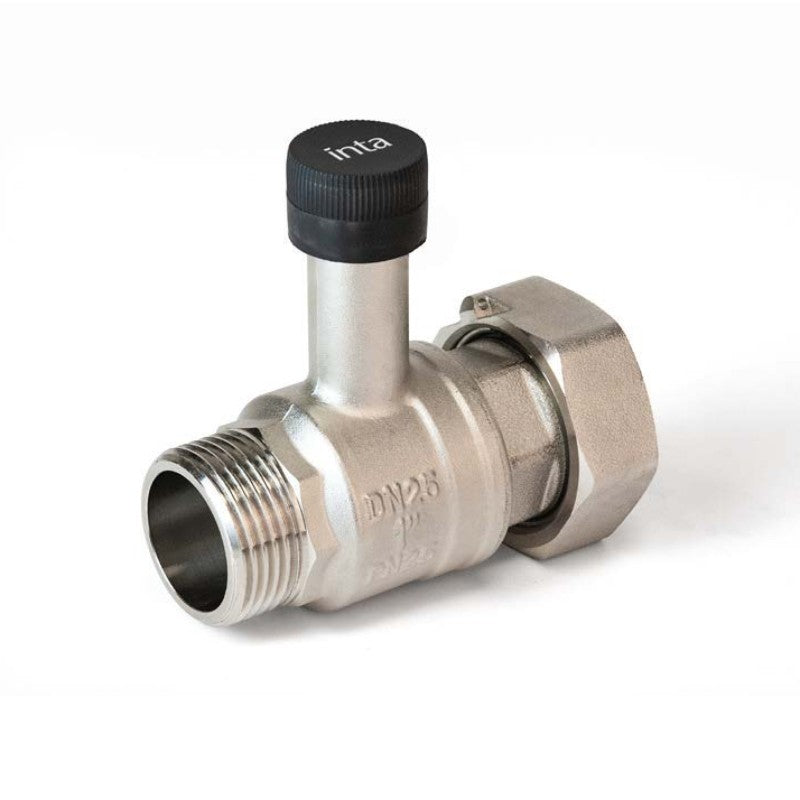

Inta Full Bore Ball Valve - 1 1/4" BSP Swivel x 1" BSP Parallel Male with Flat Face and Extended Lever
Discover the reliable Inta full bore ball valve, expertly crafted from durable brass for optimal performance in heating systems and heat pumps. This high-quality brass ball valve features a 1 1/4" BSP swivel female connection and 1" BSP parallel male end with a flat face, ensuring seamless integration and secure fittings. The extended lever design allows for effortless operation, even when insulated, minimising heat loss and simplifying maintenance without the need to drain the system. Versatile and robust, the removable lever extension provides flexibility for various applications, making it an essential component for efficient plumbing and heating installations. With superior corrosion resistance and compliance to BSP standards, this full bore valve handles demanding conditions, offering long-lasting reliability for both residential and commercial use. Ideal for those seeking a dependable isolation valve that enhances system efficiency and reduces downtime.
| Specification | Details |
|---|---|
| Brand | Inta |
| Type | Full Bore Ball Valve |
| Size | 1 1/4" x 1" |
| Connection | BSP Female Swivel x BSP Parallel Male with Flat Face |
| Material | Brass |
| Finish | Plated |
| Handle | Extended Lever |
| Handle Colour | Blue |
| Lockable | No |
| Full Bore | Yes |
| Application | Heat Pumps and Heating Systems |
| Standards | BSP to BS EN ISO 228 |
| Max. Operating Pressure | 25 bar (static) |
| Pressure Rating | 15 bar |
| Operating Temperature | -10°C to 90°C |
| Temperature Range | -20°C to 120°C |
| MPN | HPBV114 |
- Type Heat Pump Components
- Vendor Inta
- SKU HPBV114
