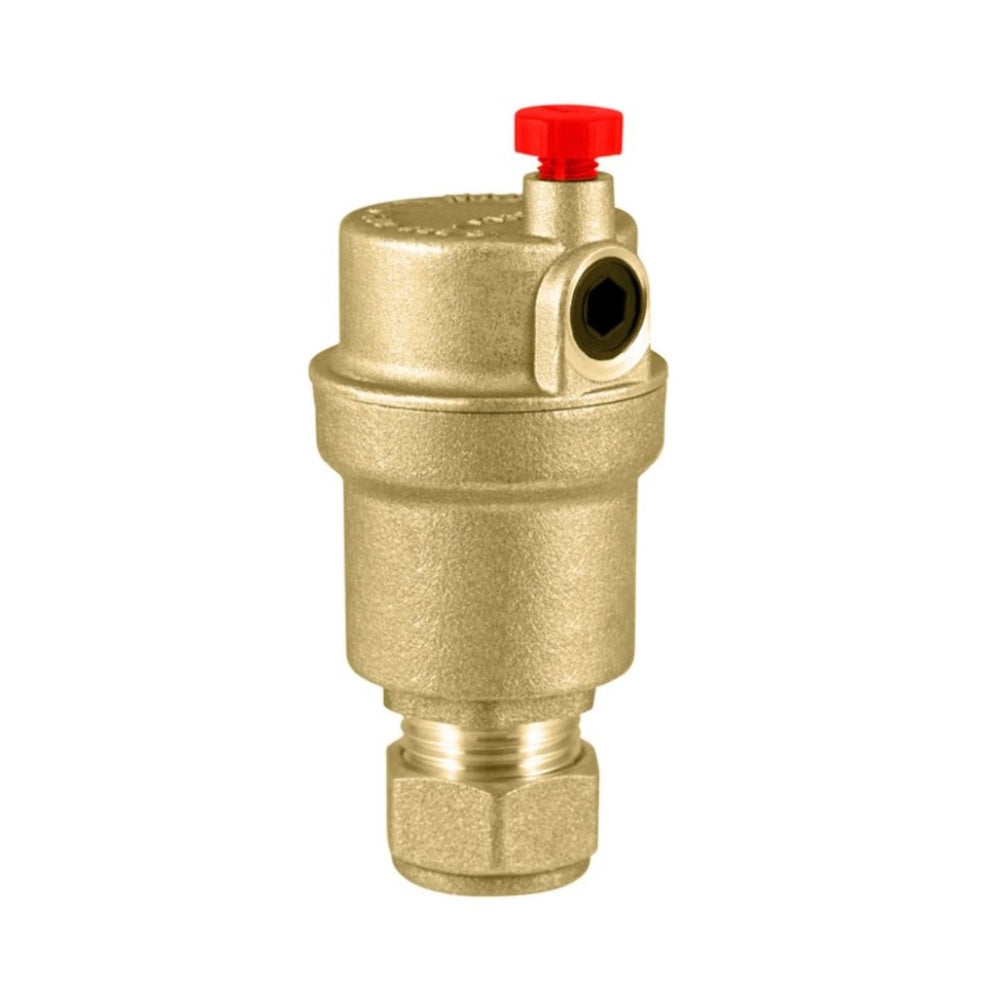

The Inta 15mm Auto Air Vent (AAV07911500B) automatically clears trapped air from sealed heating systems, so there's no need to manually bleed radiators or vent pipework by hand. Fitted at a high point in the system, it keeps working quietly in the background, releasing air as it accumulates and helping the whole system run more efficiently.

Inside, a float-operated valve mechanism does the work: as air collects inside the float chamber, the float drops and opens the valve, releasing the trapped air. Once the air has escaped, water refills the chamber and lifts the float back into its sealed position — ready to repeat the cycle automatically, for as long as the system runs.

15mm
Connection size
10 bar
Max static pressure
6 bar
Min discharge pressure
115°C
Max inlet temperature
30%
Max glycol content
Brass
Body material
Installer tip: Fit the AAV07911500B at the highest point of the circuit — typically above the boiler or heat pump manifold — where trapped air naturally collects, for the most effective automatic venting.

Key Features

Automatic air discharge

Continuously vents trapped air without manual bleeding, keeping the system running smoothly.

Solid brass construction

Durable, corrosion-resistant body built to last the lifetime of the heating system.

Quieter pipework

Eliminates the noisy gurgling caused by air pockets moving through radiators and pipes.

Reduced component wear

Decreases unnecessary wear on pumps and system components caused by air ingress.

Optimised efficiency

Keeps the system running at peak efficiency by preventing air locks and cold spots in radiators.

Glycol compatible

Suitable for water and water/glycol mixtures up to 30%, supporting heat pump anti-freeze protection.

Technical Specification

Attribute
Specification
Manufacturer's model
AAV07911500B – 15mm All-Brass Automatic Air Vent
Brand
Inta (Intatec)
Body material
Solid brass
Connection size
15mm
Maximum inlet (static) pressure
10 bar
Minimum discharge pressure
6 bar
Maximum inlet temperature
115°C
Compatible fluids
Water; water/glycol mixtures up to 30%
Product diameter
40.4mm
Product height
88.6mm
Barcode
5055143743296

Where It's Used

The Inta 15mm Auto Air Vent is designed for domestic sealed heating systems — gas, electric and oil boiler installations, unvented cylinder circuits, and heat pump systems using low-strength glycol mixes. Its compact size makes it well suited to radiator circuits, manifolds, and any point in the pipework where air commonly collects.

How does an automatic air vent work?
A float inside the vent rises and falls with the water level in the float chamber. As trapped air accumulates, the float drops and opens a small valve, releasing the air. Water then refills the chamber, lifting the float back up and sealing the valve until air builds up again.
Where should this air vent be fitted?
It should be installed at the highest point of the sealed system's pipework, where air naturally rises and collects — commonly near the boiler, heat pump, or top of a manifold.
Can it be used with heat pump glycol mixtures?
Yes. It's rated for use with water and water/glycol mixtures up to 30%, making it suitable for heat pump circuits that need anti-freeze protection.
Does it need to be installed by a qualified installer?
Yes. As with any component fitted to a sealed heating system, installation should be carried out by a competent heating engineer or plumber in line with the manufacturer's instructions.
