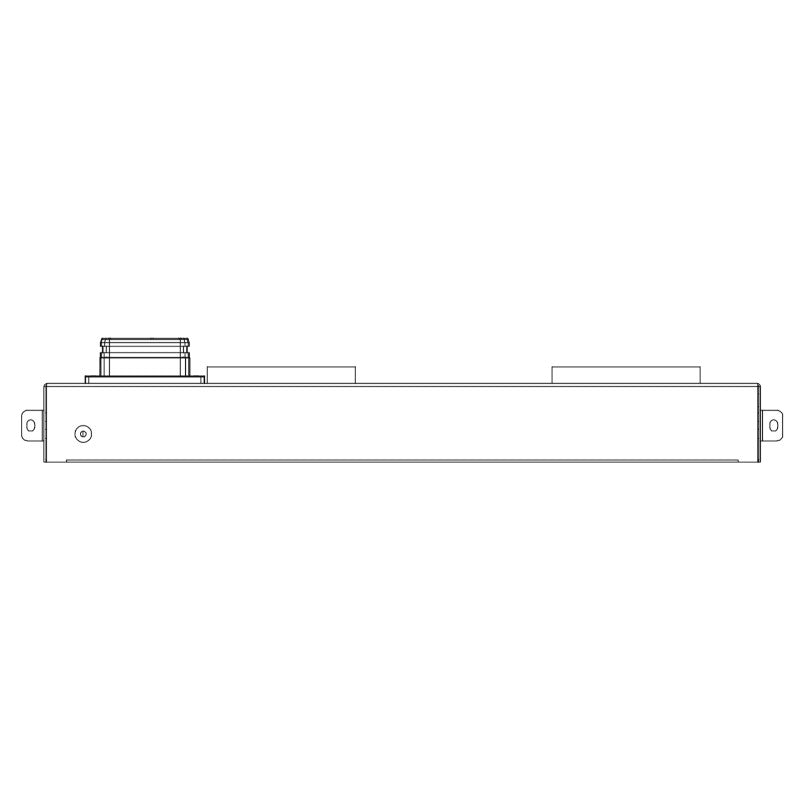

InstaGen 5kWh Battery Stack Base

The InstaGen 5kWh Battery Stack Base is the foundation module for scalable energy storage systems, providing the base platform for stacking up to 4 x 5kWh V2 battery modules with integrated communication and power distribution.

Product Description

This base unit serves as the ground-floor component of the InstaGen modular battery stack, handling inverter communication, current sharing, and protection for the entire battery array. It enables simple expansion from 5kWh to 20kWh capacity while maintaining a compact footprint and plug-and-play connectivity.

Key Features

• Stack foundation: Supports 1-4 x 5kWh V2 modules above (5-20kWh total).
• Integrated master BMS: Manages current sharing, balancing, and protection for entire stack.
• Plug-and-play stacking: Automatic detection and configuration of additional modules.
• High current handling: Up to 100A continuous charge/discharge for fast energy throughput.
• Compact design: Optimised footprint for space-constrained installations.
• Safety focused: Multiple layers of protection including short-circuit and thermal management.

Technical Details

• Capacity: 5.12 kWh (base module).
• Nominal voltage: 51.2 V (48V nominal LiFePO4).
• Max charge current: 100 A.
• Max discharge current: 100 A continuous.
• Communication protocol: CAN bus for inverter integration.
• Expansion capability: Stackable up to 20.48 kWh (4 modules).

Physical Specifications

• Dimensions (H × W × D): 150 × 670 × 500 mm (base height).
• Weight: 48 kg.
• Enclosure: IP65 rated aluminium alloy.
• Mounting options: Floor-standing or wall-mount (with bracket).
• Cooling: Passive thermal management.
• Operating temperature: 0–50°C charging, −10–50°C discharging.

System & Application Notes

• Compatibility: InstaGen 3.68kW and 5kW single-phase hybrid inverters.
• Stacking method: Modules connect via side-mounted busbars and communication harnesses.
• Safety certifications: CE, IEC 62619, IEC 62040.
• Installation: Professional installation required; ventilation clearance of 200mm above/below.
• Warranty: 10 years (matched to battery cycle warranty).
