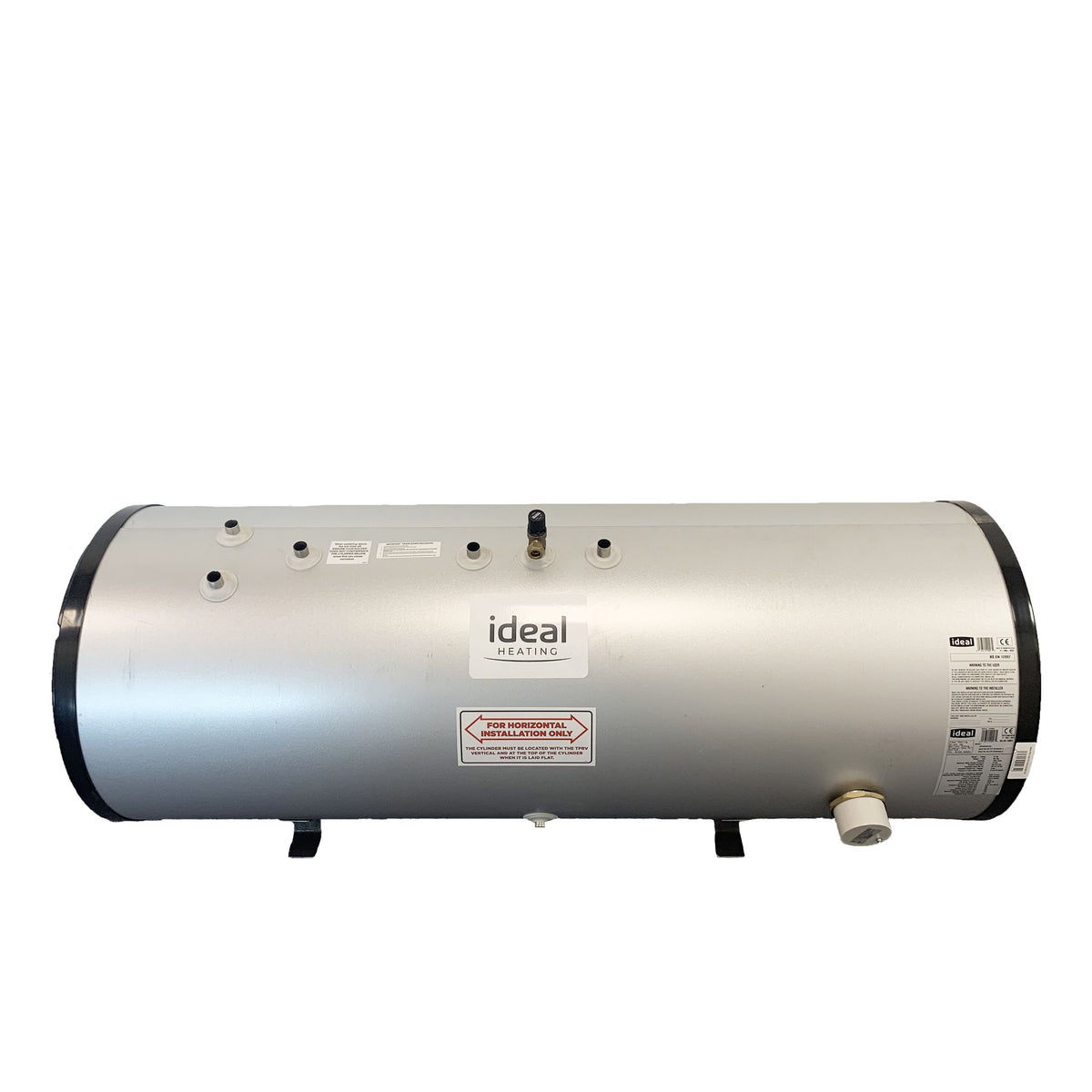

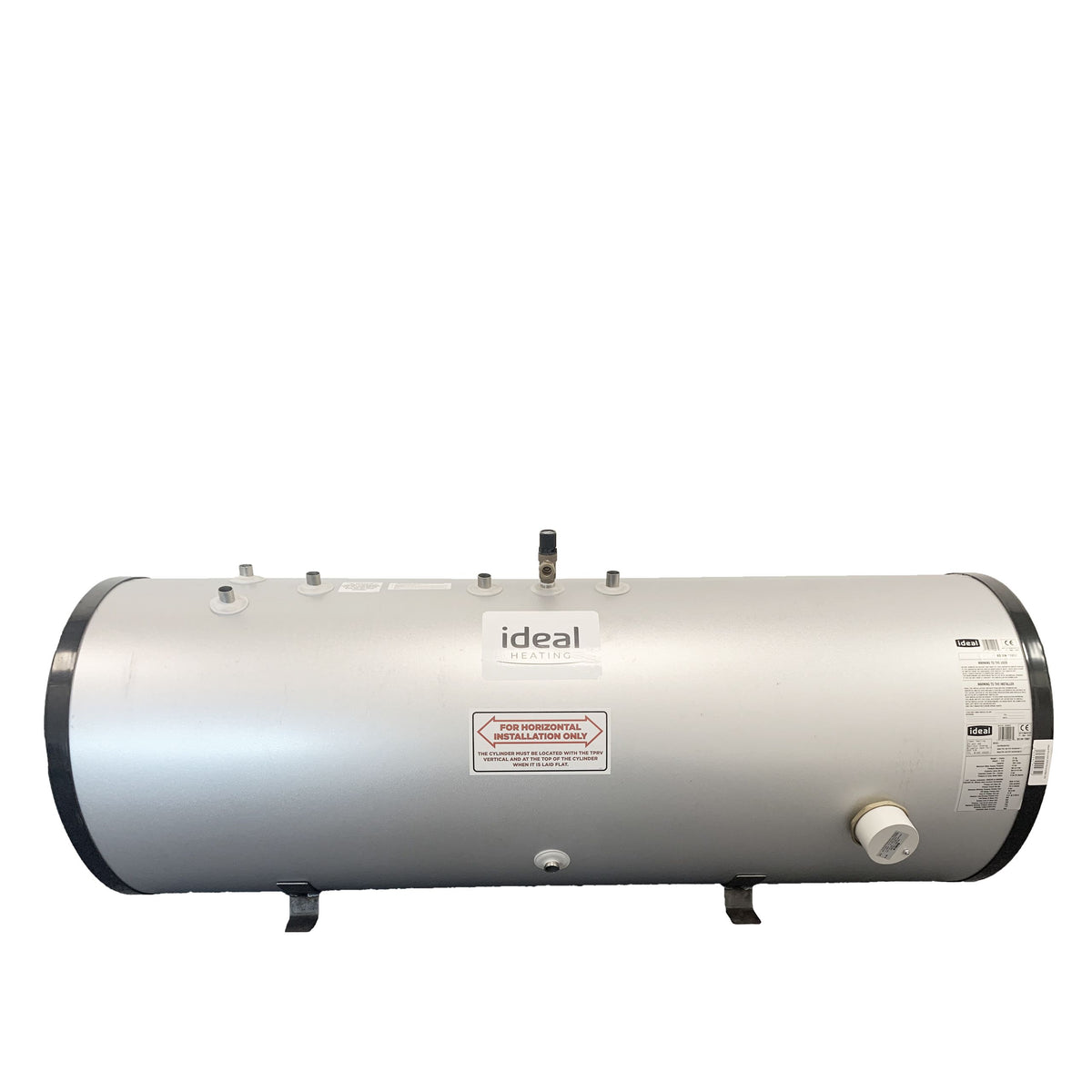

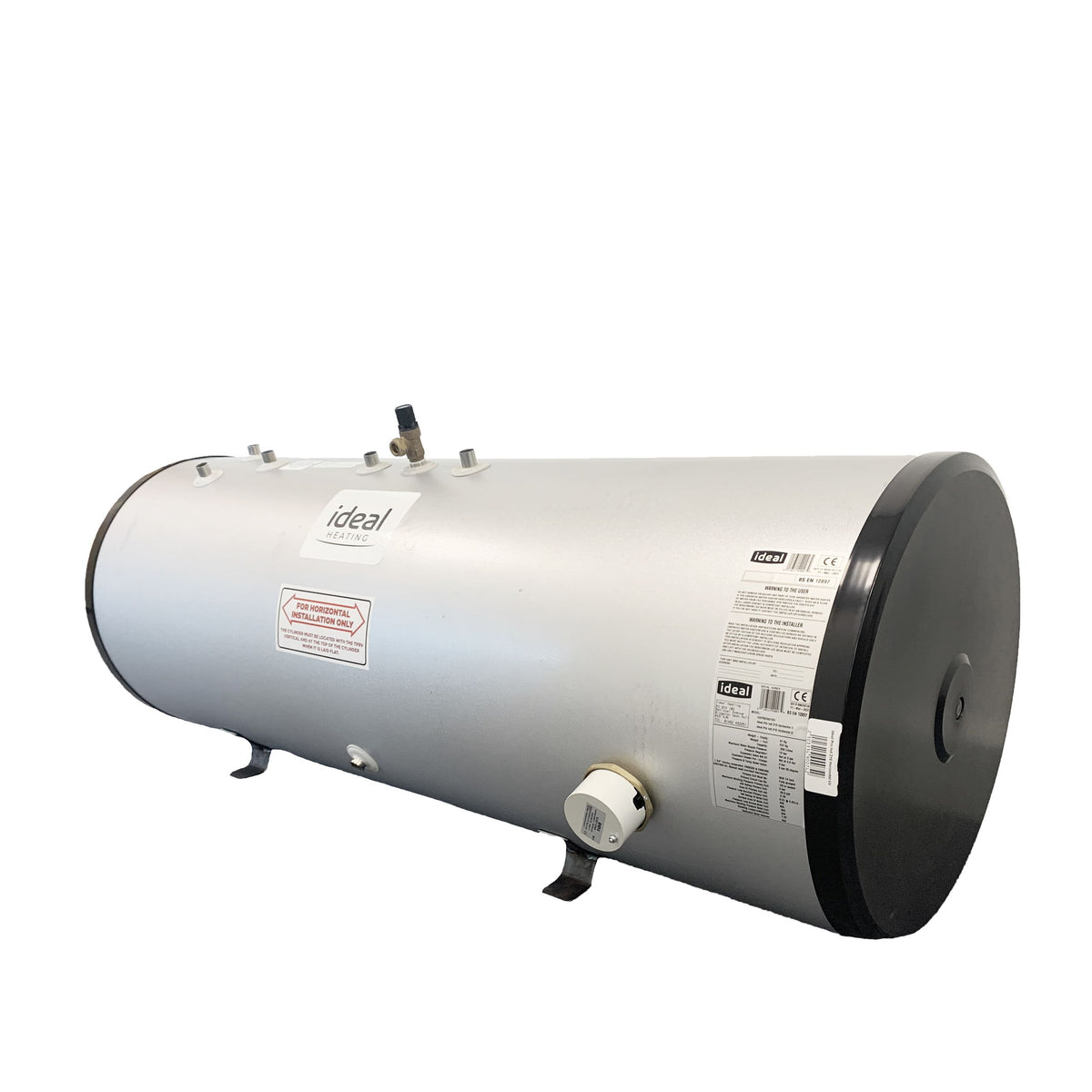

Ideal Pro Horizontal Indirect Unvented Cylinders

180L, 210L, 250L & 300L Ideal Pro stainless steel horizontal indirect unvented cylinders with 3kW immersion, complete valve/expansion kit and 25‑year manufacturer’s warranty on the shell.

Key Features (All Sizes)

• Horizontal indirect unvented cylinders, ideal where vertical height is restricted (lofts, plant rooms).
• High‑grade duplex stainless steel construction with high‑density foam insulation.
• Designed to work with a gas or oil system boiler for mains‑pressure hot water.
• Supplied as a complete kit including safety valves, expansion vessel and controls for G3‑compliant installation.
• Each model includes a 3kW immersion heater for backup or off‑peak heating.
• 25‑year manufacturer’s warranty on the cylinder shell (subject to T&Cs), plus shorter parts/labour cover.
• All models have approximately 585mm height and are floor‑standing horizontal units.

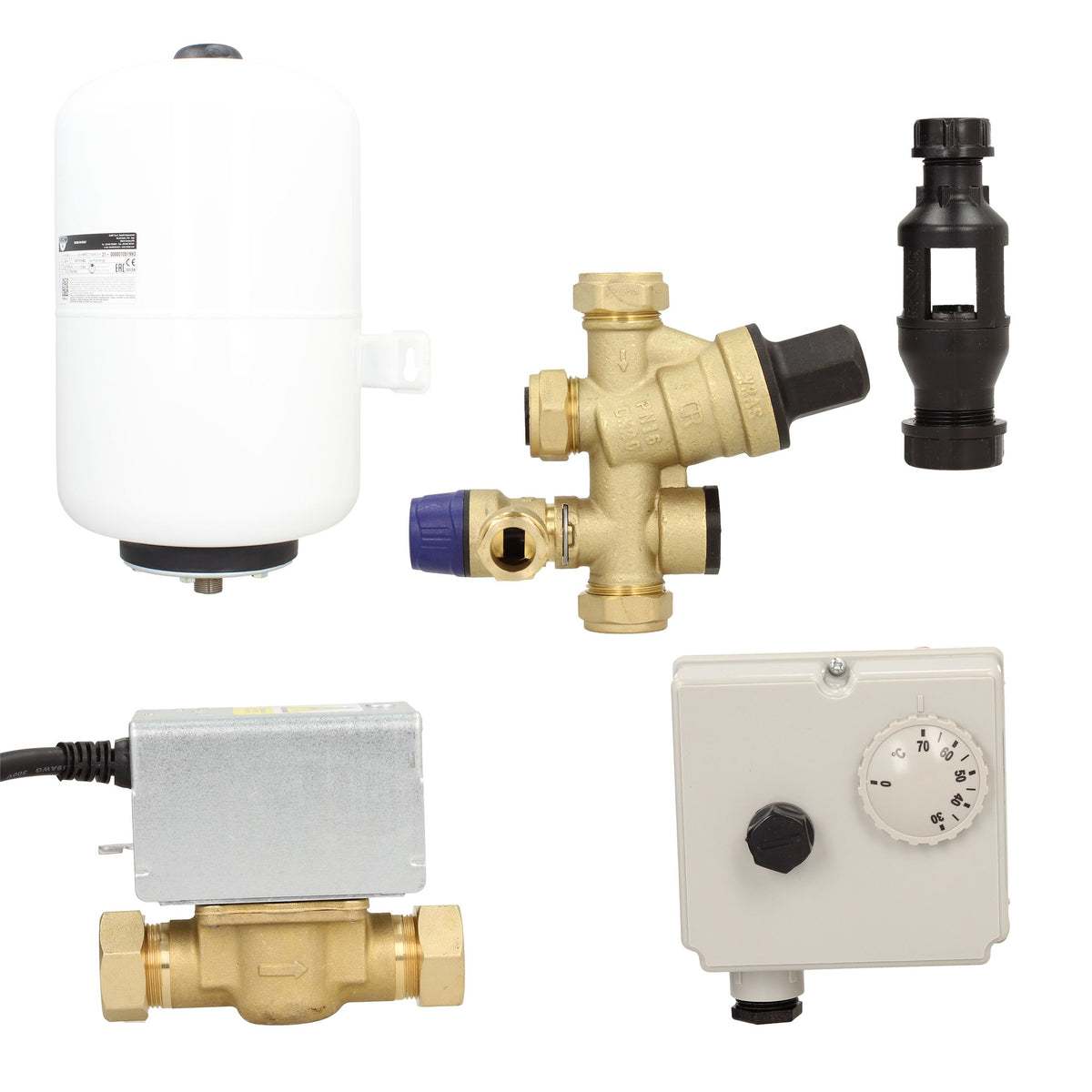

Supplied Components

• Cold water inlet PRV combination group with pressure reducing valve, check valve, strainer, balanced cold take‑off and expansion relief.
• Pressure and temperature relief valve.
• Dual control thermostat and separate overheat/energy cut‑out thermostat.
• 2‑port motorised zone valve (primary circuit, indirect only).
• 3kW immersion heater with built‑in control and safety thermostats.
• Potable expansion vessel with integral wall mounting bracket.
• Tundish for discharge pipework.
• Installation/user literature.

Model Overview

Selection Guide

• 180L – suitable for smaller properties or where storage space is very limited.
• 210L – good for typical 2–3 bedroom homes with one bathroom and occasional shower use.
• 250L – suits 3–4 bedroom homes with higher hot water demand or two bathrooms.
• 300L – for larger homes or multiple bathrooms where higher draw‑off is required.

Range: Ideal Pro Horizontal Indirect Unvented Cylinders – 180L, 210L, 250L, 300L
Mount Type: Floor‑standing horizontal
Energy Source: Indirect coil from system boiler + 3kW immersion backup

Compact horizontal Ideal Pro cylinders provide a flexible, fully equipped solution for mains‑pressure hot water in properties where vertical cylinders cannot be installed.
