Ideal HP290 Pre-Plumbed DHW Cylinder — Two Zone with Low Loss Header (210/250L)
Regular price
£2,500.00
Inc. VAT
£2,083.33
Exc. VAT
FREE Express Delivery (1-3 days) in UK Mainland on most orders*
Excluding: Solar Panels (£170 delivery / free above £2,500), Batteries (£39 delivery), Small Items (£4.95/5.95 delivery / free above £500)
Contact Us to check for Next Working Day Delivery or Same-day Delivery options
Contact Us for Click & Collect options
Custom quote available on request
*See checkout or shipping policy for full details
Payment options
Tools & Kits
Build your kit
Need a full system?
Design your complete solution in minutes with our kit builders.
Do you have a question
about this product?
One of our expert advisors will be happy to help you!
Contact Us

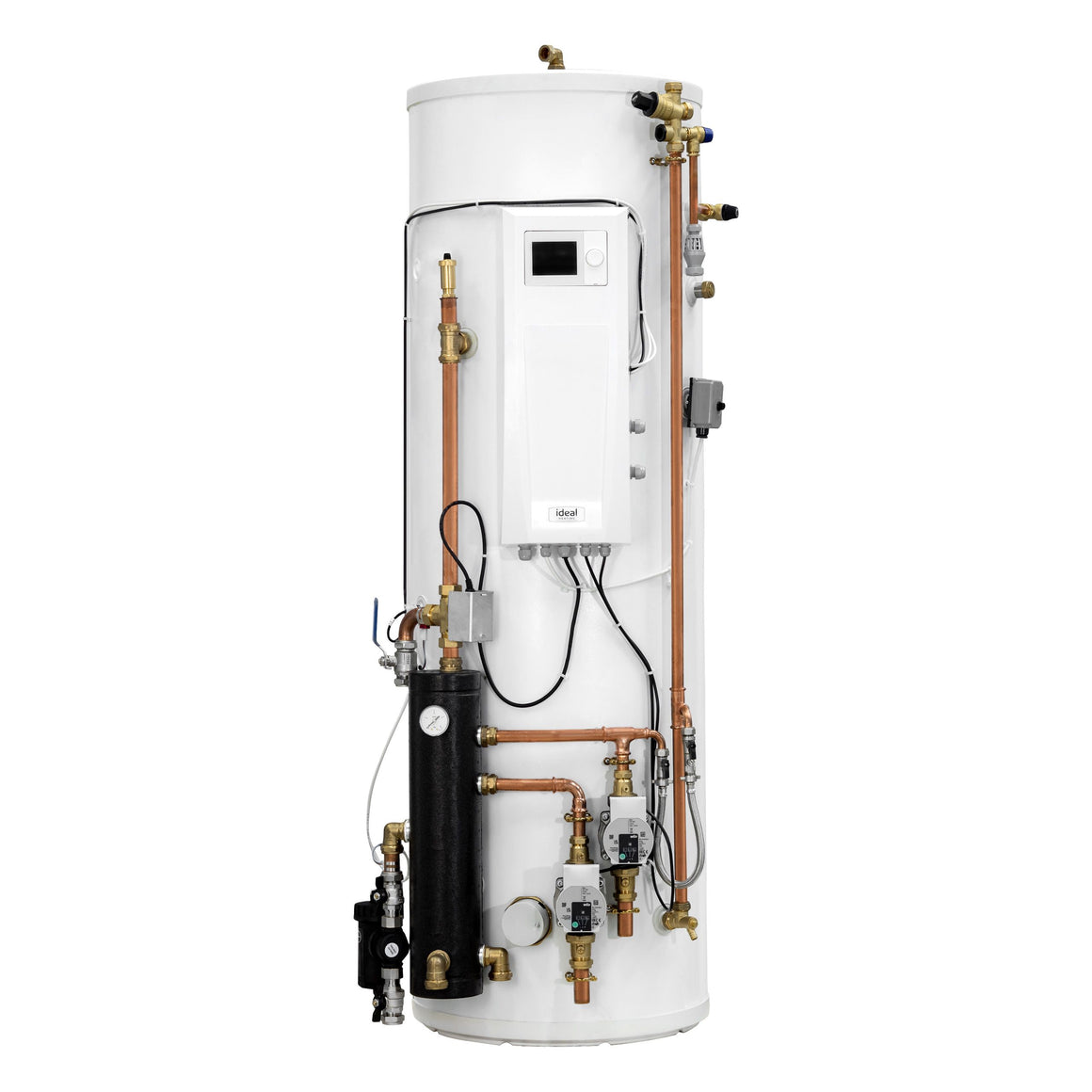

The Ideal HP290 Two Zone Pre-Plumbed Cylinder with Integrated Buffer combines independent two-zone heating control with an integrated buffer for hydraulic stability — suited to properties running underfloor heating and radiators (or two distinct areas) who don't need the fuller separation of a low loss header. Available across the widest capacity range in the HP290 lineup, from 180 L up to 300 L. Ships fully pre-plumbed and pre-wired with the HP290 control box, pumps, diverter valve, magnetic filter, G3 safety kit and 3 kW immersion.
180–300L
Capacity range
2-Zone
Heating control
Integrated Buffer
Hydraulics
G3 kit
Unvented safety
3 kW
Immersion heater
4
Configurations
HP290 heat pump compatibility only
This cylinder range is designed exclusively for the Ideal HP290 R290 heat pump — the control box, wiring and pre-plumbed hydraulics are matched to the HP290 platform and are not a generic fit for other manufacturers' heat pumps.
G3-qualified installer required
Every HP290 cylinder is unvented and includes a full G3 safety kit. UK Building Regulations require the DHW side to be commissioned by a G3-qualified installer. Failure to install and commission to Ideal's instructions may invalidate the warranty.
Buffer vs low loss header for two-zone systems
Both this configuration and the Two Zone Low Loss Header configuration support independent two-zone control. A buffer is the more compact, straightforward choice; a low loss header gives cleaner hydraulic separation where zone flow rates vary significantly. Your installer's system design will specify which is appropriate for your property.
Choose your capacity
| Capacity | Format | Model code | Best for |
|---|---|---|---|
| 180 L | Standard | IDEPLUHP180DUOPPDZ-D8.2 | Two-zone systems (e.g. UFH + radiators) with buffer stability |
| 210 L | Standard | IDEPLUHP210DUOPPDZ-D8.2 | Typical two-zone retrofit with buffer-stabilised flow |
| 250 L | Standard | IDEPLUHP250DUOPPDZ-D8.2 | Larger two-zone households with higher DHW demand |
| 300 L | Standard | IDEPLUHP300DUOPPDZ-D8.2 | Large households, two-zone, highest DHW demand |
Why choose the Two Zone Pre-Plumbed Cylinder with Integrated Buffer
Independent two-zone control
Supports two heating zones at different flow temperatures — typically underfloor heating on one zone and radiators on another — from a single pre-plumbed cylinder.
Widest capacity range in the HP290 lineup
Available from 180 L up to 300 L — the broadest choice of DHW capacity across the whole HP290 pre-plumbed cylinder range, suiting everything from modest to very high-demand households.
Fully pre-plumbed and pre-wired
Circulation pump(s), 3-port diverter valve, magnetic filter, G3 safety kit and the HP290 control box all factory-fitted and wired. The installer connects primary, DHW, cold feed and mains power — no on-site hydraulic assembly.
Industry-leading reheat times
Multi-coil heat exchanger design engineered for fast DHW recovery even at the lower flow temperatures typical of heat pump operation — Ideal specifically call out reheat performance as a differentiator for the HP290 cylinder range.
HP290 control box included
The control box consolidates all electrical components and provides the homeowner-facing interface — smart grid and solar PV compatible, with Wi-Fi connectivity and Anti-Legionella scheduling built in.
G3 unvented safety kit as standard
Every cylinder includes the pressure/temperature relief valve, expansion vessel and discharge pipework needed to meet Part G3 of the Building Regulations for unvented hot water storage.
3 kW immersion heater
Every HP290 cylinder is fitted with a 3 kW immersion as standard — backup DHW heating and Anti-Legionella disinfection support alongside the heat pump.
Specification (all capacities)
| Range | Ideal HP290 Pre-Plumbed DHW Cylinder — Two Zone Pre-Plumbed Cylinder with Integrated Buffer |
| Available capacities | 180 L / 210 L / 250 L / 300 L (all Standard) |
| Compatible heat pump | Ideal HP290 R290 monobloc (exclusive fit) |
| Tank construction | Duplex stainless steel |
| DHW type | Unvented — full G3 safety kit included |
| Backup heater | 3 kW immersion (fitted as standard) |
| Control box | HP290 Control Box (included) — smart grid and solar PV compatible |
| Anti-Legionella | Weekly disinfect cycle to 60°C for 15 minutes (default), heat pump + immersion |
| Minimum system water flow rate | At least 30 litres/minute recommended into the property |
| Optimum inlet pressure | 3 bar dynamic (will function at lower pressure with reduced performance) |
| Primary system minimum volume (HP290 platform) | 40 litres free system volume |
| Compatible controllers | Ideal HP290 Controller or Ideal Halo Lite RF programmable room thermostat |
| Warranty | Ideal HP290 platform warranty — up to 5 years parts and labour when registered within 30 days and serviced annually |
What's in the box (every capacity)
- Ideal HP290 pre-plumbed DHW cylinder — Two Zone Pre-Plumbed Cylinder with Integrated Buffer (capacity per selected variant)
- HP290 Control Box — pre-wired
- Circulation pump(s) — pre-plumbed
- 3-port diverter valve — pre-plumbed
- Magnetic system filter — pre-fitted
- Full G3 unvented safety kit (expansion vessel, T&P relief valve, discharge pipework components)
- 3 kW immersion heater — pre-fitted
- Manufacturer installation and maintenance documentation
What you'll also need (sold separately)
- Ideal HP290 R290 monobloc heat pump (matched capacity — see our HP290 heat pump listings)
- Ideal Halo Lite RF programmable room thermostat, or use the HP290 Controller as room thermostat
- Discharge pipework to a suitable tundish and drain point per G3 requirements
- Anti-freeze protection on any pipework exposed to ambient temperatures below 5°C
- System inhibitor dosing per BS 7593:2019
