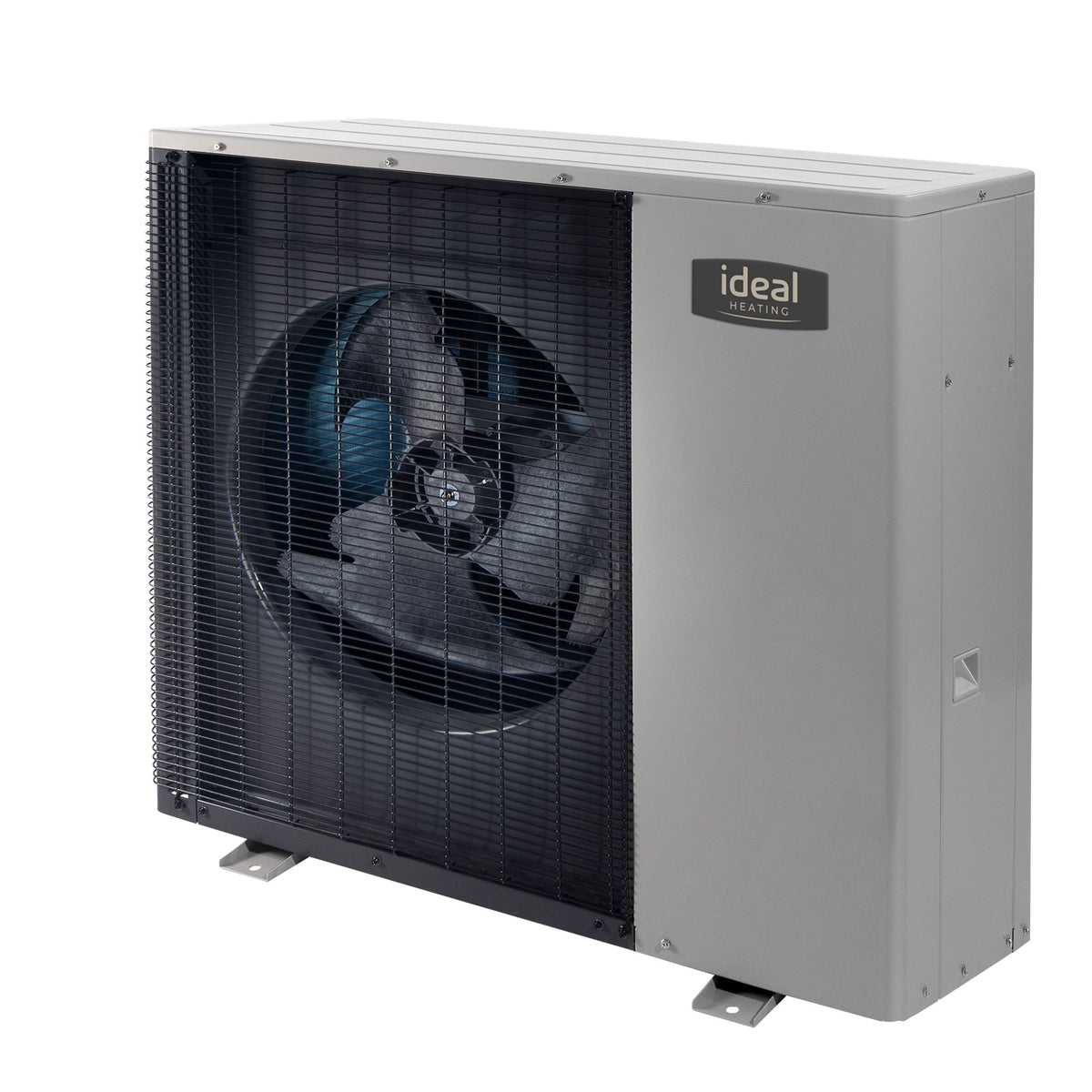

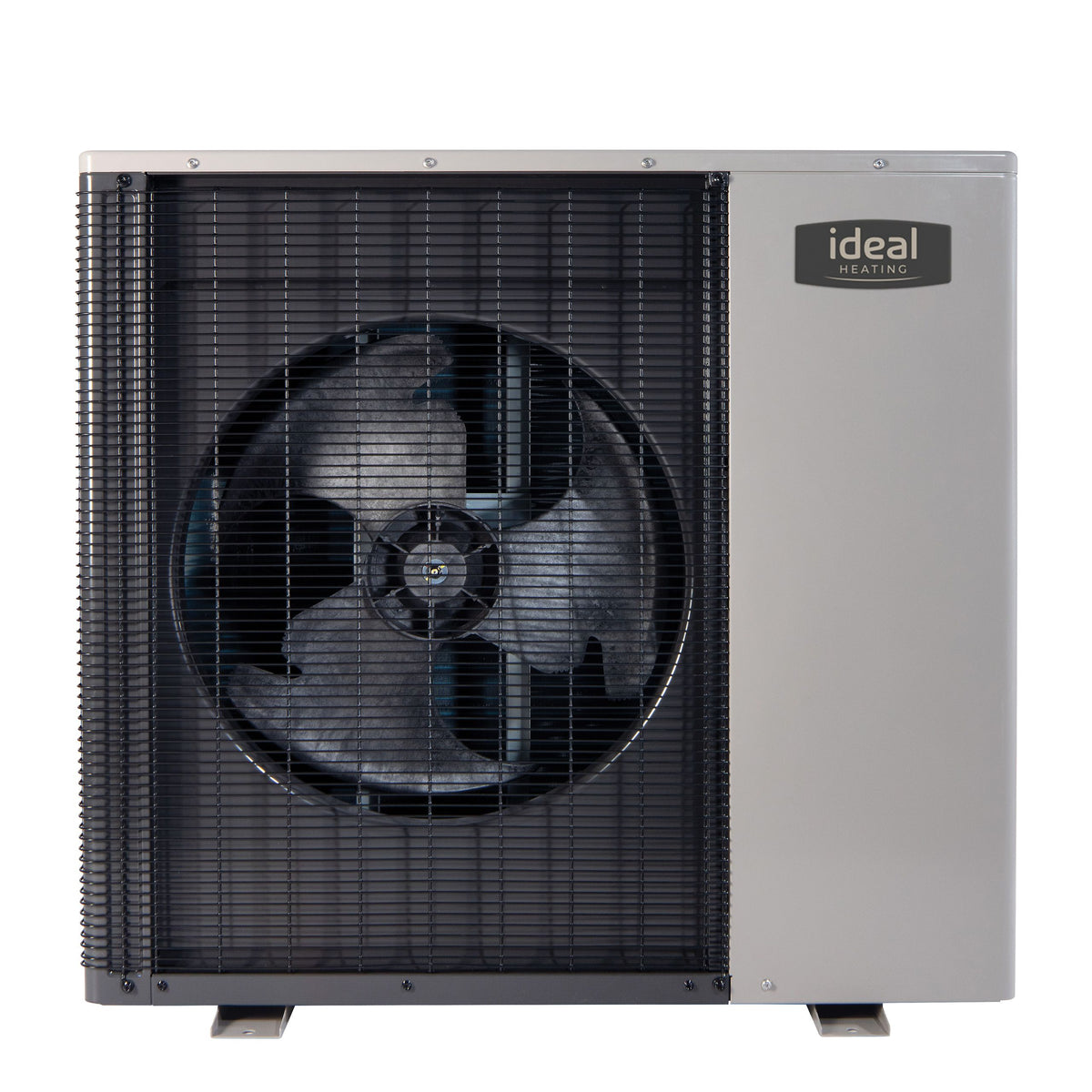

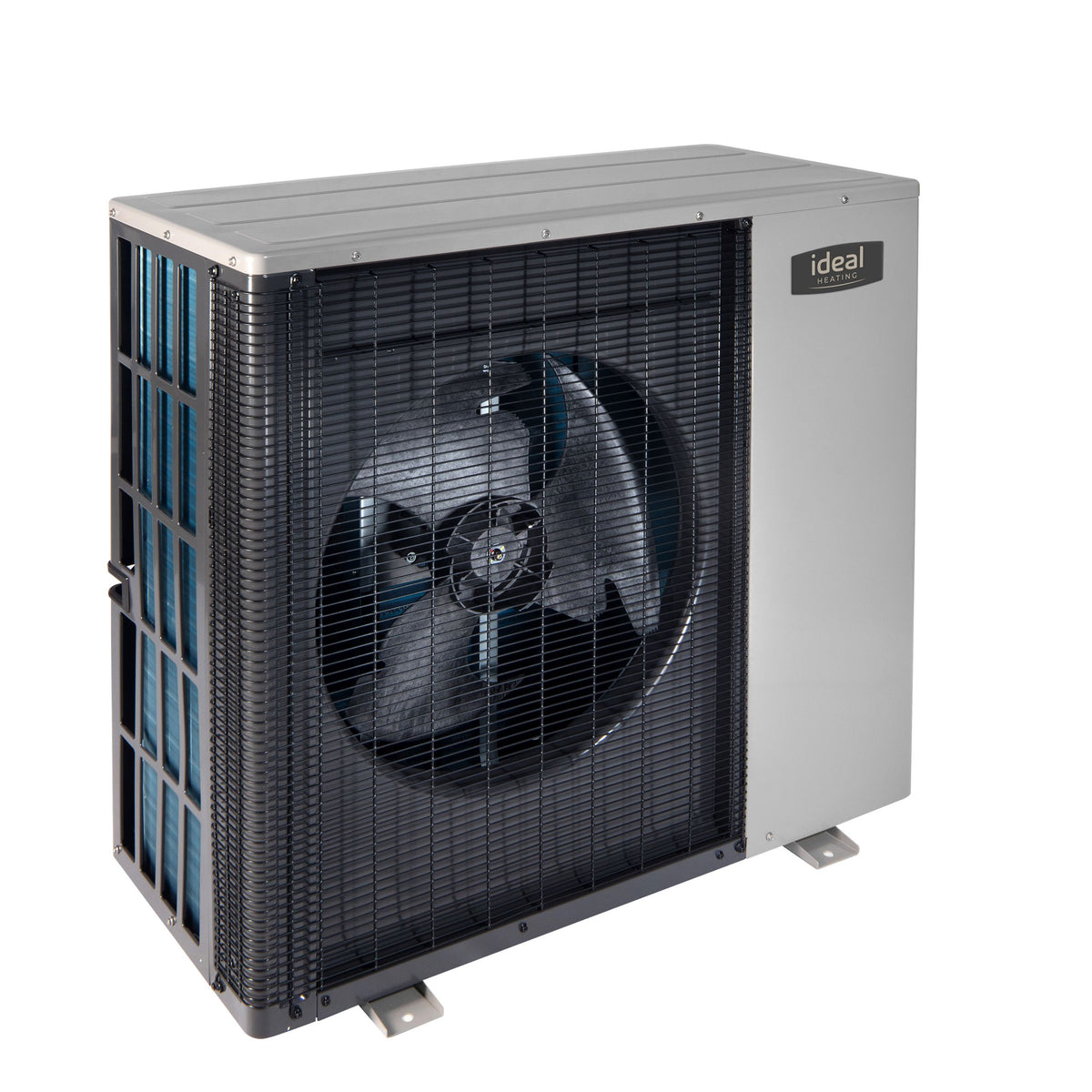

Ideal Heating Logic Air Monobloc Air Source Heat Pumps | 4-10kW R32 Range
Regular price
£2,995.00
inc. VAT
Couldn't load pickup availability
Payment options
Ideal Heating Logic Air Monobloc Air Source Heat Pumps | 4-10kW R32 Range
The Ideal Logic Air monobloc range delivers SCOP up to 5.19 efficiency using low GWP R32 refrigerant across 4kW to 10kW capacities. These single-phase units provide quiet, radiator-compatible heating with smart weather compensation and solar PV readiness. Quiet Mark certified operation ensures residential suitability with 5-year warranty backing.
Available Variants
| Model | Part No | Capacity | COP A7/W35 | Dimensions (W x H x D) | Weight |
|---|---|---|---|---|---|
| Logic Air 4kW | AH750664 | 4.0 kW | 5.34 | 798 x 1095 x 521 mm | 86 kg |
| Logic Air 5kW | AH750665 | 5.0 kW | 5.19 | 798 x 1095 x 521 mm | 86 kg |
| Logic Air 8kW | AH750666 | 8.2 kW | 5.0 | 518 x 1008 x 1095 mm | 110 kg |
| Logic Air 10kW | AH750667 | 10.3 kW | 4.9 | 518 x 1008 x 1095 mm | 110 kg |
Why Buy Ideal Logic Air Heat Pumps?
- SCOP up to 5.19 efficiency (A+++ @ 35°C) minimises running costs
- Low GWP R32 refrigerant with zero ozone depletion potential
- Quiet Mark certified operation (52-55 dB(A)) for residential use
- Monobloc design - no F-Gas qualification required
- Radiator and underfloor heating compatible with smart weather compensation
- Solar PV and smart grid ready for hybrid renewable systems
- 5-year warranty with UK-based support 364 days/year
- Fast hot water reheat with Ideal Heat Pump Cylinder range
Suitable For
- New build homes requiring efficient monobloc ASHP solutions
- Existing properties with radiator systems (low-temp optimised)
- Small to medium homes matching 4-10kW heating demands
- Solar PV owners seeking integrated renewable heating
- Properties prioritising quiet operation and simple installation
Common Technical Specifications
| Specification | Details |
|---|---|
| Refrigerant | R32 (Low GWP) |
| Power Supply | 230V Single Phase |
| Max Flow Temperature | 60°C |
| Operating Range (Air) | -20°C to +35°C |
| Energy Rating | A+++ (35°C) / A++ (55°C) |
| Connections | 28mm flow/return |
| Control | Halo Air thermostat compatible |
| Warranty | 5 Years (extendable) |
- Type Air Source Heat Pumps
- Vendor Ideal Heating
- SKU AH750664
