Humax MX7 Socketed 7.4kW V2G Ready EV Charger
Couldn't load pickup availability
Payment details

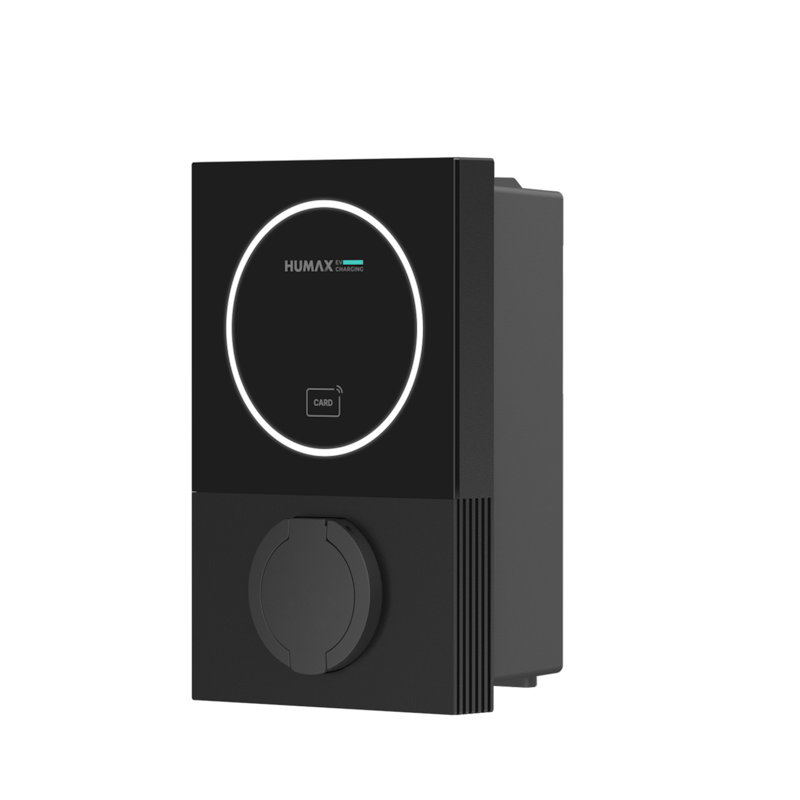

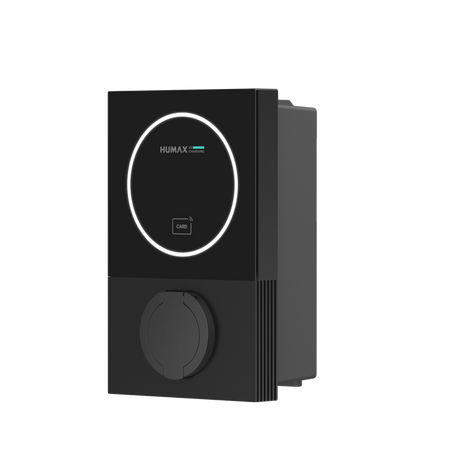

Humax MX7 Socketed 7.4kW V2G Ready EV Charger (HMX-A01S)
The Humax MX7 is a cutting-edge 7.4kW smart EV charger featuring vehicle-to-grid (V2G) capabilities that enable you to use your electric vehicle as a power source. Designed for both home and business use, the MX7 supports flexible charging with smart energy management to maximize savings from renewable energy and tariff timings. Equipped with a Type 2 socket and comprehensive safety features, it offers a secure and reliable charging experience.
Key Features
- 7.4kW charging power at 230V single-phase and 32A current
- Socketed charger with Type 2 IEC 62196 socket
- V2G and V2H ready with ISO15118-3 support and built-in PLC module
- Compatible with a wide range of EVs and plug-in hybrids
- Inbuilt safety features including overcurrent, residual current, surge, over/under voltage, frequency, temperature, PEN fault, and tamper protection
- Communication via WiFi, Bluetooth LE, Ethernet, and optional 4G connectivity
- RFID/NFC ISO/IEC 14443 Type A for secure user authentication
- OCPP 1.6J protocol support for smart charging and backend system integration
- IP54 ingress protection and IK10 impact resistance for rugged durability
- Customizable front fascia with removable panels
- Up to 5-year warranty with options for extension
Technical Specifications
| Model | HMX-A01S |
|---|---|
| Power Output | 7.4kW |
| Input Voltage | 230V AC Single Phase ±10% |
| Current | 32A |
| Charge Connector | Type 2 Socket (IEC 62196) |
| Operating Frequency | 50Hz |
| Communication | WiFi, Bluetooth LE, Ethernet, Optional 4G |
| Protocols Supported | OCPP 1.6J, ISO15118-3 |
| Ingress Protection | IP54 |
| Impact Resistance | IK10 |
| Dimensions (HxWxD) | 335mm x 210mm x 144mm |
| Weight | Approximately 5.43kg |
| Operating Temperature | -30°C to +50°C |
| Compliance | UKCA, CE, OZEV Approved |
| Warranty | Up to 5 years (standard 3 years with extension options) |
| EAN | 5060321527257 |
Applications
- Home and business EV charging with advanced smart and V2G features
- Supports grid interaction and renewable energy optimisation
- Compatible with both home energy management systems and backend networks
- Safe and tamper-resistant design for secure installations
Why Choose Humax MX7?
- Future-proof V2G EV charger with comprehensive smart features
- Robust, weatherproof design suitable for indoor/outdoor use
- Comprehensive safety, security, and communication features
- Backed by trusted certifications and manufacturer warranties
- Type EV Charger
- Vendor Humax
- SKU HMX-A01S
