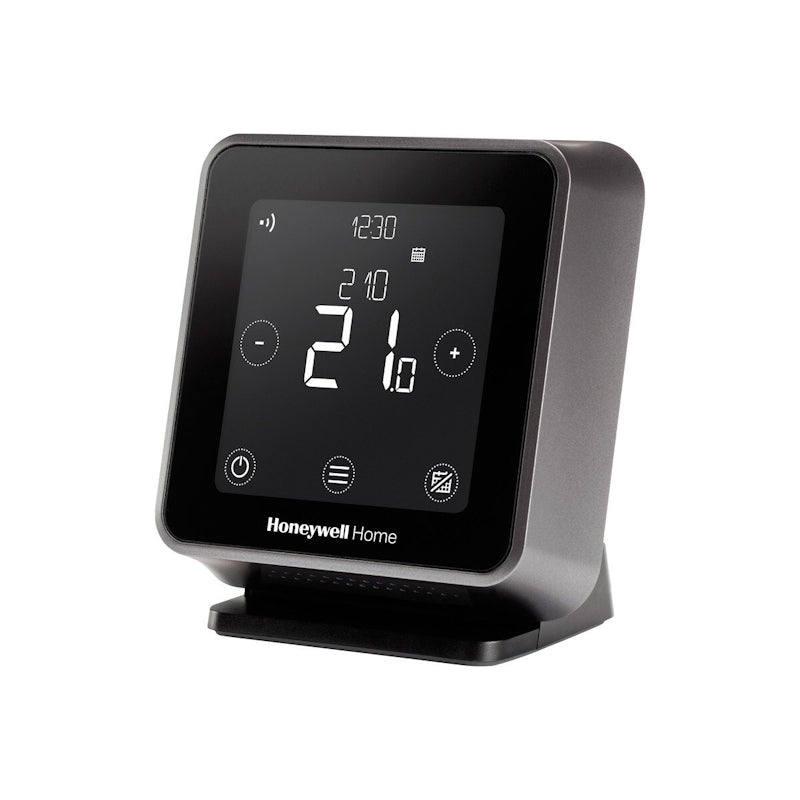

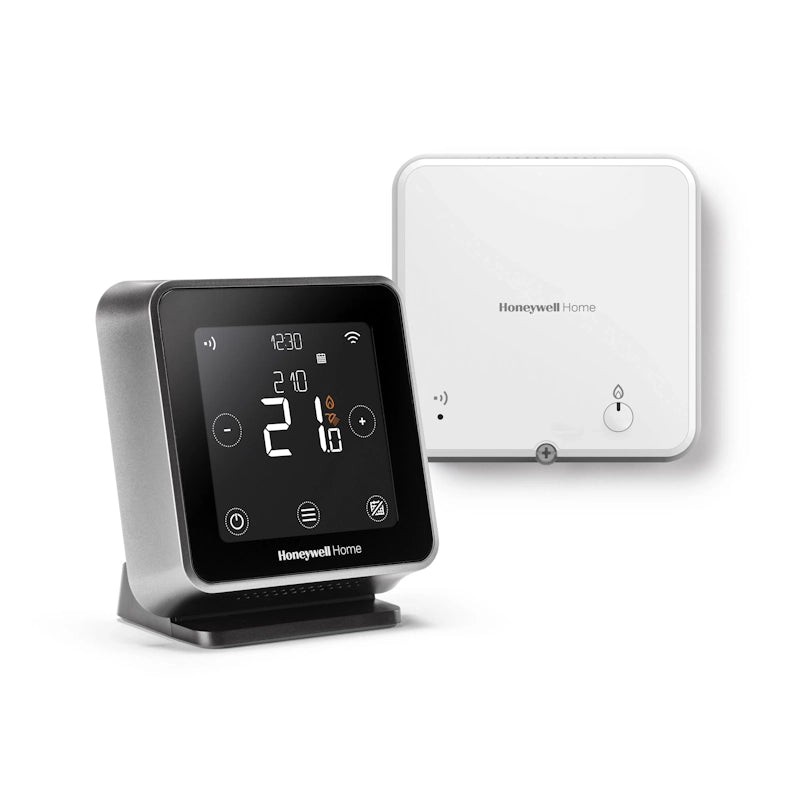

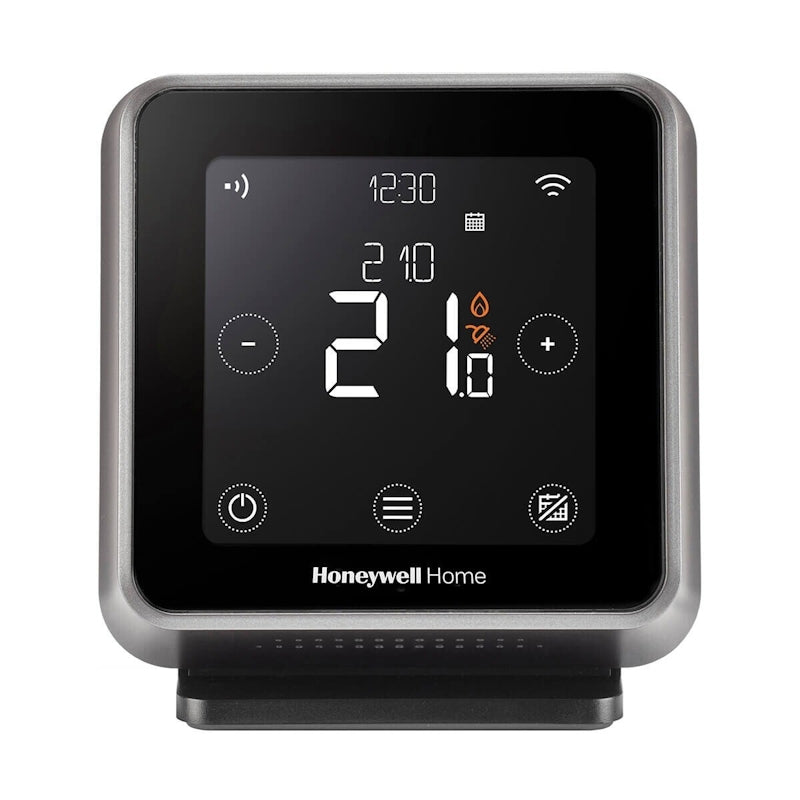

The Honeywell Home T6R-HW is a wireless smart thermostat with dedicated hot water control, designed to bring app-based scheduling and location-aware comfort to central heating and stored hot water systems. Supplied as a table-stand thermostat paired with a 2-channel wireless receiver box, it gives you independent time and temperature programmes for heating and hot water from the same unit — controllable from the thermostat itself, the Honeywell Home app, or your voice assistant.
Using Adaptive Fuzzy Logic control and full OpenTherm® compatibility, the T6R-HW learns how your home heats up and automatically fine-tunes start and stop times to hit your target temperature exactly when you need it — without wasting energy getting there too early.
Wi-Fi + App
Remote control
Heat + Hot Water
Independent schedules
Geofencing
Location-based control
30 m
Wireless range (typical)
5–37°C
0.5°C setpoint steps
Good to Know
This is the T6R-HW variant (model Y6H920RW4026), which adds a dedicated hot water schedule with boost function on top of heating control. It is suitable for Sundial S, Y and W plan stored hot water systems (on/off switching). If you only need heating control with no hot water cylinder, the standard T6R (without "-HW") is the simpler alternative.
Please Note
Compatible with 24–230V on/off boilers, OpenTherm® combi boilers, heat pumps, and zone valve systems. It is not suitable for electric heating (240V) or systems without a compatible wiring centre / zone valve setup.
Key Features
Wireless table-stand design
The thermostat communicates with its 2-channel receiver box over an encrypted 868 MHz radio link with a typical residential range of 30 metres, so it can sit anywhere convenient in the home.
Independent heating & hot water scheduling
Set up to 6 time and temperature changes per day for heating, plus up to 3 ON periods per day for hot water, on a daily or 5+2 day schedule pattern.
Hot water boost
A dedicated boost function lets you call for extra hot water outside the normal schedule for a temporary period.
Geofencing
Uses your smartphone's location to automatically switch between home and away modes, saving energy when the house is empty and warming it back up before you arrive.
Adaptive Fuzzy Logic control
Learns your home's heat-up characteristics and applies optimal start, optimal stop and delayed start logic to hit your target temperature efficiently.
OpenTherm® compatible
On OpenTherm® boilers the thermostat can display live appliance data — flow temperature, return temperature and boiler modulation — and supports Low Load Control for smoother cycling.
Smart home & voice control
Works with Apple HomeKit, Amazon Alexa, Google Assistant and IFTTT, alongside the Honeywell Home app for iOS and Android with multi-user access.
High-contrast touchscreen display
A PMVA touchscreen with dynamic text feedback and adjustable backlight brightness keeps the display clear and easy to navigate in any lighting.
Installation & Compatibility
2-channel receiver box
Handles both heating and hot water switching, with clear LED status indicators and manual override buttons for each channel. A flip-up wiring platform allows wiring from the back or bottom.
Frost protection built in
The OFF position holds an integral minimum 5°C frost protection setpoint, so pipes are protected even when the system is switched off.
Flexible mounting
The receiver box mounts directly to a wall or onto a standard wall box; the thermostat itself simply sits on its supplied table stand — no wiring required at the thermostat location.
Configurable for your appliance
Installer-level Advanced Menu settings cover cycle rate, minimum ON time, heat range limits and system type, so the thermostat can be tuned to gas boilers, oil boilers, thermal actuators or zone valves.
Technical Specifications
Thermostat
| Model / MPN |
Y6H920RW4026 (T6R-HW) |
| EAN |
5025121380805 |
| Control form |
Adaptive Fuzzy Logic |
| Dimensions (W × H × D) |
108 × 103 × 68 mm |
| Display |
High-contrast PMVA touchscreen with dynamic text line |
| Room temperature display range |
0°C to 50°C |
| Temperature setting range |
5°C to 37°C in 0.5°C steps (OFF = 5°C frost protection) |
| Sensing element |
100K NTC thermistor (@ 25°C) |
| Heating schedule |
5+2 or daily, up to 6 time/temperature changes per day |
| Hot water schedule |
5+2 or daily, up to 3 ON periods per day, plus boost override |
| Time setting resolution |
10-minute steps |
| Power supply |
5V DC power adapter (thermostat) |
| Connectivity |
Wi-Fi IEEE 802.11 b/g/n (2.4 GHz), max. 100 mW |
2-Channel Receiver Box
| Power supply |
230V AC mains |
| Electrical rating (2 relay contacts, SPDT) |
230V~ 50–60 Hz, 0.5A–5A resistive / 0.5A–3A inductive (0.6 pf); 24V~ 50–60 Hz, 0.5A–5A resistive / 0.5A–3A inductive (0.6 pf) |
| Dimensions (W × H × D) |
110 × 110 × 40 mm |
| IP rating |
IP30 |
| Wiring |
Terminal block accepts cable up to 1.5 mm² |
| Max cable run to thermostat |
15 m (0.5 mm² cable) or 20 m (1.0 mm² cable) |
Radio & Compliance
| RF operating band |
ISM 868.0–868.6 MHz, 1% duty cycle, max. 25 mW |
| RF protocol |
Encrypted, factory pre-bound |
| Communication range |
Approx. 30 m in a typical residential environment |
| Operating temperature |
0°C to 40°C |
| Storage temperature |
−20°C to 55°C |
| Humidity range |
10–90% RH, non-condensing |
| ErP rating |
Class V (+3%) under (EU) 811/2013 |
| Compatible systems |
24–230V on/off boilers, OpenTherm® combi boilers, heat pumps, zone valve systems |
| Not compatible with |
Electric heating (240V) |
What's in the Box
- Honeywell Home T6R-HW wireless smart thermostat with table stand
- 2-channel wireless receiver box
- 5V DC power adapter with UK plug
- Wall mounting hardware and printed user guide
Frequently Asked Questions
Does the T6R-HW control hot water as well as heating?
Yes — unlike the standard T6R, the T6R-HW includes a separate hot water schedule with up to 3 ON periods per day and a boost function, in addition to full heating control.
What hot water systems is it compatible with?
It is designed for Sundial S, Y and W plan stored hot water systems using on/off cylinder switching. It does not control OpenTherm® combi boiler internal hot water storage directly.
Can I use this with an electric boiler or electric heating?
No. The T6R-HW is rated for 24–230V on/off, OpenTherm® and heat pump systems, but is not suitable for 240V electric heating circuits.
How far can the thermostat be from the receiver box?
The encrypted 868 MHz radio link has a typical range of around 30 metres in a residential building, though thick walls, metal objects and appliance housings can reduce this.
Does it work with Amazon Alexa and Google Assistant?
Yes, alongside Apple HomeKit and IFTTT, giving voice control and integration with wider smart home routines through the Honeywell Home app.
Is a wired version available?
Yes. The standard T6 is the wired equivalent using a receiver-box-powered wall thermostat, while the T6R-HW reviewed here is the wireless table-stand version.
