The Homely Smart Controller with Samsung Modbus Interface is the complete kit needed to bring smart, self-optimising control to a Samsung air source heat pump. It bundles the Homely Hub, a Homely wireless temperature Node, and the Samsung MIM-B19N Modbus interface module, so the heat pump's proprietary NASA communication protocol can talk directly to the Homely platform.
Unlike Homely's generic Hub + Node kit, this bundle is specifically built for Samsung EHS, HE and HT heat pumps, which require a Modbus gateway to expose their internal registers. Once fitted, Homely takes over weather compensation, learns the property's heating characteristics, and gives installers remote monitoring, diagnostics and parameter access via Connect Pro without a return site visit.
|
2 yrs
Connect Pro included
|
Up to 31%
reported bill reduction
|
<45 min
typical Hub + Node install
|
868MHz
wireless Node link
|
9600 bps
Modbus RTU baud rate
|
2 yr
Homely hardware warranty
|
Samsung-Specific Bundle
This kit is for Samsung EHS, HE and HT heat pumps only. It includes the Samsung MIM-B19N Modbus interface module required to bridge Samsung's NASA (R1/R2) communication protocol to Modbus RTU. For non-Samsung heat pumps (Riello, Bosch, Daikin, Grant, LG, Midea, Mitsubishi and others on Homely's supported list), use the standard Homely Hub + Node kit, which does not need a Modbus adaptor.
Qualified Installation Required
The MIM-B19N Modbus interface module connects directly to the outdoor unit's main and sub control boards and draws 12V DC from the unit itself. Installation, wiring and address-setting must be carried out by a qualified heat pump/air conditioning engineer in accordance with Samsung's installation manual and local electrical regulations. Incorrect wiring polarity on the RS485 line will prevent communication.

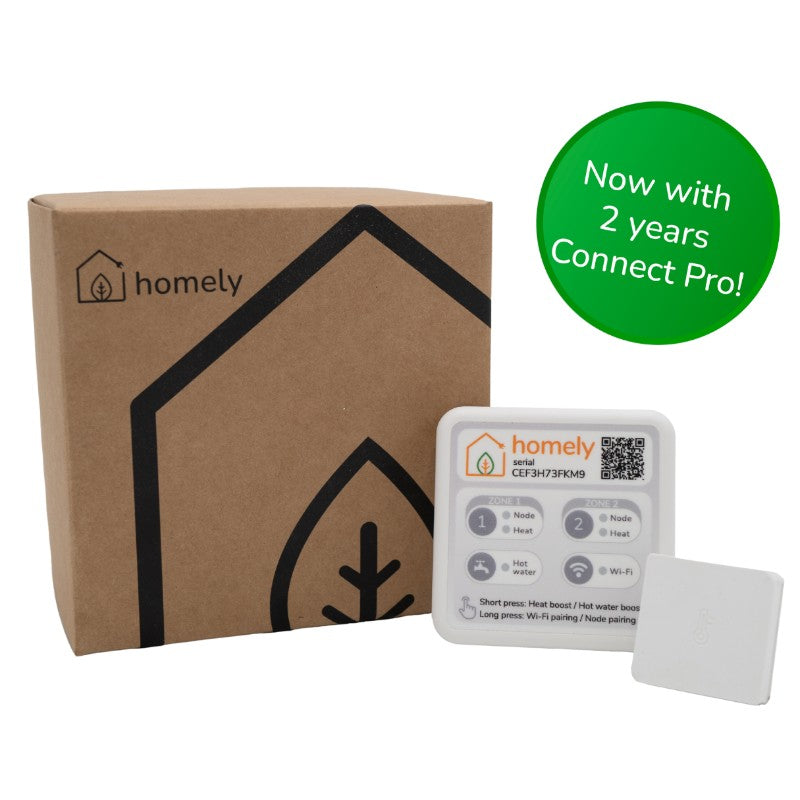

What's in the Kit

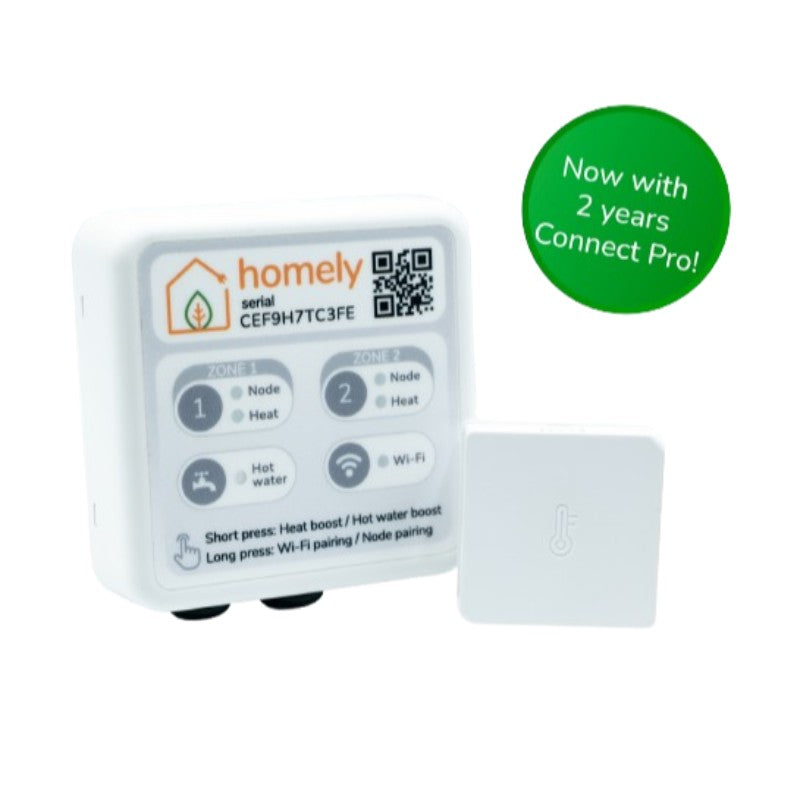

Homely Hub
The main smart controller that connects to the internet, the Homely cloud platform and the Homely app. Auto-updates and drives the weather compensation and optimisation logic for the system.
|
Homely Wireless Temperature Node
A battery-powered wireless sensor (CR2450, replaceable) that reports room temperature, humidity and light intensity back to the Hub over a 868MHz radio link, typically effective within about 16m of the Hub.
|
Samsung MIM-B19N Modbus Interface
A dedicated Modbus RTU gateway module that mounts to the outdoor unit and translates Samsung's internal NASA (R1/R2) protocol into standard Modbus registers the Homely Hub can read and write.
|
Installation Manual & Accessories
Includes the 3-pin barrel jack power supply (5V, 1A) for the Hub, Hub and Node adhesive mounting pads, and full wiring/commissioning documentation.
|
Why Fit Homely on a Samsung Heat Pump
No More Manual Weather Curves
Homely's algorithms take over weather compensation tuning automatically, removing the trial-and-error of setting Samsung's own flow temperature curves.
|

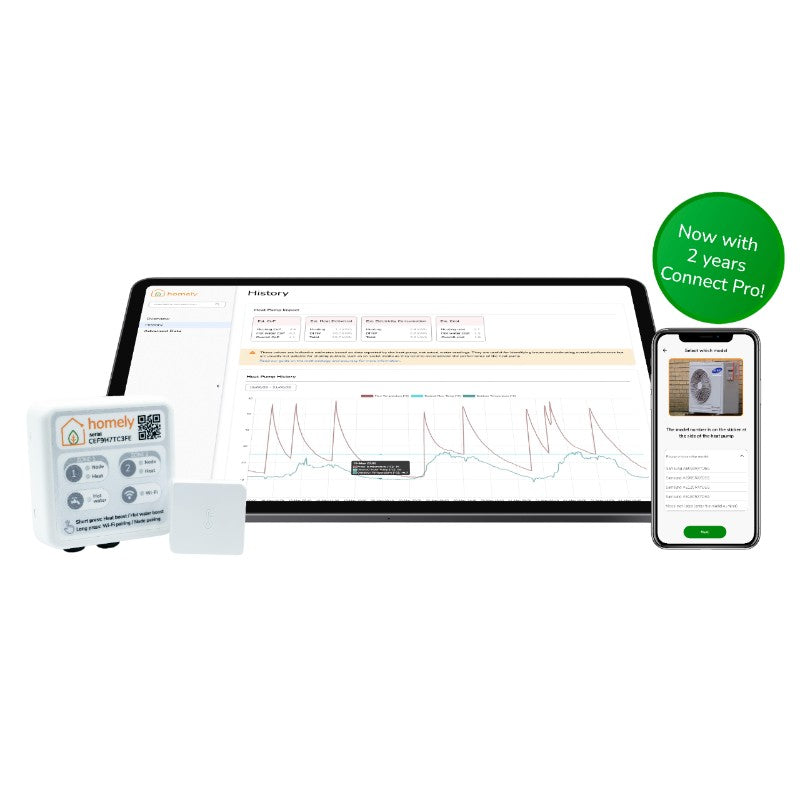

Remote Diagnostics with Connect Pro
2 years of Connect Pro are included, giving installers live and historic data, over-the-air parameter changes and fault diagnosis from the office.
|
Fewer Callbacks
Because settings can be adjusted remotely and the system self-tunes, installers see fewer return visits for comfort complaints or curve adjustments.
|
App Control for Homeowners
Homeowners get schedule control, hot water boost and mode switching from the Homely smartphone app, without needing to understand Samsung's own controller menus.
|
Centralised BMS-Style Access
The MIM-B19N exposes up to 48 indoor units and 4 outdoor units per module over Modbus, so the same interface can also feed a wider building management system if required.
|
Retrofit or New Build
The kit is retrofit-compatible and can be added to an existing Samsung installation or specified from the outset on a new heat pump project.
|
Specification
| Homely Hub |
| Dimensions |
86 x 86 x 25 mm |
| Weight |
87 g |
| Material |
ABS FR, matte white |
| Interface |
6 x RGB LED display, 4 mechanical buttons |
| Sensors |
Temperature, humidity, light intensity |
| Power supply |
5V DC, 1A (3-pin barrel jack, included) |
| Radio communication |
868MHz to Node |
| Certifications |
CE, UKCA, RoHS compliant |
| Warranty |
2 years |
| Homely Wireless Temperature Node |
| Dimensions |
43 x 43 x 14 mm |
| Weight |
25 g |
| Material |
PC, matte white |
| Battery |
CR2450 (replaceable), included |
| Range from Hub |
Approx. 16 m, dependent on interference/obstructions |
| Sensors |
Temperature, humidity, light intensity |
| Samsung MIM-B19N Modbus Interface |
| Unit connection protocol |
Samsung Control Layer Protocol (R1/R2) |
| Maximum connectable units |
1 outdoor unit (up to 4 with modular sub units) and 48 indoor units |
| Modbus interface address range |
1 to 247 |
| BMS protocol |
Modbus RS485, 2-wire, max. 1000 m cable run |
| Modbus communication protocol |
Modbus RTU EIA485, slave device |
| Baud rate |
9600 bps |
| Data bits / stop bit / parity |
8 / 1 / Even |
| Supported function codes |
Read: 03 (holding), 04 (input). Write: 06 (single), 16 (multiple holding) |
| Power supply |
DC 12V, drawn from outdoor unit main board (CN12) |
| Operating temperature |
-10°C to 50°C |
| System-Wide |
| Number of zones |
Single zone standard; two zones supported on certain integrations with an additional Node |
| Connect Pro included |
2 years |
| App availability |
iOS 11+ and Android 6+ |
| Language |
English |
| Availability |
Europe and UK |
| Packaging |
Recyclable |
Frequently Asked Questions
Does this kit work with any Samsung heat pump?
It is designed for Samsung EHS, HE and HT heat pump models that support the MIM-B19N Modbus interface module. Always check the specific outdoor unit model against Samsung's and Homely's current compatibility documentation before ordering, as supported integrations are updated periodically.
Do I need the Modbus interface if I already have a Homely Hub and Node?
Yes. Samsung heat pumps do not expose their control registers directly to Homely; the MIM-B19N Modbus interface acts as the translator between Samsung's NASA protocol and the Modbus registers Homely reads. Without it, the Hub and Node cannot communicate with a Samsung unit.
Can the Modbus interface be used for BMS integration as well as Homely?
The MIM-B19N is a standard Modbus RTU gateway, so in principle it can serve other Modbus master devices such as a BMS, PLC or SCADA system. However, Samsung's documentation notes that when the Modbus interface module is fitted, Samsung's own upper-level controllers (On/Off controllers, Touch centralised controllers, DMS) cannot be used alongside it.

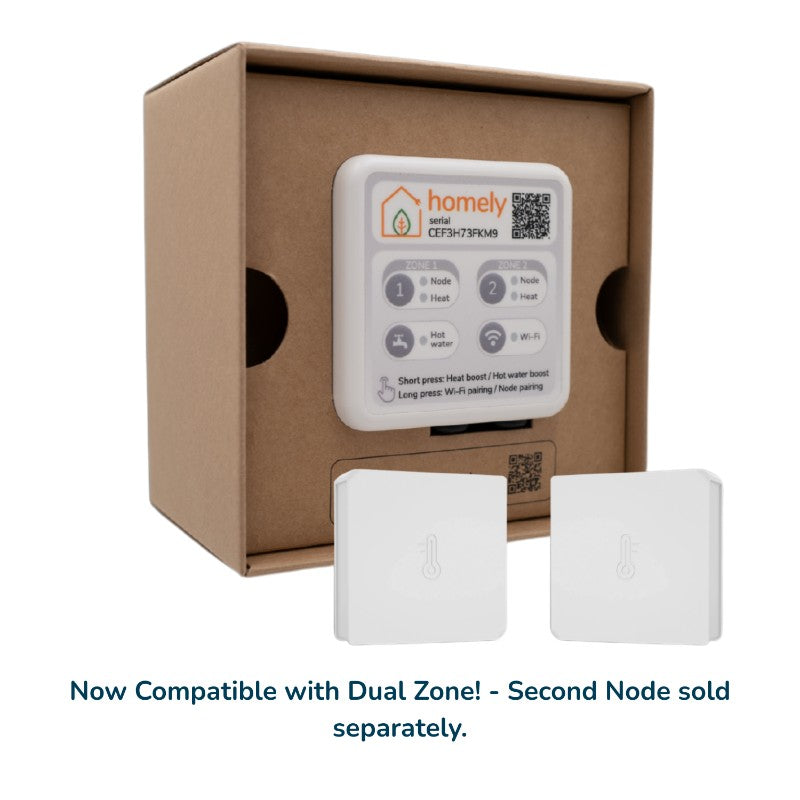

How many Homely Nodes can be added for multi-zone control?
Homely supports two-zone control on certain integrations only, which requires an additional wireless temperature Node beyond the one included in this kit. Check current integration notes for the specific Samsung model before planning a multi-zone install.
What is included in Connect Pro and how long does it last?
Connect Pro gives installers a single dashboard for all Homely installations, live and historic performance data, remote parameter changes and diagnostics without a site visit. 2 years are included with this kit as standard; ongoing access after that period is arranged directly with Homely.
Who should install the Samsung Modbus interface module?
The MIM-B19N connects directly into the outdoor unit's control boards and must be installed, wired and addressed by a qualified heat pump or air conditioning engineer, following Samsung's installation manual and UK electrical regulations.
