The Homely Smart Controller (Hub + Node) is an all-in-one, heat pump-specific smart control kit that combines easy commissioning, automatic optimisation and professional remote monitoring. Trusted by over 500 UK installers, it takes over weather compensation, learns the property's heating behaviour, and gives homeowners simple app control while cutting the number of return visits installers need to make.
This is Homely's generic kit, compatible with the wide range of heat pump brands Homely supports directly — including Riello, Bosch, Daikin, Grant, LG, Midea, Mitsubishi, Trianco, Airwell, Clivet, Ideal Heating and Nordis — without requiring a Modbus adaptor. Samsung heat pumps need the dedicated Homely Hub and Node Kit with Samsung Modbus Interface instead.
|
2 yrs
Connect Pro included
|
Up to 31%
reported bill reduction
|
<45 min
typical install time
|
868MHz
wireless Hub-to-Node link
|
~16 m
Node range from Hub
|
2 yr
hardware warranty
|
Check Compatibility Before Ordering
This generic kit does not include a Modbus adaptor and is not suitable for Samsung heat pumps, which communicate via Samsung's proprietary NASA protocol. For Samsung installations, order the dedicated Homely Hub and Node Kit for Samsung with Modbus Interface instead. Homely's supported brand list is updated periodically — confirm the specific outdoor unit model is listed before installing.

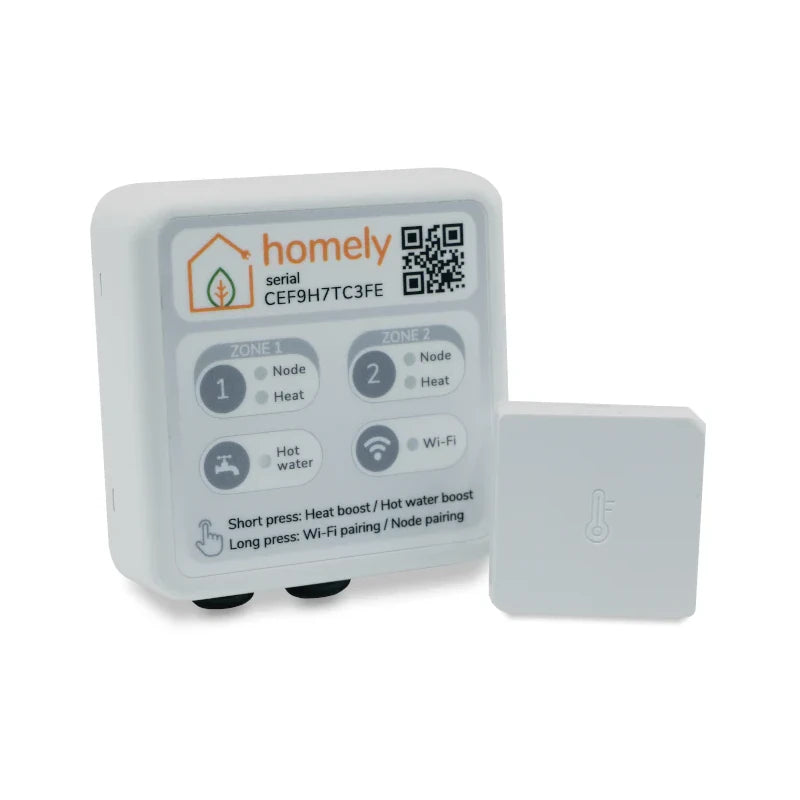

What's in the Kit
Homely Hub
The main smart controller, connecting to the internet, the Homely cloud platform and the Homely app to drive weather compensation and optimisation.
|
Homely Wireless Temperature Node
A battery-powered wireless sensor (CR2450, replaceable) reporting room temperature, humidity and light intensity to the Hub over an 868MHz link, typically effective within about 16m.
|
3-Pin Power Supply
A 5V, 1A barrel jack power supply for the Hub is included, with the plug type matched to the country of delivery.
|
Installation Manual & Mounting
Full wiring and commissioning documentation, plus adhesive mounting pads for both the Hub and Node.
|
Key Benefits for Installers
Simple Setup
Automatic weather compensation curves remove the need for manual curve calculation, cutting commissioning time and reducing return visits.
|
Fast Install
Homely typically installs in under 45 minutes, with simple wiring and no wall screen to fit.
|
Remote Diagnostics with Connect Pro
2 years of Connect Pro are included as standard, giving live and historic data, over-the-air parameter changes and fault diagnosis without a site visit.
|
Boosted Sales Conversations
Independent testing referenced by Homely shows heat pump bills can fall by up to 31% when combined with a compatible tariff, helping close more sales.
|
Retrofit or New Build
The kit is fully retrofit compatible and suits both existing heat pump systems and new installations.
|
Single Installer Dashboard
Connect Pro gives installers one dashboard across all Homely installs, making it easy to spot systems that need attention.
|
Key Benefits for Homeowners
Lower Running Costs
Homely optimises flow temperatures, schedules and time-of-use operation on compatible tariffs to cut bills versus basic controls.
|
Effortless Comfort
Smart algorithms learn the property, outdoor conditions and usage patterns, keeping rooms comfortable without constant manual adjustment.
|

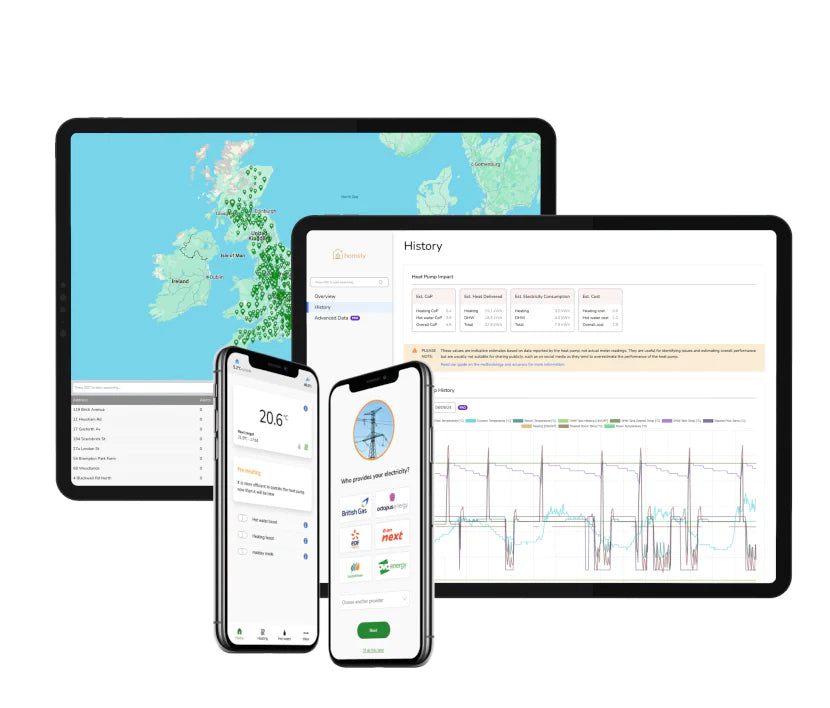

App Control
A simple set-and-forget app allows schedule tweaks and mode changes from anywhere, while Homely handles optimisation in the background.
|
Green Energy Ready
On compatible tariffs and feature sets, Homely can align heat pump operation with cheaper or greener electricity periods.
|
Specification
| Homely Hub |
| Dimensions |
86 x 86 x 25 mm |
| Weight |
87 g |
| Material |
ABS FR, matte white |
| Interface |
6 x RGB LED display, 4 mechanical buttons |
| Sensors |
Temperature, humidity, light intensity |
| Power supply |
5V DC, 1A (3-pin barrel jack, included) |
| Radio communication |
868MHz to Node |
| Certifications |
CE, UKCA, RoHS compliant |
| Warranty |
2 years |
| Homely Wireless Temperature Node |
| Dimensions |
43 x 43 x 14 mm |
| Weight |
25 g |
| Material |
PC, matte white |
| Battery |
CR2450 (replaceable), included |
| Range from Hub |
Approx. 16 m, dependent on interference/obstructions |
| Sensors |
Temperature, humidity, light intensity |
| System-Wide |
| Supported heat pump brands (no Modbus adaptor needed) |
Airwell, Clivet, Daikin, Grant, Ideal Heating, LG, Midea, Mitsubishi, Nordis, Riello, Trianco, Worcester Bosch |
| Number of zones |
Single zone standard; two zones supported on certain integrations with an additional Node |
| Connect Pro included |
2 years |
| App availability |
iOS 11+ and Android 6+ |
| Language |
English |
| Availability |
Europe and UK |
| Packaging |
Recyclable |
Frequently Asked Questions
Will this kit work with my heat pump brand?
This generic kit covers a wide range of brands directly, including Airwell, Clivet, Daikin, Grant, Ideal Heating, LG, Midea, Mitsubishi, Nordis, Riello, Trianco and Worcester Bosch. Homely updates its integration list periodically, so it's worth confirming the exact model against Homely's current compatibility guide before ordering.
Do I need this kit or the Samsung Modbus version?
If the heat pump is a Samsung EHS, HE or HT unit, you need the separate Homely Hub and Node Kit with Samsung Modbus Interface, which includes the MIM-B19N gateway required to bridge Samsung's protocol. This generic kit does not include that adaptor.
How far can the wireless Node be from the Hub?
The Node communicates over an 868MHz radio link and is typically effective within about 16 metres of the Hub, though actual range depends on walls, interference and building construction.
What does Connect Pro give installers?
Connect Pro provides a single dashboard across all Homely installations, live and historic performance data, and the ability to make remote parameter changes without attending site. 2 years are included with this kit.
Can this support two heating zones?
Dual-zone control is supported on certain integrations only and requires an additional wireless temperature Node beyond the one included in this kit.
How is the Hub powered?
The Hub is powered by the included 5V, 1A power supply with a 3-pin barrel jack connector; the plug type supplied matches the country of delivery.
