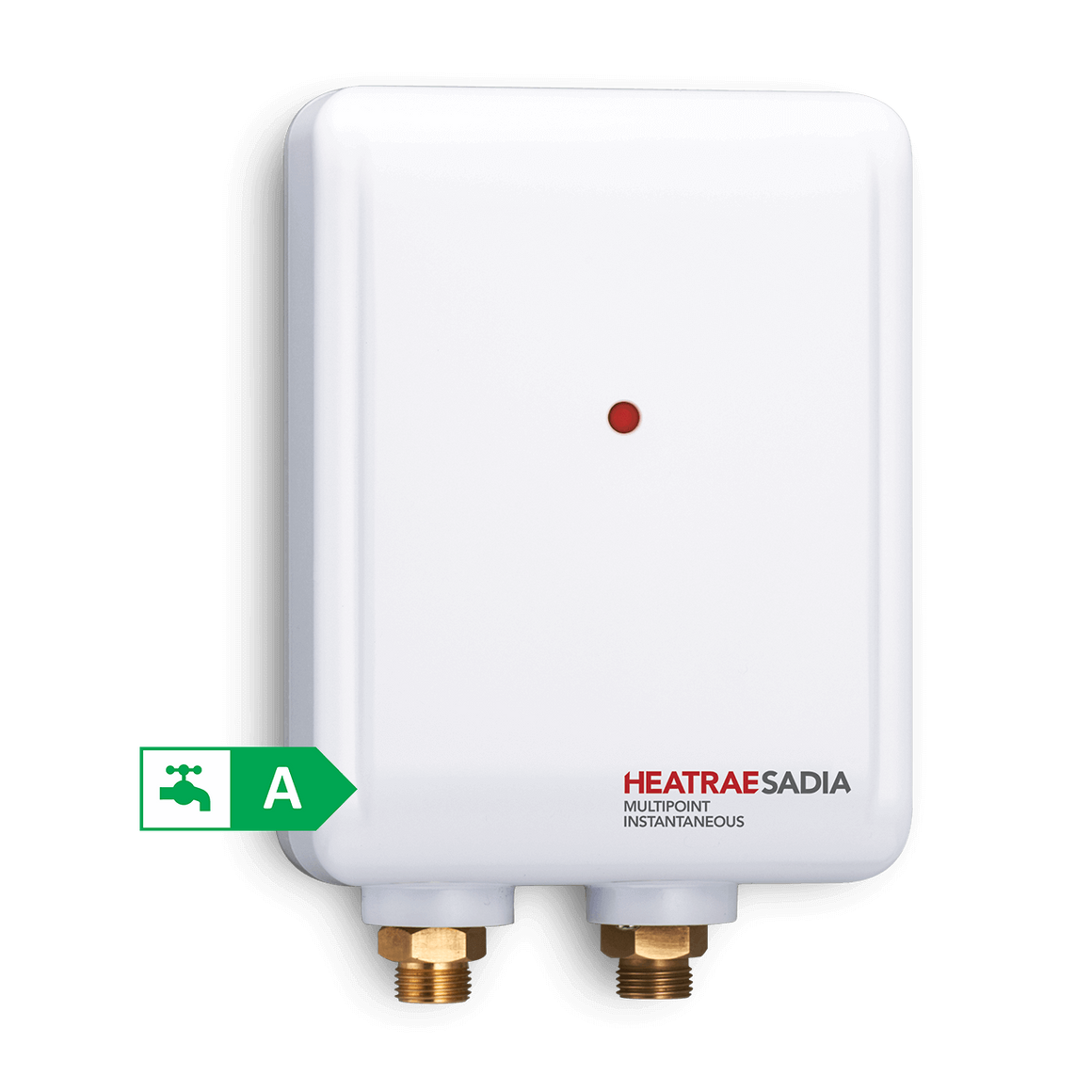

The Heatrae Sadia Multipoint Instantaneous 7kW is a compact, point-of-use electric water heater that delivers hot water on demand for a single shower or spray tap outlet — with no storage cylinder, cistern, or standing heat loss to worry about. Connected directly to the mains cold water supply, it heats water as it flows through, making it ideal for bedsits, garages, cloakrooms, and student or holiday accommodation where space and plumbing complexity need to be kept to a minimum.
Housed in a vandal-resistant white ABS casing and protected by a manual-reset high-temperature cut-out, it's built for durability in remote or lightly-supervised locations, backed by a 2-year on-site parts and labour guarantee.
2.5 l/min
Min. Recommended Flow*
1–7 bar
Supply Pressure Range
88°C
Max Outlet Temperature
Flow Rate Note
*The manufacturer's recommended minimum flow rate is 2.5 litres/minute when multiple units are plumbed in parallel to serve higher water volumes — each heater must be individually flow-set and isolated with a restrictor capable of closing flow completely during commissioning. Actual delivered flow rate on a single unit varies with incoming mains temperature and the flow-rate adjustment set at commissioning.
Instant Hot Water, No Storage Needed
Being instantaneous rather than storage-based, it heats mains water as it passes through the unit, eliminating standing heat losses and the space demands of a cylinder or tank.
Vandal-Resistant ABS Casing
The white moulded ABS casing is built to withstand rough handling in shared, remote or lightly-supervised installations such as student accommodation or outbuildings.
Dual-Stage Safety Cut-Out
Fitted with two temperature limiters — a one-shot overheat/differential-pressure cut-out and a manually-resettable over-temperature cut-out — for layered protection against overheating faults.
Single-Outlet Design
Supplies one outlet at a time — a shower head or spray tap — and is compatible with manual showers and upriser systems controlled by a single outlet valve (not suitable for use with mixer valves).
IPX5 Ingress Protection
Rated IPX5 against water jets, appropriate for the wet environments typical of shower and washroom installations.
Field-Adjustable Flow Rate
The flow rate is set on commissioning by adjusting the flow restrictor with the outlet valve fully open, allowing the installer to balance temperature rise against available mains flow on site.
| Performance |
| Heating Element |
6.4–7.0kW @ 230–240V |
| Maximum Outlet Temperature |
88°C |
| Outlets Served |
1 (shower or spray tap, not simultaneous) |
| Recommended Minimum Flow (Parallel Installs) |
2.5 litres/minute per unit |
| Pressure & Water Supply |
| Minimum Supply Pressure |
0.1 MPa (1.0 bar) |
| Maximum Supply Pressure |
0.7 MPa (7.0 bar) |
| Water Connections |
1/2" BSP male, inlet/outlet, bottom entry |
| Electrical |
| Supply Voltage |
230/240V AC |
| Circuit Requirement |
Independent dedicated circuit, per BS7671 IEE Wiring Regulations |
| Cable Entry |
Bottom or rear |
| Construction & Physical |
| Casing / Backplate Material |
ABS (vandal-resistant) |
| Element Type |
Copper-sheathed rod |
| Inner Container Material |
Glass-reinforced nylon |
| Ingress Protection |
IPX5 |
| Dimensions (H x W x D) |
210 x 160 x 104mm |
| Weight |
2.1kg |
| Compliance |
| MPN |
95050424 |
| EAN |
5012496504240 |
| Standard |
EN 60335-2-35 |
| Guarantee |
2 years, on-site parts and labour |
Can the Multipoint Instantaneous 7kW supply a shower and a tap at the same time?
No — it's designed to supply only one outlet at a time. If you need simultaneous multi-outlet hot water, a storage-type unvented cylinder such as the Multipoint Eco or Hotflo range is the better fit.
Is it compatible with a mixer shower valve?
No. Per the manufacturer's fitting instructions, it's only suitable for use with a manual shower and upriser controlled by a single outlet valve, not with mixer valves.
What's the difference between the 7kW and 9kW versions?
Both share the same casing, dimensions and safety features; the 9kW model (95050425) delivers a higher heating output (8.2–9.0kW) for a greater temperature rise at a given flow rate, useful where incoming mains water is colder or a hotter shower temperature is wanted.
Can multiple units be installed together for higher demand?
Yes, multiple heaters can be plumbed in parallel off a common cold feed manifold, with each unit individually flow-set and fitted with a restrictor able to close flow completely during commissioning. They should not be plumbed in series.
Does it need a dedicated electrical circuit?
Yes. The manufacturer specifies that the unit must be connected to its own independent electrical circuit, sized and protected in line with BS7671 IEE Wiring Regulations.
