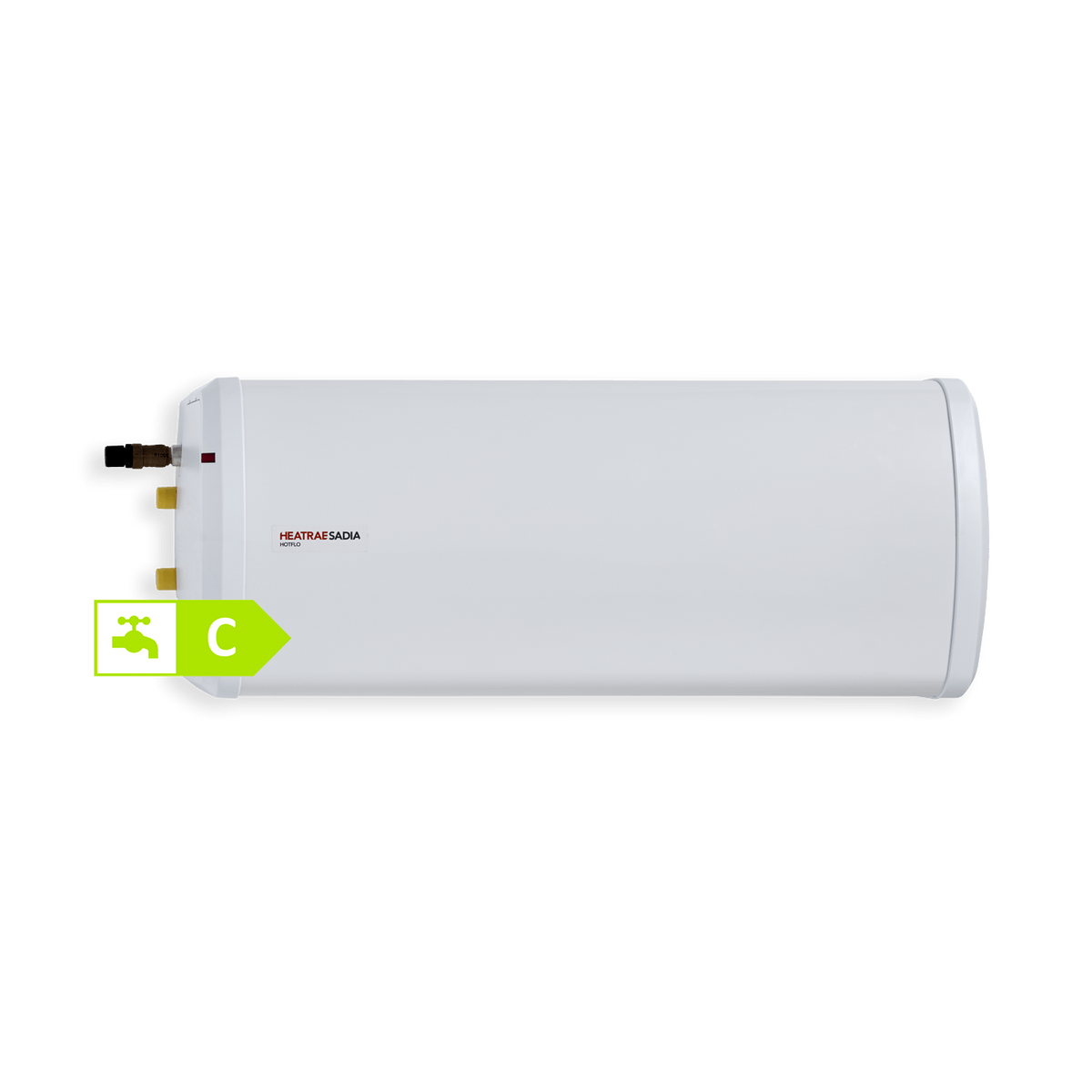

Heatrae Sadia Hotflo 50L 3kW Horizontal Unvented Water Heater | ErP Compliant Electric Cylinder

Description

The Heatrae Sadia Hotflo 50L Horizontal is a 3kW electric unvented water heater built for light commercial installations with restricted headroom — ceiling voids, under-counter service cupboards, or shallow plant spaces where a tall vertical cylinder won't fit.

It shares the same duplex stainless steel inner container and ErP-compliant performance as the vertical Hotflo 50L, simply reoriented to a low, wide format measuring just 371mm high by 997mm long.

50L

Storage Capacity

3.0kW

Heating Element

Grade M

ErP Load Profile

80 min

Heat-Up Time

37.9%

Water Heating Efficiency

2 Yr

Guarantee

Low-Profile Horizontal Format

At just 371mm high and 997mm long, this format fits easily into ceiling voids, under-counter cupboards, or other shallow spaces unsuitable for a vertical cylinder.

Duplex Stainless Steel Construction

Built with a duplex stainless steel inner container for strong resistance to pitting and stress corrosion under continuous commercial use.

Factory-Fitted Safety Valve

Ships with a 90°C / 10 bar Temperature/Pressure Relief Valve factory-fitted for faster, code-compliant commissioning.

ErP Compliant

Fully compliant with EU Regulations 814/2013 and 812/2013, with a declared water heating efficiency of 37.9% and annual electricity consumption of 1,356 kWh.

Multi-Outlet Rated

Sized to serve multiple simultaneous outlets in busy washroom or catering environments.

Nemko & Kiwa Approved

Approved to UK Water Supply Regulations and CE marked for straightforward commercial compliance.

Performance
Storage Capacity	50 litres
Heating Element	3.0kW @ 240V / 2.8kW @ 230V
Heat-Up Time (Cold to Set Temperature)	80 minutes
Thermostat Setting (Factory)	54°C
Suitable For	Canteens, washrooms, commercial kitchens
Efficiency (ErP)
Load Profile	M (Medium)
Water Heating Energy Efficiency	37.9%
Annual Electricity Consumption	1,356 kWh
Daily Fuel Consumption (Q elec)	6.27 kWh
Pressure & Safety
Max Inlet Pressure to PRV	1.6 MPa (16.0 bar)
Operating Pressure	0.35 MPa (3.5 bar)
Maximum Design (Rated) Pressure	0.6 MPa (6.0 bar)
Minimum Supply Pressure	0.08 MPa (0.8 bar)
Expansion Vessel Charge Pressure	0.35 MPa (3.5 bar)
Temperature/Pressure Relief Valve	90°C / 1.0 MPa (10 bar)
Construction & Physical
Inner Container Material	Duplex stainless steel
Insulation Thickness (min)	22mm
Weight (Empty)	21kg
Weight (Full)	71kg
Dimensions (H x W x D)	371 x 1028 x 350mm
Compliance
Product Code	7037030
Approvals	Nemko and Kiwa approved to UK Water Supply Regulations, CE marked

Why choose horizontal over vertical for the Hotflo 50L?

Choose horizontal were ceiling height or a shallow service void rules out a tall vertical cylinder — for example, mounting above a suspended ceiling or inside a low cupboard. Vertical suits installations with more height than floor space.

Does the horizontal orientation affect performance?

Only very slightly. Heat-up time and efficiency figures are marginally different between orientations due to minor differences in surface area and insulation coverage, but both deliver the same 50 litre capacity from the same 3kW element.

Is a cold water tank required?

No, this is a fully unvented, mains-fed water heater.

What's the factory thermostat setting?

54°C, matching the vertical Hotflo 50L.

What water connection size does it use?

22mm compression fittings for inlet, outlet and the temperature/pressure relief valve discharge, per the Heatrae Sadia installation manual.
