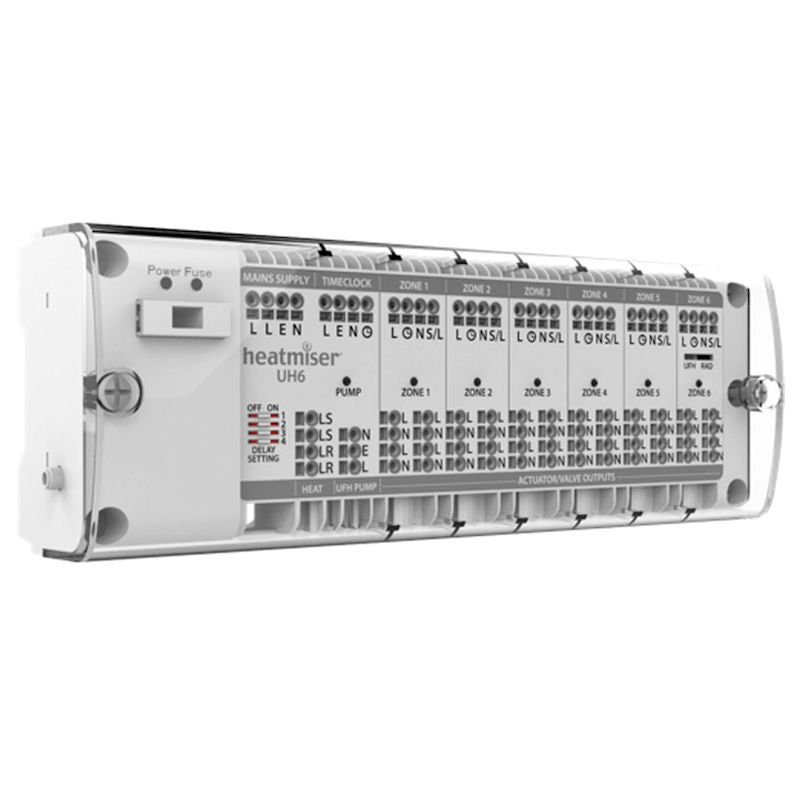

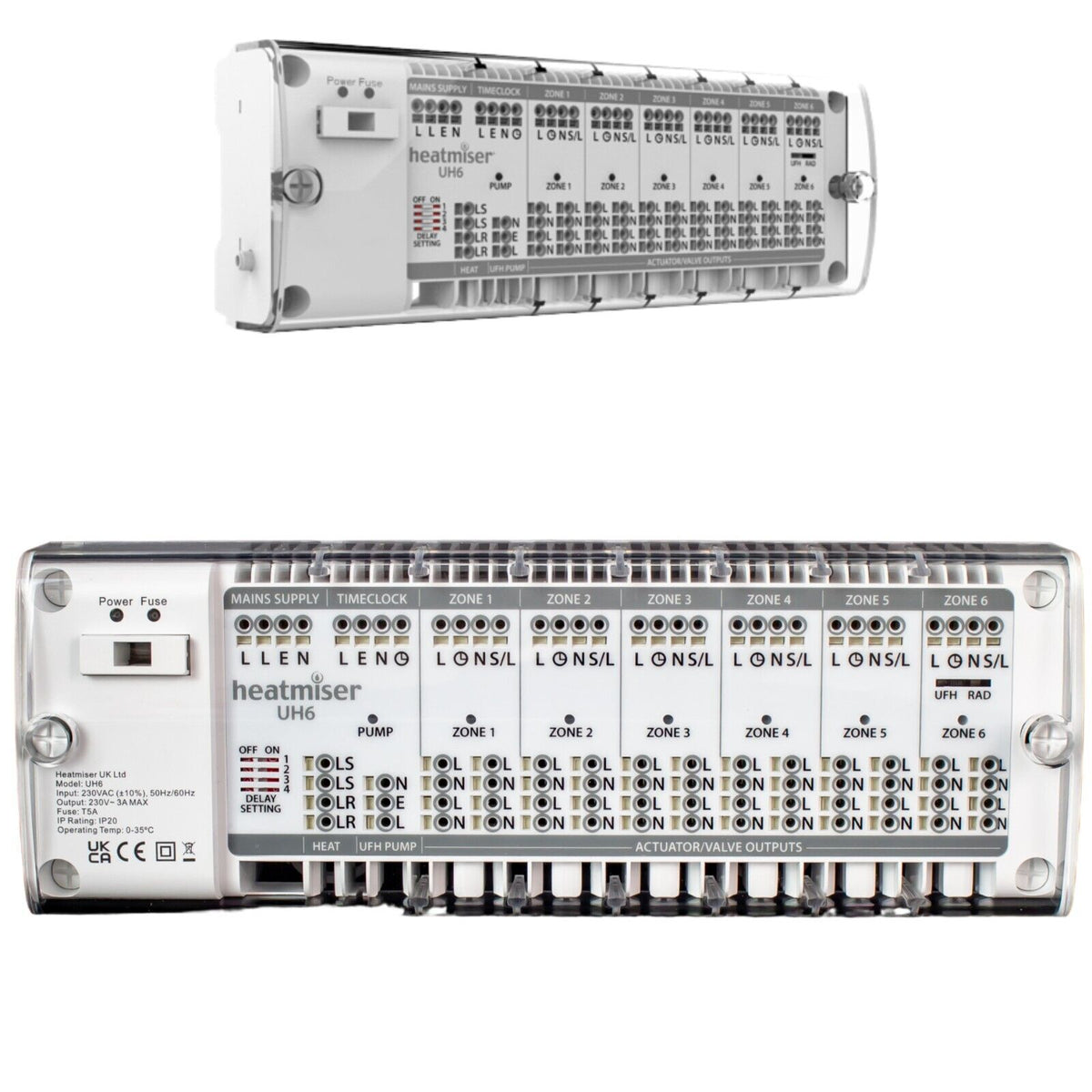

Heatmiser UH6 6 Zone Wiring Centre

The Heatmiser UH6 is a compact 6 zone wiring centre designed to provide effective central control for underfloor heating systems using 230V thermostats. Ideally located next to the underfloor heating manifold, the UH6 offers on-demand switching of zone actuators, underfloor heating pump, and valve, ensuring responsive and efficient system management. Its volt-free boiler connection ensures compatibility with virtually all boiler types.

• Zones Supported: 6 heating zones (individually wired and controlled)
• Thermostat Compatibility: Compatible with any 230V room thermostat, including NeoStat, Slimline v2, Touch v2, TM4 time clock, and DS-SB setback thermostat
• Actuator Outputs: 230V, supports up to 4 actuators per zone
• Pump and Valve Output: 230V output for underfloor heating pump and valve, activated when any thermostat calls for heat
• Boiler Control: Volt-free connection for flexible, safe switching of most domestic boilers
• Features:
  • Heat & Pump Delay: Adjustable timed delay before activating pump and heat outputs, protecting system components
  • Creepage Function: Automatically operates the pump for 1 minute daily if unused, preventing seizure during periods of inactivity
  • DIN Rail Mounting: DIN rail mounting option for easy installation (DIN rail not included)
  • LED Indication: Onboard LEDs for clear status feedback
  • Push-In Connectors: For secure wiring connections
• Supply: 230V AC 50/60Hz
• Relay Load Max: 3A resistive per relay; total load max 5A
• IP Rating: IP20
• Dimensions: 265 x 95 x 64mm (Length x Height x Depth)
• Warranty: 2 Years Manufacturer’s Warranty

The Heatmiser UH6 is easy to integrate, providing robust and reliable zone management for both new and retrofit underfloor heating projects. Its compact design, combined with advanced safety and maintenance features, makes it a popular choice for professional installers and homeowners alike.

Box Contents:

• Heatmiser UH6 6 Zone Wiring Centre
• Fixing screws
• Installation manual
