Programmable Electric Floor Heating Thermostat – Heatmiser Slimline-E V3

Product Overview

The Heatmiser Slimline-E V3 is a contemporary, flush-mounted programmable thermostat designed specifically for electric underfloor heating systems. With its slim profile and intuitive menu-driven display, it offers precise, energy-efficient scheduling and user-friendly control, making it ideal for both domestic and commercial environments.

Key Features

• Large, clear display: Backlit LCD makes programming and status checks easy in any light
• Powerful programming: 5/2 day or 7-day timer with up to 4 heating periods per day
• Temperature sense modes: Built-in air sensor, floor sensor or air & floor combined; 3m floor sensor probe included
• Hold and holiday facility: Temporary or extended temperature override for flexible comfort
• Keylock function: Prevents accidental or unauthorized changes
• Temperature range: Adjustable between 05–45°C
• Output load: Up to 16A @ 230V AC – suitable for most electric heating mats or cables
• Frost protection: Yes
• Sensor type: NTC 10K @ 25°C (floor sensor supplied for accurate floor temp control)

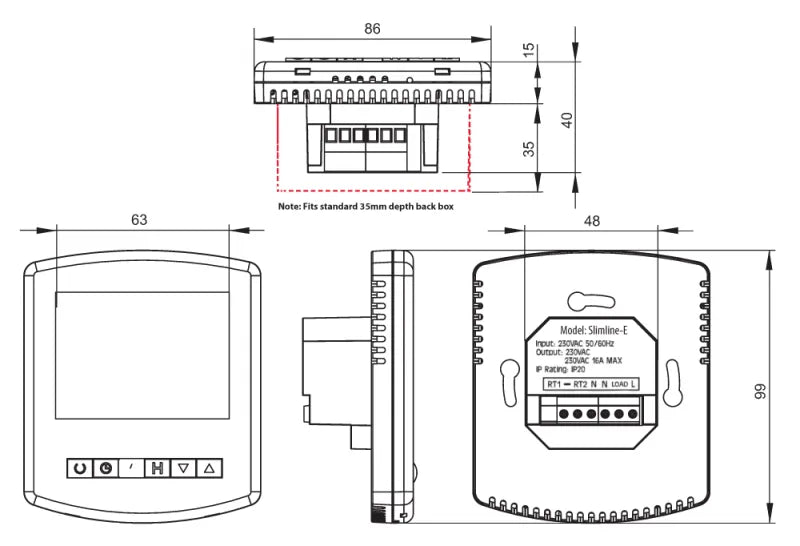

• Mounting: Flush mount, fits standard 35mm deep single back box
• Colour: White with matching faceplate
• IP Rating: IP21 (suitable for zone 3 bathrooms)
• Warranty: 2 years manufacturer’s warranty

Applications

• Electric underfloor heating (mats or cable systems)
• Suitable for use in bathrooms, kitchens, and living spaces
• Modern residential or commercial buildings where discreet, flush-mounted control is preferred

Box Contents

• Heatmiser Slimline-E V3 Thermostat
• 3m Floor Sensor Probe
• Mounting screws
• Installation manual

Note: Designed exclusively for electric floor heating systems. Not Wi-Fi enabled – no app or remote control. For use with compatible 230V electric heating only.
