Heatmiser neoHub Mini HW Smart WiFi Kit | neoAir v3 + Stand

Description

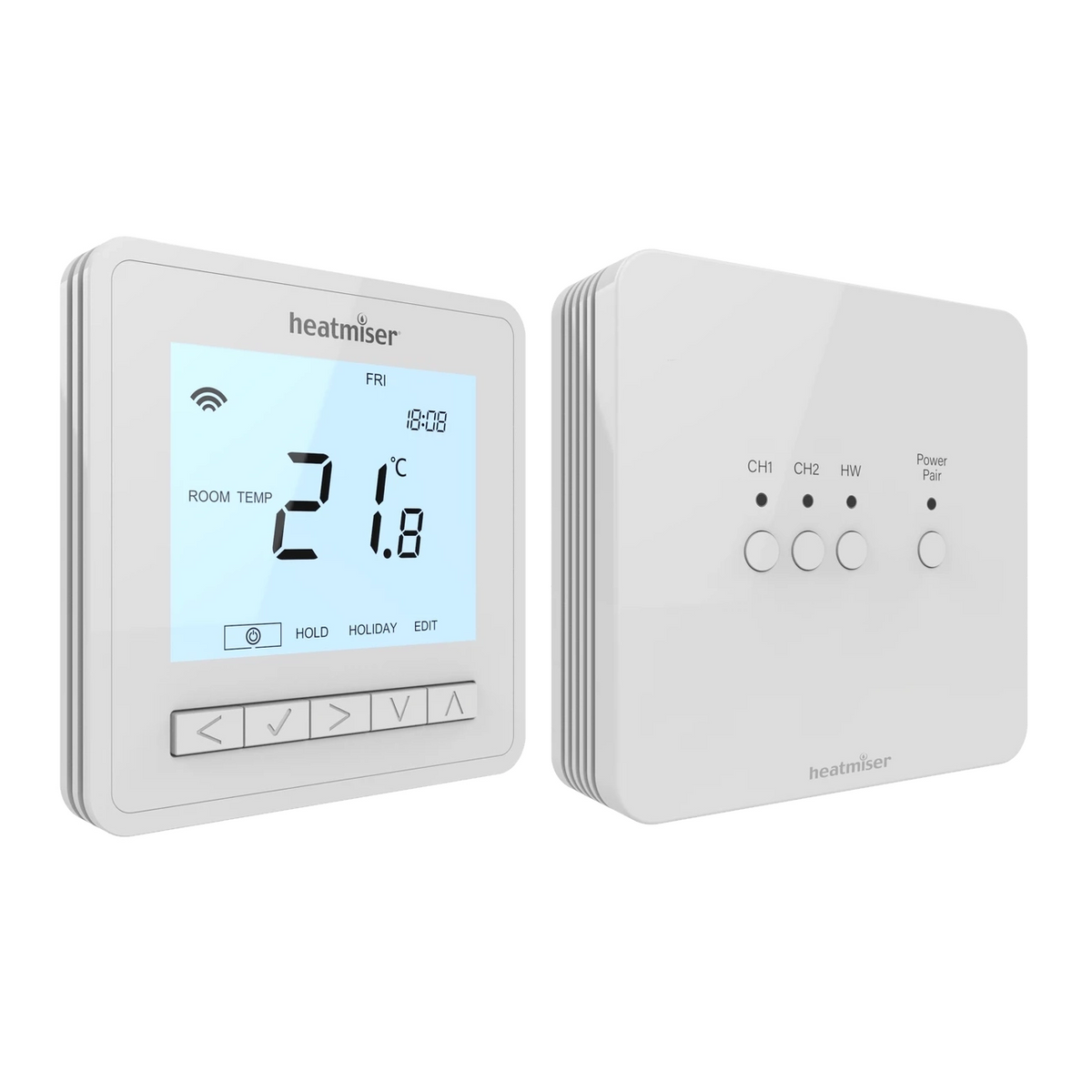

The Heatmiser neoHub Mini HW Bundle is a complete WiFi smart control kit for heating and hot water in smaller homes. It brings together 1 × neoAir v3 smart thermostat, 1 × neoAir Stand and 1 × neoHub Mini HW, a compact 3-output wireless receiver and WiFi hub in a single unit.

Designed for 1 or 2 heating zones plus a hot water cylinder, the hub links to your router over 2.4 GHz WiFi and to the neoAir v3 over 868 MHz radio. Control everything from the free neoApp on iOS or Android, or by voice through Alexa, Google Home and IFTTT. Three volt-free outputs rated at 230 V AC, 3 A switch conventional and condensing boilers, plus air and ground source heat pumps with a dry-contact call for heat.

Because the neoAir v3 is battery powered and wireless, it suits homes with no existing wired thermostat. Fix it to the wall with its back plate, or stand it on a shelf or table using the included neoAir Stand.

2 + 1

Heating + HW zones

3 × 3 A

Volt-free outputs

868 MHz

Thermostat radio

2.4 GHz

WiFi to router

5 years

Security updates

2 years

Manufacturer warranty

Installation and safety

The neoHub Mini HW is a 230 V AC mains-powered unit wired into the boiler and cylinder control circuit. It must be installed by a competent electrician or heating engineer in line with BS 7671. Isolate the supply before opening the unit.

Not for electric underfloor heating

The manufacturer states the neoAir v3 must not be used to control electric underfloor heating. A floor probe on the neoAir v3 is intended only as a floor temperature limiter on suitable systems.

How hot water and zones are allocated

Hot water is controlled by the same neoAir v3 that controls heating zone 1 (CH1), set to Mode 3. The hot water output pairs automatically at the same time. A second heating zone needs an additional neoAir v3 (sold separately) set to Mode 1 and paired to CH2. Resetting the HW output also removes the thermostat paired to the heating output.

Compatibility notes

Apple HomeKit is not supported; smart home control is via Alexa, Google Home and IFTTT. neoAir V1 and V2 are not compatible with the neoHub Mini, so neoAir V2-M or later is required. The neoPlug repeater is not compatible with the neoHub Mini HW; use a Heatmiser Boost repeater to extend range.

Key features

3-output wireless receiver

CH1, CH2 and HW volt-free outputs switch up to 230 V AC at 3 A each. The HW output also offers NC and NO contacts. Front-panel buttons give a manual override on each output.

Built-in WiFi hub

Connects to your 2.4 GHz router with an integrated aerial. No separate gateway, no subscription, and multiple locations can sit under one account.

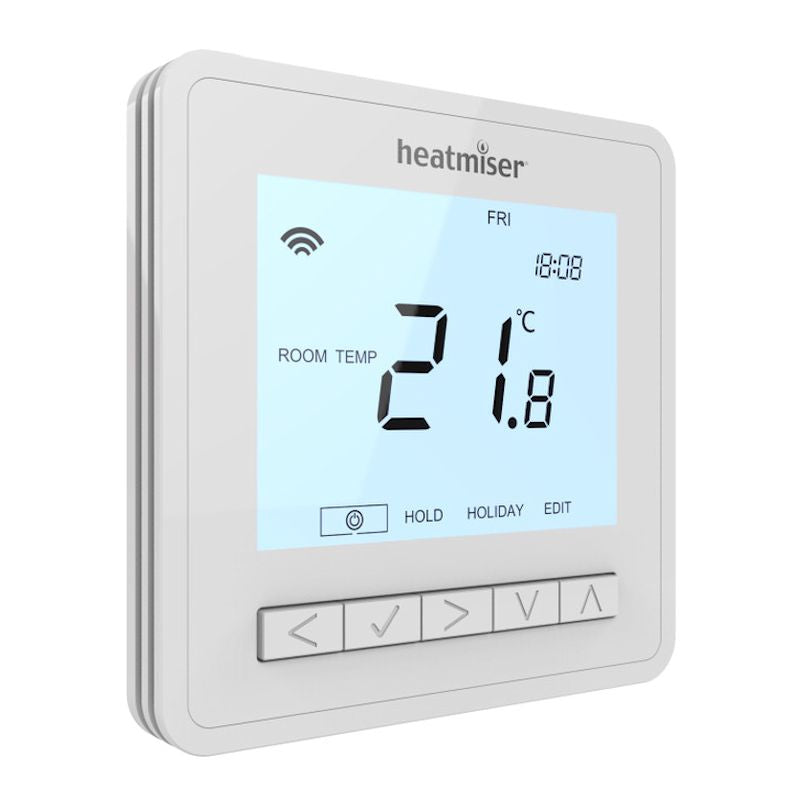

neoAir v3 smart thermostat

Touch keys and LCD display, powered by 4 × AAA batteries (supplied). Choose non-programmable, weekday/weekend, 7 day or 24 hour programming.

Smart scheduling and comfort

Optimum start (up to 5 hours), smart profiles shared across rooms, geo-location at room level, away mode, holiday mode and timed hold and hot water boost.

Alerts and security

Push notifications for high or low temperature limits and low battery. PIN lock on each neoAir v3, plus automatic clock sync from the internet.

Always updated

Receives new features and security updates automatically, with a minimum 5-year security update commitment. Meets the Boiler Plus energy-saving standard.

What is in the box

1 × neoAir v3

White wireless smart thermostat with 4 × AAA batteries and wall back plate.

1 × neoAir Stand

White desk stand, balanced and angled for easy viewing. Place the thermostat on a shelf or table with no wall mounting.

1 × neoHub Mini HW

230 V AC receiver and WiFi hub, 106 × 106 × 30 mm, surface mounted.

Technical specifications

Bundle

Contents

1 × neoAir v3 thermostat, 1 × neoAir Stand, 1 × neoHub Mini HW

Manufacturer

IMI Heatmiser (Heatmiser UK Ltd)

Colour

White

System type

Heating and hot water: 1 or 2 heating zones plus 1 hot water zone

Suitable for

Conventional and condensing boilers; air and ground source heat pumps; homes with no wired thermostat

Warranty

2 years manufacturer warranty

Security updates

Minimum 5 years from date of purchase

neoHub Mini HW (receiver and WiFi hub)

Outputs

3 × volt-free (CH1, CH2, HW)

Max switching

230 V AC, 3 A

Heating / hot water zones

2 heating zones, 1 hot water zone

Wiring terminals

L, E, N, C1, NO1, C2, NO2, C3, NC3, NO3

RF module

868 MHz

WiFi

2.4 GHz, integrated aerial

Power supply

230 V AC mains

Indicators

LEDs: Power/WiFi status, Zone 1, Zone 2, Hot Water

Mounting

Surface mount

Dimensions

106 × 106 × 30 mm (W × H × D)

Weight

239 g

Compatible thermostats

neoAir V2-M or later

neoAir v3 (smart thermostat)

Operating modes

Mode 1 thermostat; Mode 2 timer; Mode 3 thermostat with hot water timer

Power

4 × AAA alkaline batteries (supplied). Do not use rechargeable batteries

Programming

Non-programmable, weekday/weekend, 7 day or 24 hour

Default comfort levels

07:00 21°C, 09:00 16°C, 16:00 21°C, 22:00 16°C

Switching differential

0.5, 1 (default), 2 or 3°C

Frost protection

5 to 17°C, default 12°C, or disabled

Output delay

0 to 15 minutes

Optimum start

0 to 5 hours

Temperature up/down limit

0 to 10°C

Sensor options

Built-in air; remote air probe; remote floor probe; built-in air with floor limit (18 to 45°C, default 28°C). Remote probes sold separately

Failsafe

If the receiver loses the thermostat signal for 40 minutes, it activates the output for 12 minutes every hour (enabled by default)

Extras

Temperature hold, hot water boost timer, holiday mode, keypad PIN lock, °C or °F display

Mounting

Wall mount using back plate (2 fixings) or on the neoAir Stand

App, connectivity and compliance

Mobile app

Free neoApp: iOS 13+ or Android 8+

Router requirement

2.4 GHz WiFi

Smart home and voice

Alexa, Google Home, IFTTT. Apple HomeKit not supported

Subscription

None

Radio equipment

Declared compliant with Directive 2014/53/EU

Energy standard

Meets Boiler Plus

Frequently asked questions

What is included in this bundle?

One neoAir v3 smart thermostat (batteries supplied), one neoAir Stand and one neoHub Mini HW. Wiring, boiler and cylinder controls are not included.

Can I control heating and hot water together?

Yes. Set the neoAir v3 to Mode 3 and pair it to the CH1 output. The hot water output pairs automatically at the same time, and a hot water boost timer is available from the thermostat.

Can I add a second heating zone?

Yes. Add a second neoAir v3 in Mode 1 and pair it to the CH2 output. Hot water stays with the neoAir v3 on CH1.

Which boilers and heat pumps does it work with?

The volt-free outputs suit conventional and condensing boilers and air and ground source heat pumps that accept a dry-contact call for heat. This hub does not provide OpenTherm modulation, so check the appliance wiring requirements before ordering.

Do I need a repeater in a larger home?

The neoAir v3 does not relay signals between thermostats. To extend the wireless range, add a Heatmiser Boost repeater. The neoPlug is not compatible with the neoHub Mini HW.

Is there a subscription, and what about voice control?

No subscription is needed for the neoApp. Voice and smart home control work with Alexa, Google Home and IFTTT. Apple HomeKit is not supported.
