Heatmiser neoAir V3 Wireless Thermostat | NEOAIR SILVER V

Description

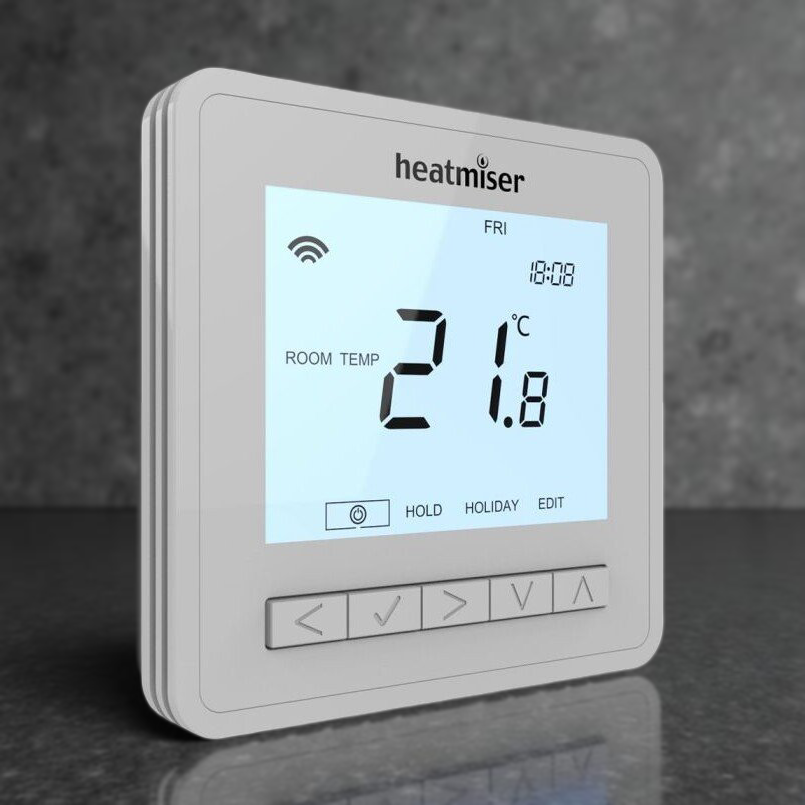

The Heatmiser neoAir V3 in Silver is a battery-powered wireless programmable thermostat that sends its call for heat to a Heatmiser receiver by 868MHz radio, so it can be placed wherever the room needs it with no wiring back to the boiler or heater. It controls heating only, a hot water timer, or heating and hot water together, depending on the mode you select and the receiver you pair it with.

Pair it with an RF-Switch, RF-Switch V2, RF-Switch 16A or UH8-RF V2 wiring centre, or add it as a zone on a neoHub or neoHub Mini for app control through the neoApp. You get 4 comfort levels per day, Self-Learning Optimum Start, temperature hold, holiday mode, frost protection and a backlit LCD with touch keys, all in a slim silver finish. 4 x AAA batteries are supplied; the receiver is sold separately.

868MHz

Wireless frequency

4 x AAA

Batteries supplied

5 to 35C

Temperature range

+/-1C

Sensor accuracy

4

Comfort levels per day

3

Operating modes

Not for electric underfloor heating

Heatmiser states that the neoAir V3 must not be used to control electric underfloor heating. It can switch hydronic (water) underfloor zones through a UH8-RF V2 or neoHub, and its optional floor sensing mode is a limit function for the floor, not a replacement for a dedicated floor heating thermostat.

Receiver and probe sold separately

No receiver is included. Choose an RF-Switch, UH8-RF V2 or neoHub Mini to suit the system. The remote floor or air sensor probe used by the sensor modes is also not included.

Range and wireless network

The neoAir V3 does not repeat signals (no mesh). To extend coverage, add a neoPlug or Heatmiser Boost; a neoPlug is not a compatible repeater when the thermostat is used with a neoHub Mini HW or neoHub Mini OT. Mount at eye level and away from direct heat sources.

Battery guidance

Heatmiser's printed manual says not to use rechargeable batteries, so fit the 4 supplied AAA alkaline cells. Heatmiser's online guidance notes that 1.2V rechargeables can work but may show the low-battery symbol early. Follow the manual if you are unsure.

Key features

Flexible programming

Choose non-programmable, weekday/weekend, 7-day or 24-hour operation, each with 4 comfort levels per day. Defaults are 21C at 07:00, 16C at 09:00, 21C at 16:00 and 16C at 22:00.

Wireless and flexible placement

868MHz radio and battery power let you position the thermostat in the best spot in the room. A wireless fail-safe keeps heating available if the signal is lost.

Smart control with neoHub

Pair to a neoHub or neoHub Mini for app scheduling and remote control. When paired to a hub, the program mode is set in the neoApp.

Air and floor sensing

The thermostat has a built-in air sensor and also supports a remote air sensor, a remote floor sensor, or built-in air plus floor limit with a limit adjustable from 20C to 45C.

Energy-saving controls

Self-Learning Optimum Start, temperature hold, holiday mode, an adjustable switching differential (0.5C to 3C), output delay (up to 15 minutes) and frost protection (default 12C).

Easy to use, easy to lock

Backlit LCD with illuminated touch keys, selectable C or F, a 4-digit key lock, an up/down temperature limit and an on-screen battery indicator.

Receivers and modes

Pairing and operating mode by receiver

Receiver

Heating only

Heating and hot water

UH8-RF V2 wiring centre

Mode 1

Mode 3

RF-Switch and RF-Switch V2

Mode 1

Mode 3

RF-Switch 16A

Mode 1

Not specified

neoHub Mini OT

Mode 1 (CH1 and CH2 zones)

Not applicable

neoHub Mini HW

Mode 1

Mode 3 (CH1 and hot water pair together)

Mode 2 turns the neoAir V3 into a time clock with 4 switching times per day. The neoAir V3 is also compatible with the second generation neoHub.

Technical specifications

General

Brand and range

Heatmiser, neo Series

Model

neoAir V3, Silver

Part number

NEOAIR SILVER V3

Type

Wireless programmable thermostat, battery powered

Mounting

Surface mounted; fix at eye level

Guarantee

2 years

Control

Temperature range

5 to 35C (41 to 95F)

Accuracy

+/-1C

Switching differential

Adjustable 0.5C to 3C (default 1C)

Modes

Mode 1 thermostat, Mode 2 time clock, Mode 3 thermostat and hot water timer

Program options

Non-programmable, weekday/weekend, 7-day, 24-hour

Comfort levels

4 per day (4 switching times in timer mode)

Optimum start

Yes, self-learning, with rate-of-change setting

Hold, holiday, key lock

Yes

Frost protection

Adjustable up to 17C, default 12C, or disabled

Output delay

0 to 15 minutes

Up/down temperature limit

0 to 10C

Temperature units

C or F

Sensors

Built-in air sensor

Yes

Remote air sensing

Yes (probe sold separately)

Floor sensing

Yes (probe sold separately)

Floor temperature limit

20C to 45C (default 28C)

Fault codes

E0 internal sensor fault; E2 remote probe not connected, wired incorrectly or faulty

Wireless and power

Radio frequency

868MHz

Wireless fail-safe

Yes: if the receiver loses the signal for 40 minutes it runs the output for 12 minutes every hour

Mesh networking

No; extend with neoPlug or Heatmiser Boost

Power

4 x AAA batteries (supplied)

Display

Backlit LCD, white backlight

Physical

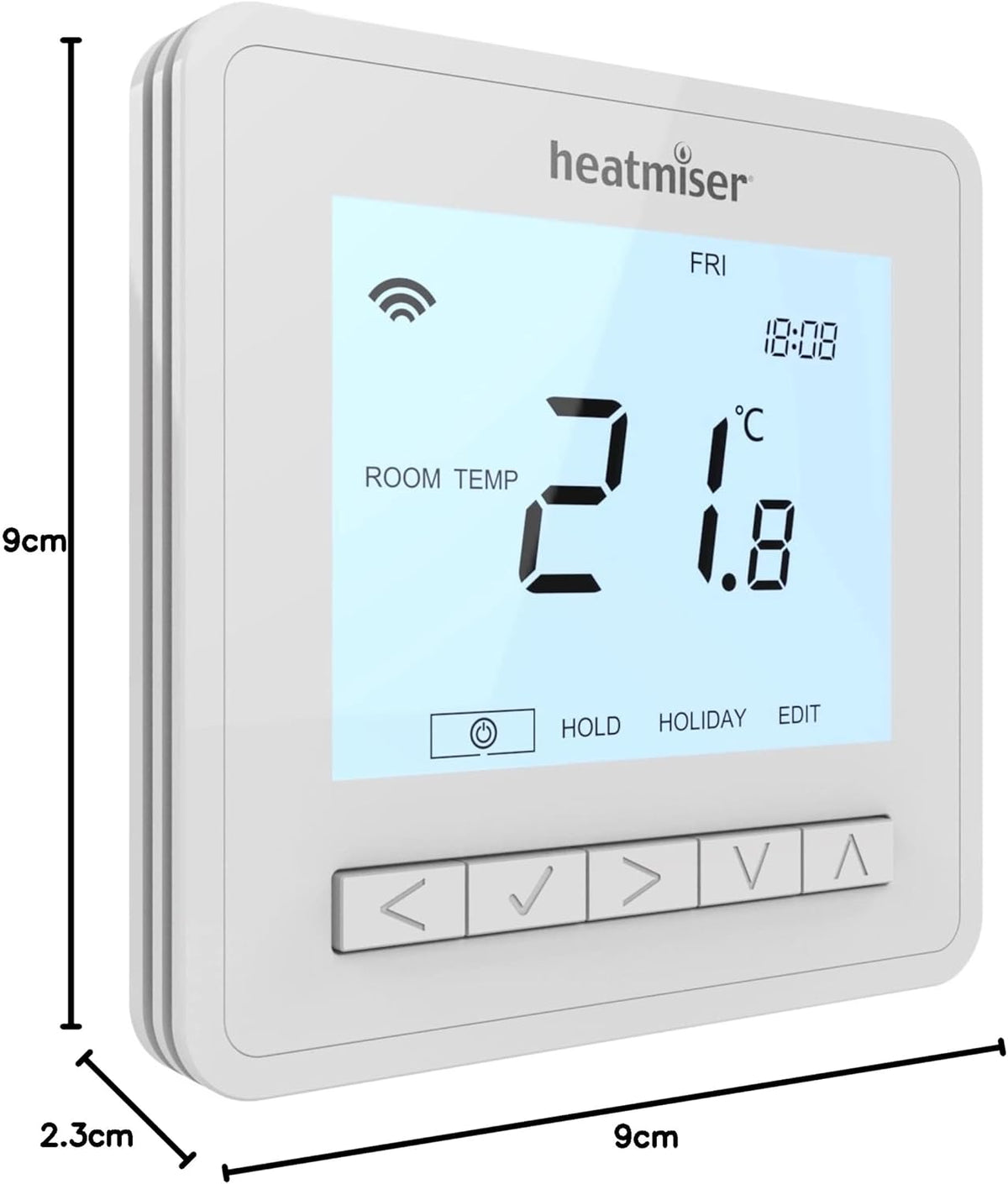

Dimensions

90 x 90 x 23mm

Weight

172g

Compatible receivers

Wiring and switching

RF-Switch, RF-Switch V2, RF-Switch 16A, UH8-RF, UH8-RF V2

Hubs

neoHub (2nd generation), neoHub Mini OT, neoHub Mini HW

Frequently asked questions

Is a receiver included?

No. The neoAir V3 is a transmitting thermostat and needs a compatible receiver such as an RF-Switch, UH8-RF V2 or neoHub Mini to switch the heating.

Can I control it from a phone?

Yes, when paired to a neoHub or neoHub Mini. Add the thermostat as a zone in the neoApp to schedule and control it remotely. Without a hub it is operated at the thermostat itself.

Can it control hot water as well as heating?

Yes. Select Mode 3 for heating plus a hot water timer with a compatible receiver, or use Mode 2 as a simple time clock. With a neoHub Mini HW, hot water pairs automatically when paired to CH1.

Does it work with underfloor heating?

It can switch hydronic underfloor heating zones through a UH8-RF V2 or neoHub and offers a floor limit function. It must not be used to control electric underfloor heating.

What happens if the signal is lost?

The wireless fail-safe is enabled by default: if the receiver does not hear from the thermostat for 40 minutes, it switches on for 12 minutes every hour until the signal returns.

How do I extend the wireless range?

The neoAir V3 does not relay signals itself. Add a neoPlug or Heatmiser Boost for a stronger network, or pair a wired neoStat first so it can extend coverage on a neoHub system.
