Heatmiser DS1-L Central Heating Thermostat

Technical Description

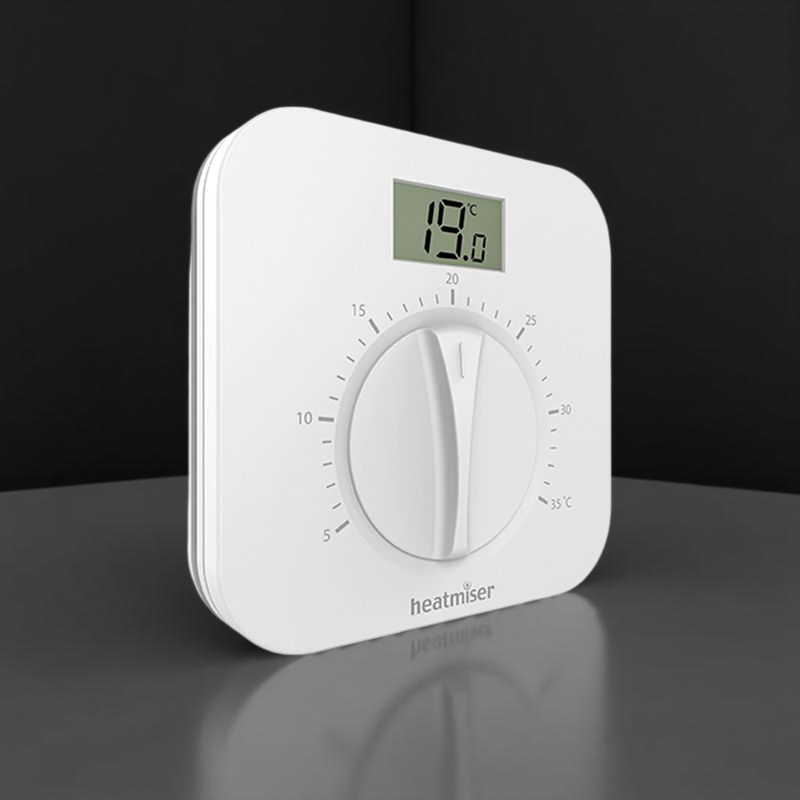

The Heatmiser DS1-L is a 230V electronic dial thermostat designed for use with conventional and combi-boiler systems. It features a modern, flush-mounting design and a clear LCD display that shows the actual room temperature and a heat-on indicator. Temperature adjustment is simple using the intuitive rotary dial, which temporarily displays the set temperature when turned.

Key Features:

• Temperature Range: 5–35°C
• Power Supply: 230V AC
• Maximum Output: Volt-free, 3A max

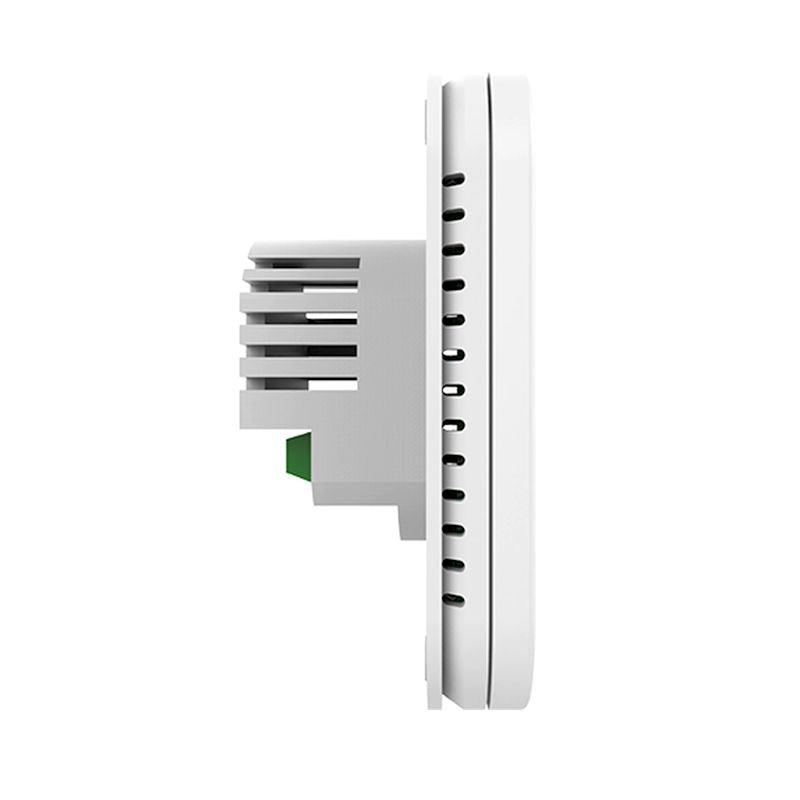

• Mounting Type: Flush mounting
• Dimensions: 92mm x 92mm x 14mm (H x W x D)
• Switching Differential: Adjustable for fine-tuning heating response
• Air Sensor: Built-in sensor for accurate room temperature control
• Remote Sensor Capability: Compatible with optional Heatmiser thimble sensor (sold separately)
• Display: LCD with actual/set temperature and heat-on indication
• Lock Facility: Prevents unauthorised temperature changes
• IP Rating: IP20

The DS1-L requires a minimum of three wires for installation: Live, Neutral and Switch. It is suitable for both surface and flush mounting. Ideal for replacement of older thermostats, the DS1-L offers improved control, energy efficiency, and a sleek design.

Ideal for:

• Central heating systems
• Water underfloor heating systems
• Users wanting reliable, manual temperature control with digital feedback

Box Contents:

• Heatmiser DS1-L Thermostat
• Fixing screws and fittings
• Installation manual

Note: Remote air sensor is not included and must be purchased separately.
