HeatBoard ULTRA – High Output Grooved Chipboard with Aluminium Plates – 2400x600mm
Regular price
£67.00
Inc. VAT
£55.83
Exc. VAT
FREE Express Delivery (1-3 days) in UK Mainland on most orders*
Excluding: Solar Panels (£170 delivery / free above £2,500), Batteries (£39 delivery), Small Items (£4.95/5.95 delivery / free above £500)
Contact Us to check for Next Working Day Delivery or Same-day Delivery options
Contact Us for Click & Collect options
Custom quote available on request
*See checkout or shipping policy for full details
Documentation
Downloads
Payment options
Tools & Kits
Build your kit
Need a full system?
Design your complete solution in minutes with our kit builders.
Do you have a question
about this product?
One of our expert advisors will be happy to help you!
Contact Us

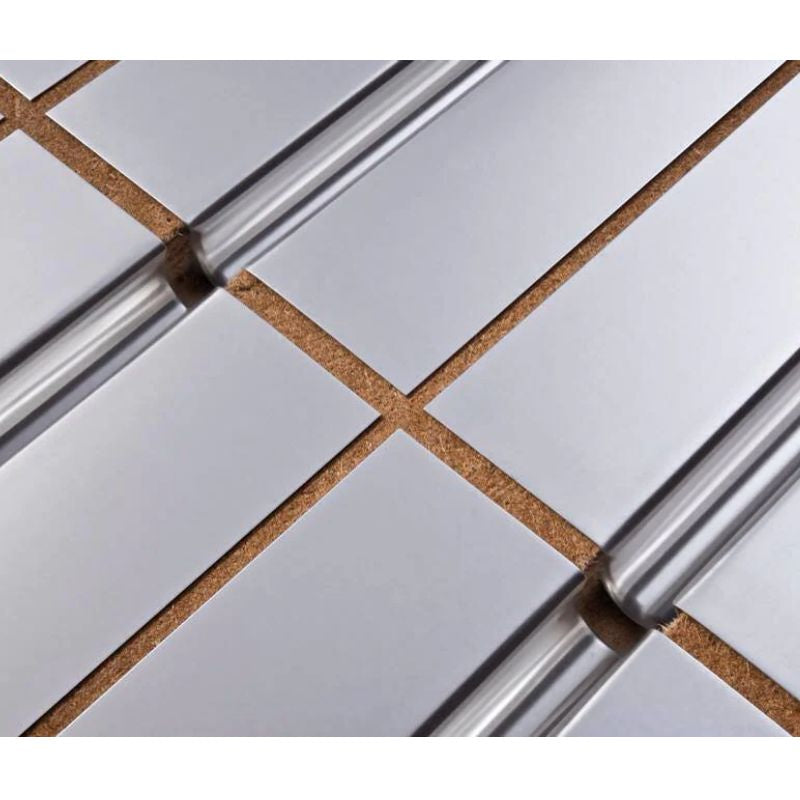

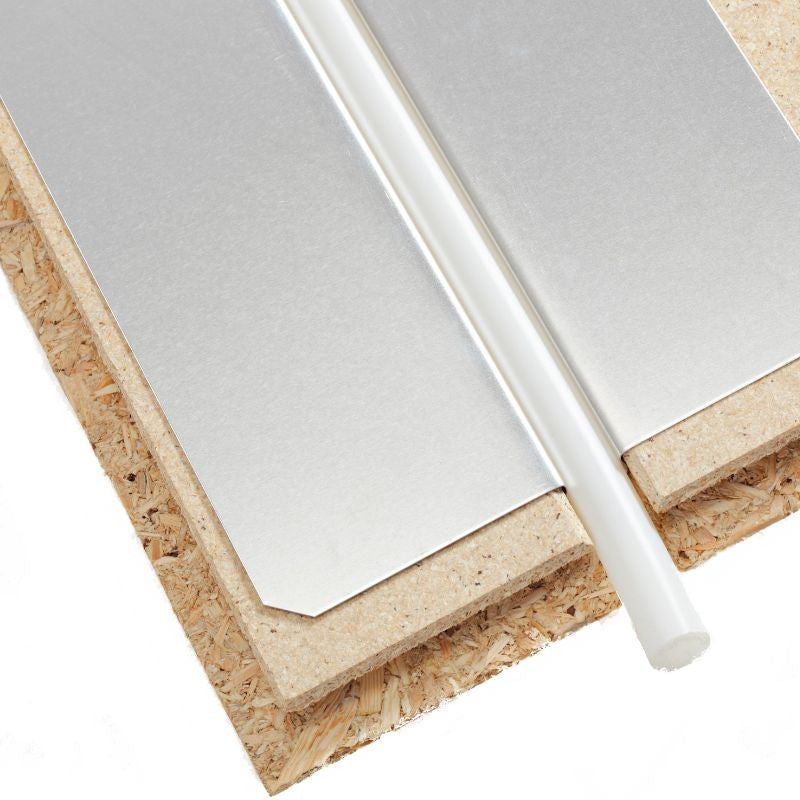

The HeatBoard Pro AL is a large format 22mm thick tongue & groove chipboard panel embedded with nine aluminium heat diffusion plates. Measuring 2400 x 600mm, these panels provide excellent heat conduction and are designed for underfloor heating systems installed over joisted floors. Minimum Order 15 Boards.
What’s Included
- 2400mm x 600mm x 22mm grooved chipboard panels
- 9 integrated aluminium heat diffusion plates per panel
- Installation guide
Key Features
- Large panel size for efficient floor coverage
- Embedded aluminium plates enhance heat distribution
- Pre-grooved 12mm pipe channels at 150mm centres
- Meets UK building and fire safety regulations
- Load-bearing for heavy foot traffic areas
Benefits
- Improves heat transfer reducing energy consumption
- Stable, strong flooring substrate for various coverings
- Speeds up installation process with pre-grooved panels
Technical Specifications
| Panel Size | 2400mm x 600mm |
|---|---|
| Thickness | 22mm |
| Pipe Groove Size | 12mm pipe, 150mm centres |
| Aluminium Plates | 9 per panel |
| Panel Coverage | 1.44 m² |
| Fire Rating | BS EN 13501-1 Class D |
| Approx. Weight | 17 kg per panel |
