HeatBoard One Plus - Foiled Grooved Chipboard Panel – High Heat Output 1200x600x22mm

HeatBoard One Plus – All In One Foiled Grooved Chipboard Panel – High Heat Output 1200x600x22mm

Description

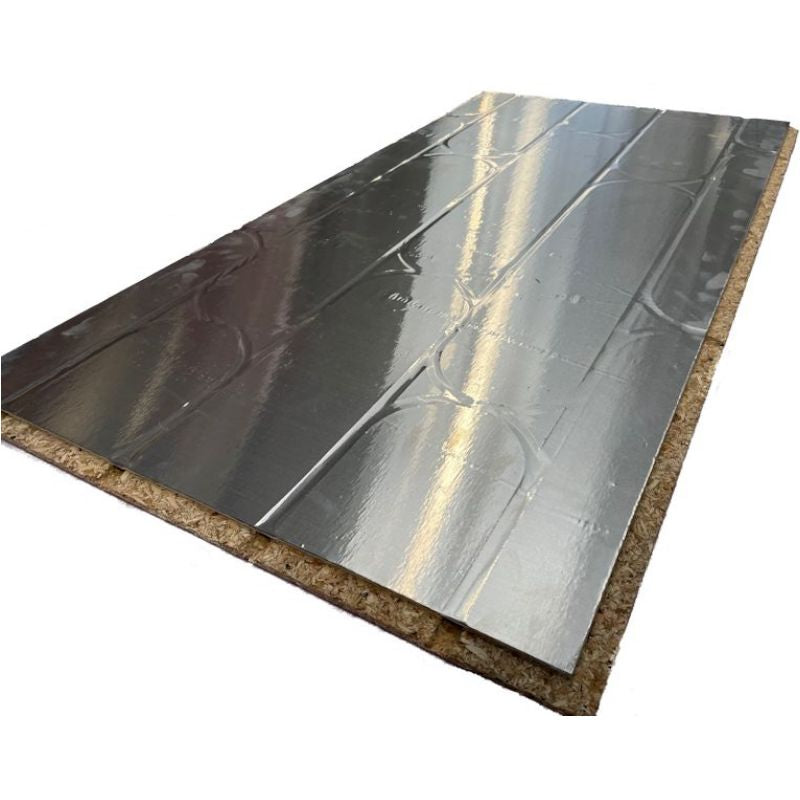

The HeatBoard One Plus panel is a 22mm thick chipboard flooring board featuring integrated aluminium heat diffusion plates and a reflective foil face to maximize heat transfer and reduce warm-up time in underfloor heating systems. Sized 1200mm by 600mm, the panels are pre-grooved for 12mm multilayer pipe at 150mm centres, designed for installation over joisted floors.  *Minimum order 20 boards

What’s Included

• HeatBoard One Plus panel 1200 x 600 x 22mm (0.72m²)
• Reflective foil facing for enhanced upward heat reflection
• Installation guide

Key Features

• Premium 22mm tongue & groove chipboard
• Integrated aluminium plates improve heat conduction
• Reflective foil layer improves heat radiation upwards
• Pre-cut grooves designed for 12mm pipe at 150mm centres
• Each panel covers ~0.72 m²
• Complies with UK fire regulation BS EN 13501-1 (Class D)
• Low Emission Grade: E1 (Formaldehyde EN120) ≤8.0mg/100g
• Recycled Content: 80%
• Thermal Conductivity: 0.14W/mK
• Nominal Density: 660-690 kg/m³

Benefits

• Maximizes heat output and efficiency
• Fast, clean, and precise pipe installation
• Durable, stable base for a range of floor finishes
• Suitable for both residential and commercial joisted floors

Technical Specifications
