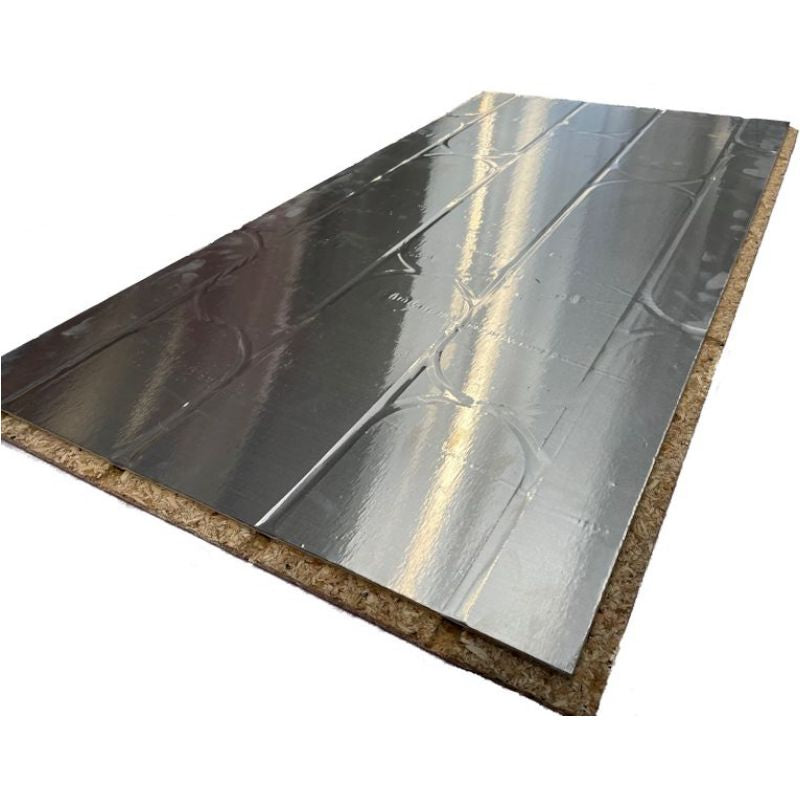

HeatBoard One Max Plus 2400x600mm – All In One Foiled Grooved Chipboard Panel – High Heat Output

HeatBoard ONE MAX PLUS – 2400x600mm – All In One 22mm Foiled & Grooved Chipboard Panel – High Heat Output

Description

The HeatBoard ONE MAX PLUS is a premium-grade 22mm thick tongue & groove chipboard panel engineered specifically for underfloor heating on joisted floors. It features integrated aluminium heat diffusion plates and a reflective foil surface to optimize upwards heat radiation, accelerating system warm-up times and maximizing heat output efficiency. Minimum Order: 15 Boards

Designed in a large 2400mm by 600mm panel size, the HeatBoard ONE MAX PLUS has four individually grooved channels spaced at 150mm centres to accommodate 12mm pipes The foil facing boosts heat reflection upward, ensuring more efficient heating.

Key Features

• Large panel size covering 1.44 m² per panel for efficient floor coverage
• Four pipe grooves per panel, set at 120mm centres to support 16mm pipework

• Load-bearing, flooring grade chipboard certified to UK building regulations
• Fire safety rating BS EN 13501-1 Class D and low formaldehyde emissions (E1)
• Nominal density approx. 660-690 kg/m³ with approx. 80% recycled content supporting sustainability
• Thermal conductivity of approx. 0.14 W/m·K, optimized for use with warm water underfloor heating
• Higher heat output and faster warm-up times due to tighter 120mm pipe spacing and advanced diffusion technology
• Optimized heat radiation reduces energy costs and improves user comfort
• Robust and stable flooring base supporting a variety of floor finishes including tile, engineered wood, laminate, and carpet

• Fully compliant with UK fire and building safety standards for peace of mind

Technical Specifications
