HeatBoard One Max 2400x600mm – All In One 22mm Grooved Chipboard Panel

HeatBoard ONE – 2400x600mm – All-in-One 22mm Grooved Chipboard Panel

High Output – Easy Lay Chipboard Floor Deck, Underfloor Heating System for Joisted Floors

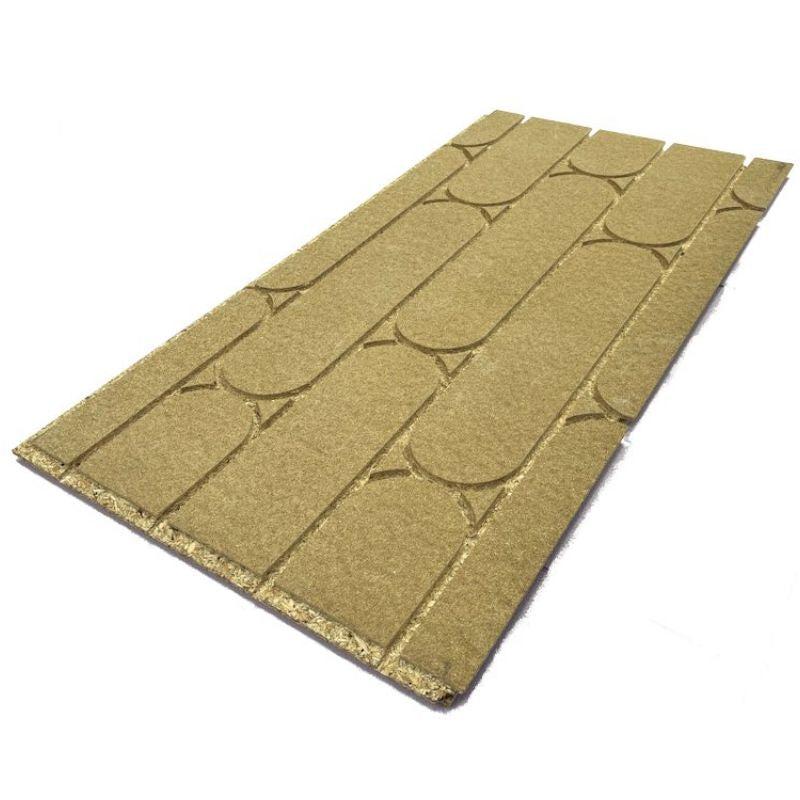

The HeatBoard ONE system features a 22mm flooring grade tongue & groove interlocking chipboard panel designed for use as both a load bearing floor and underfloor heating carrier. This all-in-one panel comes pre-grooved with four grooves at 150mm centres to accommodate 12mm pipework for fast and simple installation directly onto the floor joists (max 600mm centres). Unlike the foiled versions, this panel does not include an aluminium foil layer but retains excellent thermal conductivity suitable for efficient heat output in underfloor heating systems. Minimum Order: 15 boards

This system is ideal for installation on standard joisted wooden floors, replacing traditional floorboards with a specially designed slot board that integrates pipe channels for water underfloor heating. The tongue & groove design ensures a secure interlock giving a smooth, stable floor surface.

Features:

• 22mm flooring grade chipboard, tongue & groove interlocking all round
• Pre-cut grooves for 12mm pipe, spaced at 150mm centres (4 grooves per panel)
• No aluminium foil layer (non-foiled version)
• Full load bearing panel suitable for direct joist installation
• Efficient heat transfer properties with a thermal conductivity of 0.14 W/mK
• Fire protection classification to BS EN 13501-1 Class D
• Low emission grade E1 (formaldehyde ≤8.0mg/100g)
• Made with approximately 80% recycled content
• Suitable for water-based underfloor heating systems

Technical Specifications:

Installation:

Designed for easy installation on joisted floor constructions with joist centres up to 600mm. The pre-grooved chipboard allows quick laying of 12mm pipe directly into the panel grooves without additional aluminium plate heat spreaders. This system is suitable for water-based underfloor heating and is compatible with a variety of pipe fittings and manifolds.

Minimum Order: 15 boards
