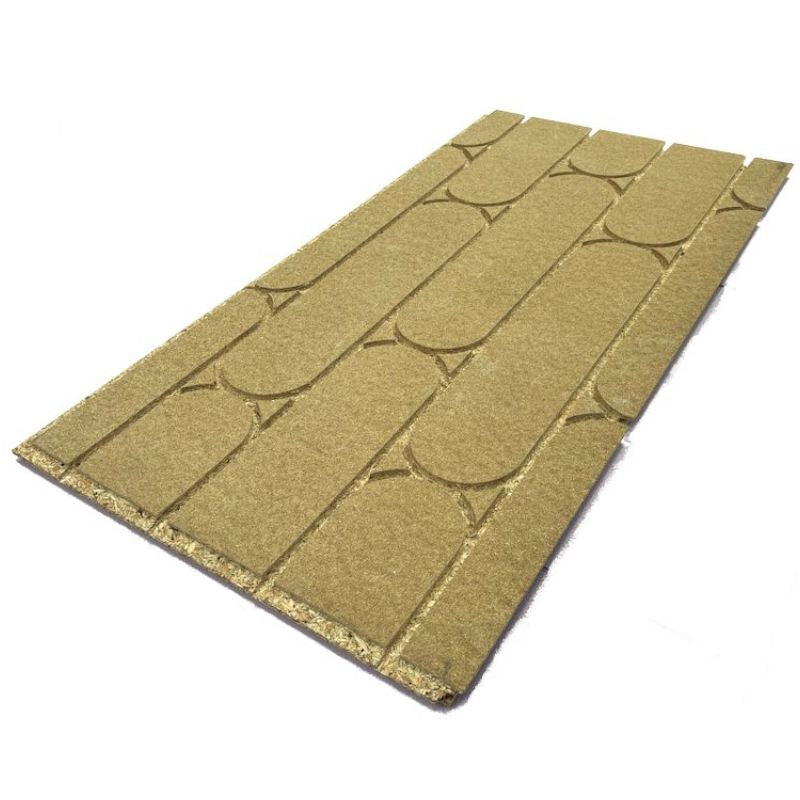

HeatBoard ONE – 1200x600mm – Easy Lay – All-in-One 22mm Grooved Chipboard Panel
Easy Lay Chipboard Floor Deck, Underfloor Heating System for Joisted Floors
Description:
The HeatBoard ONE system features a 22mm flooring grade tongue & groove interlocking chipboard panel designed as a combined load-bearing floor and underfloor heating carrier. Each panel is pre-grooved with four grooves spaced at 150mm centres to accommodate 12mm pipework for quick and easy installation directly onto floor joists with a maximum 600mm spacing. This version does not include an aluminium foil layer but maintains efficient heat transfer properties suitable for water-based underfloor heating systems. Minimum Order: 22 boards
This system is ideal for joisted wooden floors, replacing traditional floorboards with a chipboard panel that integrates pipe slots for underfloor heating. The tongue & groove design ensures a secure and stable interlocking fit.
Features:
- 22mm flooring grade chipboard, tongue & groove interlocking all round
- Pre-cut grooves for 12mm pipe, spaced at 150mm centres (4 grooves per panel)
- No aluminium foil layer (non-foiled version)
- Full load-bearing panel suitable for direct joist installation
- Thermal conductivity of 0.14 W/mK for efficient heat transfer
- Fire protection classification: BS EN 13501-1 Class D
- Low emission grade E1 (formaldehyde ≤8.0mg/100g)
- Made with approximately 80% recycled content
- Suitable for water-based underfloor heating systems
Technical Specifications:
| Specification | Details |
|---|---|
| Dimensions (L x W x H) | 1200mm x 600mm x 22mm |
| Board Coverage | 0.72 m² |
| Weight | 10 kg per panel |
| Groove Spacing | 150mm centres for 12mm pipe |
| Fire Protection | BS EN 13501-1 Class D |
| Nominal Density | 660-690 kg/m³ |
| Formaldehyde Emission | E1 (≤ 8.0mg/100g) |
| Recycled Content | 80% |
| Thermal Conductivity | 0.14 W/mK |
| Panel Type | Flooring Grade Chipboard, Tongue & Groove |
Installation:
Designed for straightforward installation on joisted floor constructions with joist centres up to 600mm. The pre-grooved chipboard allows quick fitting of 12mm pipe directly into the grooves without the need for aluminium plate heat spreaders. Compatible with water-based underfloor heating systems and a range of pipe fittings and manifolds.
Minimum Order: 22 boards
- Type Water Underfloor Heating Panels
- Vendor AIZO - Quality Heating
