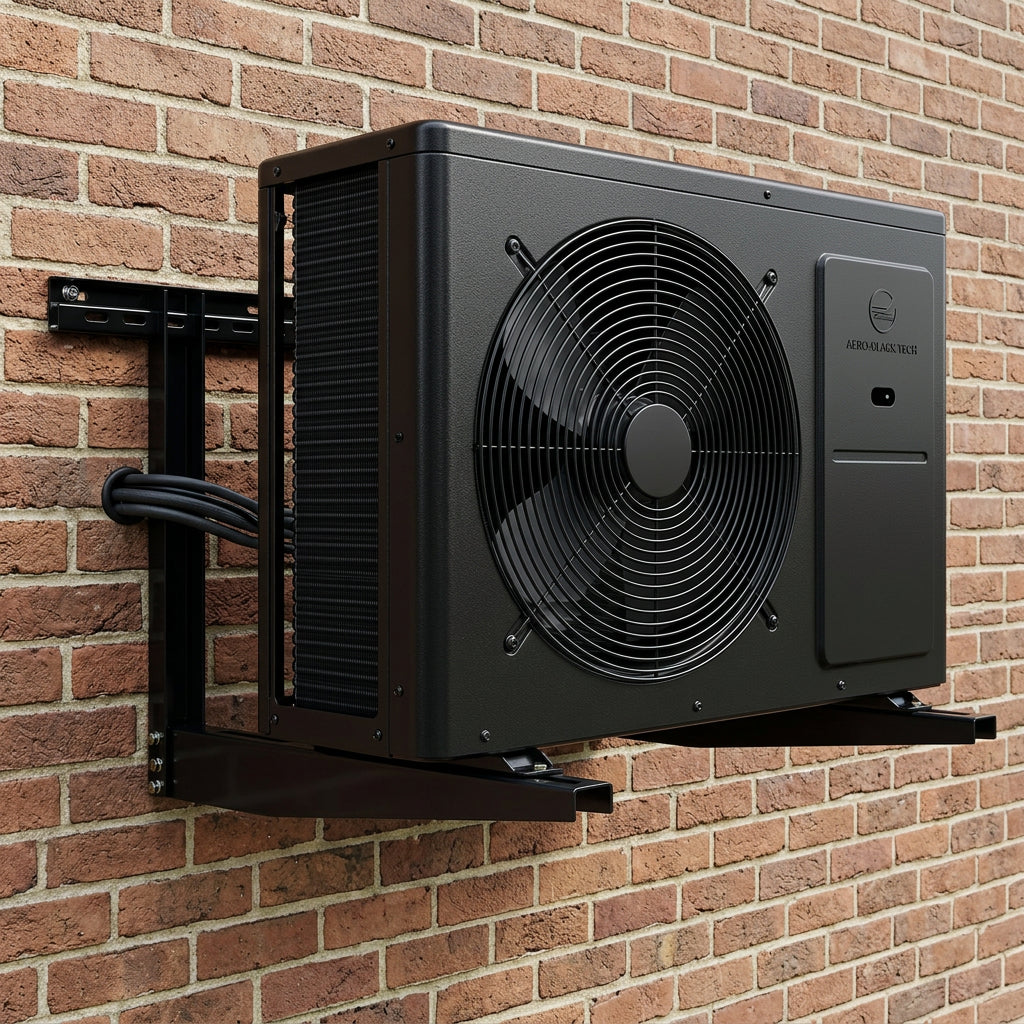

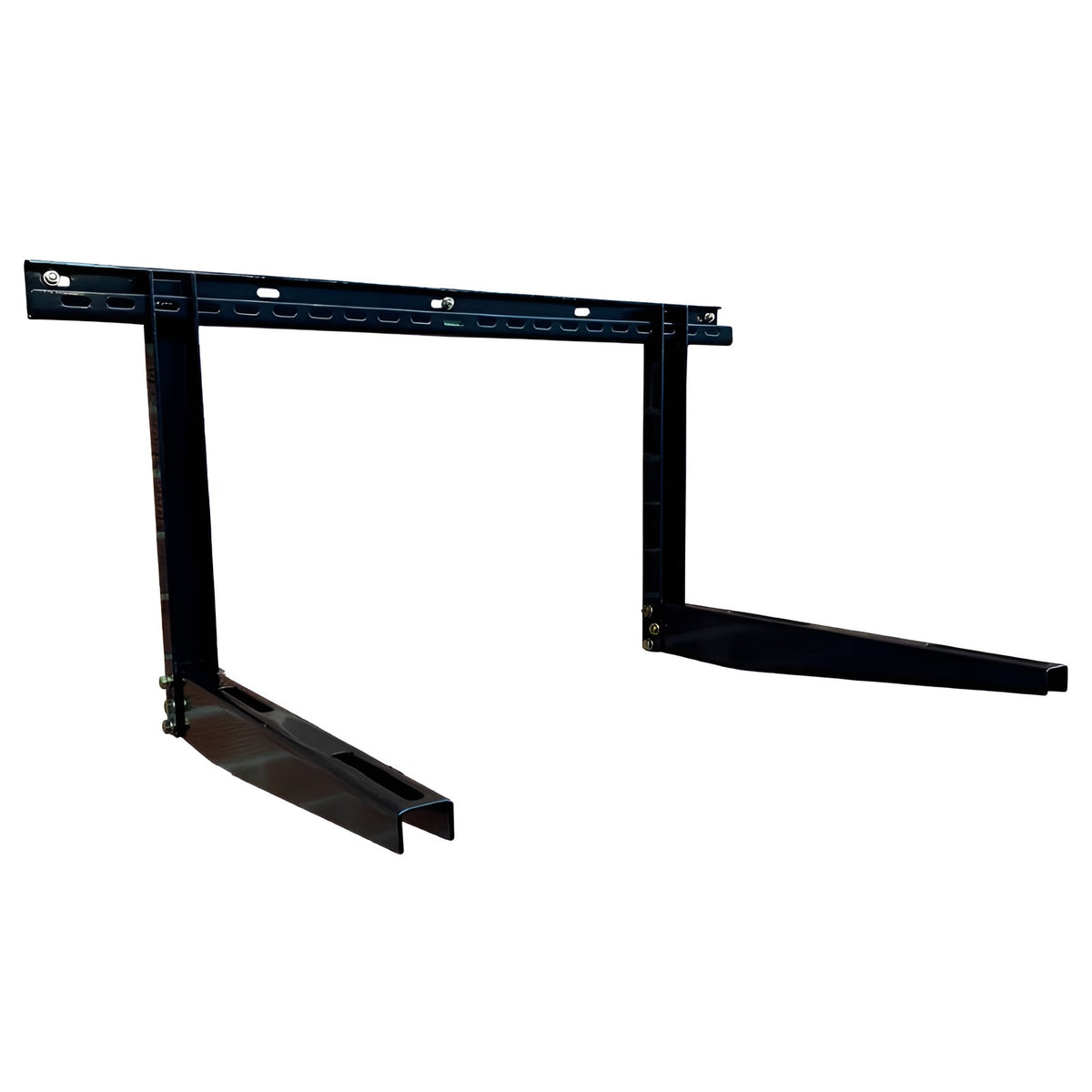

The Heat Pump Wall Bracket XXL Black - 200kg, 780mm (CBR2-XXL-BL) is a heavy-duty, flat-packed wall mounting bracket for outdoor condensing units and air source heat pumps, manufactured by DiversiTech. This is the black-finish version of the Type 2 crossbar-style bracket: a horizontal crossbar with an integral spirit level carries two uprights that slide freely along its length, letting the arm span be set to match the unit being mounted. All components are finished with a scratch-resistant, textured RAL 7032 powder coating designed to match most heat pump and condensing unit casings.
Manufacturer part code: CBR2-XXL-BL (Type 2 Bracket - Double XL (Black)). Rated to a safe working load of 200kg, with a support arm length of 780mm to suit larger outdoor units.
200kg
Safe Working Load
400kg
Tested Max Load
780mm
Support Arm Length
550mm
Upright Height
17.5kg
Bracket Weight
RAL 7032
Powder Coat Finish
Important Safety Information
Heat pumps mounted on a wall bracket may not be MCS-compliant. Always check the minimum rear clearance required behind the heat pump is met before specifying a wall-mounted installation.
Black Textured Powder Coat
Finished in a black textured powder coat rather than the standard grey RAL 7032, for installations where a darker bracket better suits the building or unit finish.
Integral Spirit Level
The crossbar includes a built-in spirit level for faster, more accurate installation.
Adjustable Arm Span & Wall Spacers
Uprights mount anywhere along the crossbar, and adjustable wall spacers help level the arms on uneven wall surfaces.
Extra-Long 780mm Arms
Support arms extend to 780mm, matching the standard-finish XXL bracket for larger condensing units and heat pumps.
Four-Stage Weather Protection
Every bracket passes through four finishing stages: Zintec corrosion-resistant steel, a zinc phosphating dip, an ED (electrophoretic deposition) coating, and a final epoxy polyester powder coat for long-term weather resistance.
RAL 7032 Textured Finish
Finished in RAL 7032 with a scratch-resistant textured coating, chosen to match the casings of most condensing units and domestic air source heat pumps.
Independently Load-Tested
All brackets are tested to twice their stated safe working load at an independent UK testing facility.
Technical Specification
General
Manufacturer
DiversiTech
Part Code
CBR2-XXL-BL
Description
Type 2 Bracket - Double XL (Black)
Mounting Type
This is the black-finish version of the Type 2 crossbar-style bracket: a horizontal crossbar with an integral spirit level carries two uprights that slide freely along its length, letting the arm span be set to match the unit being mounted.
Tested to 2x safe working load at an independent UK facility
MCS Note
Wall-mounted heat pump installations may not be MCS-compliant — check rear clearance
Good to Know
This black-finish bracket shares the same load rating, crossbar, and arm dimensions as the standard grey RAL 7032 CBR2-XXL bracket — the only difference is the powder coat colour.
Please Note
Sea salt is highly corrosive to both ferrous and non-ferrous metals. In coastal locations, the repeated wet/dry cycling from salt-laden air creates an especially aggressive environment — DiversiTech recommends stainless steel brackets for installations near the coast.
Frequently Asked Questions
What is the safe working load of the Heat Pump Wall Bracket XXL Black - 200kg, 780mm (CBR2-XXL-BL)?
The bracket has a safe working load of 200kg, and has been independently tested to a destructive load of 400kg — twice the rated safe working load.
Is this bracket suitable for my heat pump or condensing unit?
The bracket is designed to suit most brands of condensing unit and domestic air source heat pump. Always check your unit's weight and footprint against the bracket's safe working load and arm dimensions before ordering.
Will mounting my heat pump on this bracket affect MCS compliance?
Wall-mounted installations may not be MCS-compliant depending on the manufacturer's installation instructions. Always confirm the required rear clearance behind the unit is achievable before specifying a wall bracket.
What's included in the box?
Each bracket is supplied flat-packed for self-assembly, complete with fixings, guards, collection trays, and installation instructions.
Is this bracket suitable for coastal installations?
Standard powder-coated brackets are not recommended for coastal sites. Sea salt exposure creates a corrosive wet/dry cycle, and stainless steel brackets are recommended instead for installations near the coast.
