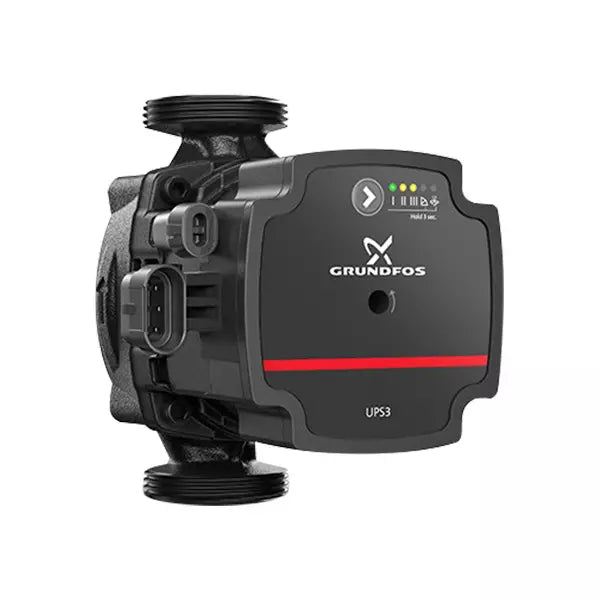

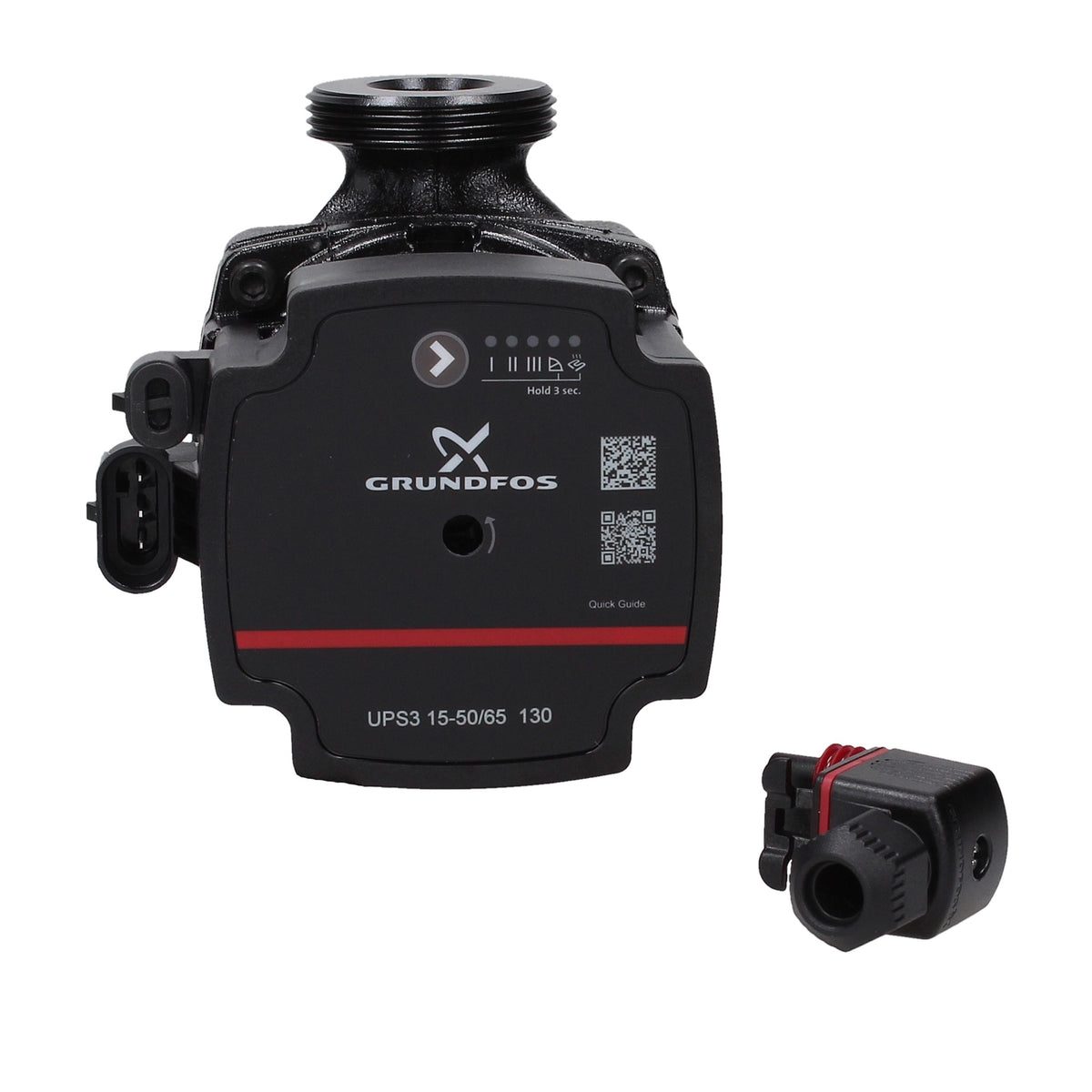

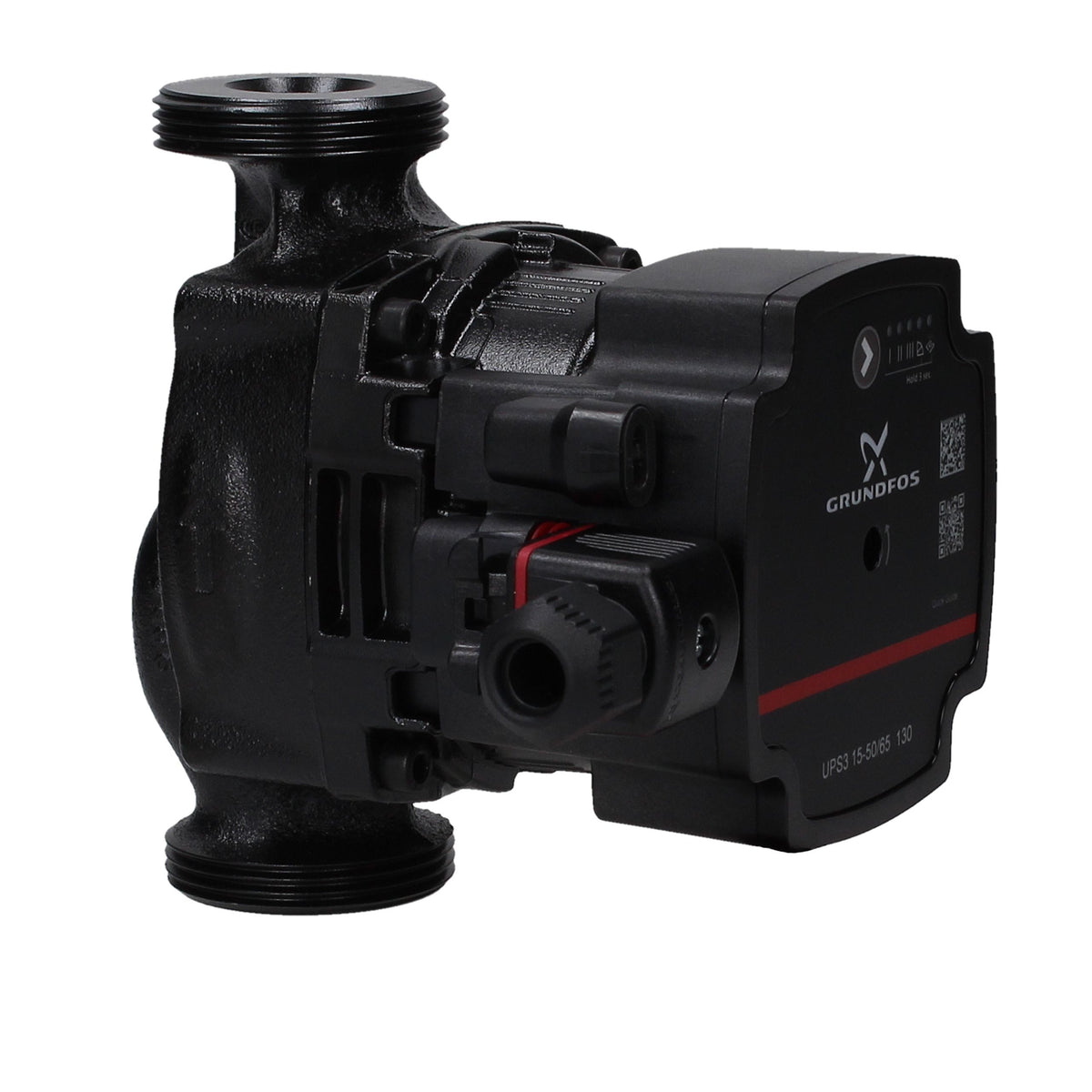

Grundfos UPS3 15-50/65 130 Circulating Pump
Couldn't load pickup availability
Payment details
Grundfos UPS3 15-50/65 130 Circulating Pump
The Grundfos UPS3 15-50/65 130 is a high-efficiency, canned-rotor circulator pump designed for optimal water circulation in domestic heating systems. Suitable as a universal replacement or for new installations, this pump combines advanced energy-saving technology, robust construction, and flexible control modes for maximum performance and reliability.
Key Features
- Three control modes: constant pressure (2 settings), proportional pressure (2 settings), and constant curve (3 settings)
- Low-voltage PWM (Pulse Width Modulation) speed control – profile A (heating)
- User-friendly one-button interface for fast commissioning and settings
- LED indicators show operating status, warnings, and alarms
- Self-venting design for easy commissioning
- Maintenance-free operation with self-lubricating bearings
- Manual deblocking screw for easy access if required
- Compact design fits most installations and boiler housings
- Cast iron, electrocoated housing for superior corrosion resistance
- Synchronous permanent-magnet motor with integrated frequency converter for high efficiency
- Energy Efficiency Index (EEI) ≤ 0.20
- 5-year warranty (subject to manufacturer’s T&Cs)
Technical Specifications
| Product Code | 99199622 |
|---|---|
| EAN | 5712608550621 |
| Port-to-Port Length | 130 mm |
| Connection Size | 1 1/2" threaded |
| Max Flow Rate | 1 l/sec (60 l/min) |
| Max Head | 6.5 m |
| Max Working Pressure | 10 bar |
| Liquid Temperature Range | 2°C to 95°C |
| Ambient Temperature Range | 0°C to 55°C |
| Power Supply | 230V, 50Hz |
| Motor Type | Synchronous permanent-magnet |
| Pump Housing Material | Cast iron, electrocoated |
| Installation Position | Horizontal or vertical |
| Dimensions (H × W × D) | 171 × 114 × 197 mm |
| Weight | 2.2 kg |
| Warranty | 5 years (registration required) |
Benefits
- Universal replacement for most 130mm domestic circulators
- Easy integration with new or existing heating systems
- Reduces energy consumption and running costs
- Reliable, maintenance-free operation for peace of mind
Upgrade your heating system with the Grundfos UPS3 15-50/65 130 Circulating Pump for outstanding efficiency, reliability, and ease of use.
- Type Recirculating pumps
- Vendor Grundfos
- SKU UPS3
