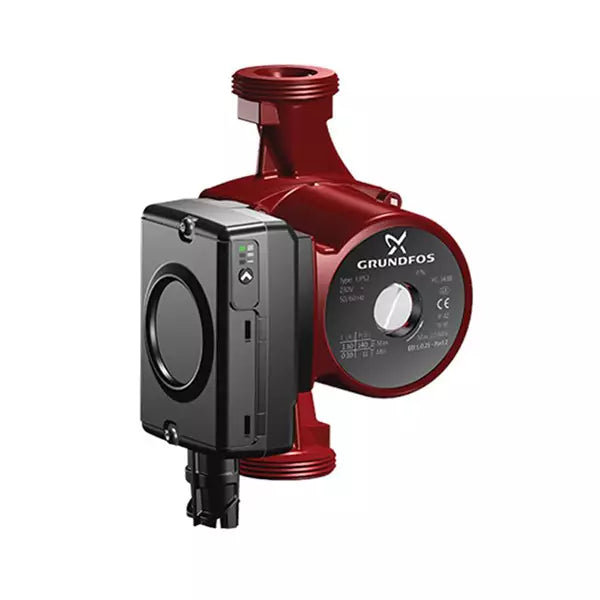

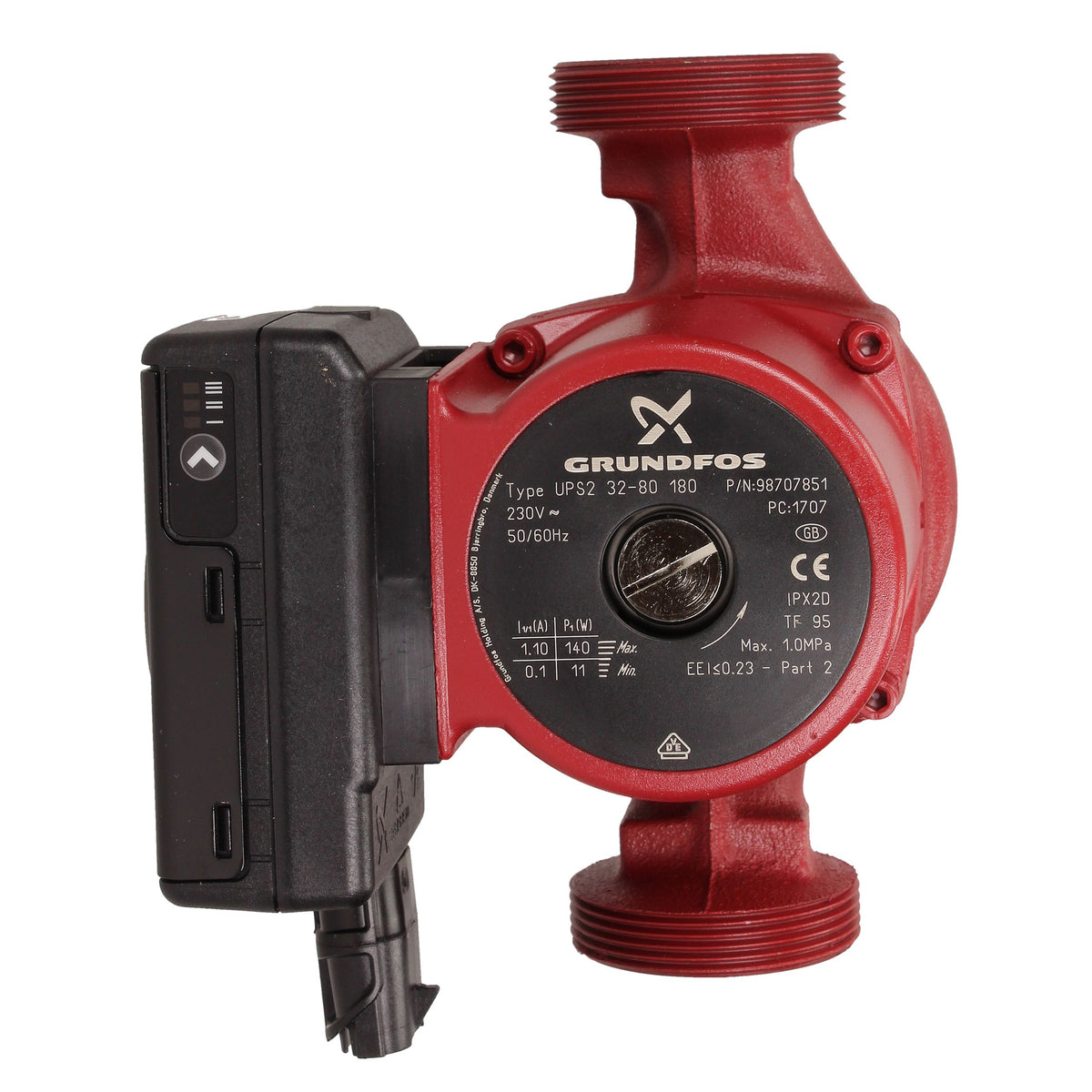

Grundfos UPS2 32-80 180 Circulator Pump | 8 m Head | 98707851

Description

The Grundfos UPS2 32-80 180 is a high-efficiency circulator pump with a permanent magnet ECM motor for domestic heating. It delivers up to 8 m head and is designed as a like-for-like replacement for older UPS circulators, with an EEI of 0.23 or lower that meets ErP requirements.

A single push-button selects three proportional-pressure curves or three fixed speeds, and no external motor protection is required. It suits one- and two-pipe radiator systems, underfloor heating loops and larger domestic or light commercial systems.

8 m

Maximum head

5.7 m³/h

Maximum flow

140 W

Maximum power

G 2

Connection

180 mm

Port-to-port length

EEI ≤ 0.23

ErP compliant

Like-for-like replacement

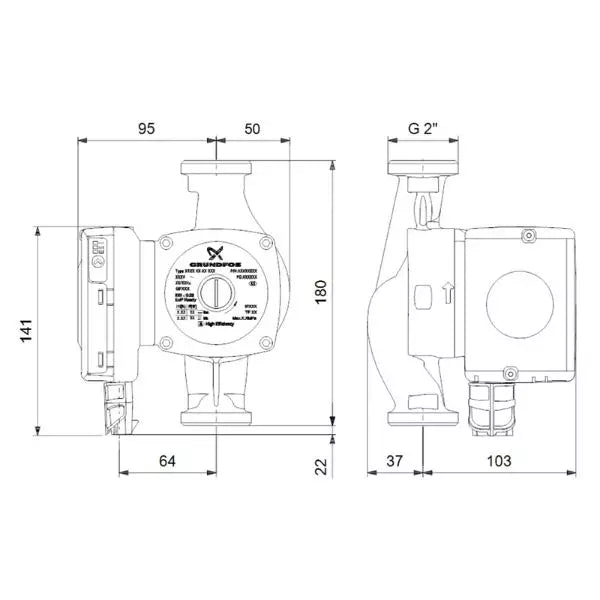

The UPS2 is Grundfos's replacement for older UPS circulators, with new motor technology and hydraulics. Match the 180 mm port-to-port length and G 2 thread to the pump you are replacing.

Check before you order

This model is a DN 32 pump with G 2 threaded ports. Confirm the thread size of your existing pump and whether union or valve kits are needed. The pump must be fitted with a horizontal motor shaft and cannot vent the system.

Safety

Isolate the electrical supply and let the system cool before work. Do not start the pump until the system is filled and vented. Electrical connection must be carried out by a competent person in line with BS 7671.

Key features

High efficiency

Permanent magnet ECM motor with an EEI of 0.23 or lower for reduced running costs compared with older fixed-speed pumps.

Simple control

One button selects three proportional-pressure curves or three fixed speeds. Factory setting is speed III.

Proportional pressure

Proportional-pressure control lowers head as heat demand falls, which reduces noise from thermostatic radiator valves.

Robust construction

Canned rotor design with ceramic bearings, a stainless steel rotor can and a composite impeller. The electrocoated housing resists corrosion.

Built-in protection

Electronic thermal protection is integrated, so no external motor protection is needed.

Wide application range

Suited to radiator, underfloor and mixing-loop applications in large homes and light commercial systems.

Specification

General

Brand

Grundfos

Model

UPS2 32-80 180

Application

Domestic heating circulation

Hydraulic

Connection

G 2

Port-to-port length

180 mm

Maximum head

8 m

Maximum flow

5.7 m³/h

Liquid temperature

+2 to +95 °C

Maximum system pressure

10 bar (PN 10)

Electrical

Supply

1 x 230 V, 50 Hz

Power input

Up to 140 W

Current

0.1 to 1.1 A

Enclosure class

IP42

Insulation class

F

Energy efficiency index

EEI ≤ 0.23

Construction

Pump housing

Cast iron, electrocoated

Impeller

Composite (PES/PP)

Net weight

2.7 kg

Ambient temperature

0 to +40 °C

Frequently asked questions

What does UPS2 32-80 180 mean?

32 is the nominal port size, 80 is the maximum head in decimetres (8 m) and 180 is the port-to-port length in millimetres.

Does it replace an older UPS pump?

Yes. The UPS2 is designed as a like-for-like replacement for older UPS circulators. Match the 180 mm length and G 2 thread.

Can it be used with underfloor heating?

Yes. It is suitable for underfloor heating loops and mixing loops, as well as one- and two-pipe radiator systems.

Which setting should I use?

The factory setting is speed III (maximum performance). Press the button to select a lower fixed speed or one of the three proportional-pressure curves to match the system.

Can I vent the system through the pump?

No. The system must be vented first. The pump itself is self-venting and needs no separate venting before start-up.

Does it need external motor protection?

No. Electronic thermal protection is built in.
