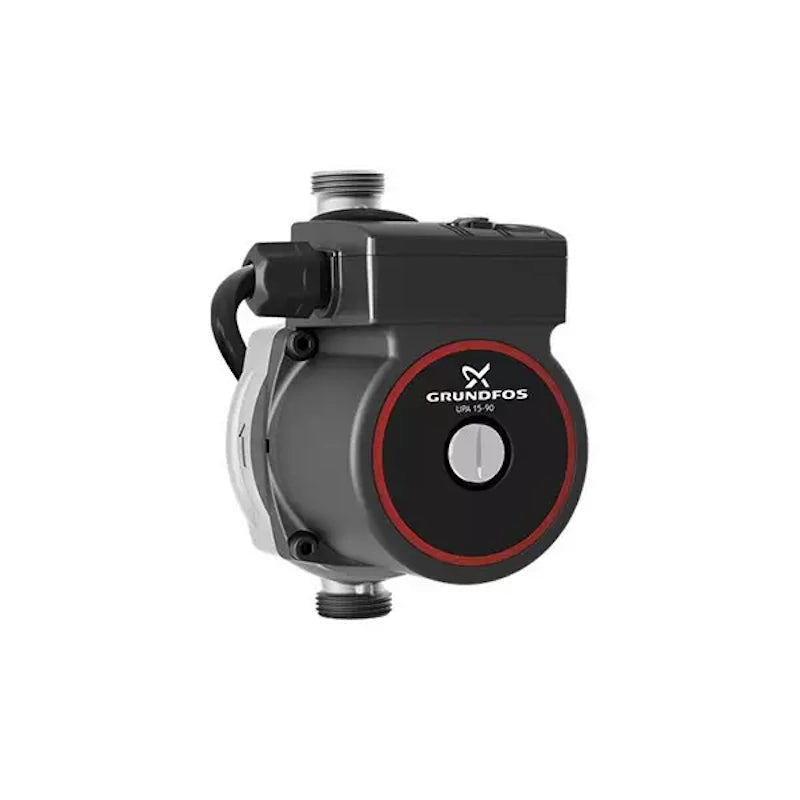

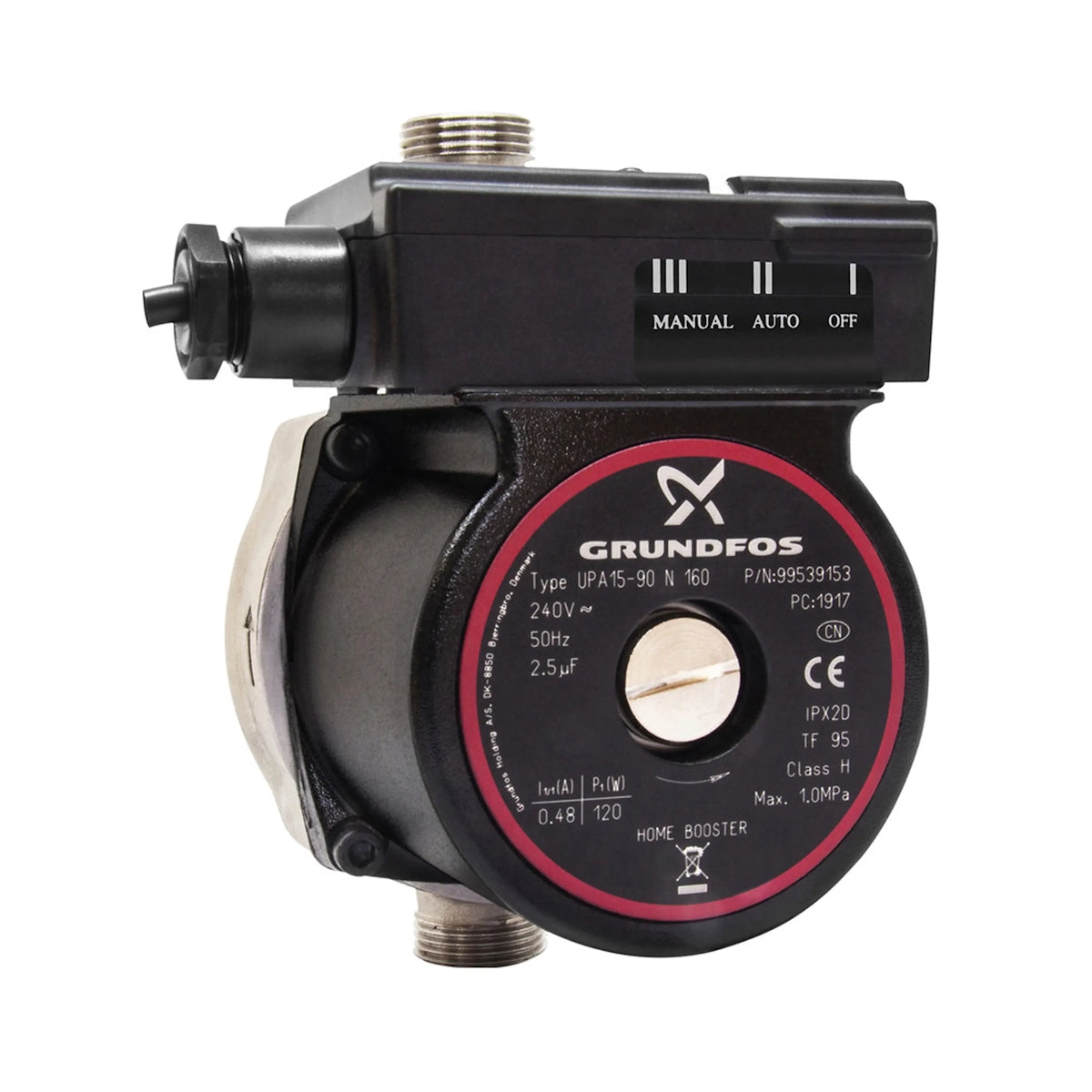

Grundfos UPA15-90N Small Appliance Booster Pump – Reliable Domestic Water Pressure Booster

The Grundfos UPA15-90N is a compact, high-quality stainless steel circulator pump designed to boost water pressure in domestic hot and cold water systems. It provides enhanced water flow at taps, showers, and appliances, delivering consistent pressure with automatic start and stop functionality controlled by an integrated flow switch.

Why Buy the Grundfos UPA15-90N?

• Reliable Pressure Boost: Typically adds between 0.5 bar and 0.75 bar to existing inlet pressure, improving water flow and user comfort.
• Automatic Operation: Integrated flow switch starts and stops the pump according to water demand, saving energy and reducing wear.
• Robust Construction: Canned rotor design with stainless steel pump housing and composite impeller for excellent corrosion resistance and long service life.
• Low Noise Level: Operates quietly at less than 43 dBA, ideal for residential environments.
• Compact Design: 160 mm port-to-port length and 3/4" BSP female connections fit neatly into tight plumbing spaces.
• Easy Installation: Supplied with pre-wired UK plug and 1.5m cable for straightforward connection to a fused switched spur.
• Energy Efficient: Operates at low power consumption of 120W with impedance-protected motor for maintenance-free use.
• Wide Temperature Range: Suitable for liquids between 2°C and 95°C, with a rated temperature of 60°C.
• Approved and Certified: CE, WRAS, WEEE, and UKCA approvals ensuring compliance with relevant standards.
• 2 Year Warranty: Manufacturer backed for reliability and peace of mind.

Suitable For

• Domestic water systems requiring improved pressure to taps, showers, and appliances.
• Homes with low mains or gravity-fed water pressure arrays.
• Installations requiring a quiet and compact pressure booster.
• Water temperatures up to 95°C, including hot water boosting applications.

Technical Specifications

MPN: 99539153
EAN: 5713830744017
