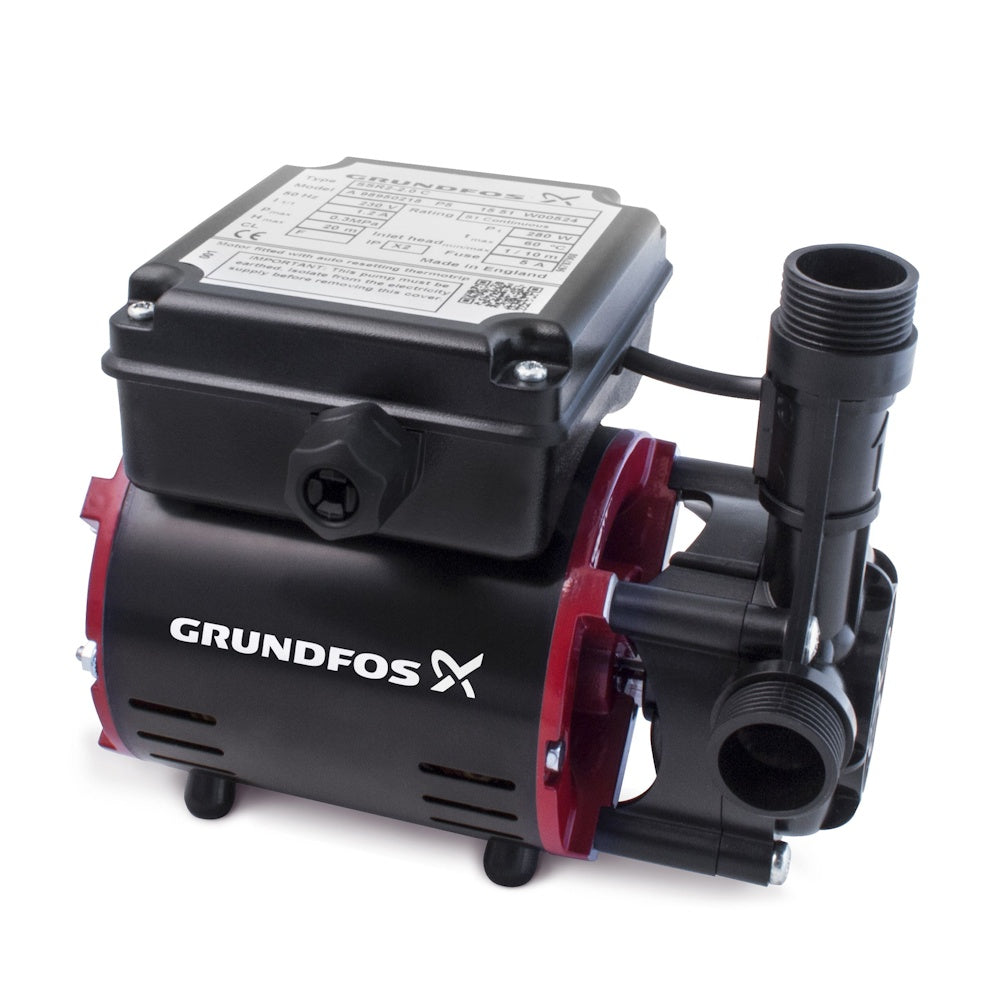

Grundfos SSR2-2.0 C 2.0 Bar Single Impeller Positive Head Composite Shower Pump

The Grundfos SSR2-2.0 C Composite Single Impeller Positive Head Shower Pump 2.0 Bar 98950218 is a compact, low-noise regenerative shower booster pump designed to increase water pressure and flow in gravity-fed systems where the shower outlet is below the cold water storage tank.

Product Description

The Grundfos SSR2-2.0 C is a high-performance composite shower pump with a single regenerative impeller. It provides a significant boost to both pressure and flow for one shower or bathroom outlet. The pump features a quiet induction motor, anti-vibration feet, auto-resetting thermal cut-out for safety, and comes complete with two 22 mm stainless steel braided connection hoses with push-fit fittings. Ideal for gravity-fed hot and cold water systems.

Key Features

• 2.0 bar pressure boost: Ideal for improving shower performance in gravity-fed systems.
• Single regenerative impeller: Quiet and efficient operation.
• Low noise design: Quiet induction motor and minimal turbulence.
• Auto-resetting thermal cut-out: For added safety and protection.
• Anti-vibration feet: Reduces noise and vibration transmission.
• Supplied with hoses: Two 22 mm stainless steel braided hoses with push-fit connections.
• Composite construction: Lightweight, corrosion-resistant, and durable.

Technical Specifications

• Model: SSR2-2.0 C (98950218).
• Maximum pressure: 2.0 bar.
• Maximum flow rate: 14 L/min.
• Minimum flow rate: 5 L/min.
• Power consumption: 280 W.
• Voltage: 240 V, 1 Ph, 50 Hz.
• Noise level: 55–65 dB(A) at 1 m.
• IP rating: IPX2.
• Connection type: 22 mm push-fit (hoses included).
• System type: Positive head (gravity-fed).
• Max. no. of showers: 1.

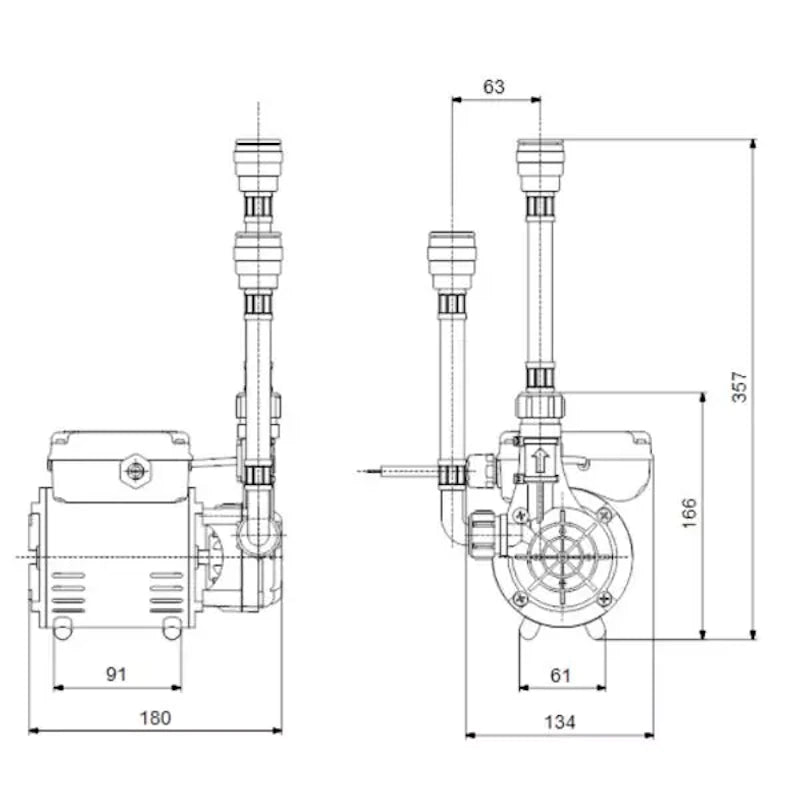

Dimensions & Weights

• Height: 165 mm.
• Length: 185 mm.
• Width: 150 mm.
• Weight: 4.0 kg.

System & Application Notes

• Designed for gravity-fed systems only — outlets must be below the cold water storage tank (positive head).
• Must NOT be connected directly to mains water supply.
• Suitable for boosting one shower or bathroom outlet.
• Professional installation recommended; 1–2 year manufacturer guarantee (depending on retailer).
• WRAS approved and CE compliant.
