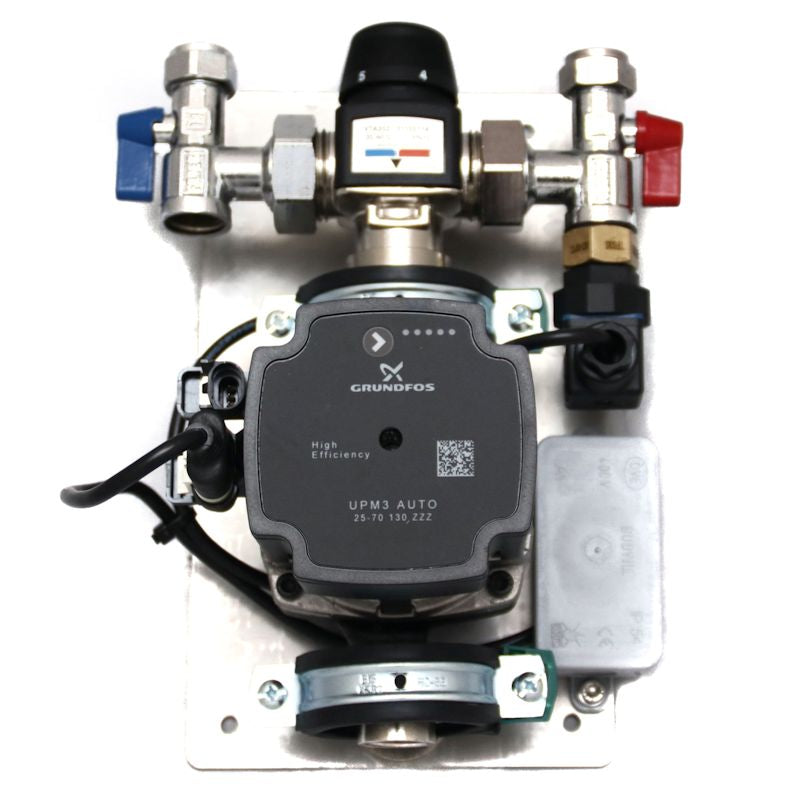

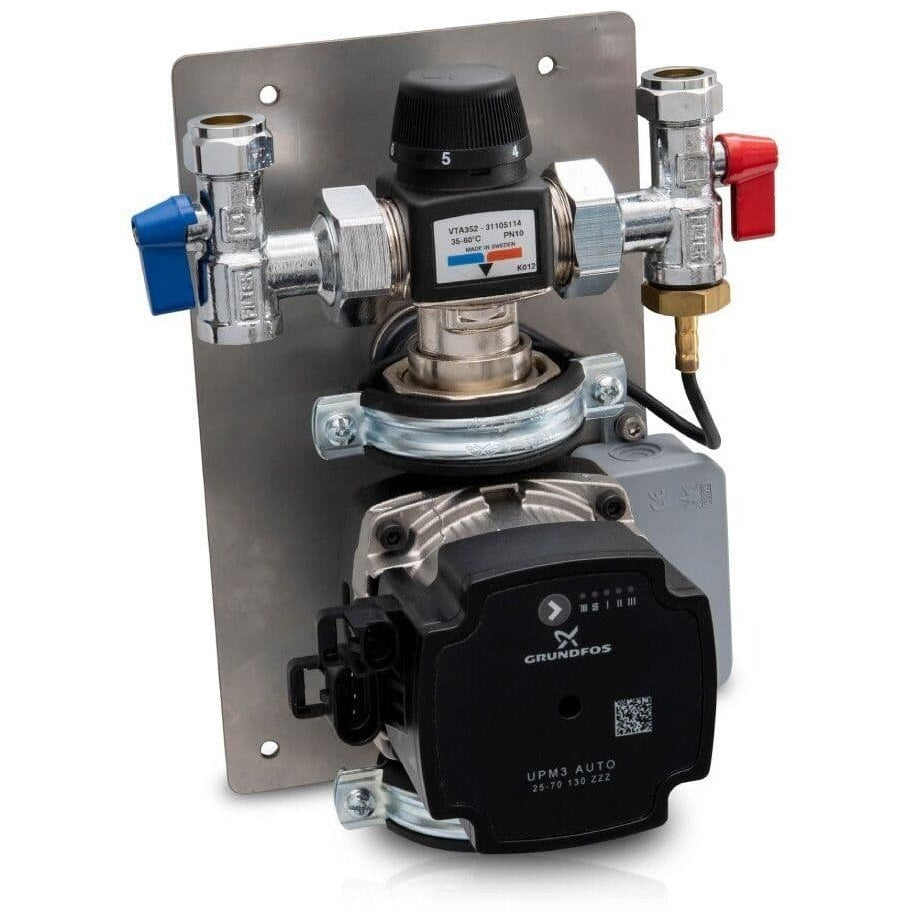

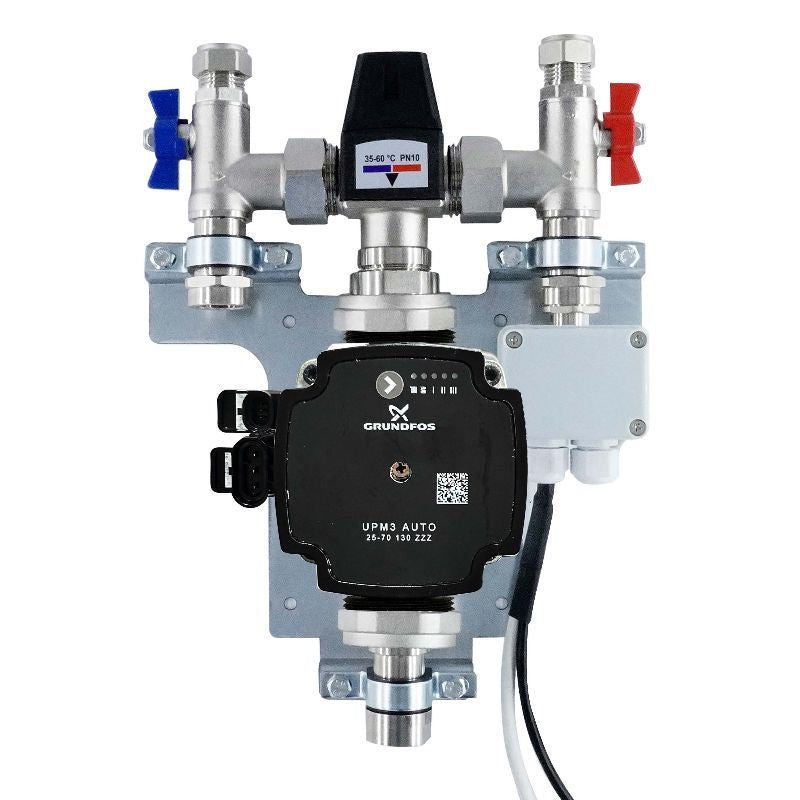

Grundfos Single Circuit Pump & Mixing Valve Unit
Description
The Single Zone Temperature Controller and Pump Assembly is a compact, high-performance temperature control unit designed to precisely regulate the water temperature and circulation in underfloor heating systems. Intended to operate as an extension to an existing radiator circuit, it manages the flow temperature supplied to an underfloor heating loop with heat output up to 3 kW.
This unit features an automatic thermostatic mixing valve that blends water to the required temperature, ensuring consistent and accurate control within +/- 2°C despite fluctuating boiler flow and return temperatures. It is suitable for multiple heat sources including oil and gas boilers, wood burning stoves, solar thermal collectors, air and ground source heat pumps, and pellet burners.
Its lightweight and compact design allows direct connection to pipework without the need for additional brackets or mounting supports, simplifying installation.
What’s Included
- High Output Grundfos 3-speed circulation pump
- Thermostatic mixing valve (thermomix) with temperature control range of 35°C to 65°C
- Isolating valves, flow and return connections
- Fixing kit for easy installation
- Comprehensive installation instructions
Key Features
- Automatic mixing valve delivering precise temperature control to within +/- 2°C
- Temperature setting adjustable between 35°C and 65°C
- Pre-assembled compact unit for quick and easy installation
- High output Grundfos 3-speed circulation pump for efficient water flow
- Designed for heat output up to 3 kW
- Compatible with a wide range of heating sources
- Lightweight and does not require extra support brackets
- Integral ball valves allow isolation for maintenance
Benefits
- Ensures stable water temperature for efficient and comfortable underfloor heating
- Reduces energy waste by maintaining exact flow temperature
- Easy to fit directly to existing radiator circuits or heating systems
- Compact design saves space and simplifies pipework
- Reliable components backed by a 2-year warranty
Technical Specifications
| Heat Output Capacity | Up to 3 kW |
|---|---|
| Temperature Setting Range | 35°C - 65°C |
| Temperature Control Accuracy | ± 2°C |
| Circulation Pump | Grundfos 3-speed high output |
| Compatible Pipe Size | Suitable for 15mm or 16mm pipe connections |
| Connection Type | Compression fittings |
| Weight | Approx. 5 kg |
| Installation | Pre-assembled unit, includes fixing kit |
| Warranty | 2 years |
The Single Zone Temperature Controller and Pump Assembly is ideal for small rooms or extension projects requiring precise, reliable control of water temperature in underfloor heating circuits, ensuring comfort, energy efficiency, and ease of installation.
